ID: 194520

Workstation - Xeon W7-2595X - RTX PRO 6000 Blackwell Dual

Xeon W7-2595X, 26C
2x RTX PRO 6000 Blackwell, 96GB
4TB WD Black SN850X

ASUS Pro WS W790E-Sage SE
4x 32GB RDIMM DDR5-5600

44.999

incl. VAT plusShipping

Pre-order:

5-7 business days

3-year warranty,
including pickup and return

Lifetime
Support

Professional
assembly

Rigorous testing and
quality control

Workstation

Xeon W7-2595X - RTX PRO 6000 Blackwell Dual

This system is particularly suitable for the OTOY® OCTANE™ and Redshift® renders. These GPU-based renders benefit from maximum graphics card performance and show near-perfect scaling with any additional graphics card. Intel Xeon processors with high clock rates in combination with two fast graphics cards such as the NVIDIA GeForce RTX 5080/5090 are suitable as a solid basis for these workstations. If CPU-heavy rendering tasks are to be performed with the workstation, hybrid systems with multiple cores and high clock frequencies are recommended. Depending on the rendering tasks, 32GB - 128GB RAM may be required. The built-in SSD system drive ensures lightning-fast loading and response times for the operating system and applications.

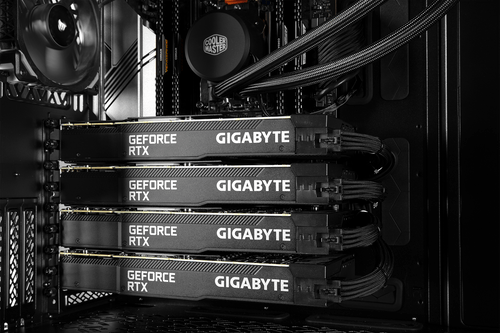

Two NVIDIA RTX PRO 6000 graphics cards ensure the graphical calculation of this system.

With this workstation, all CAD tasks are no longer a problem for you

Easy editing of projects in up to 4K resolution

Sophisticated multitasking thanks to the latest Intel Xeon W7 processor

Ultra-fast response times thanks to SSD drive

Quiet cooling thanks to large tower cooler

Technical details

Workstation - Xeon W7-2595X - RTX PRO 6000 Blackwell Dual

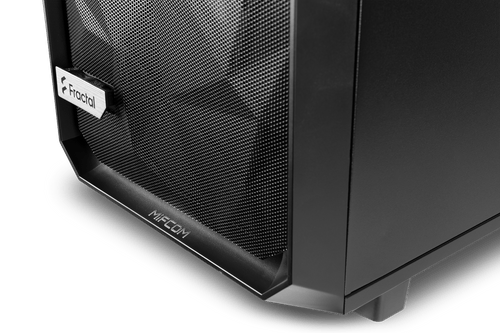

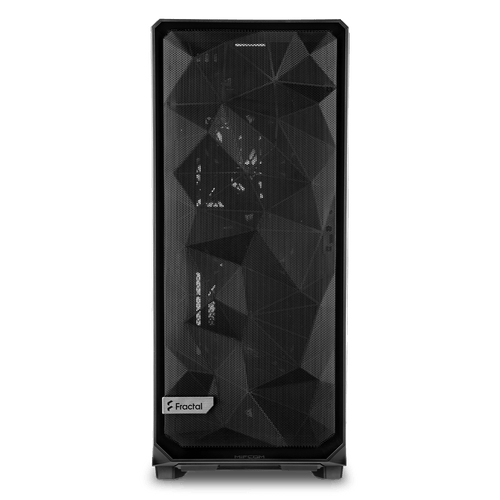

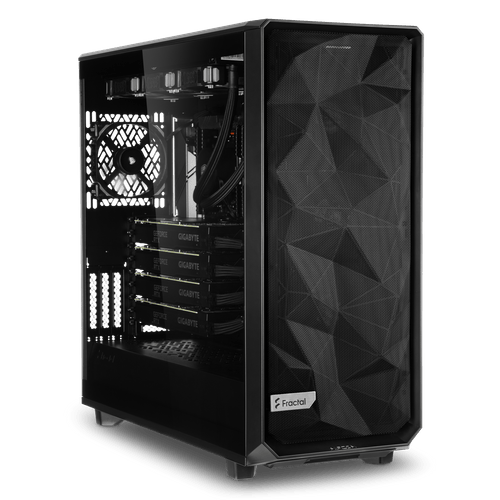

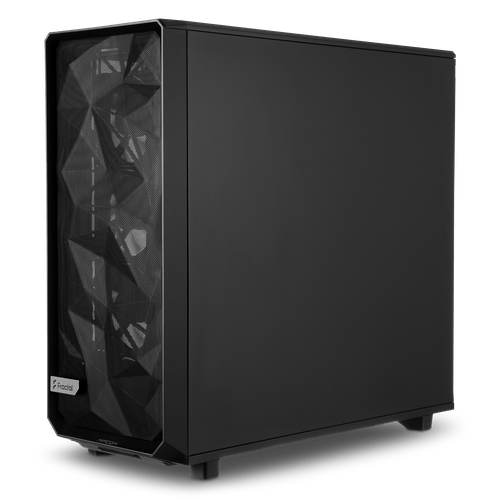

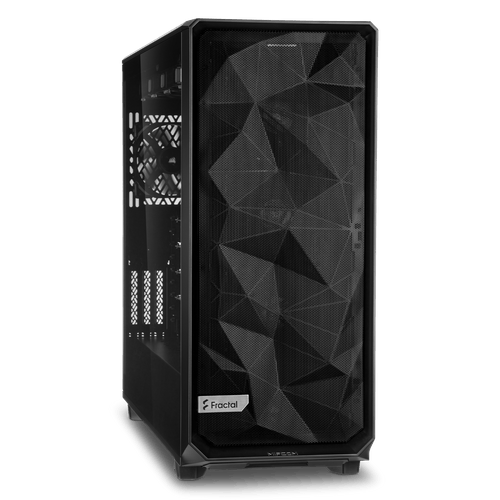

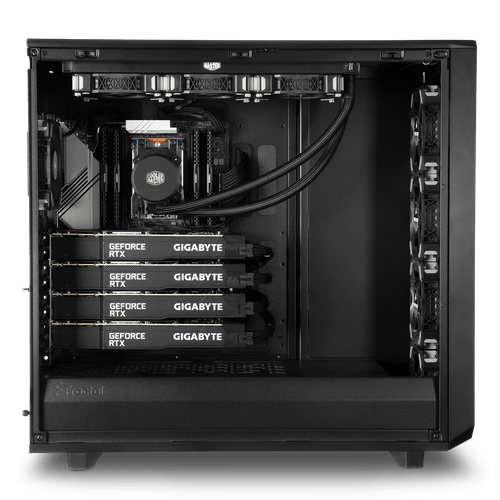

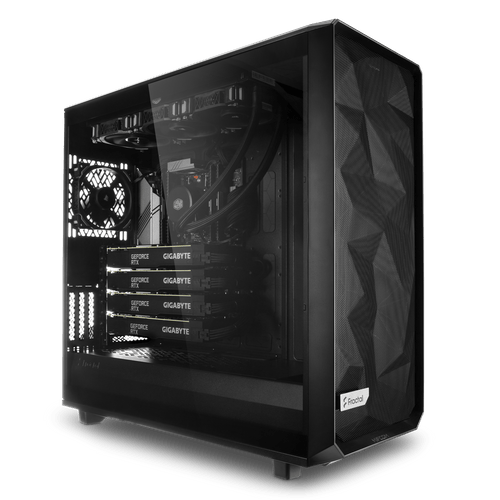

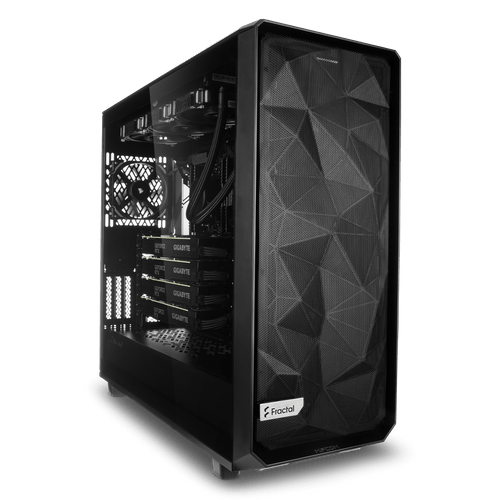

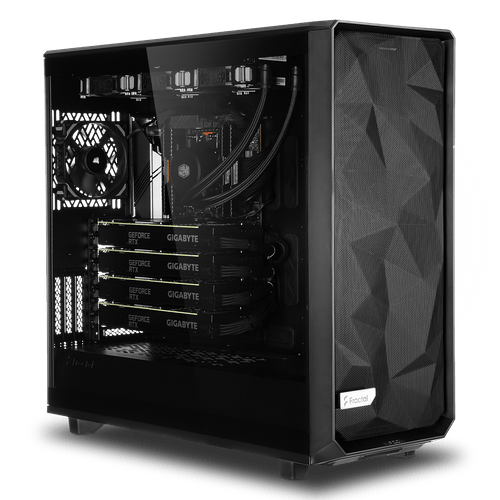

Fractal Design Meshify 2 XL, black
The Meshify 2 XL joins the Fractal Design lineup with unbeatable cooling performance and an innovative look. The angular and asymmetrical airflow front panel makes the Meshify 2 XL a convincing high-airflow case.
Technical details
Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
Number of PCIe slots12 (3x Riser Card)
DesignFull-Tower
Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX (SSI CEB, 12 "x10.5")/E-ATX (SSI EEB, 12 "x13")/EE-ATX (13.68 "x13")
Fan (front)2x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A) or 3x 140mm (optional) or 4x 120mm (optional)
Fan (rear)1x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A)
Fan (top)3x 140mm (optional) or 4x 120mm (optional)
Fan (lateral)-
Fan (bottom)2x 140mm (optional)
Internal drive bays6x 2.5"/3.5" (horizontal, drive rails), 2x 2.5"
ManufacturerFractal
Lighting-
Dimensions (WxHxD)240x566x600mm
Special featuresintegrated fan control, cable management, dust filter, graphics card can be mounted vertically, glass viewing window

Intel Xeon W7-2595X, 26x 2.8GHz, 48.75MB L3 cache
Intel Xeon W-2500: Improved performance for demanding workstation tasks. This refresh generation offers more computing power and efficiency for content creation, engineering and data processing. Rely on proven Xeon reliability with DDR5 memory and PCIe 5.0 connectivity.
Technical details
Processor cores26
BaseLGA 4677
Processor threads52
Base clock2.80 GHz
Turbo beat4.80 GHz
L2 cache52MB (26x 2MB)
L3 cache48.75MB
TDP250 Watt
iGPU type (label)N/A
PCIe lanes64x PCIe 5.0
Memory controllerQuad Channel DDR5-4800 (PC5-38400, 153.6GB/s), max. 2TB
ManufacturingIntel 7
Code nameSapphire Rapids-WS, Plattform: Fishhawk Falls

ASUS Pro WS W790E-Sage SE | Intel W790
Technical details
Processor socketIntel 4677
RAM support8x DDR5 DIMM, octa PC5-54400R/DDR5-6800 (OC), max. 2TB (RDIMM)
Wireless standardsN/A
Form factorE-ATX (SSI EEB)
ChipsetIntel W790
LightingN/A
Special featuresAudio+solid capacitors, ECC support, IPMI 2.0, Diagnostic LED (segment display), Diagnostic LED (LED indicators), 3x M.2 passive coolers, integrated I/O panel, onboard TPM 2.0 support (Intel PTT), remote maintenance with compatible CPU (Intel vPro)
Power supply2x 24-pin ATX, 4x 8-pin EPS12V, 1x 8-pin PCIe
FAN header2x CPU fan 4-pin, 5x fan 4-pin, 1x pump 4-pin, 1x thermal sensor
Audio description7.1 (Realtek ALC1220)
Connections (rear)1x VGA (AST2600), 1x USB-C 3.2 (20Gb/s, W790), 1x USB-C 3.1 (10Gb/s, W790), 4x USB-A 3.1 (10Gb/s, W790), 2x USB-A 2.0 (480Mb/s), 2x 10GBase-T (Intel X710-AT2), 1x Gb LAN (Realtek) 5x jack, 1x Toslink
Internal connections1x USB-C 3.2 Key-A Header (20Gb/s, W790), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/s (W790), 1x seriell, 1x TPM-Header, 1x VROC-Header, 1x VGA-Header, 1x I2C-Header, 2x SMBus-Header, 1x Location Button Header, 2x LAN-LED-Header, 1x Cardreader (microSD), 1x Front Panel Location LED Header, 1x Message LED header, 1x BMC_T_SENSOR Header, 1x BMC LED, 1x Location LED
RAID level0/1/5/10 (W790)
Expansion slots7x PCIe 5.0 x16 (6x x16, 1x x8), 2x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 2x Slim SAS SFF-8654 4i (PCIe 4.0 x4), 1x M.2/E-Key (Intel CNVi, 2230)
RGB headerN/A

NVIDIA RTX PRO 6000 Blackwell, 96GB
NVIDIA RTX PRO Blackwell Generation: Experience the revolutionary Blackwell architecture. Designed for extreme performance in AI, professional visualization and complex simulations, this generation sets new standards for creativity and innovation.
Technical details
Memory type96GB GDDR7 with ECC mode, 512bit, 28Gbps, 1750MHz, 1792GB/s
API supportDirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
PCIe cut pointPCIe 5.0 x16
GPU typeNVIDIA RTX PRO 6000 Blackwell 96GB
VRAM96GB
GPU clock1590MHz
GPU clock (boost)2617MHz
GPU fan2x axial fan (115mm)
Power consumption600W (NVIDIA)
Dimensions (WxHxD)304x137x40mm (LxWxH)
Special featuresN/A
Power supply1x 12V-2x6
Connections (rear)4x DisplayPort 2.1b UHBR20

32GB RDIMM ECC DDR5-5600
DDR5 with ECC error correction: Ensure the highest data integrity and uninterrupted performance. DDR5 ECC RAM not only offers the bandwidth of the latest memory generation, but also the protection against memory errors that is essential for professional and business-critical systems.
Technical details
RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
RAM size1x 32GB
RAM total32GB
Memory clock Label5600MT/s
Latency46
RAM coolingN/A
Special featuresStandard SPD

Noctua NH-U14S DX-4677
Technical details
Heatpipes6 heat pipes
Fan2x 140x140x25mm, 300–1500 rpm, 140.2 m³/h, 82.51 CFM, 24.6 dB(A), 2.08 mmH₂O, 1.56 W (NF-A15 HS-PWM, Link)
Socket AMDsTR5/SP6
Socket Intel4677
TDPk.A.
Lighting-
Dimensions (WxHxD)150 x 165 x 111 mm (W x H x D)
Special features-

4TB SanDisk WD Black SN850X
Technical details
Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
Storage capacity4TB
InterfaceM.2/M-Key (PCIe 4.0 x4)
Reading speed7300MB/s
Write speed6600MB/s SLC-Cached
SSD controllerWestern Digital Black G2
Mean time between failures-
IOPS 4K1200k reading, 1100k writing
Power supply-

2200W - Seasonic Prime PX-2200
The Seasonic PRIME PX-2200 is a robust power supply that safely powers up to four RTX graphics cards thanks to its compliance with ATX 3.1 and PCIe 5.1 specifications.
Technical details
PSU power (Desc)2200W
Power 12V183.3A
Power 3.3V25A
Power 5V25A
Power -12V0.3A
PSU certification80 PLUS Platinum
Fan135mm, semi-passive
VolumeN/A
Form factorATX
Special featuresErP Lot 6, switchable semi-passive mode

3-year warranty | incl. pick-up & return
We grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details
Warranty period3 years
Pick-up and return service3 years
Telephone supportYes
Callback serviceYes
E-mail supportYes

Dimensions

WIDTH x HEIGHT x DEPTH

240x566x600mm

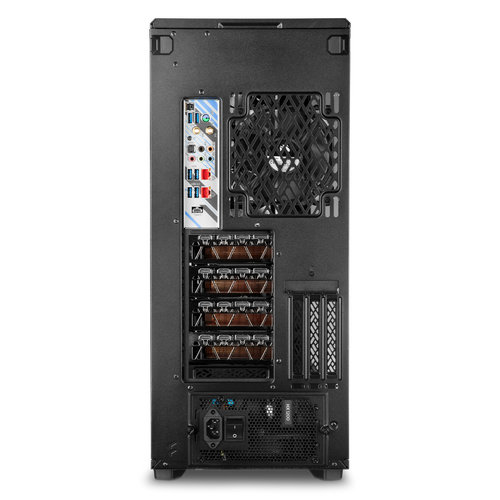

Connectivity

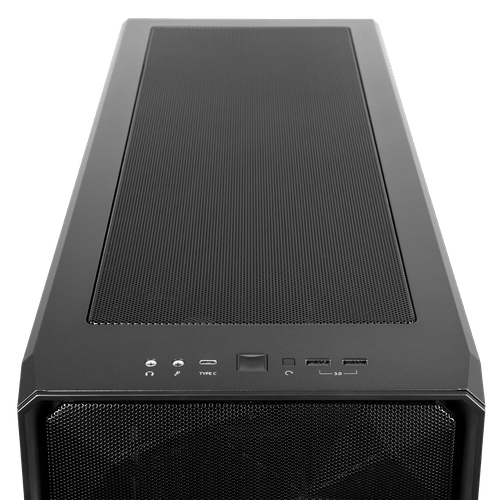

Front

1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)

Rear

1x VGA (AST2600), 1x USB-C 3.2 (20Gb/s, W790), 1x USB-C 3.1 (10Gb/s, W790), 4x USB-A 3.1 (10Gb/s, W790), 2x USB-A 2.0 (480Mb/s), 2x 10GBase-T (Intel X710-AT2), 1x Gb LAN (Realtek) 5x jack, 1x Toslink, 4x DisplayPort 2.1b UHBR20
