Workstation - Xeon W7-2595X - RTX 5090
Xeon W7-2595X, 26C
RTX 5090 32GB, Gainward
2TB WD Black SN850X
ASUS Pro WS W790E-Sage SE
4x 16GB RDIMM DDR5-5600
12.999
,-
incl. VAT plusShipping
Pre-order:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Xeon W7-2595X - RTX 5090
This system is particularly suitable for demanding modeling and animation tasks in Autodesk 3ds Max, Autodesk Maya and Cinema 4D. Tasks in these applications benefit above all from the highest possible clock rate per core. This is why an Intel Xeon W7-2595X is used in this system, which impresses with its first-class single-core performance. The dedicated NVIDIA GeForce RTX 5090 graphics card also significantly increases the viewport performance of the system and thus guarantees smooth work in up to UHD/4K resolution. This graphics card impresses with an unbeatable price/performance ratio, but is not certified for Autodesk applications and therefore does not receive official software support. Depending on the complexity of the scenes and models, 16GB - 64GB RAM may be required. The built-in SSD system drive ensures lightning-fast loading & response times of the operating system and applications.
With this workstation, all modeling and animation tasks are no longer a problem for you
Technical details
Workstation - Xeon W7-2595X - RTX 5090

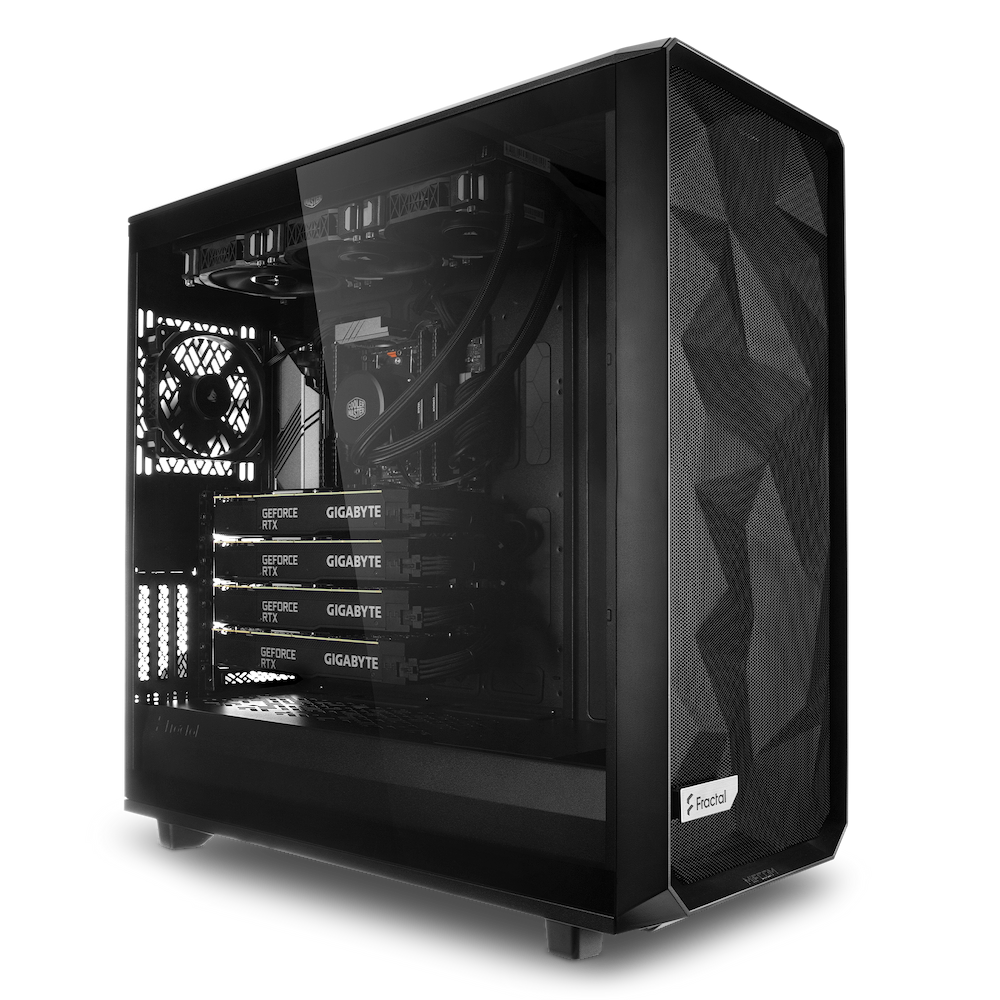

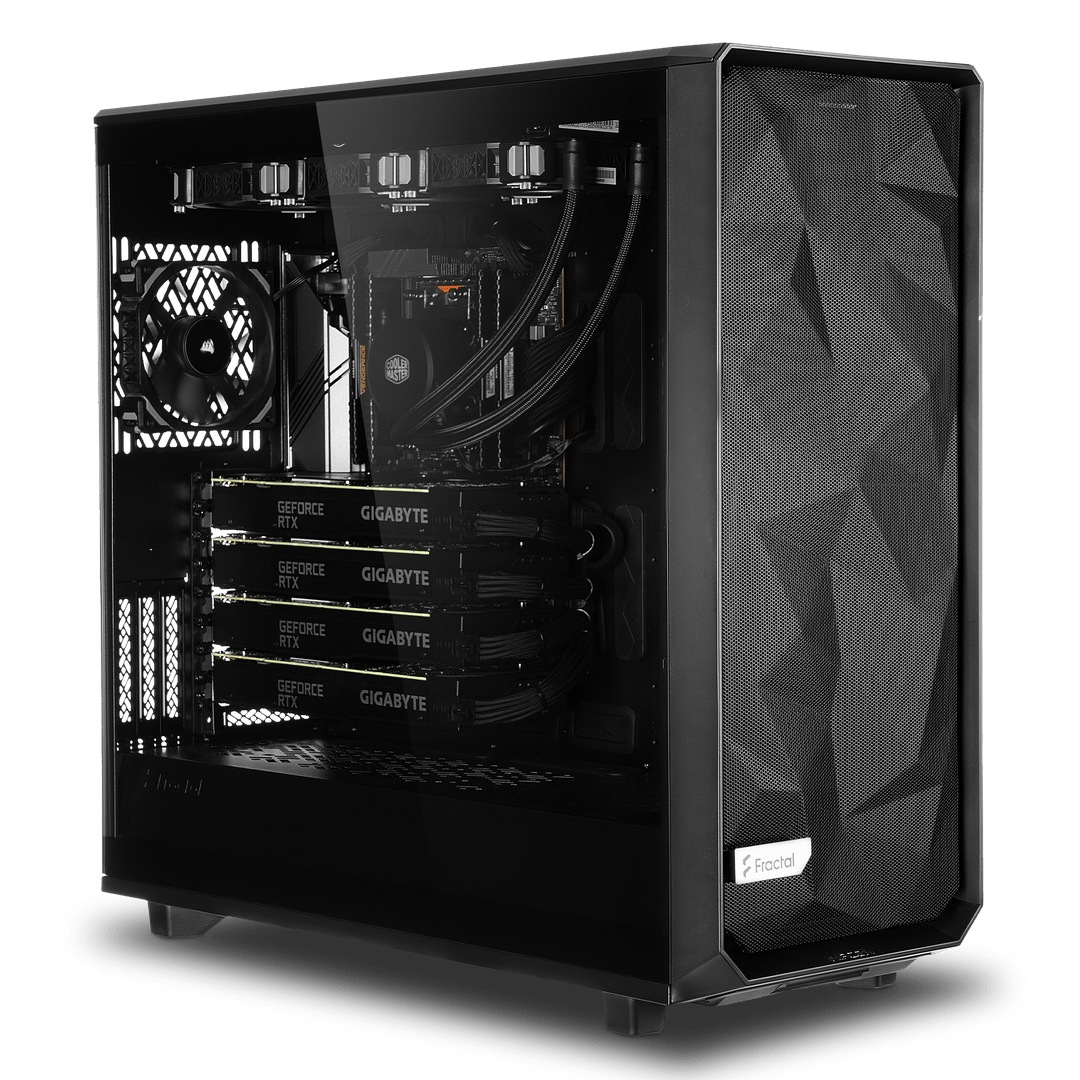

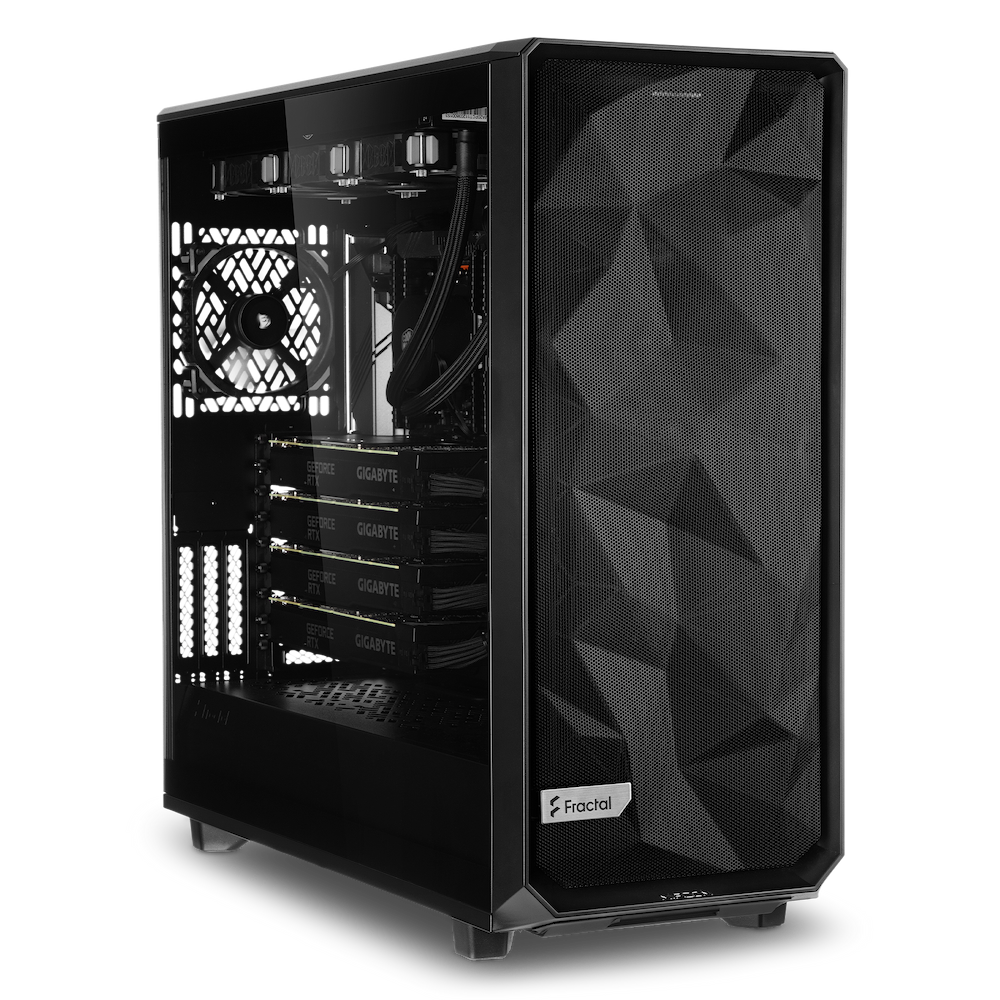

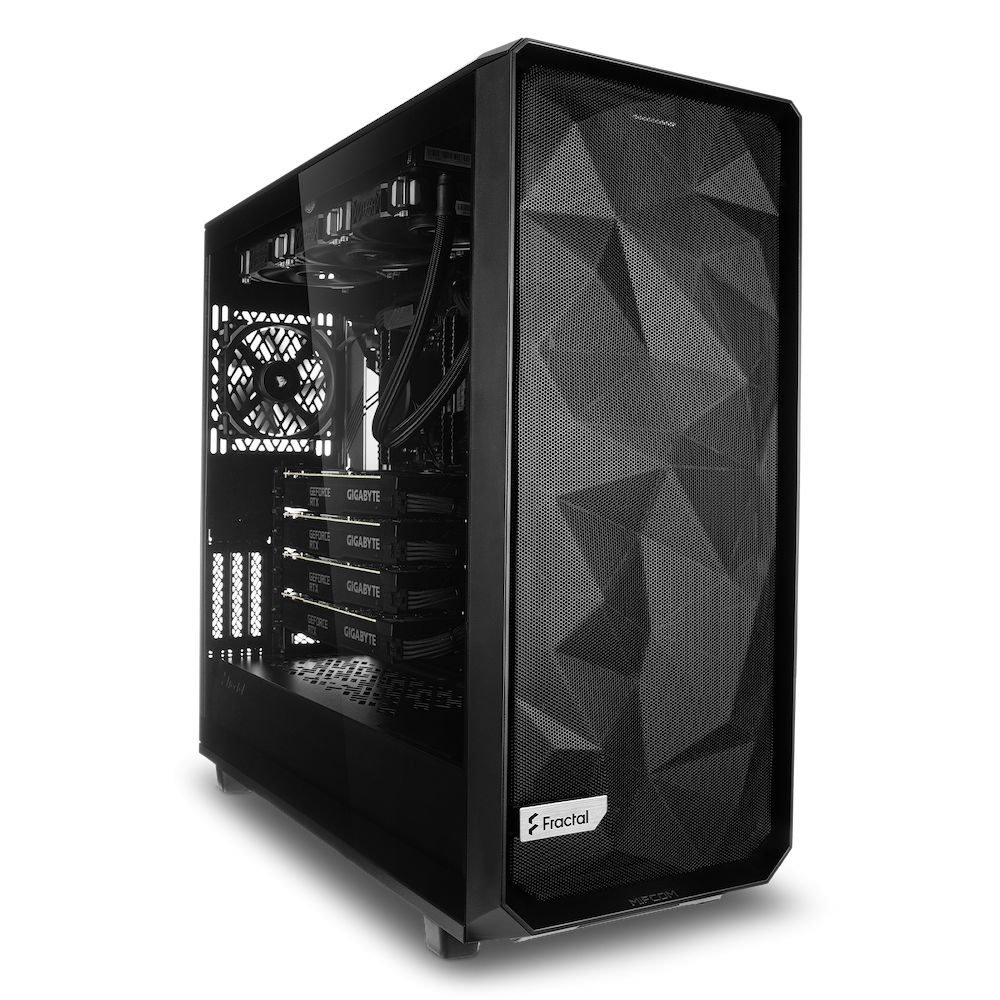

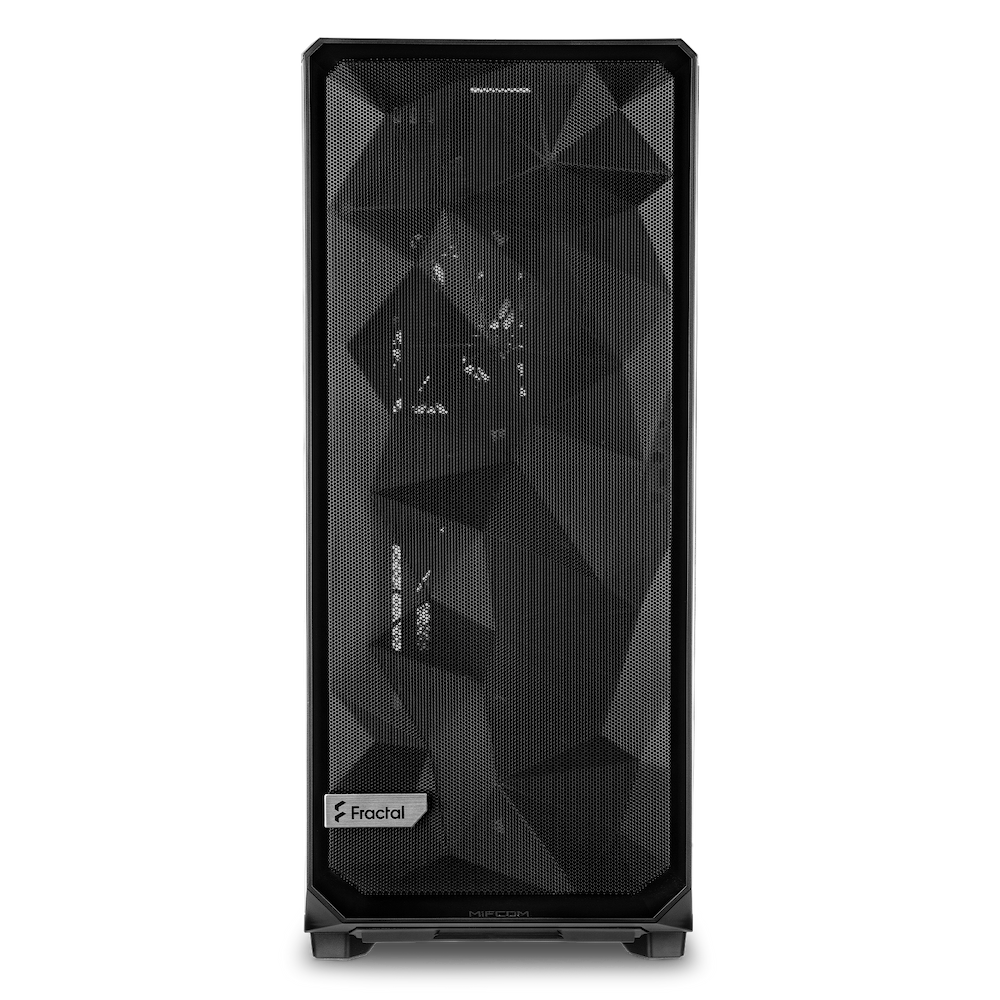

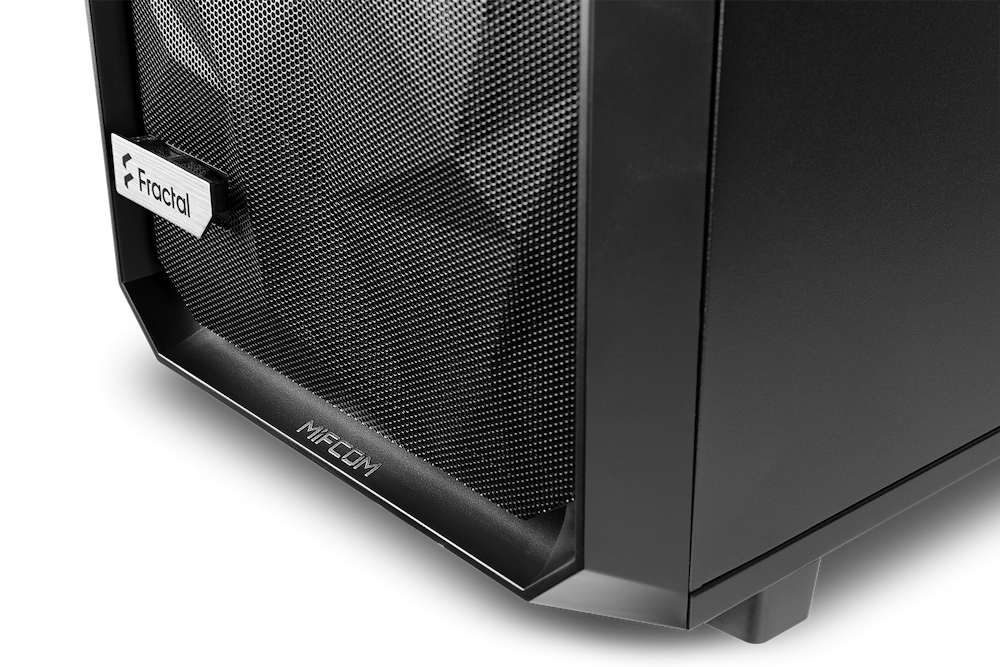

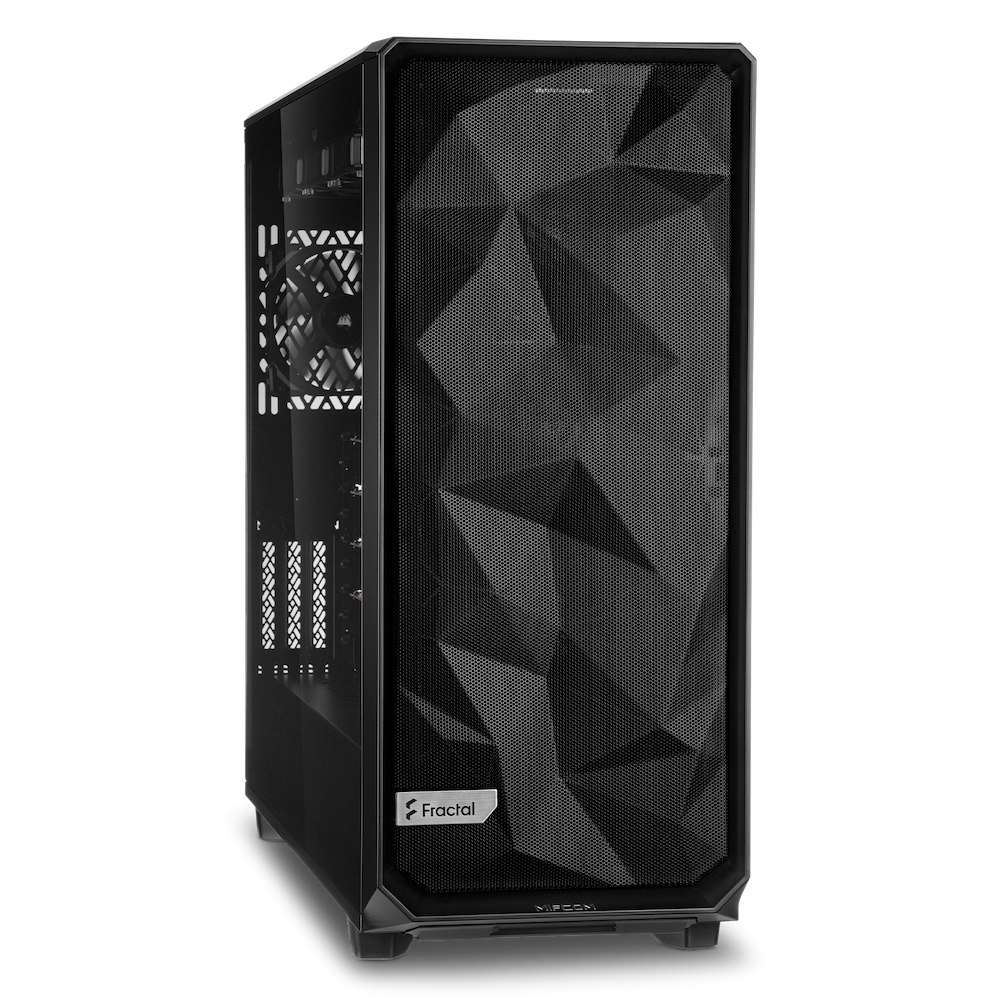

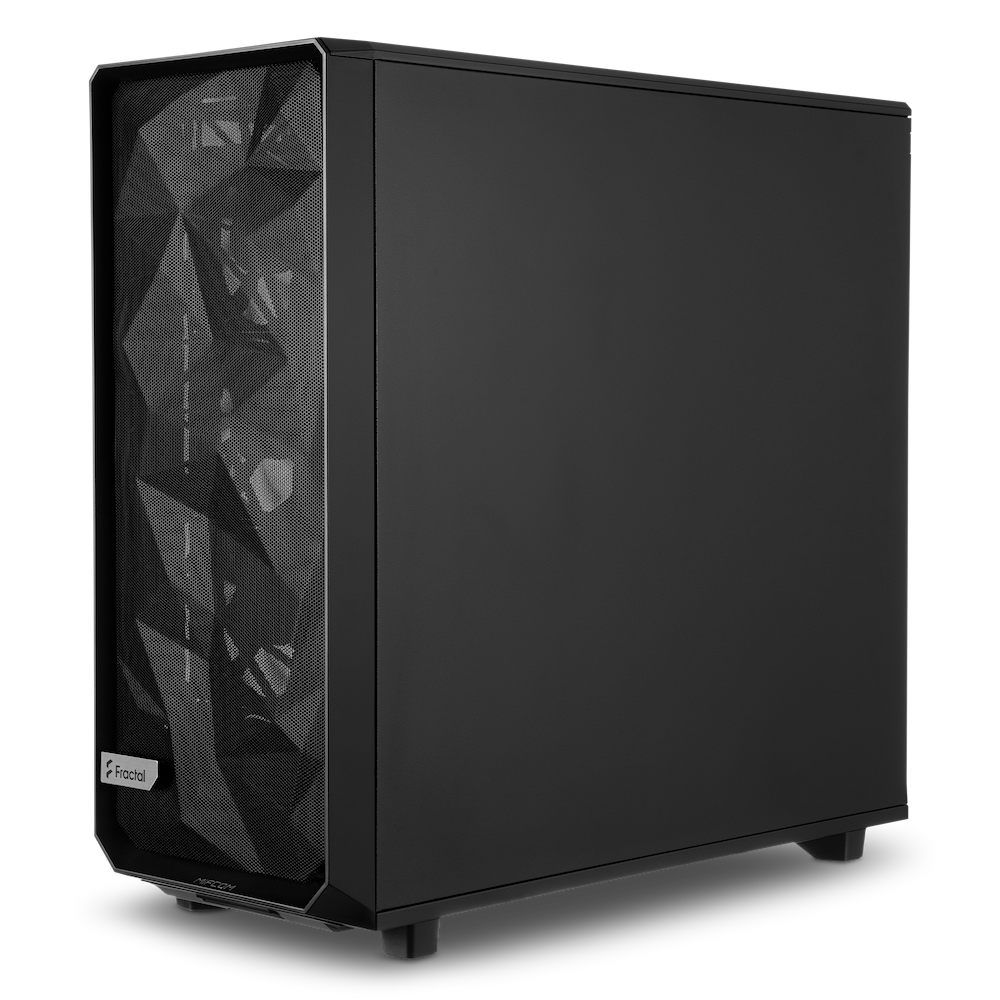

- Fractal Design Meshify 2 XL, blackThe Meshify 2 XL joins the Fractal Design lineup with unbeatable cooling performance and an innovative look. The angular and asymmetrical airflow front panel makes the Meshify 2 XL a convincing high-airflow case.

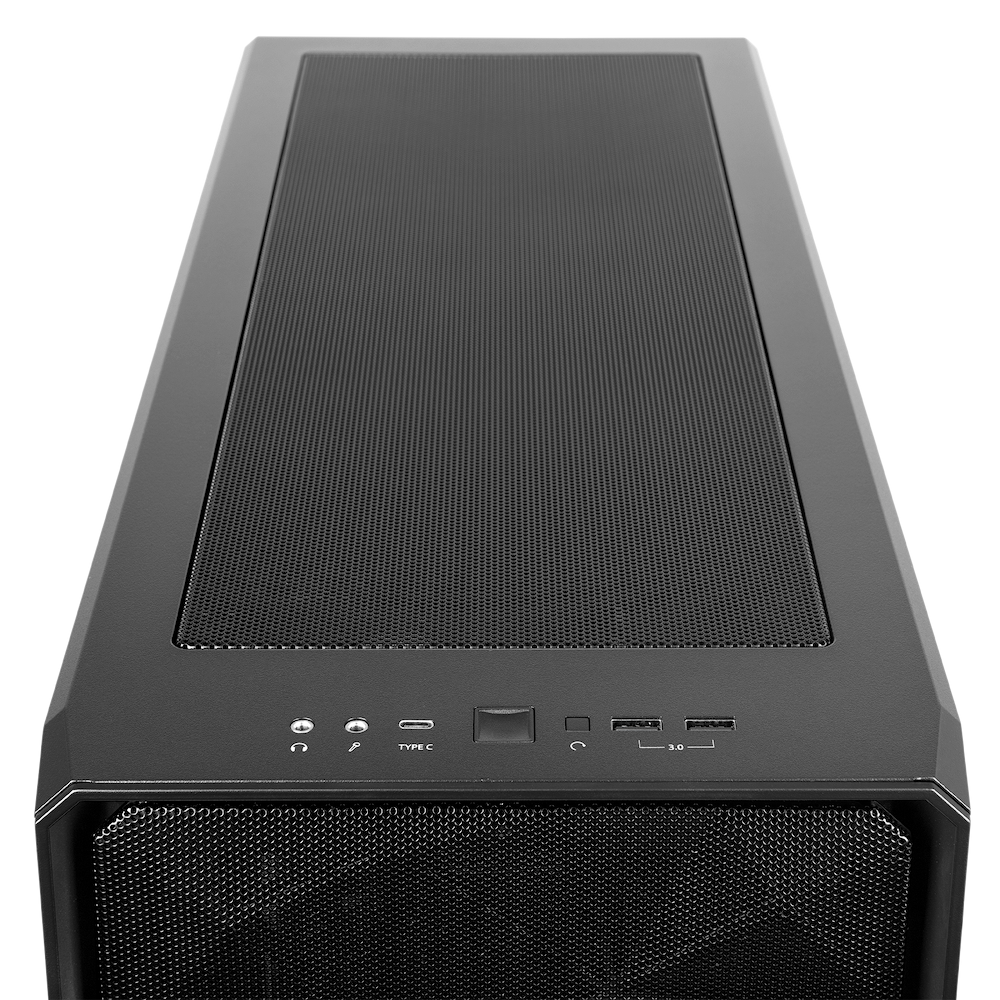

Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots12 (3x Riser Card)
- DesignFull-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX (SSI CEB, 12 "x10.5")/E-ATX (SSI EEB, 12 "x13")/EE-ATX (13.68 "x13")
- Fan (front)2x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A) or 3x 140mm (optional) or 4x 120mm (optional)
- Fan (rear)1x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A)
- Fan (top)3x 140mm (optional) or 4x 120mm (optional)
- Fan (lateral)-
- Fan (bottom)2x 140mm (optional)
- Internal drive bays6x 2.5"/3.5" (horizontal, drive rails), 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)240x566x600mm
- Special featuresintegrated fan control, cable management, dust filter, graphics card can be mounted vertically, glass viewing window
- Intel Xeon W7-2595X, 26x 2.8GHz, 48.75MB L3 cacheIntel Xeon W-2500: Improved performance for demanding workstation tasks. This refresh generation offers more computing power and efficiency for content creation, engineering and data processing. Rely on proven Xeon reliability with DDR5 memory and PCIe 5.0 connectivity.
Technical details - Processor cores26
- BaseLGA 4677
- Processor threads52
- Base clock2.80 GHz
- Turbo beat4.80 GHz
- L2 cache52MB (26x 2MB)
- L3 cache48.75MB
- TDP250 Watt
- iGPU type (label)N/A
- PCIe lanes64x PCIe 5.0
- Memory controllerQuad Channel DDR5-4800 (PC5-38400, 153.6GB/s), max. 2TB
- ManufacturingIntel 7
- Code nameSapphire Rapids-WS, Plattform: Fishhawk Falls
- ASUS Pro WS W790E-Sage SE | Intel W790
Technical details - Processor socketIntel 4677
- RAM support8x DDR5 DIMM, octa PC5-54400R/DDR5-6800 (OC), max. 2TB (RDIMM)
- Wireless standardsN/A
- Form factorE-ATX (SSI EEB)
- ChipsetIntel W790
- LightingN/A
- Special featuresAudio+solid capacitors, ECC support, IPMI 2.0, Diagnostic LED (segment display), Diagnostic LED (LED indicators), 3x M.2 passive coolers, integrated I/O panel, onboard TPM 2.0 support (Intel PTT), remote maintenance with compatible CPU (Intel vPro)
- Power supply2x 24-pin ATX, 4x 8-pin EPS12V, 1x 8-pin PCIe
- FAN header2x CPU fan 4-pin, 5x fan 4-pin, 1x pump 4-pin, 1x thermal sensor
- Audio description7.1 (Realtek ALC1220)
- Connections (rear)1x VGA (AST2600), 1x USB-C 3.2 (20Gb/s, W790), 1x USB-C 3.1 (10Gb/s, W790), 4x USB-A 3.1 (10Gb/s, W790), 2x USB-A 2.0 (480Mb/s), 2x 10GBase-T (Intel X710-AT2), 1x Gb LAN (Realtek) 5x jack, 1x Toslink
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/​s, W790), 1x USB 3.0 Header (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/​s, 4x USB 2.0), 8x SATA 6Gb/s (W790), 1x seriell, 1x TPM-Header, 1x VROC-Header, 1x VGA-Header, 1x I2C-Header, 2x SMBus-Header, 1x Location Button Header, 2x LAN-LED-Header, 1x Cardreader (microSD), 1x Front Panel Location LED Header, 1x Message LED header, 1x BMC_T_SENSOR Header, 1x BMC LED, 1x Location LED
- RAID level0/​1/​5/​10 (W790)
- Expansion slots7x PCIe 5.0 x16 (6x x16, 1x x8), 2x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 2x Slim SAS SFF-8654 4i (PCIe 4.0 x4), 1x M.2/E-Key (Intel CNVi, 2230)
- RGB headerN/​A
- NVIDIA GeForce RTX 5090 32GB | Gainward Phantom GSNVIDIA® GeForce RTX™ 5090 is the ultimate GeForce GPU. It delivers huge advances in performance, efficiency and AI-powered graphics. Experience ultra-high-performance gaming, incredibly detailed virtual worlds, unprecedented productivity and new ways to create. They are based on the NVIDIA Ada Lovelace architecture and are equipped with 32GB of GDDR7 memory to deliver the ultimate experience for gamers and creators.
Technical details - Memory type32GB GDDR7, 512bit, 28Gbps, 1750MHz, 1792GB/s
- API supportDirectX 12 Ultimate (12_2) /​ CUDA 8.9 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.7
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5090
- VRAM32GB
- GPU clock2017MHz
- GPU clock (boost)2407MHz
- GPU fan3x axial fan (100mm) with 0dB zero fan mode
- Power consumption575W (NVIDIA)
- Dimensions (WxHxD)331.9x145.6x69.9mm (LxWxH)
- Special featuresAI acceleration, LED lighting (RGB), backplate, RGB synchronization (3-pin ARGB), dual BIOS switch, graphics card holder
- Power supply1x 12V-2x6 (via adapter: 4x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 16GB RDIMM ECC DDR5-5600DDR5 with ECC error correction: Ensure the highest data integrity and uninterrupted performance. DDR5 ECC RAM not only offers the bandwidth of the latest memory generation, but also the protection against memory errors that is essential for professional and business-critical systems.
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
- Noctua NH-U14S DX-4677
Technical details - Heatpipes6 heat pipes
- Fan2x 140x140x25mm, 300-1500rpm, 140.2m³/h, 82.51 CFM, 24.6dB(A), 2.08mmH₂O, 1.56W (NF-A15 HS-PWM, Link)
- Socket AMDsTR5/SP6
- Socket Intel4677
- TDP-
- Lighting-
- Dimensions (WxHxD)150x165x111mm (WxHxD)
- Special features-
- 2TB SanDisk WD Black SN850X
Technical details - Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
- Storage capacity2TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7300MB/s
- Write speed6600MB/s SLC-Cached
- SSD controllerWestern Digital Black G2
- Mean time between failures-
- IOPS 4K1200k reading, 1100k writing
- Power supply-
- 1300W - be quiet! Dark Power 13 | modular
Technical details - PSU power (Desc)1300W
- Power 12V35A, 35A, 40A, 40A, 55A, 55A
- Power 3.3V25A
- Power 5V25A
- Power -12V0.5A
- PSU certification80 PLUS Titanium
- Fan135mm, 2400/min
- Volume10.20-23.20dB(A) (according to manufacturer)
- Form factorATX
- Special featuresErP Lot 6, digital signal processor, supports Haswell C6/C7 low-power states, switchable multi-12V rail mode
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
240x566x600mm
Connectivity
Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)

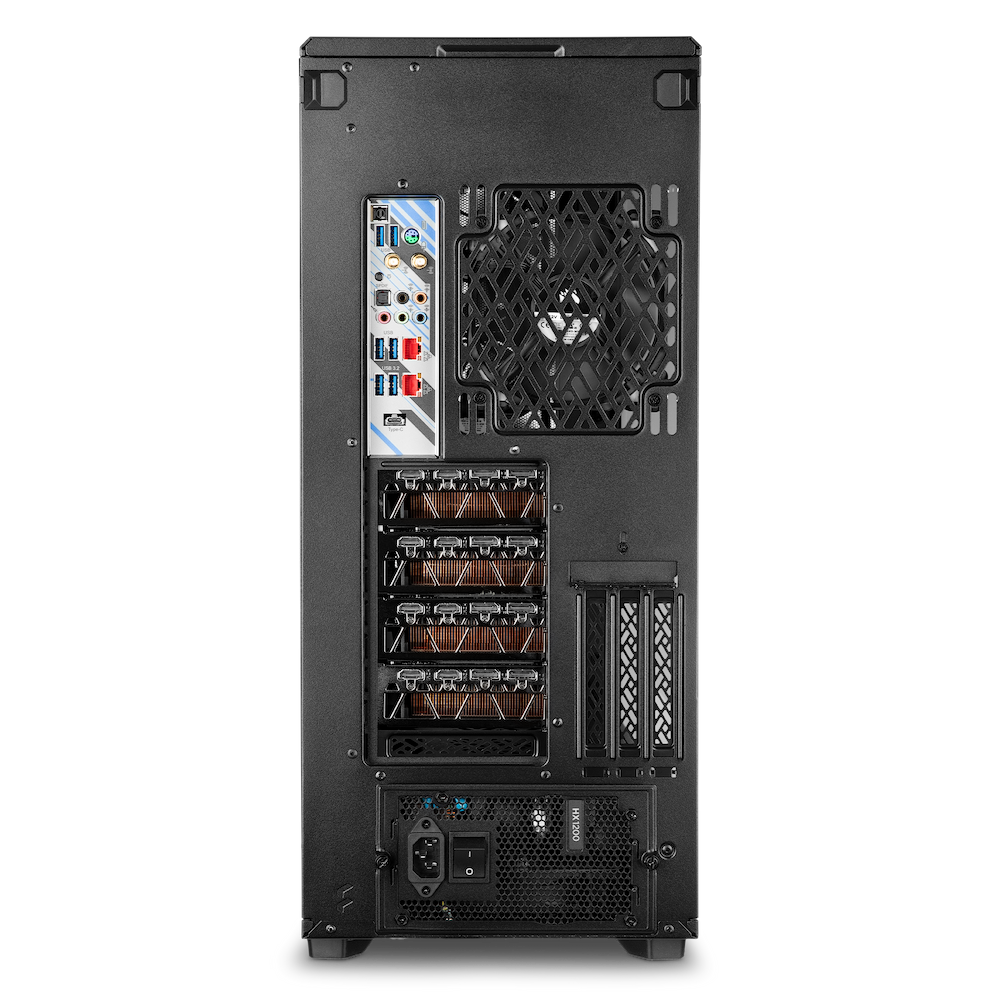

Rear
1x VGA (AST2600), 1x USB-C 3.2 (20Gb/s, W790), 1x USB-C 3.1 (10Gb/s, W790), 4x USB-A 3.1 (10Gb/s, W790), 2x USB-A 2.0 (480Mb/s), 2x 10GBase-T (Intel X710-AT2), 1x Gb LAN (Realtek) 5x jack, 1x Toslink, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
