Workstation - Xeon W5-2545 - RTX 5070
Xeon W5-2545, 12C
RTX 5070 12GB, GIGABYTE
1TB WD_Blue SN5100
ASUS Pro W790-ACE
4x 16GB RDIMM DDR5-5600
7.449
,-
incl. VAT plusShipping
136
,04
Pre-order:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Xeon W5-2545 - RTX 5070
This system is particularly suitable for demanding modeling and animation tasks in Autodesk 3ds Max, Autodesk Maya and Cinema 4D. Tasks in these applications benefit above all from the highest possible clock rate per core. This is why an Intel Xeon W5-2545 is used in this system, which impresses with its first-class single-core performance. The dedicated NVIDIA GeForce RTX 5070 graphics card also significantly increases the viewport performance of the system and thus guarantees smooth work in up to UHD/4K resolution. This graphics card impresses with an unbeatable price/performance ratio, but is not certified for Autodesk applications and therefore does not receive official software support. Depending on the complexity of the scenes and models, 16GB - 64GB RAM may be required. The built-in SSD system drive ensures lightning-fast loading & response times of the operating system and applications.
With this workstation, all CAD tasks are no longer a problem for you
Technical details
Workstation - Xeon W5-2545 - RTX 5070

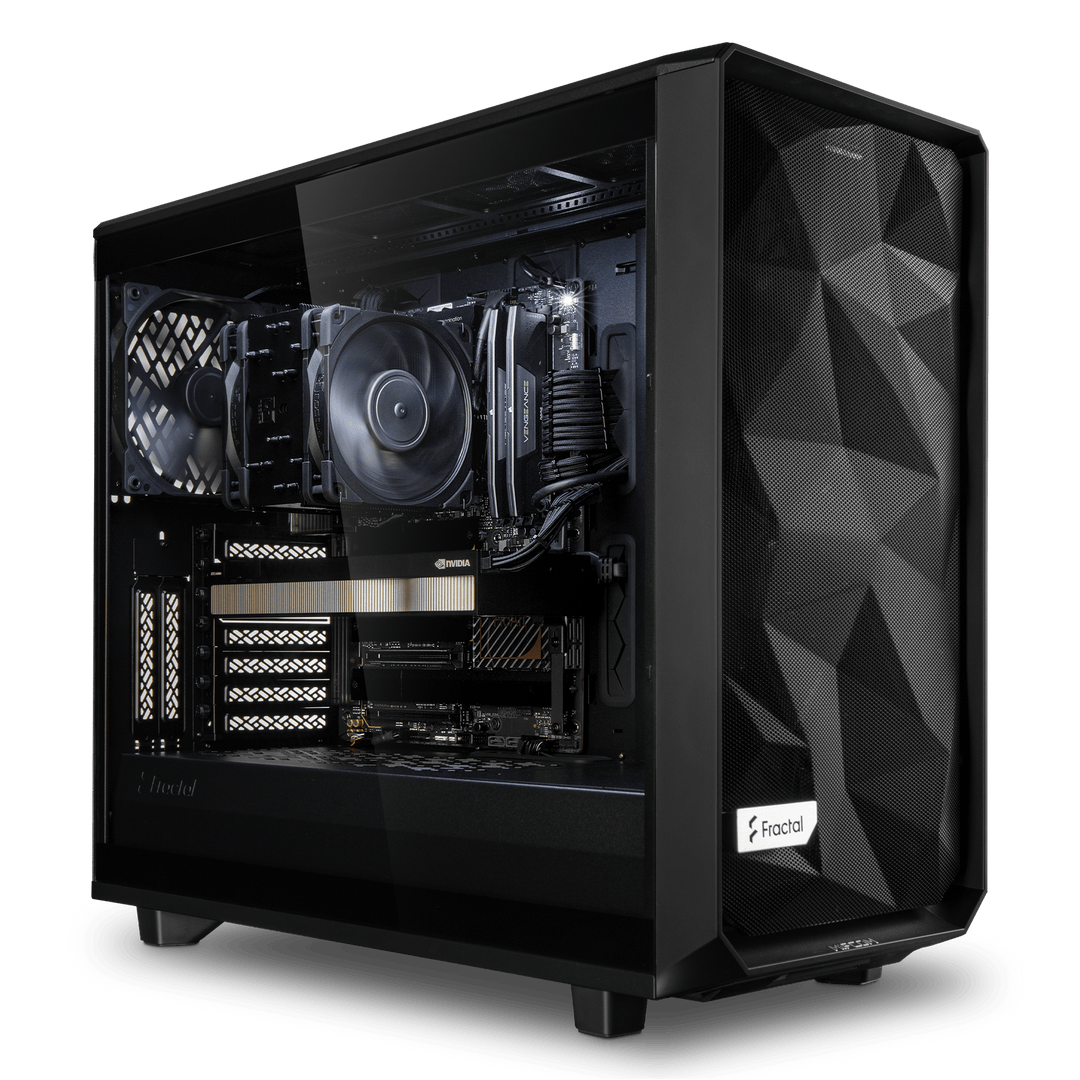

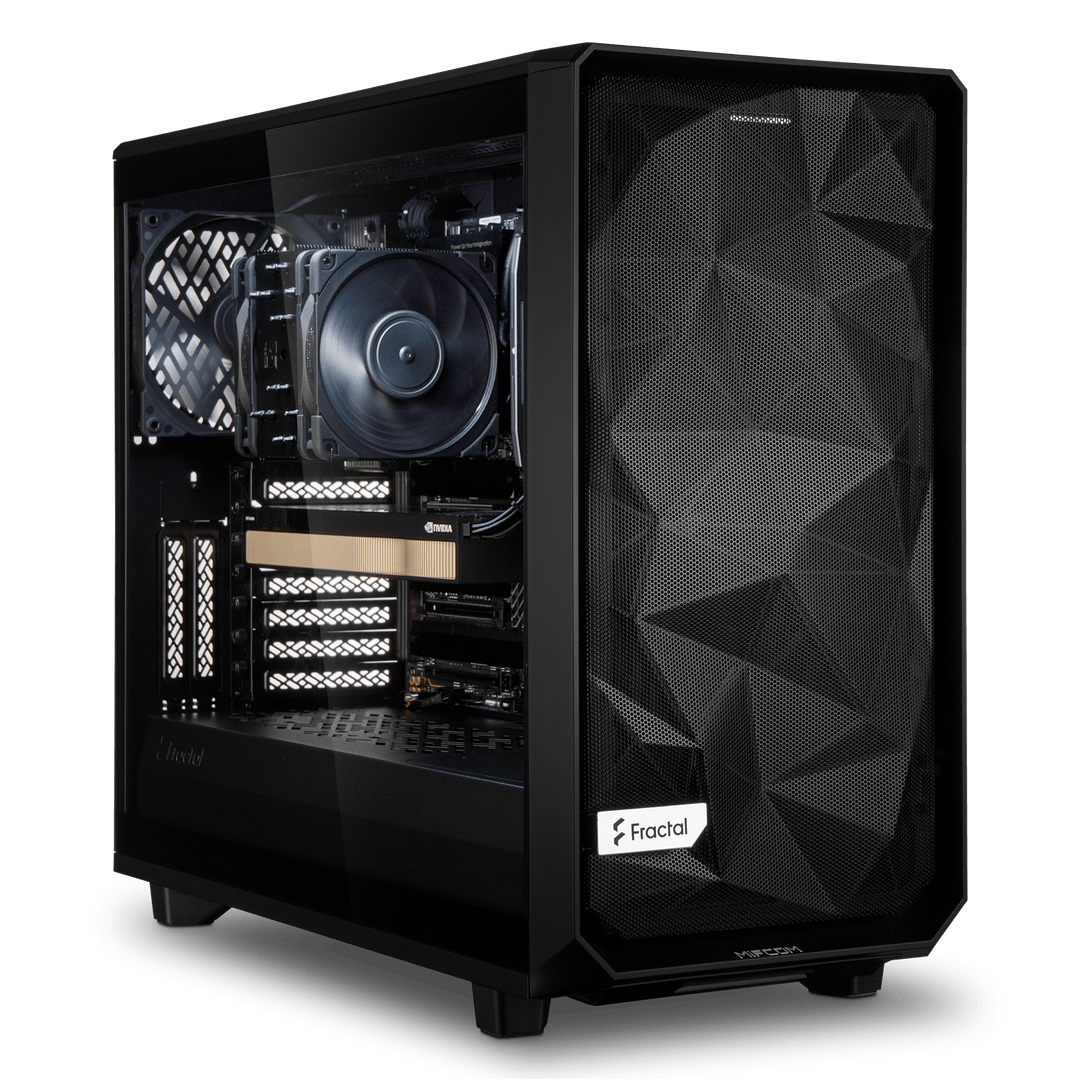

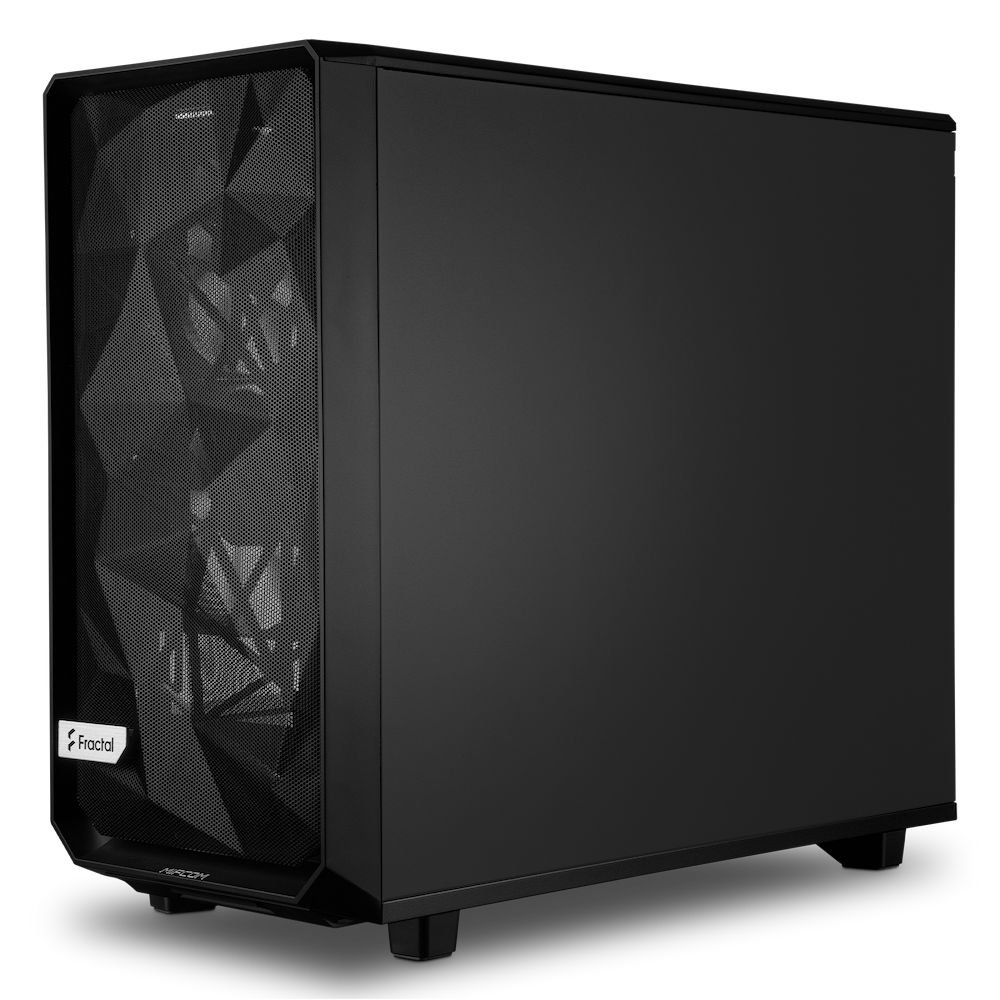

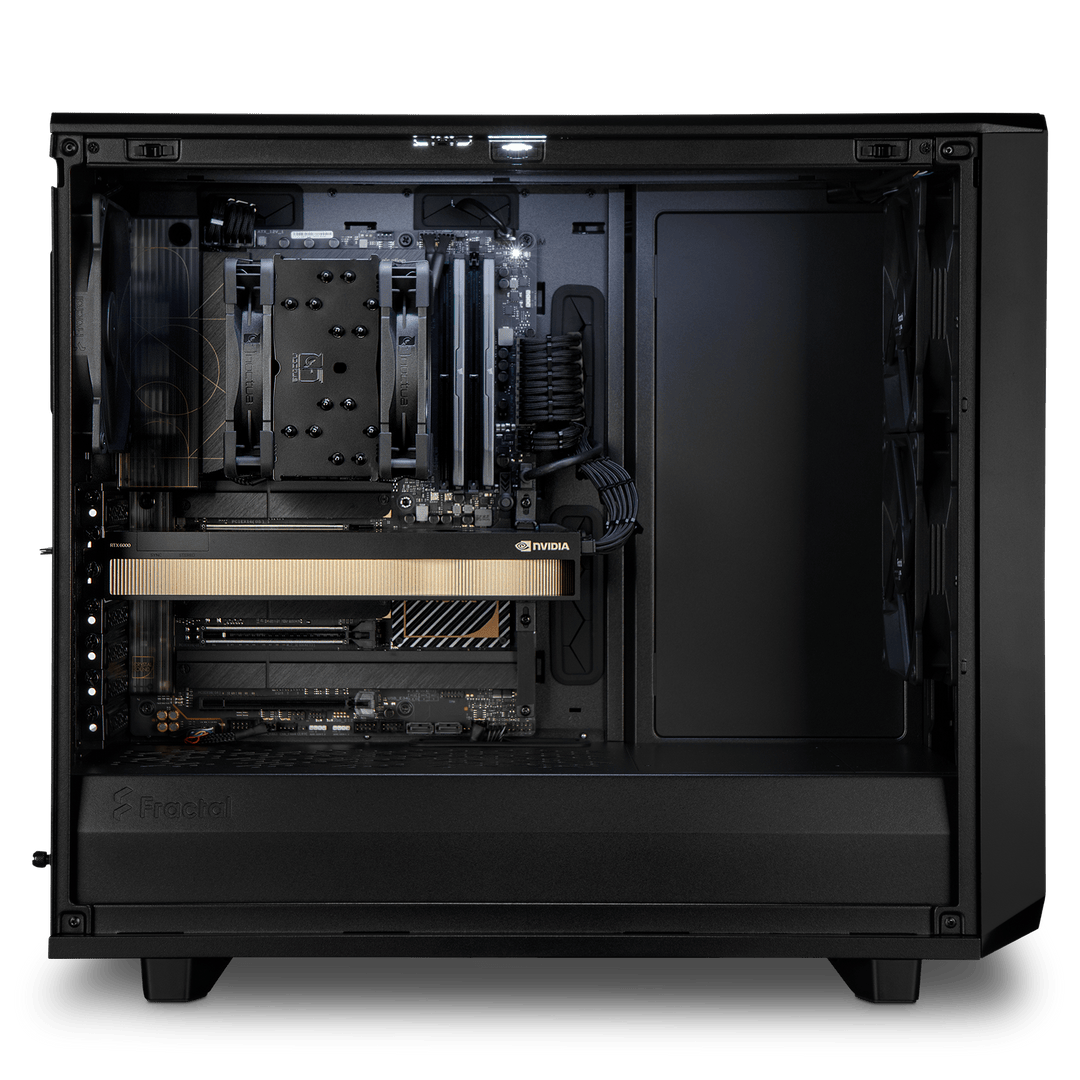

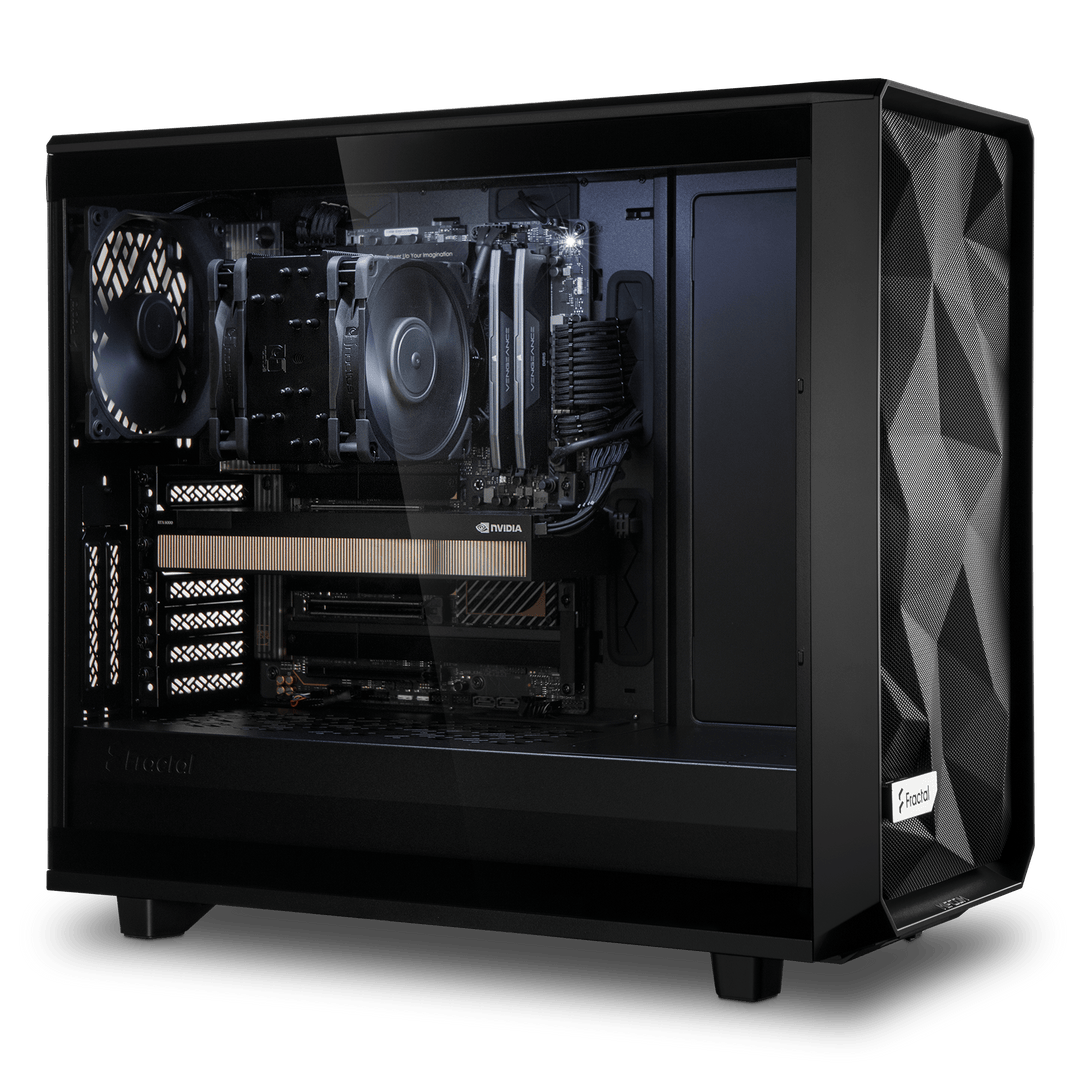

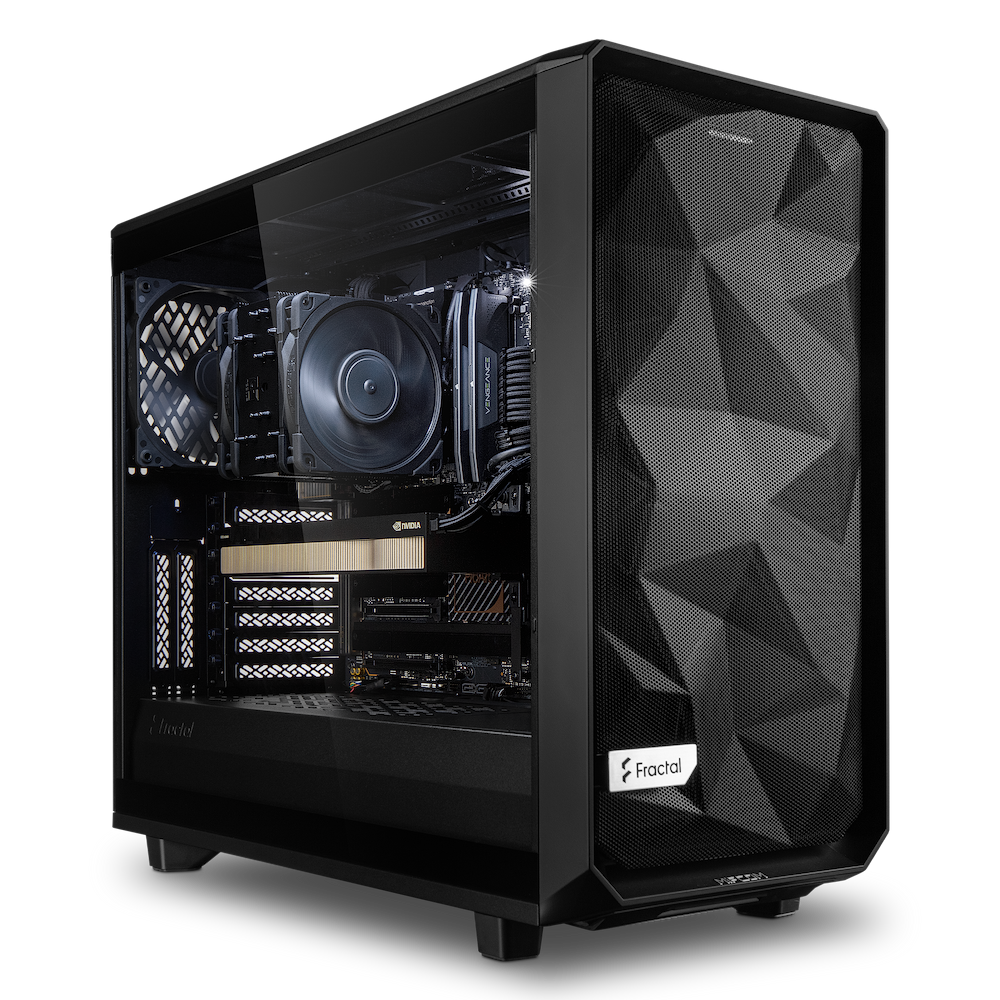

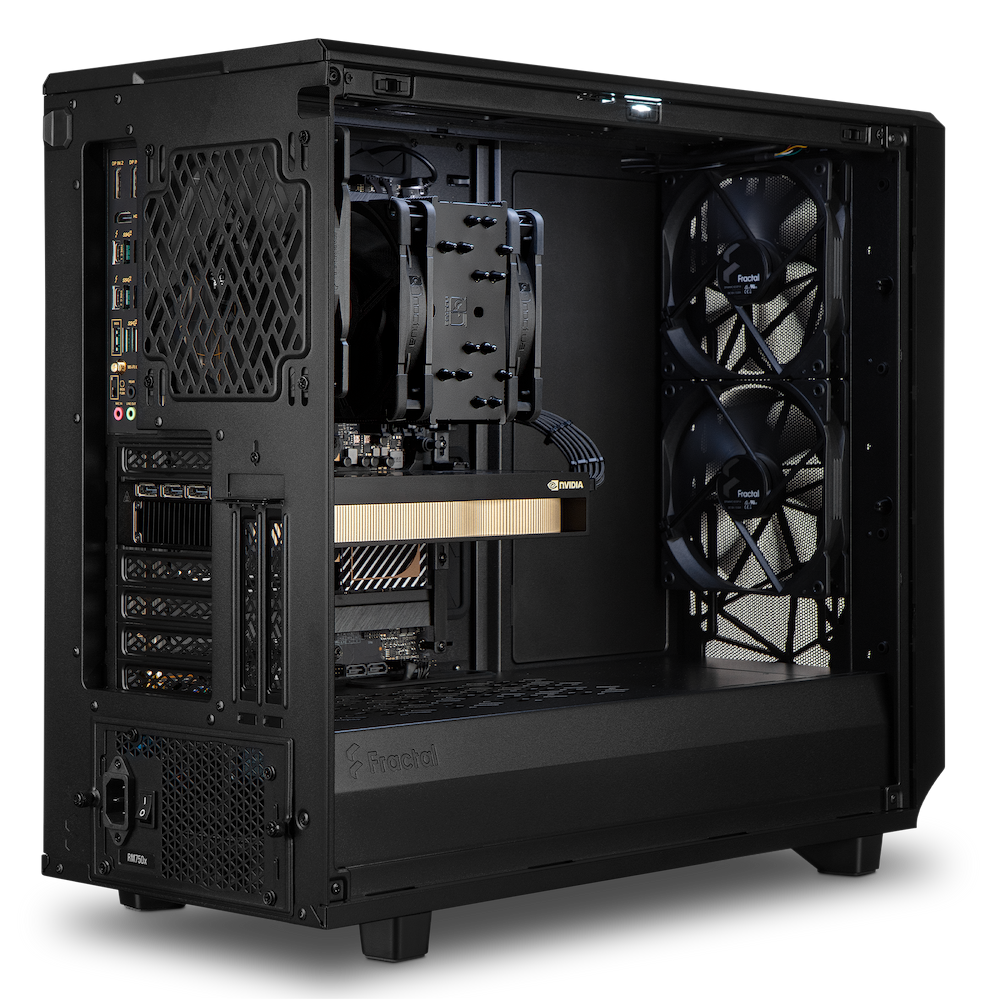

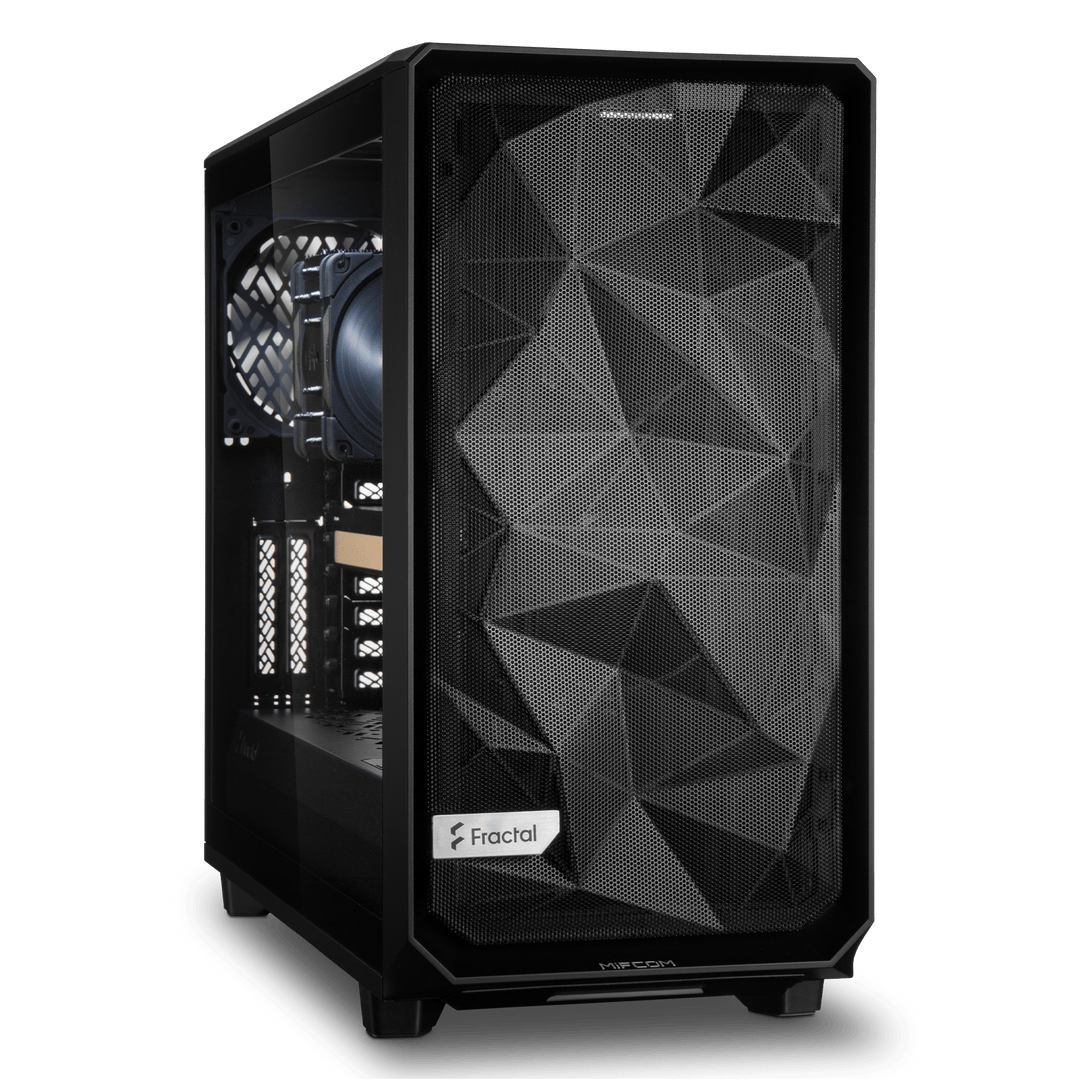

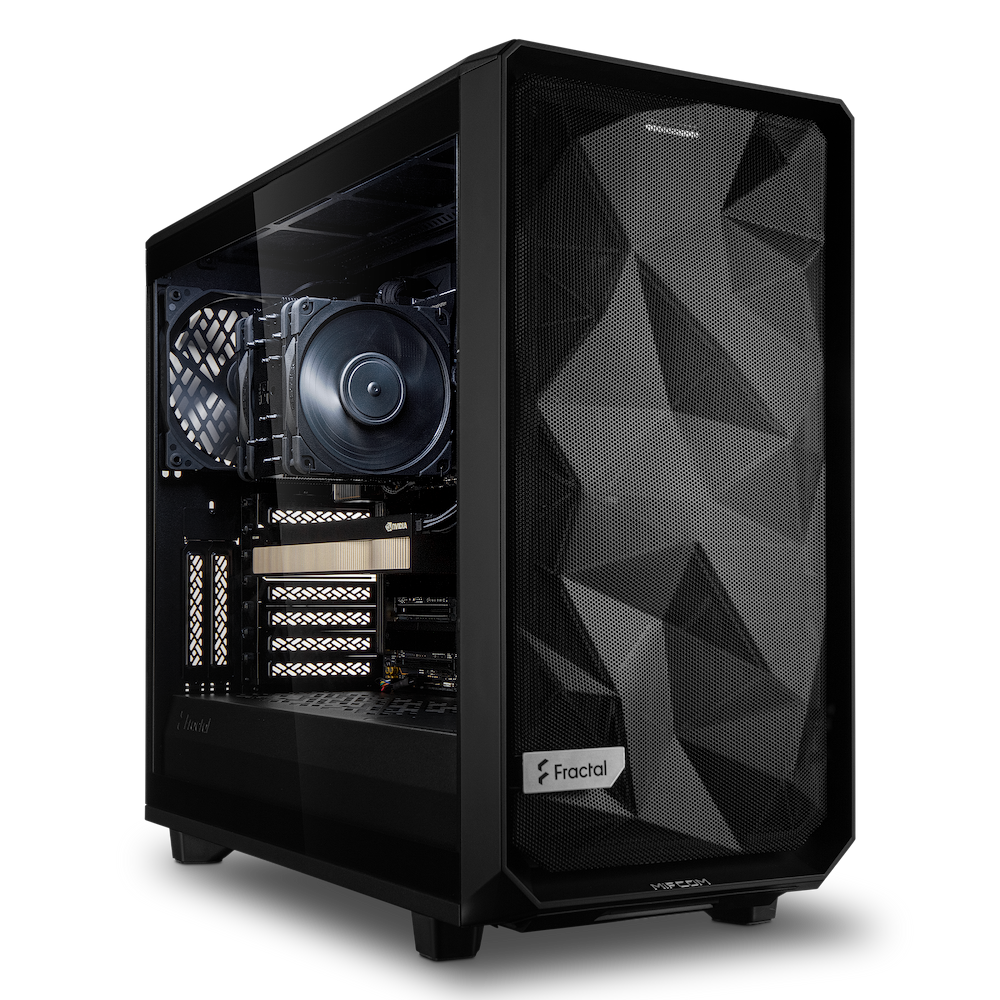

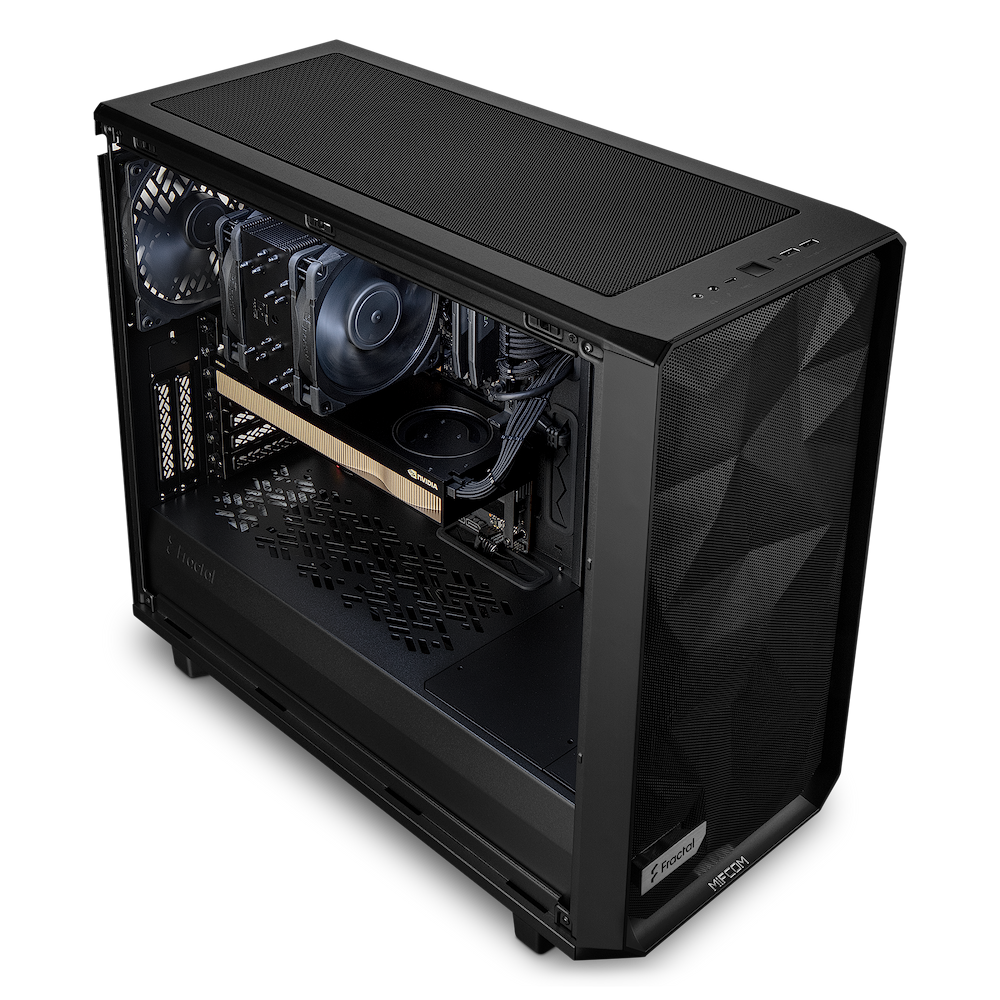

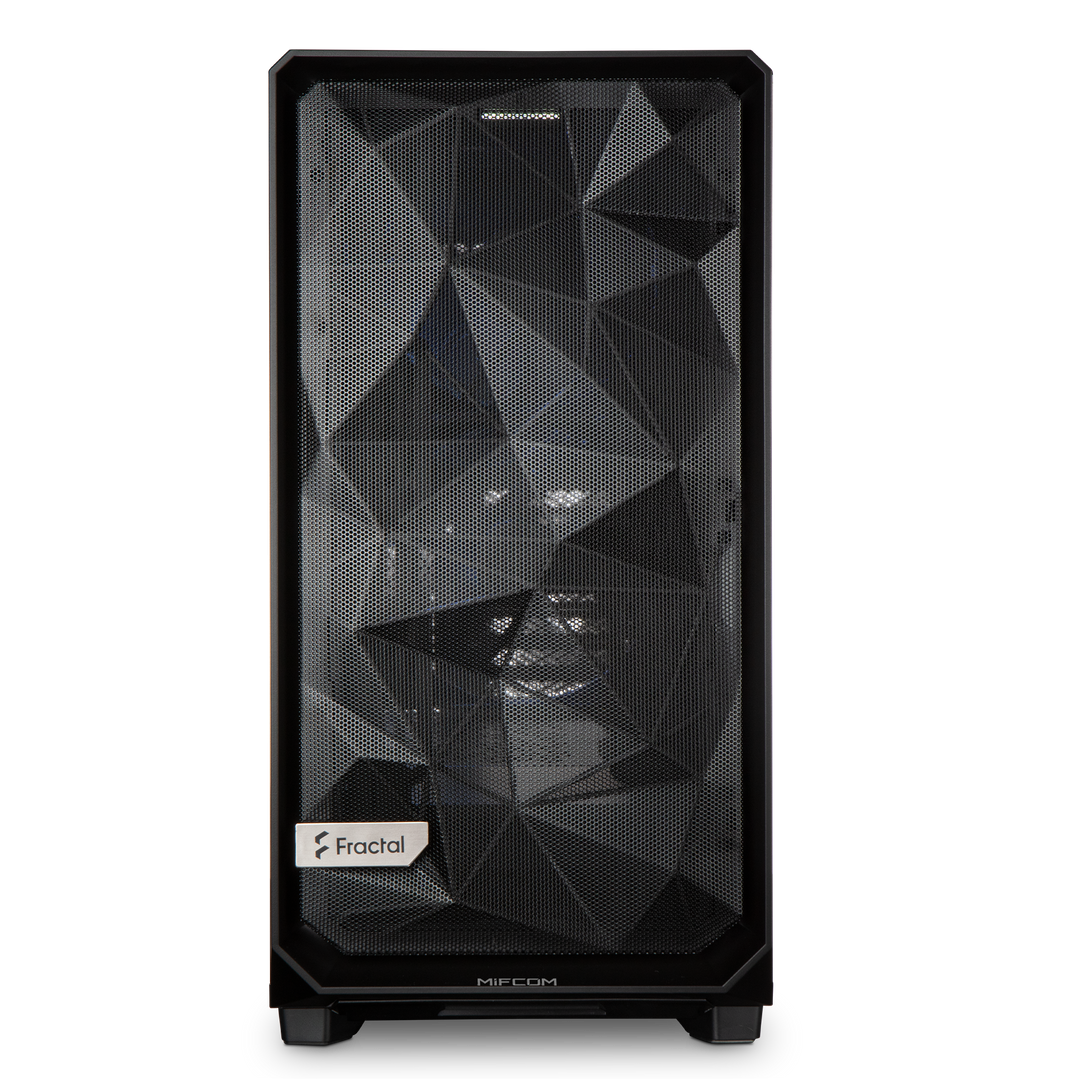

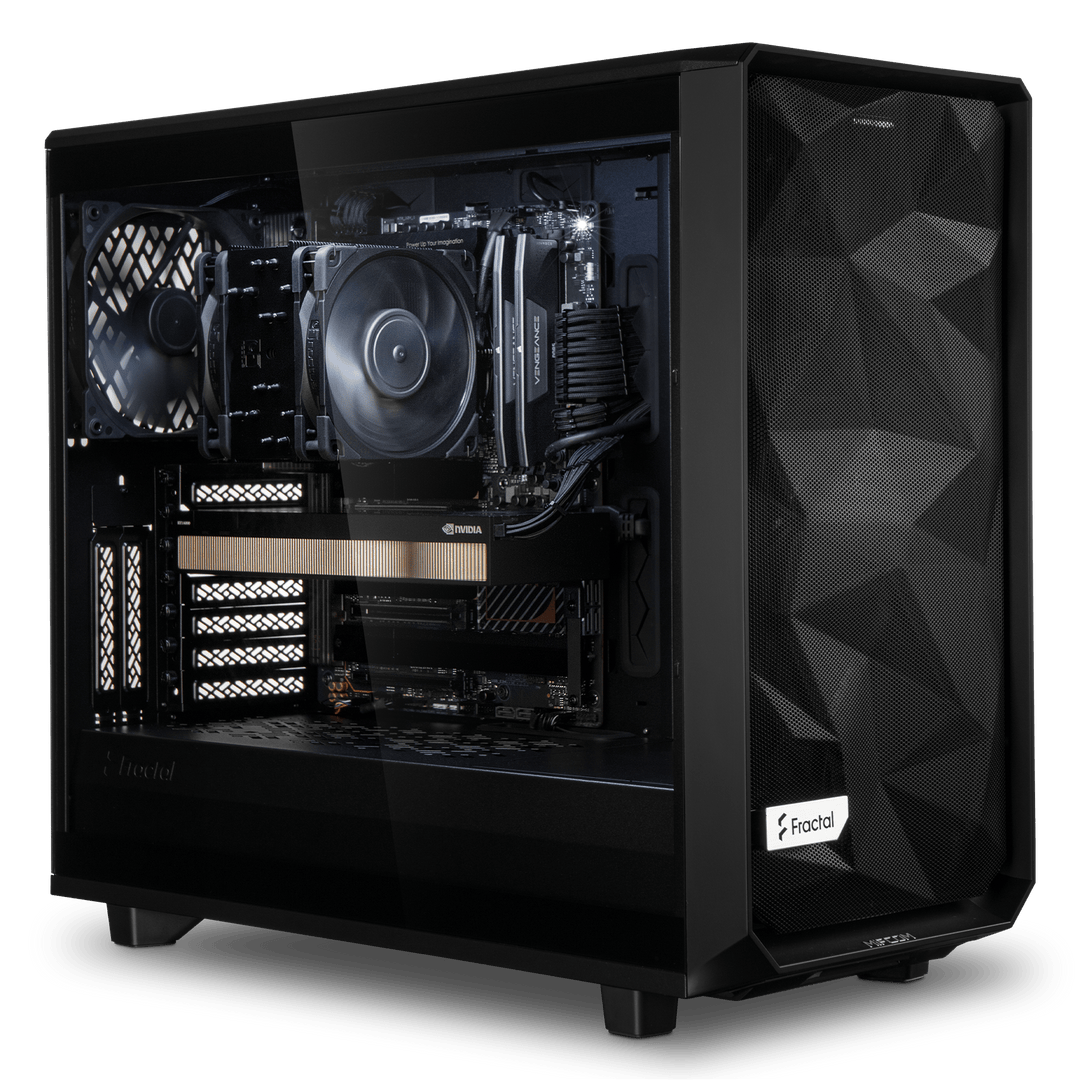

- Fractal Design Meshify 2, blackThe Meshify 2 joins the Fractal Design lineup with unbeatable cooling performance and an innovative look. The angular and asymmetrical airflow front panel makes the Meshify 2 a convincing high-airflow case.
Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots9 (2x Riser Card)
- DesignMidi-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX (12 "x10.9")
- Fan (front)2x 140mm, 3x 140mm (optional)
- Fan (rear)1x 140mm
- Fan (top)3x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)2x 140mm (optional)
- Internal drive bays6x 2.5"/3.5" (horizontal, drive rails), 2x 2.5", 8x 2.5"/3.5" (optional), 2x 2.5" (optional)
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)230x466x453mm
- Special featuresMesh front, dust filter top and bottom
- Intel Xeon W5-2545, 12x 3.5GHz, 30MB L3 cacheIntel Xeon W-2500: Improved performance for demanding workstation tasks. This refresh generation offers more computing power and efficiency for content creation, engineering and data processing. Rely on proven Xeon reliability with DDR5 memory and PCIe 5.0 connectivity.
Technical details - Processor cores12
- BaseLGA 4677
- Processor threads24
- Base clock3.50 GHz
- Turbo beat4.70 GHz
- L2 cache24MB (12x 2MB)
- L3 cache30MB
- TDP210 Watt
- iGPU type (label)N/A
- PCIe lanes64x PCIe 5.0
- Memory controllerQuad Channel DDR5-4800 (PC5-38400, 153.6GB/s), max. 2TB
- ManufacturingIntel 7
- Code nameSapphire Rapids-WS, Plattform: Fishhawk Falls
- ASUS Pro W790-ACE | Intel W790
Technical details - Processor socketIntel 4677
- RAM support8x DDR5 DIMM, quad PC5-54400R/DDR5-6800 (OC), max. 2TB (RDIMM)
- Wireless standardsN/A
- Form factorE-ATX (SSI EEB)
- ChipsetIntel W790
- LightingN/A
- Special featuresAudio+solid capacitors, ECC support, Diagnostic LED (segment display), Diagnostic LED (LED indicators), 2x M.2 passive coolers, integrated I/O panel, onboard TPM 2.0 support (Intel PTT), remote maintenance with compatible CPU (Intel vPro)
- Power supply2x 24-pin ATX, 4x 8-pin EPS12V, 1x 8-pin PCIe
- FAN header2x CPU fan 4-pin, 5x fan 4-pin, 1x pump 4-pin, 1x thermal sensor
- Audio description7.1 (Realtek ALC1220)
- Connections (rear)1x USB-C 3.2 (20Gb/s, W790), 4x USB-A 3.1 (10Gb/s, W790), 8x USB-A 2.0 (480Mb/s), 1x 10GBase-T (Marvell AQtion), 1x 2.5GBase-T (Intel I225-LM), 5x jack, 1x Toslink
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/​s, W790), 1x USB 3.0 Header (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/​s, 4x USB 2.0), 4x SATA 6Gb/s (W790), 4x SATA 6Gb/s (via Slim SAS SFF-8654 4i, W790), 1x seriell, 1x TPM-Header, 1x VROC-Header, 1x BMC-Header, 1x Chassis Intrusion-Header
- RAID level0/​1/​5/​10 (W790)
- Expansion slots5x PCIe 5.0 x16 (3x x16, 2x x8), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x Slim SAS SFF-8654 4i (PCIe 3.0 x4), 1x Slim SAS SFF-8654 4i (PCIe 4.0 x4/SATA), 1x Slim SAS SFF-8654 4i (PCIe 4.0 x4)
- RGB headerN/​A

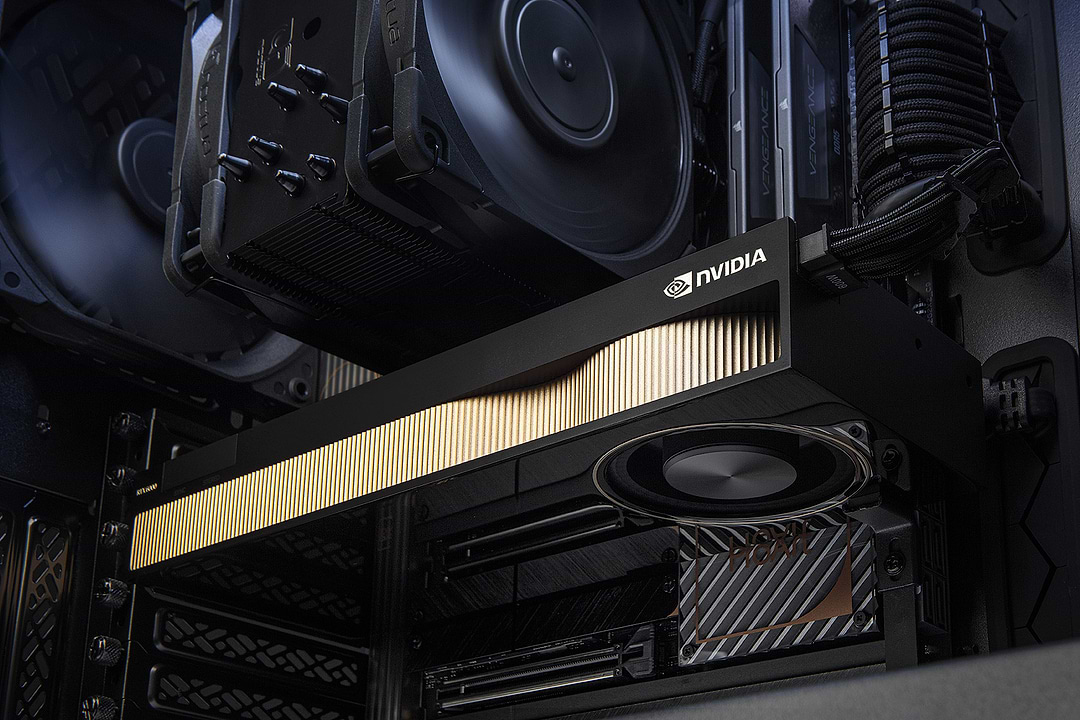

- NVIDIA GeForce RTX 5070 12GB | GIGABYTE Gaming OCPower up your PC with the NVIDIA® GeForce RTX™ 5070. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. These are supported by the ultra-efficient NVIDIA Blackwell architecture and 12 GB of super-fast GDDR7 memory.
Technical details - Memory type12GB GDDR7, 192bit, 28Gbps, 1750MHz, 672GB/s
- API supportDirectX 12 Ultimate (12_2) /​ CUDA 12.8 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.8
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5070
- VRAM12GB
- GPU clock2116MHz
- GPU clock (boost)TBD
- GPU fan3x axial fan with 0dB zero fan mode
- Power consumption250W (NVIDIA)
- Dimensions (WxHxD)282x110x50 mm (LxWxH)
- Special featuresAI acceleration, LED lighting (RGB), backplate, NVIDIA GeForce SFF-Ready
- Power supply1x 12V-2x6 (via adapter: 2x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 16GB RDIMM ECC DDR5-5600DDR5 with ECC error correction: Ensure the highest data integrity and uninterrupted performance. DDR5 ECC RAM not only offers the bandwidth of the latest memory generation, but also the protection against memory errors that is essential for professional and business-critical systems.
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD

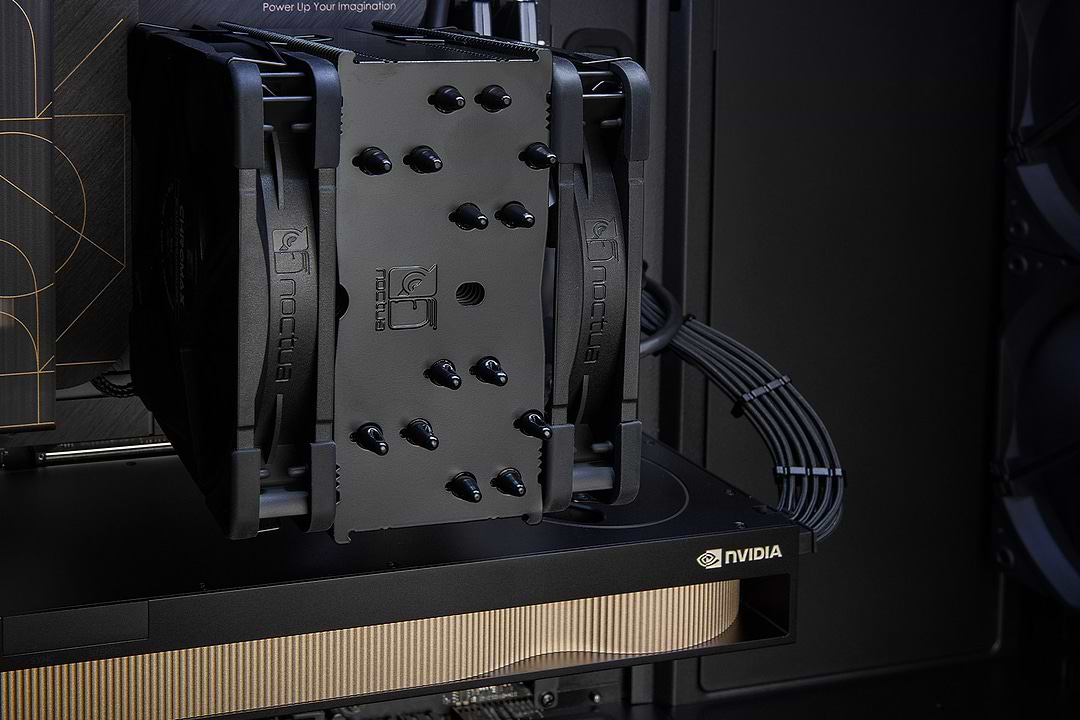

- Noctua NH-U14S DX-4677
Technical details - Heatpipes6 heat pipes
- Fan2x 140x140x25mm, 300-1500rpm, 140.2m³/h, 82.51 CFM, 24.6dB(A), 2.08mmH₂O, 1.56W (NF-A15 HS-PWM, Link)
- Socket AMDsTR5/SP6
- Socket Intel4677
- TDP-
- Lighting-
- Dimensions (WxHxD)150x165x111mm (WxHxD)
- Special features-
- 1TB SanDisk WD Blue SN5100NVMe™ - the engine for your creative workloads. The WD Blue SN5000 NVMe™ SSD is the latest generation of high-performance storage for creative and professional users. NVMe™ combined with PCIe® Gen 4 and Western Digital's nCache™ 4.0 technology delivers high speed for AI-powered applications and accelerated workflow execution. With a storage capacity of up to 4 TB1, there are no limits to your creativity. Whatever you're working on, the WD Blue SN5000 NVMe™ SSD makes every step easier and shortens the time from idea to final realization of your creative vision.
Technical details - Memory type3D NAND TLC, Kioxia, 112 layers (BiCS5)
- Storage capacity1TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7100MB/s
- Write speed6700MB/s SLC-Cached
- SSD controller-
- Mean time between failures1.75 million hours
- IOPS 4K1000K reading, 1300K writing
- Power supply3.9W (write), 3.9W (read), 4mW (idle)
- 850W - be quiet! Power Zone | modular
Technical details - PSU power (Desc)850W
- Power 12V70.8A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Platinum
- Fan140mm, 1800rpm, semi-passive
- Volume6.50-24.90dB(A) (according to manufacturer), 19.84dB(A) (according to Cybenetics certificate, 115V), 19.31dB(A) (according to Cybenetics certificate, 230V)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
230x466x453mm
Connectivity

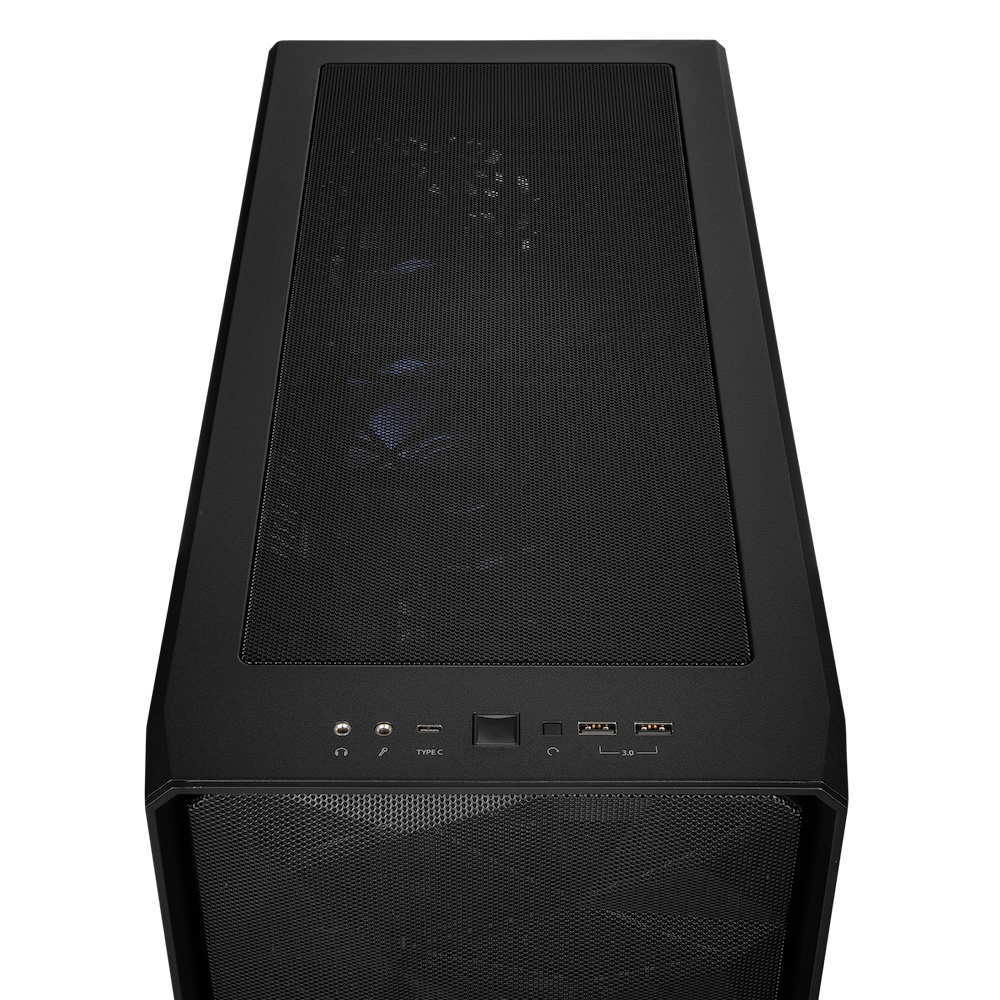

Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)

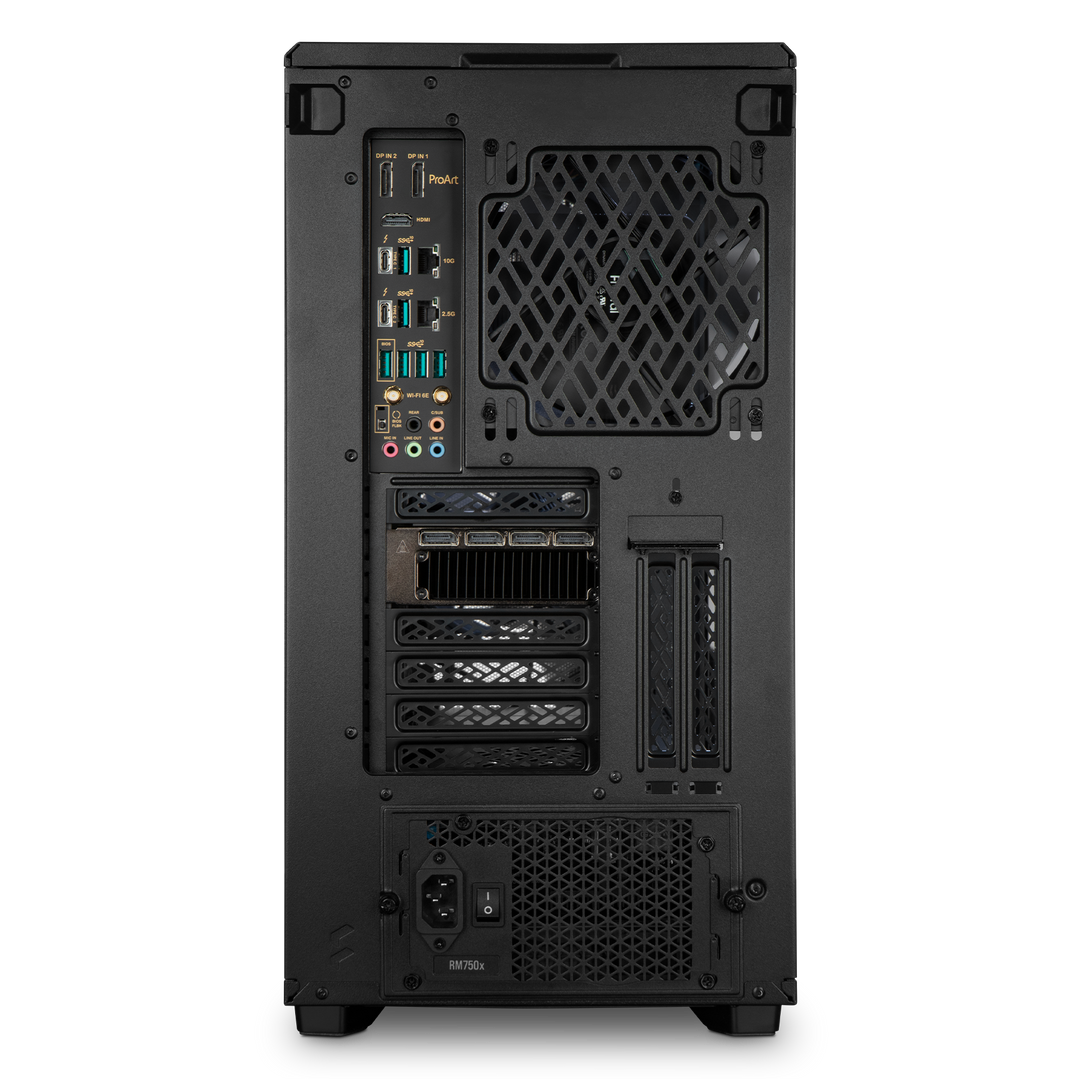

Rear
1x USB-C 3.2 (20Gb/s, W790), 4x USB-A 3.1 (10Gb/s, W790), 8x USB-A 2.0 (480Mb/s), 1x 10GBase-T (Marvell AQtion), 1x 2.5GBase-T (Intel I225-LM), 5x jack, 1x Toslink, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
