Workstation - Ryzen TR 9980X - PRO W7900
AMD TR 9980X, 64C
Radeon PRO W7900 48GB
2TB WD Black SN850X
ASUS Pro WS TRX50-Sage WIFI
4x 16GB RDIMM DDR5-5600
15.549
,-
incl. VAT plusShipping
Delivery time:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Ryzen TR 9980X - PRO W7900
Our AMD Ryzen Threadripper workstations offer you outstanding performance for multi-threaded applications with the 64 cores of the Threadripper 9980X. The new Threadripper processors also impress with high frequencies in terms of single-core performance. Thanks to this versatility in performance, the new processors cover a wide range of computing power and thus ensure shorter render times, more creative iterations, faster simulations and ultimately lead to increased productivity. In our configurator, you can always combine your new AMD Threadripper processor with the latest graphics cards, such as an AMD Radeon PRO W7900 with 48GB of video memory
Powerful workstations with AMD Ryzen Threadripper for professional content creators
Technical details
Workstation - Ryzen TR 9980X - PRO W7900

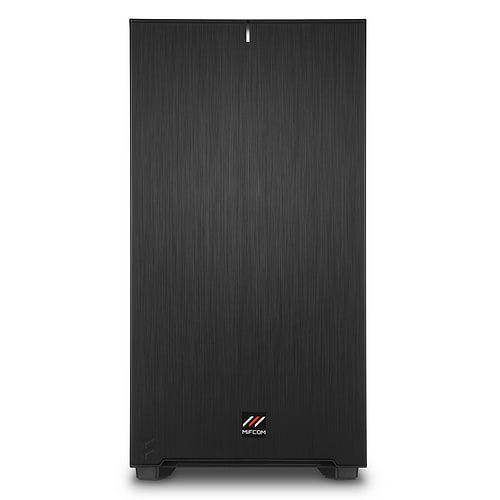

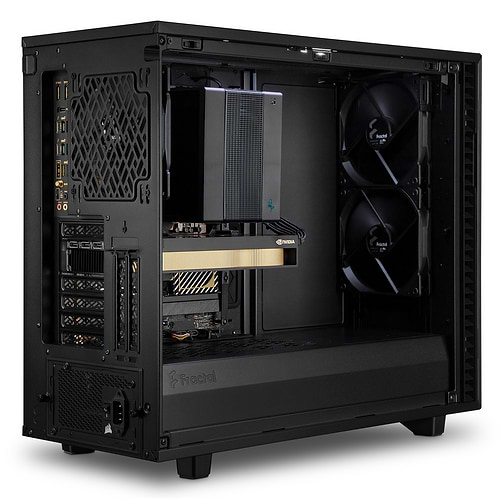

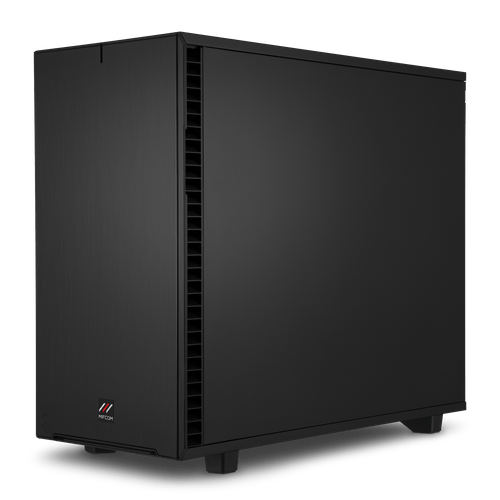

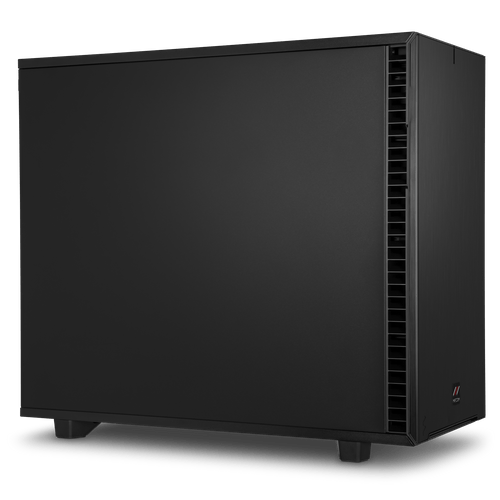

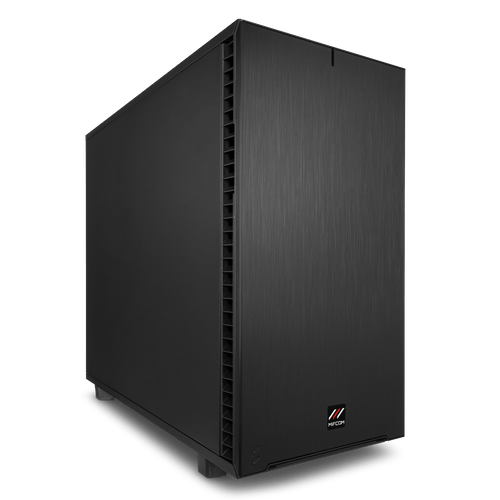

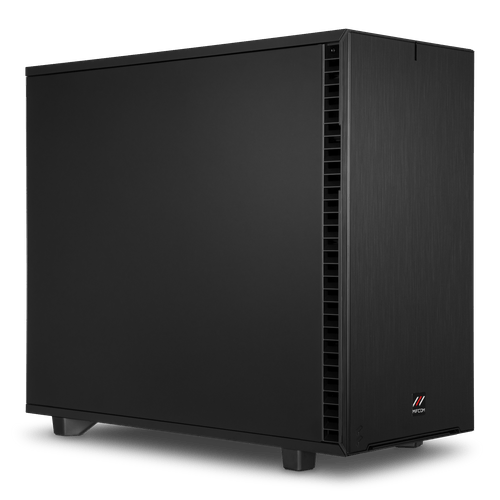

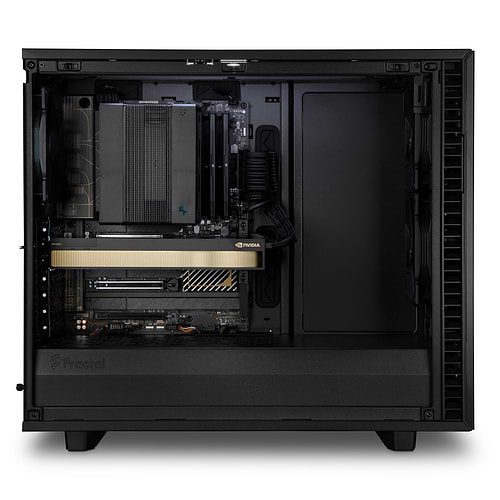

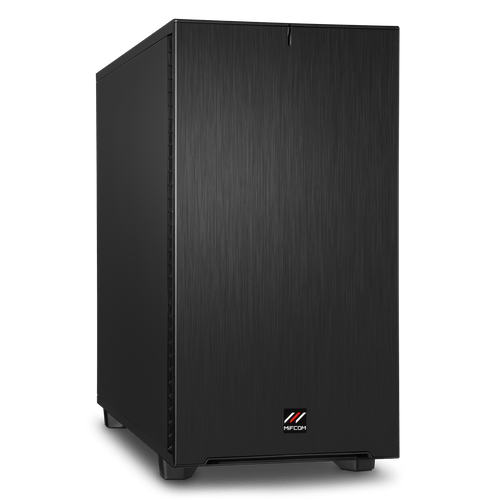

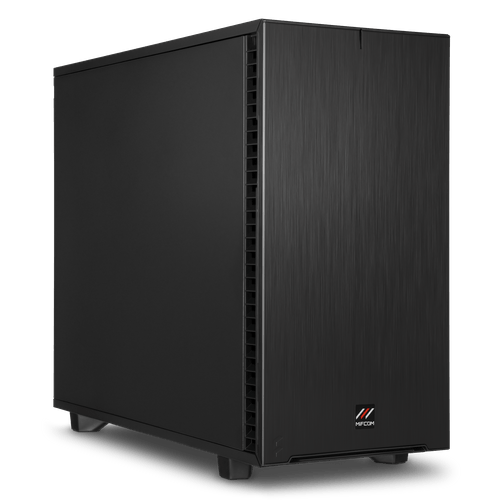

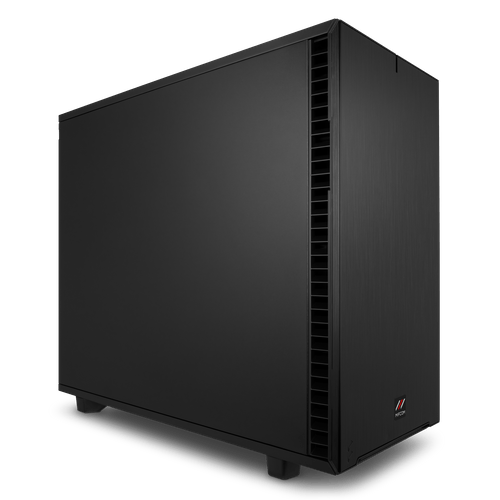

- Fractal Design Define 7, black | soundproofedThe Fractal Design Define 7 is a high-quality case for gamers and enthusiasts who value a discreet design, a well thought-out interior layout and maximum flexibility. With its clear, sound-insulated exterior, it remains visually unobtrusive, but offers everything a modern gaming system needs on the inside. The insulated side and front panels ensure quiet operation, even with powerful hardware.
Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 1x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-in/out)
- Number of PCIe slots9 (2x Riser Card)
- DesignMidi-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX (12 "x10.9")
- Fan (front)2x 140mm, 1000rpm, 116m³/h (68.27 CFM), 18.9dB(A) or 3x 140mm (optional)
- Fan (rear)1x 140mm, 1000rpm, 116m³/h (68.27 CFM), 18.9dB(A)
- Fan (top)3x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)2x 140mm (optional)
- Internal drive bays6x 2.5"/3.5" (horizontal, drive rails), 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)240x474x547mm
- Special featuresFront door, incl. fan control, graphics card can be mounted vertically, soundproofed
- AMD Ryzen Threadripper 9980X, 64x 3.2GHz, 256MB L3 cacheEnhance workstation performance for maximum productivity - From blockbuster movies to ambitious architecture and next-gen designs, bring your ideas to life quickly with the ultimate workstation performance of AMD Ryzen Threadripper 9000 Series processors.
Technical details - Processor cores64
- BaseAMD sTR5
- Processor threads128
- Base clock3.20 GHz
- Turbo beat5.40 GHz
- L2 cache64MB (64x 1MB)
- L3 cache256MB (4x 32MB)
- TDP350 Watt
- iGPU type (label)N/A
- PCIe lanes48x PCIe 5.0, 40x PCIe 4.0
- Memory controllerQuad Channel DDR5-6400 RDIMM (PC5-51200, 204.8GB/s), max. 1TB
- ManufacturingZen 5
- Code nameShimada Peak
- ASUS Pro WS TRX50-Sage WIFI | AMD TRX50
Technical details - Processor socketAMD sTR5
- RAM support4x DDR5 DIMM, quad PC5-41600R/DDR5-5200, max. 1TB (RDIMM-3DS)
- Wireless standardsWi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4
- Form factorE-ATX (SSI CEB)
- ChipsetAMD TRX50
- LightingN/A
- Special featuresAudio+solid capacitors, Diagnostic LED (segment display), Diagnostic LED (LED indicators), 3x M.2 passive coolers, integrated I/O panel, 2x VRM fans, ECC support, onboard TPM 2.0 support
- Power supply2x 24-pin ATX, 2x 8-pin EPS12V, 2x 8-pin PCIe-In, 1x 8-pin PCIe-Out, 1x 6-pin PCIe-Out
- FAN header2x CPU fan 4-pin, 6x fans, 1x pump 4-pin, 1x thermal sensor
- Audio description7.1 (Realtek ALC1220)
- Connections (rear)1x USB-C 3.2 (20Gb/s), 6x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 10GBase-T (Marvell AQtion AQC113CS), 1x 2.5GBase-T (Intel I226-LM), 2x jack, 1x Toslink, 2x antenna connection RP-SMA proprietary
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/​s, PD, max. 27W, QC4+), 1x USB 3.0 Header (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/​s, 4x USB 2.0), 4x SATA 6Gb/s (TRX50), 1x seriell, 1x TPM-Header, 1x USB4/​Thunderbolt-Header 13-Pin (14-1), 1x Chassis Intrusion-Header, 1x BMC-Header
- RAID level0/​1/​10 (TRX50)
- Expansion slots3x PCIe 5.0 x16 (2x x16, 1x x8), 2x PCIe 4.0 x16 (1x x16, 1x x4), 2x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module), 1x Slim SAS SFF-8654 (PCIe 4.0 x4)
- RGB headerN/A
- AMD Radeon PRO W7900, 48GBAMD Radeon PRO W7000 graphics cards: Experience the power of the RDNA 3 architecture for professional applications. Offers outstanding performance, generous VRAM and support for DisplayPort 2.1 - perfect for CAD/CAM, media editing and complex visualizations.
Technical details - Memory type48GB GDDR6 with ECC mode, 384bit, 18Gbps, 2250MHz, 864GB/s
- API supportDirectX 12 Ultimate (12_2) /​ Vulkan 1.3 /​ OpenCL 2.2 /​ OpenGL 4.6 /​ Shader Model 6.7
- PCIe cut pointPCIe 4.0 x16
- GPU typeAMD Radeon PRO W7900 48GB
- VRAM48GB
- GPU clock1900MHz
- GPU clock (boost)2495MHz
- GPU fan1x radial fan (75mm)
- Power consumption295W (AMD)
- Dimensions (WxHxD)280x110x51mm (LxWxH)
- Special featuresN/A
- Power supply2x 8-pin PCIe
- Connections (rear)3x DisplayPort 2.1 UHBR20, 1x Mini DisplayPort 2.1 UHBR20
- 16GB RDIMM ECC DDR5-5600DDR5 with ECC error correction: Ensure the highest data integrity and uninterrupted performance. DDR5 ECC RAM not only offers the bandwidth of the latest memory generation, but also the protection against memory errors that is essential for professional and business-critical systems.
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
- Noctua NH-U14S TR5-SP6Noctua NH-U14S TR5/SP6: The customized cooling solution for AMD's TR5/SP6 socket. Delivers Noctua's renowned cooling performance and reliability for your high-end Threadripper or EPYC based systems.
Technical details - Heatpipes6 heat pipes
- Fan2x 140x140x25mm, 300-1500rpm, 140.2m³/h, 82.51 CFM, 24.6dB(A), 2.08mmH₂O, 1.56W (NF-A15 HS-PWM, Link)
- Socket AMDsTR5/​SP6
- Socket Intel-
- TDP-
- Lighting-
- Dimensions (WxHxD)150x165x111mm (WxHxD)
- Special features-
- 2TB SanDisk WD Black SN850X
Technical details - Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
- Storage capacity2TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7300MB/s
- Write speed6600MB/s SLC-Cached
- SSD controllerWestern Digital Black G2
- Mean time between failures-
- IOPS 4K1200k reading, 1100k writing
- Power supply-
- 1000W - be quiet! Power Zone | modular
Technical details - PSU power (Desc)1000W
- Power 12V83.3A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Platinum
- Fan140mm, 1800rpm, semi-passive
- Volume6.50-27.20dB(A) (according to manufacturer), 19.66dB(A) (according to Cybenetics certificate, 115V), 19.12dB(A) (according to Cybenetics certificate, 230V)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
240x474x547mm
Connectivity

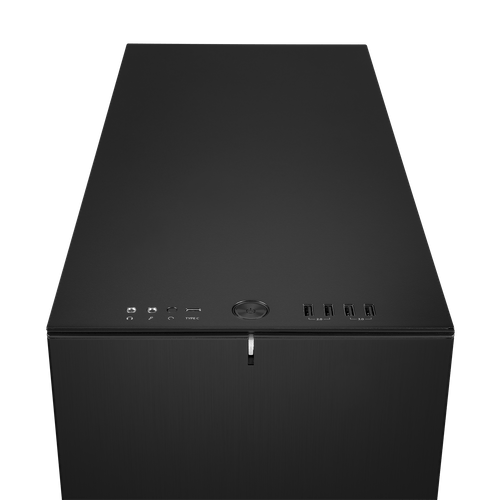

Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 1x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-in/out)

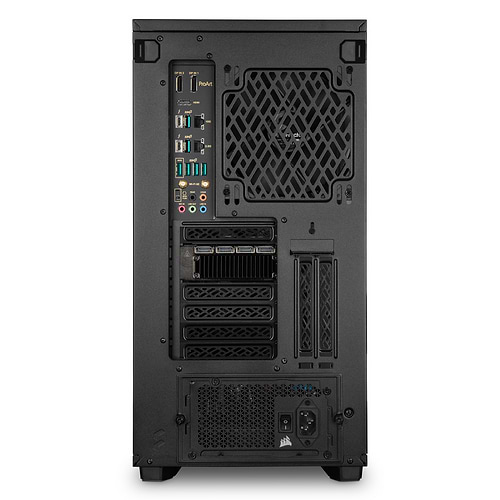

Rear
1x USB-C 3.2 (20Gb/s), 6x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 10GBase-T (Marvell AQtion AQC113CS), 1x 2.5GBase-T (Intel I226-LM), 2x jack, 1x Toslink, 2x antenna connection RP-SMA proprietary, 3x DisplayPort 2.1 UHBR20, 1x Mini DisplayPort 2.1 UHBR20
