Workstation - Ryzen TR 9960X - RTX 5070
AMD TR 9960X, 24C
RTX 5070 12GB, GIGABYTE
1TB WD_Blue SN5100
ASUS Pro WS TRX50-Sage WIFI
4x 16GB RDIMM DDR5-5600
7.899
,-
incl. VAT plusShipping
144
,26
Delivery time:
5-7 business days
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation

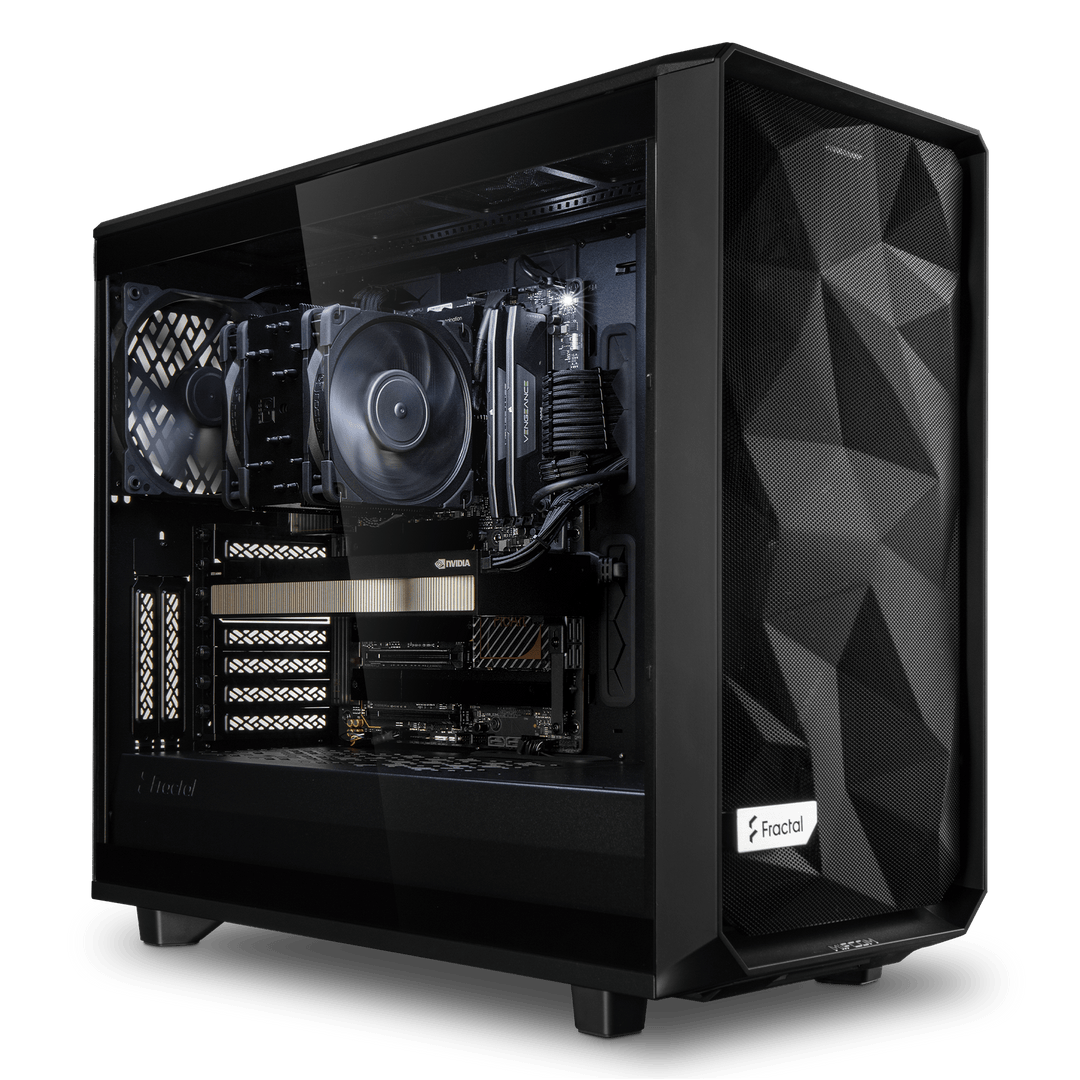

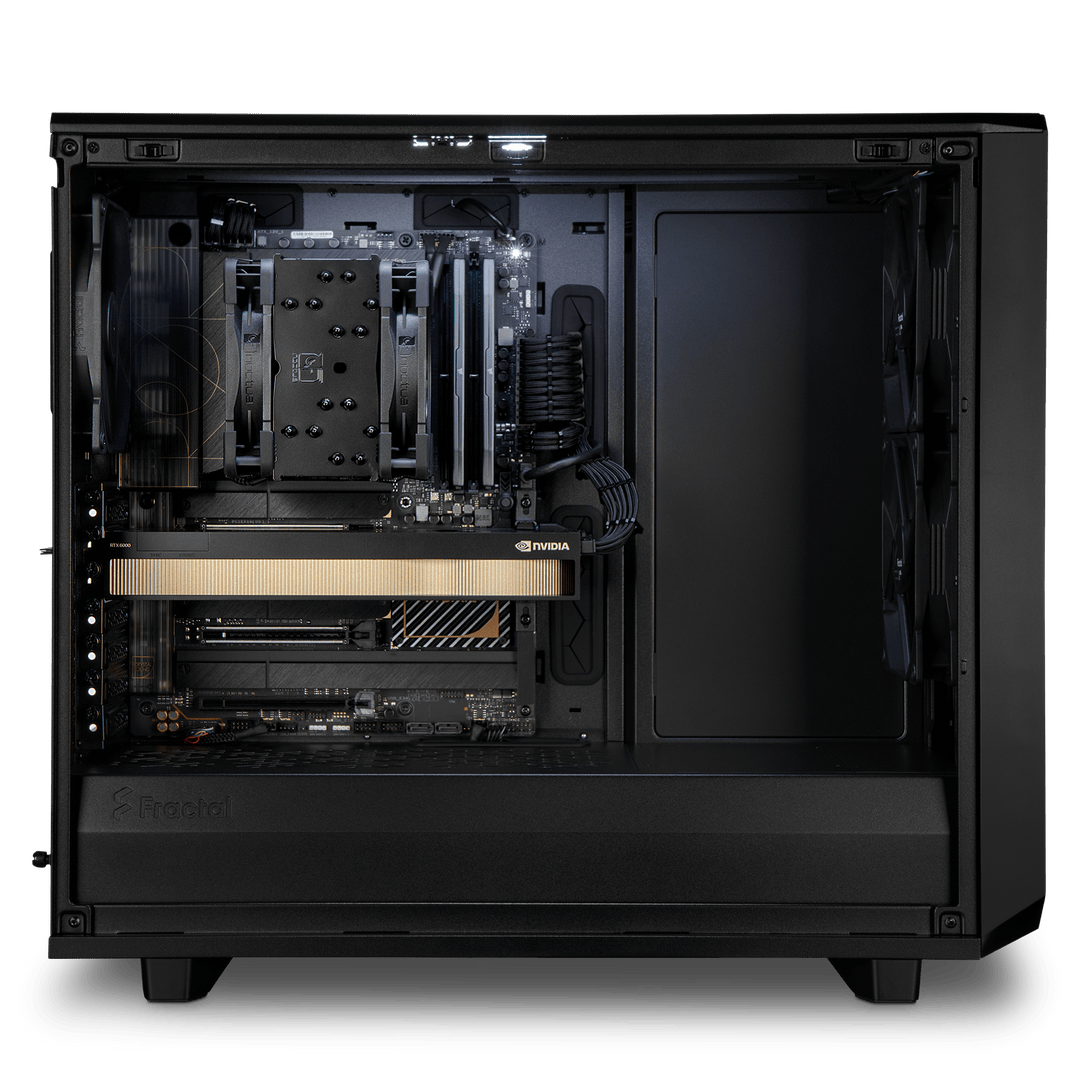

Ryzen TR 9960X - RTX 5070
Our AMD Ryzen Threadripper workstations offer you outstanding performance for multi-threaded applications with the 24 cores of the Threadripper 9960X. The new Threadripper processors also impress with high frequencies in terms of single-core performance. Thanks to this versatility in performance, the new processors cover a wide range of computing power and thus ensure shorter render times, more creative iterations, faster simulations and ultimately lead to increased productivity. In our configurator, you can always combine your new AMD Threadripper processor with the latest graphics cards, such as an NVIDIA GeForce RTX 5070 with 12GB video memory.
Powerful workstations with AMD Ryzen Threadripper for professional content creators
Technical details
Workstation - Ryzen TR 9960X - RTX 5070

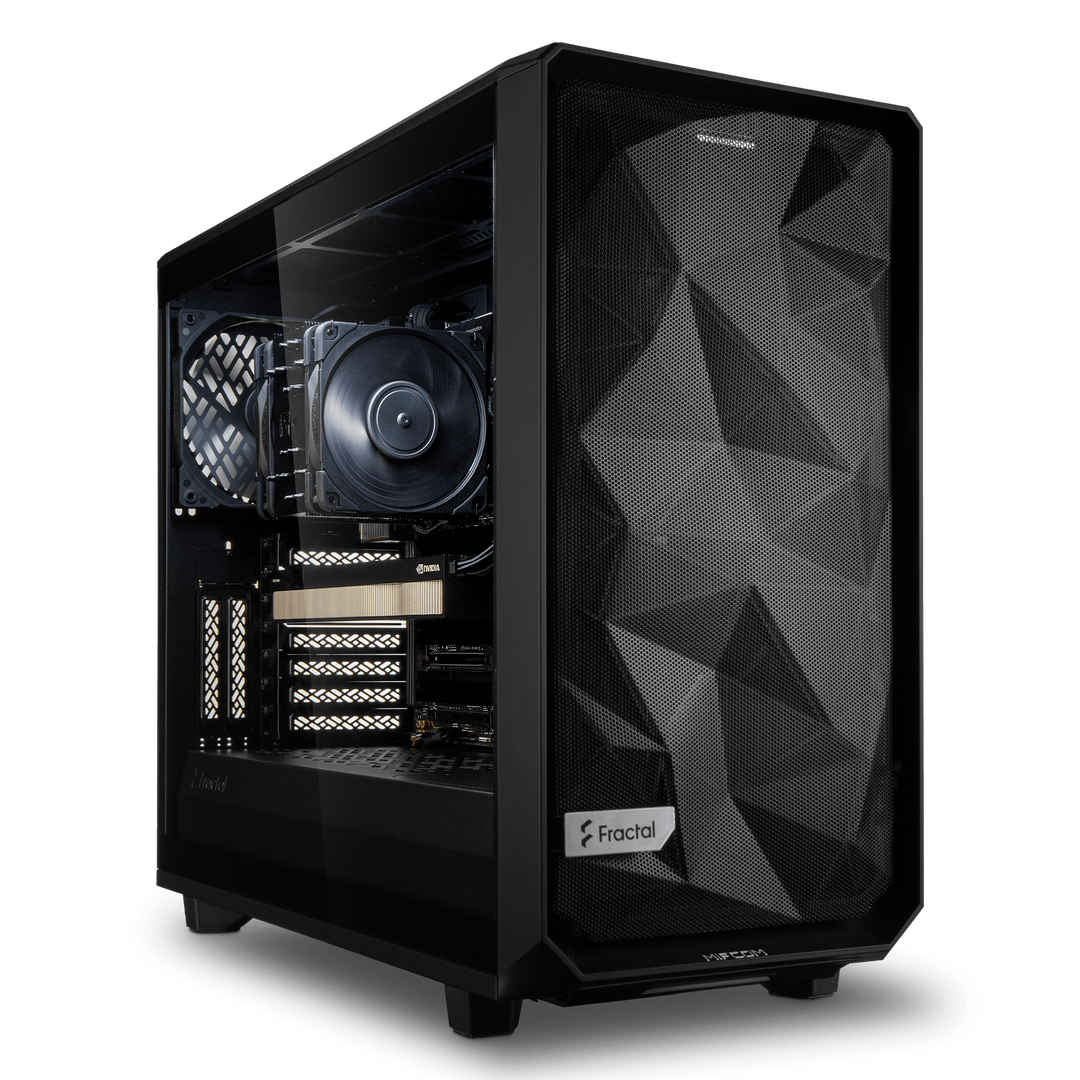

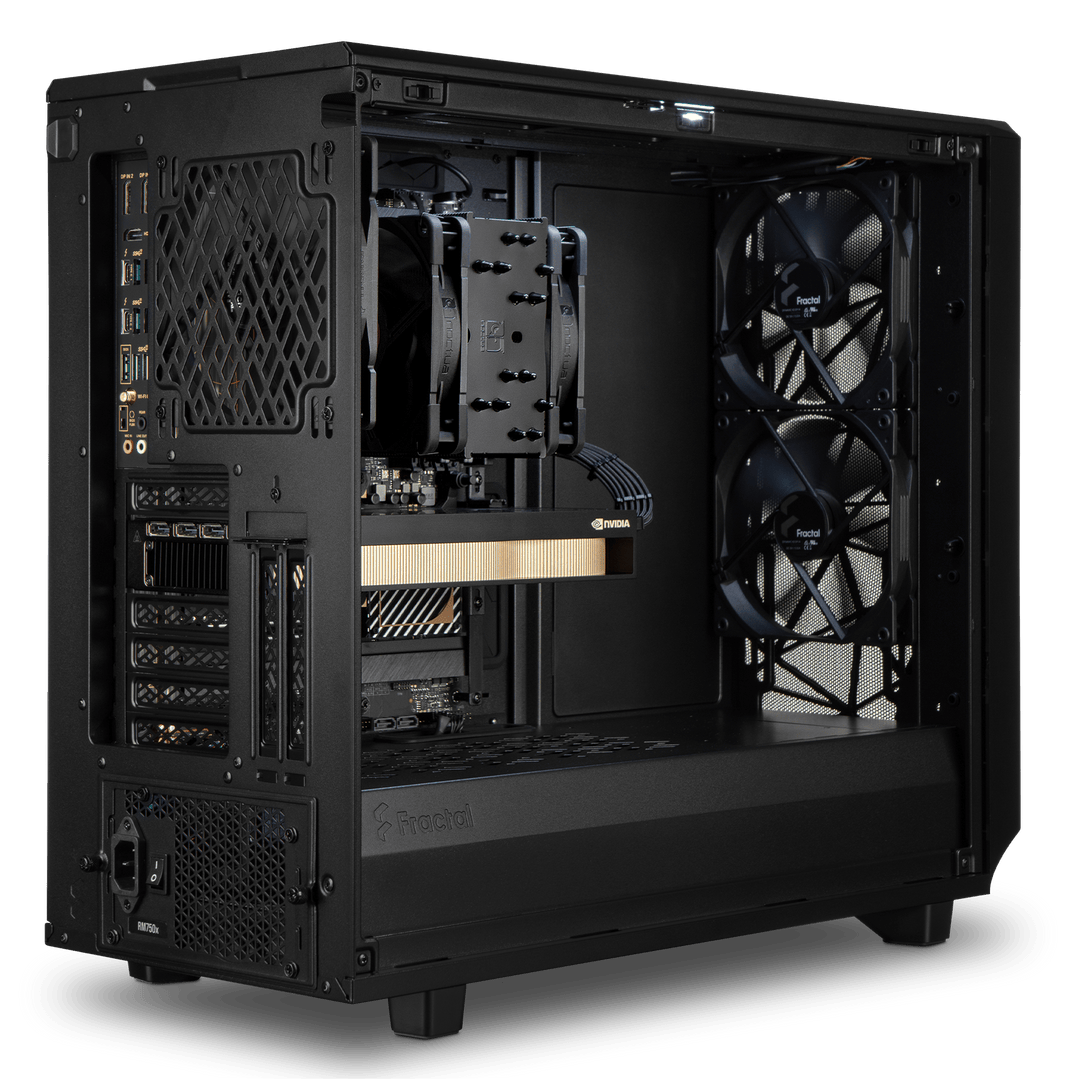

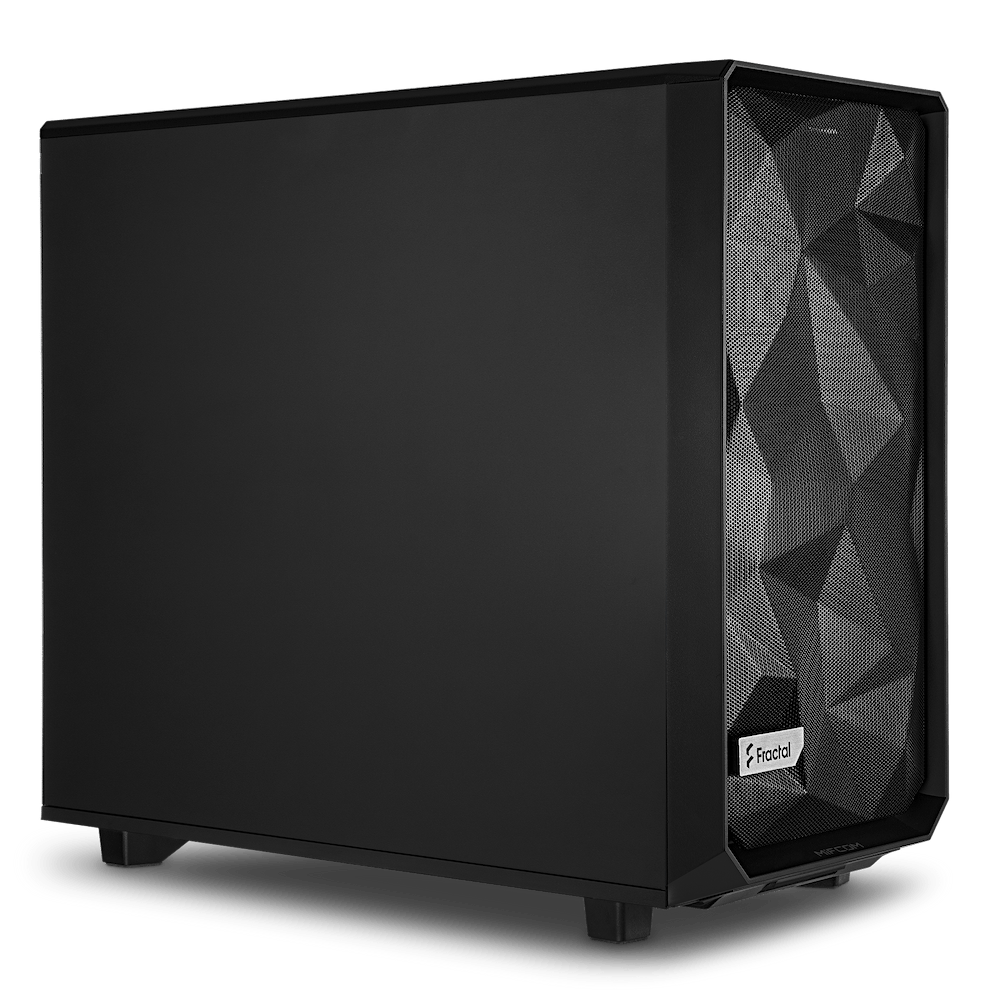

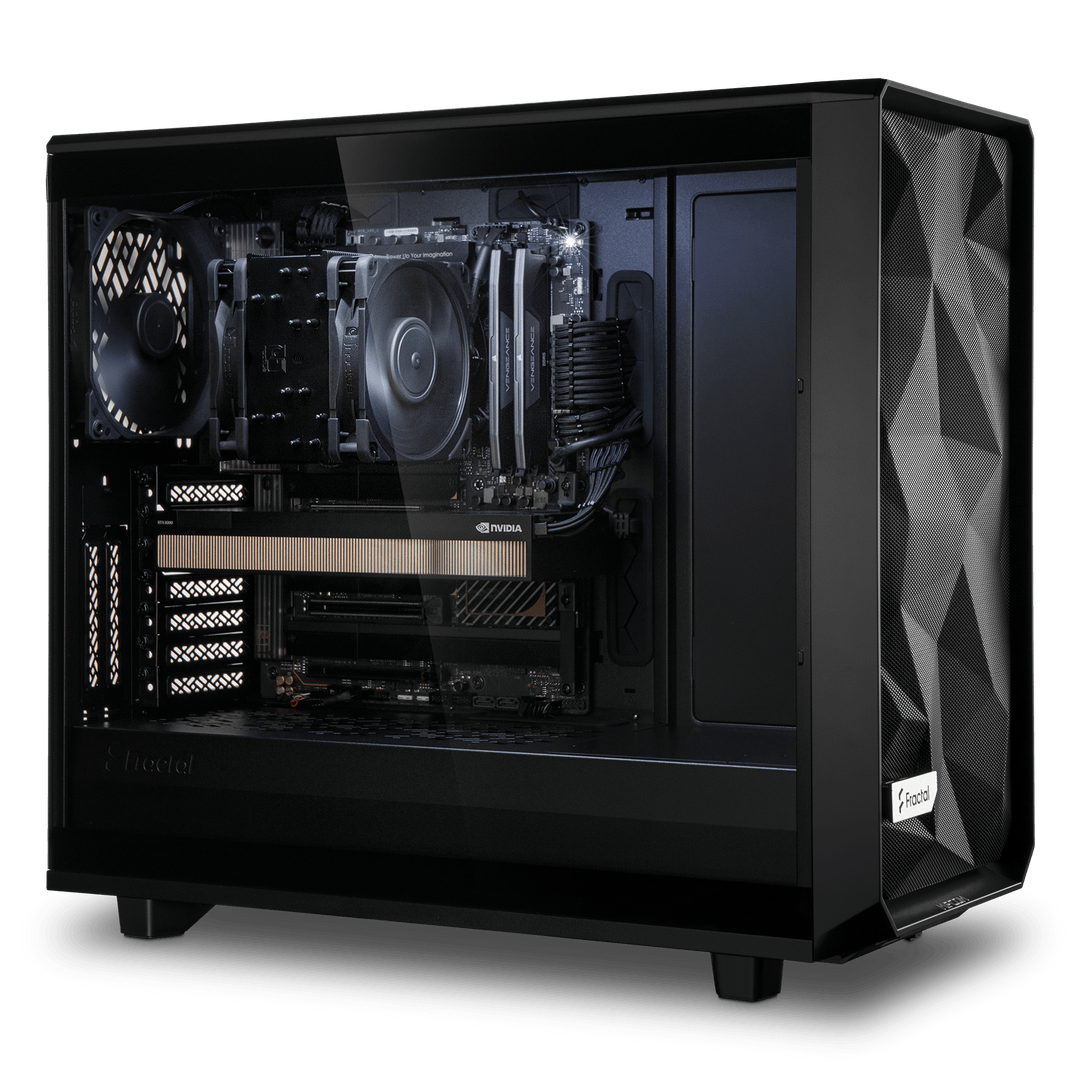

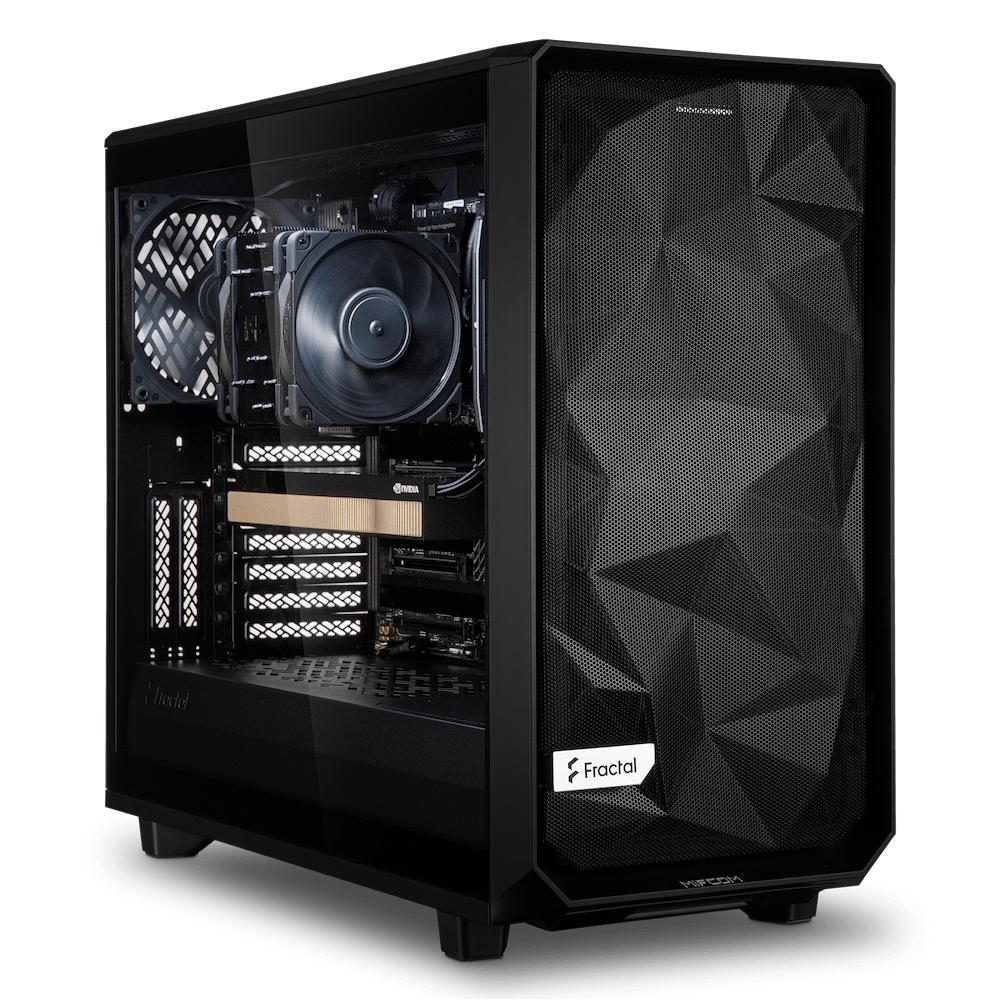

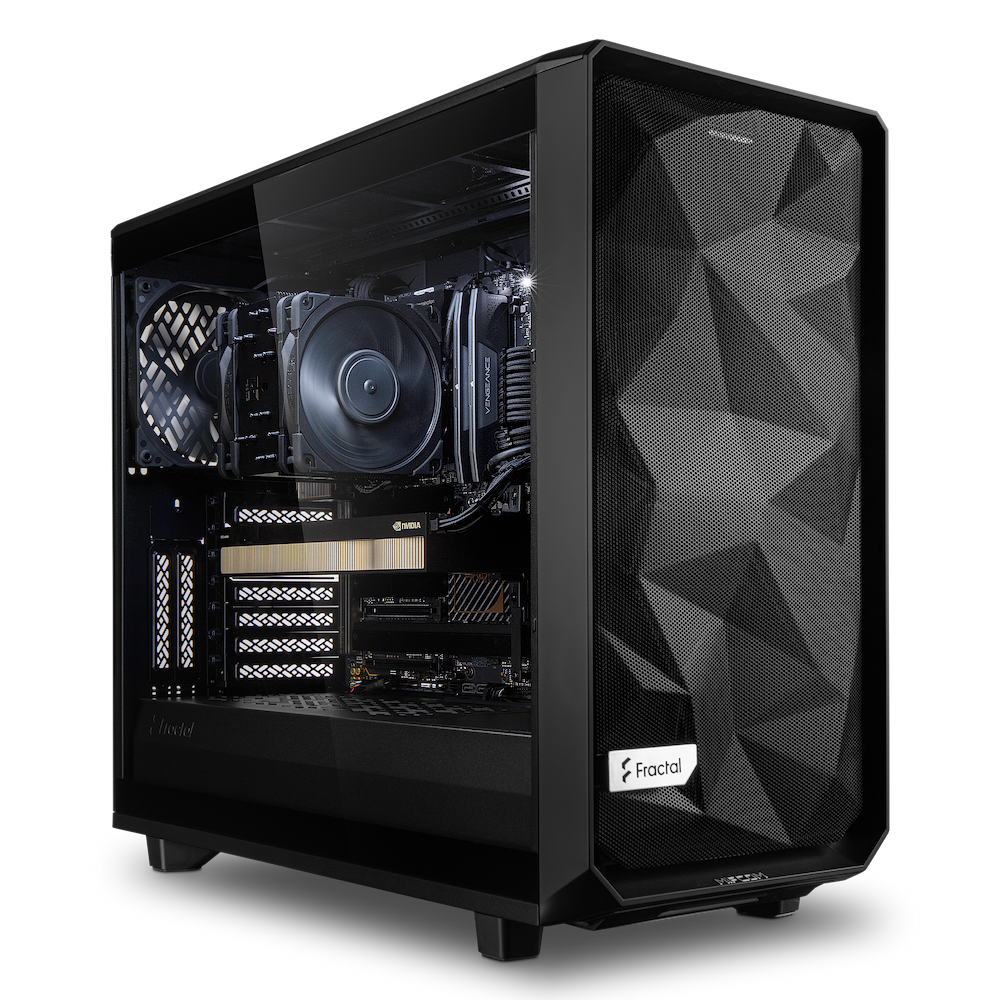

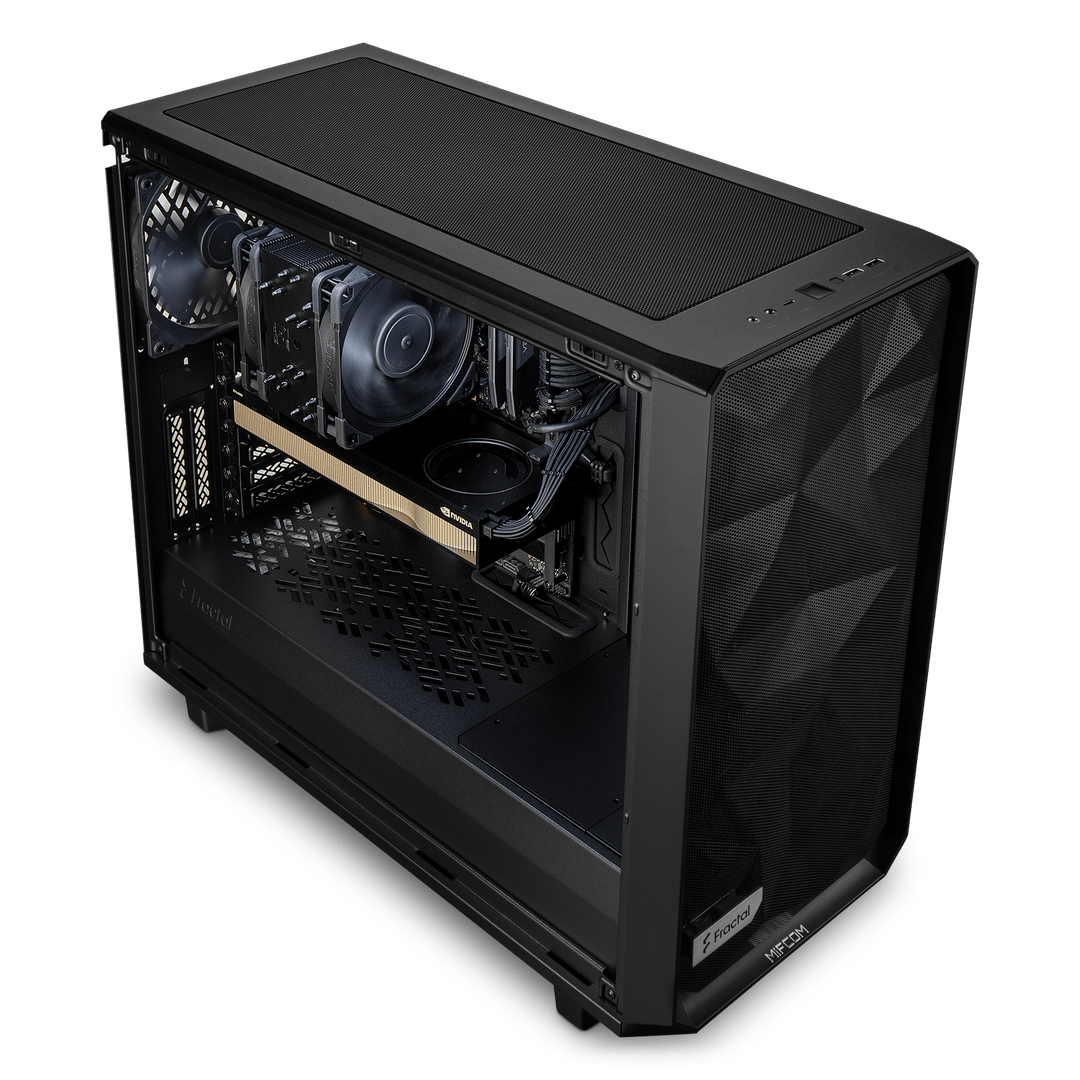

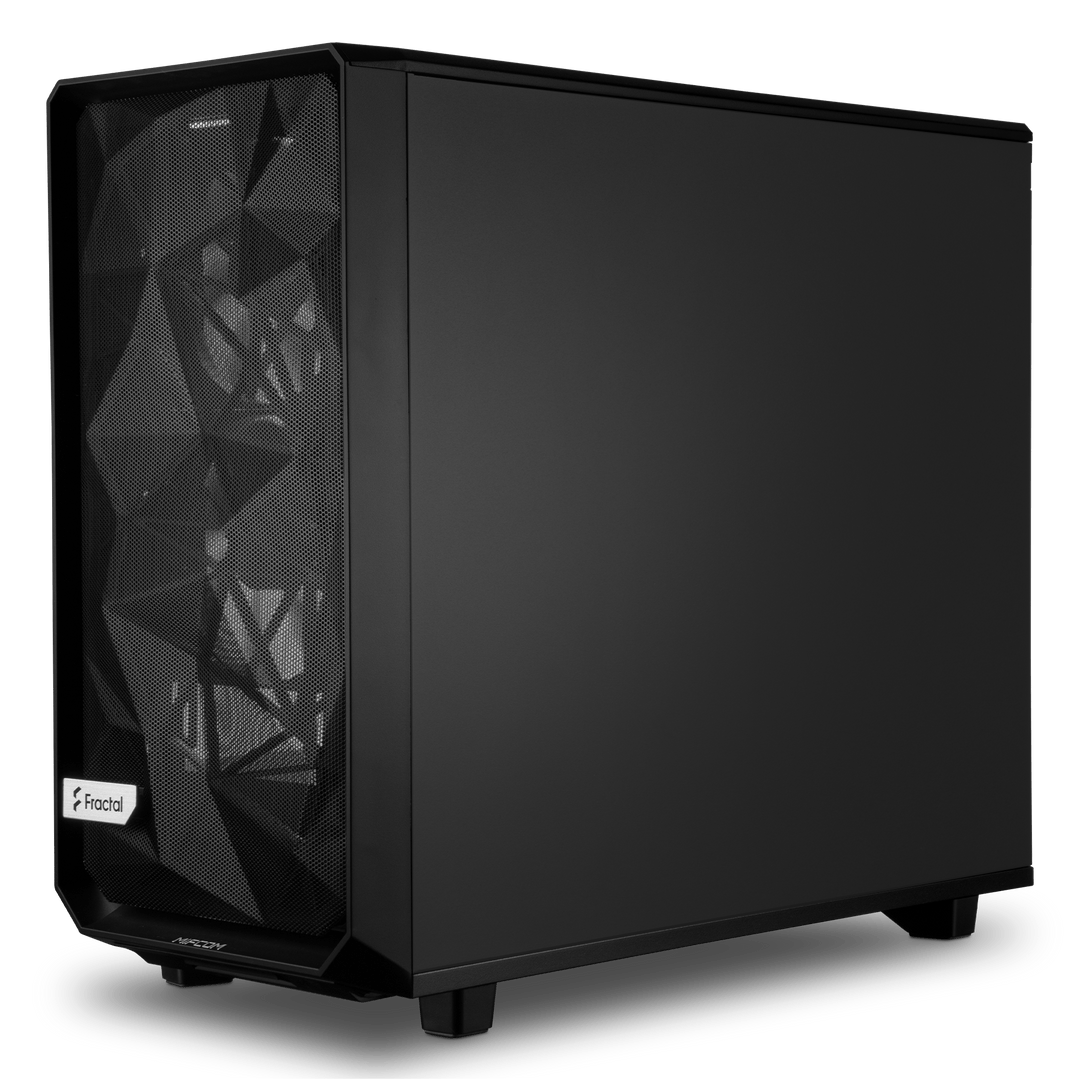

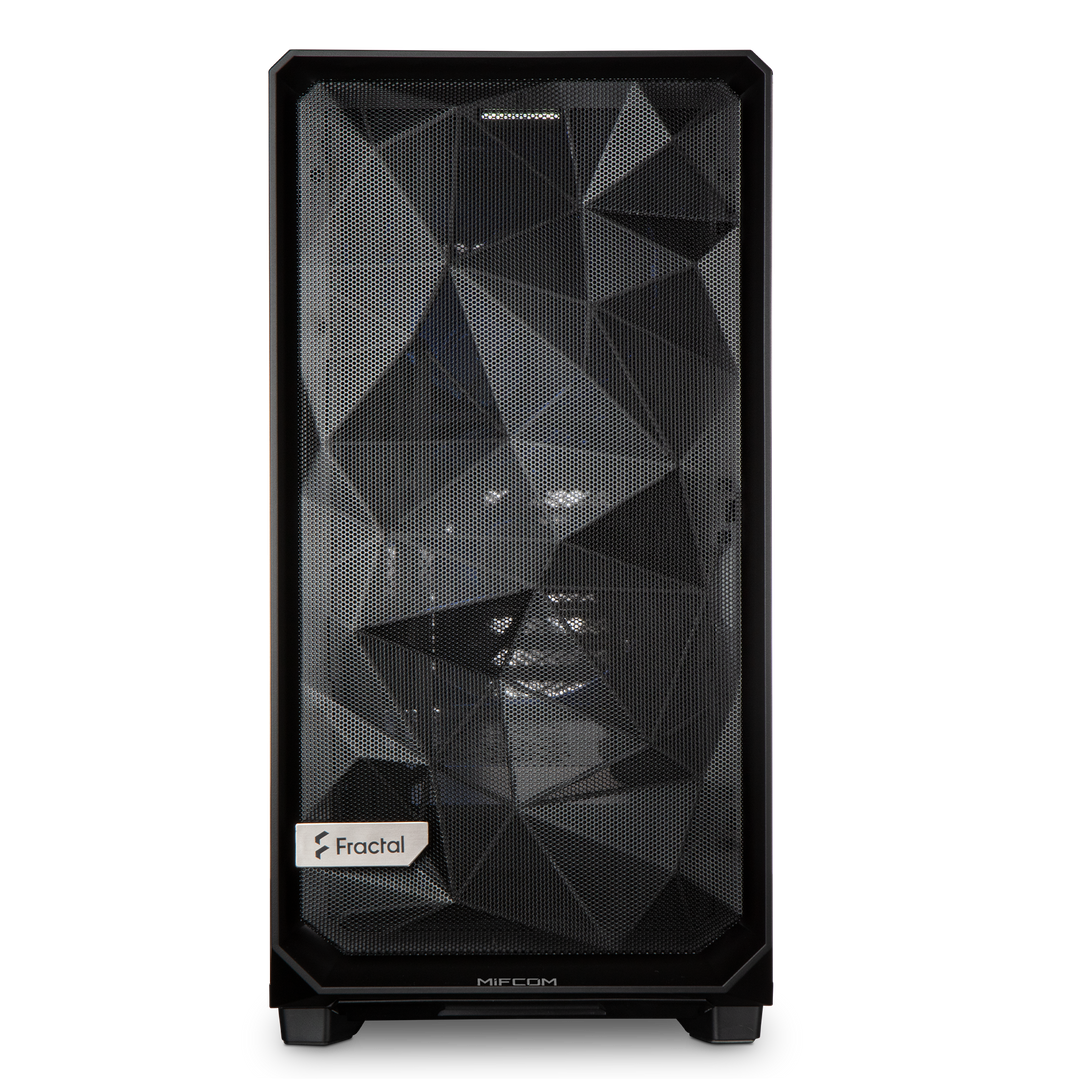

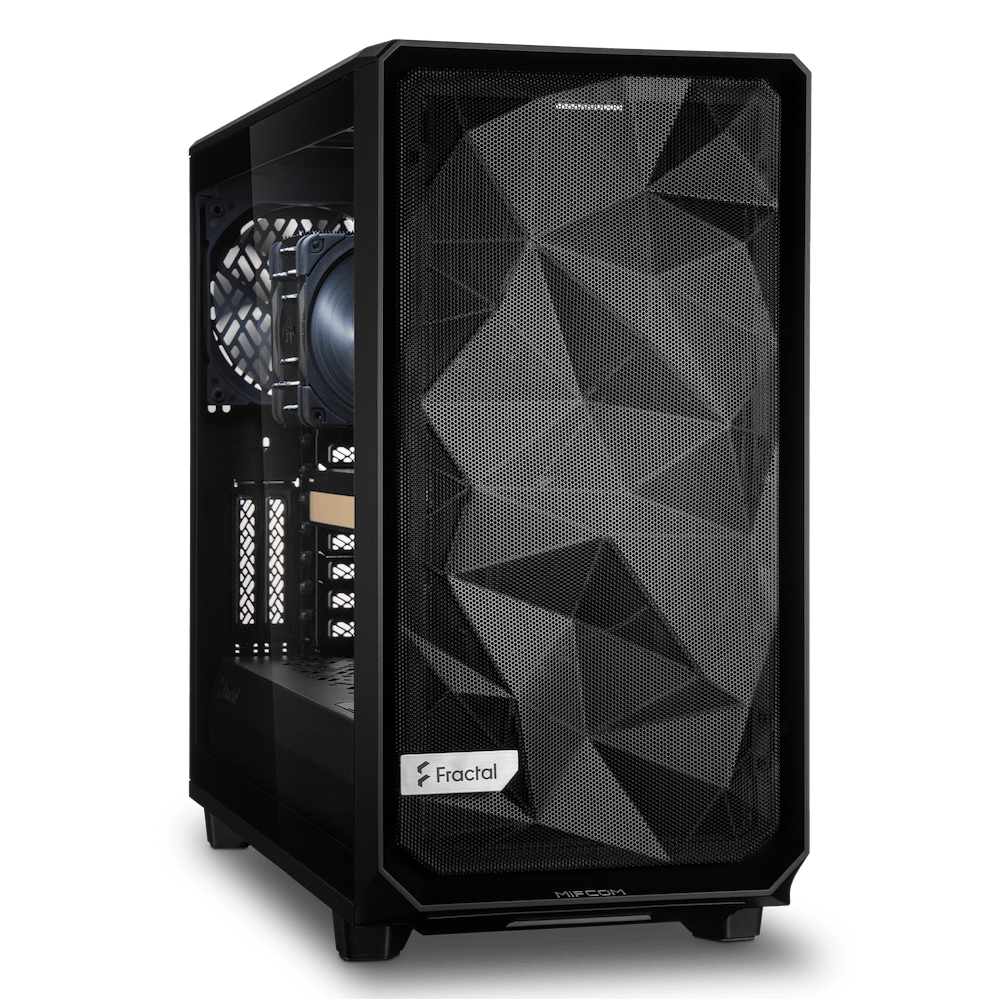

- Fractal Design Meshify 2, black | soundproofedThe Meshify 2 joins the Fractal Design lineup with unbeatable cooling performance and an innovative look. The angular and asymmetrical airflow front panel makes the Meshify 2 a convincing high-airflow case.
Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots9 (2x Riser Card)
- DesignMidi-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX (12 "x10.9")
- Fan (front)2x 140mm, 3x 140mm (optional)
- Fan (rear)1x 140mm
- Fan (top)3x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)2x 140mm (optional)
- Internal drive bays6x 2.5"/3.5" (horizontal, drive rails), 2x 2.5", 8x 2.5"/3.5" (optional), 2x 2.5" (optional)
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)230x466x453mm
- Special featuresMesh front, dust filter top and bottom
- AMD Ryzen Threadripper 9960X, 24x 4.2GHz, 128MB L3 cacheEnhance workstation performance for maximum productivity - From blockbuster movies to ambitious architecture and next-gen designs, bring your ideas to life quickly with the ultimate workstation performance of AMD Ryzen Threadripper 9000 Series processors.
Technical details - Processor cores24
- BaseAMD sTR5
- Processor threads48
- Base clock4.20 GHz
- Turbo beat5.40 GHz
- L2 cache24MB (24x 1MB)
- L3 cache128MB (4x 32MB)
- TDP350 Watt
- iGPU type (label)N/A
- PCIe lanes48x PCIe 5.0, 40x PCIe 4.0
- Memory controllerQuad Channel DDR5-6400 RDIMM (PC5-51200, 204.8GB/s), max. 1TB
- ManufacturingZen 5
- Code nameShimada Peak
- ASUS Pro WS TRX50-Sage WIFI | AMD TRX50
Technical details - Processor socketAMD sTR5
- RAM support4x DDR5 DIMM, quad PC5-41600R/DDR5-5200, max. 1TB (RDIMM-3DS)
- Wireless standardsWi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4
- Form factorE-ATX (SSI CEB)
- ChipsetAMD TRX50
- LightingN/A
- Special featuresAudio+solid capacitors, Diagnostic LED (segment display), Diagnostic LED (LED indicators), 3x M.2 passive coolers, integrated I/O panel, 2x VRM fans, ECC support, onboard TPM 2.0 support
- Power supply2x 24-pin ATX, 2x 8-pin EPS12V, 2x 8-pin PCIe-In, 1x 8-pin PCIe-Out, 1x 6-pin PCIe-Out
- FAN header2x CPU fan 4-pin, 6x fans, 1x pump 4-pin, 1x thermal sensor
- Audio description7.1 (Realtek ALC1220)
- Connections (rear)1x USB-C 3.2 (20Gb/s), 6x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 10GBase-T (Marvell AQtion AQC113CS), 1x 2.5GBase-T (Intel I226-LM), 2x jack, 1x Toslink, 2x antenna connection RP-SMA proprietary
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/​s, PD, max. 27W, QC4+), 1x USB 3.0 Header (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/​s, 4x USB 2.0), 4x SATA 6Gb/s (TRX50), 1x seriell, 1x TPM-Header, 1x USB4/​Thunderbolt-Header 13-Pin (14-1), 1x Chassis Intrusion-Header, 1x BMC-Header
- RAID level0/​1/​10 (TRX50)
- Expansion slots3x PCIe 5.0 x16 (2x x16, 1x x8), 2x PCIe 4.0 x16 (1x x16, 1x x4), 2x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module), 1x Slim SAS SFF-8654 (PCIe 4.0 x4)
- RGB headerN/A

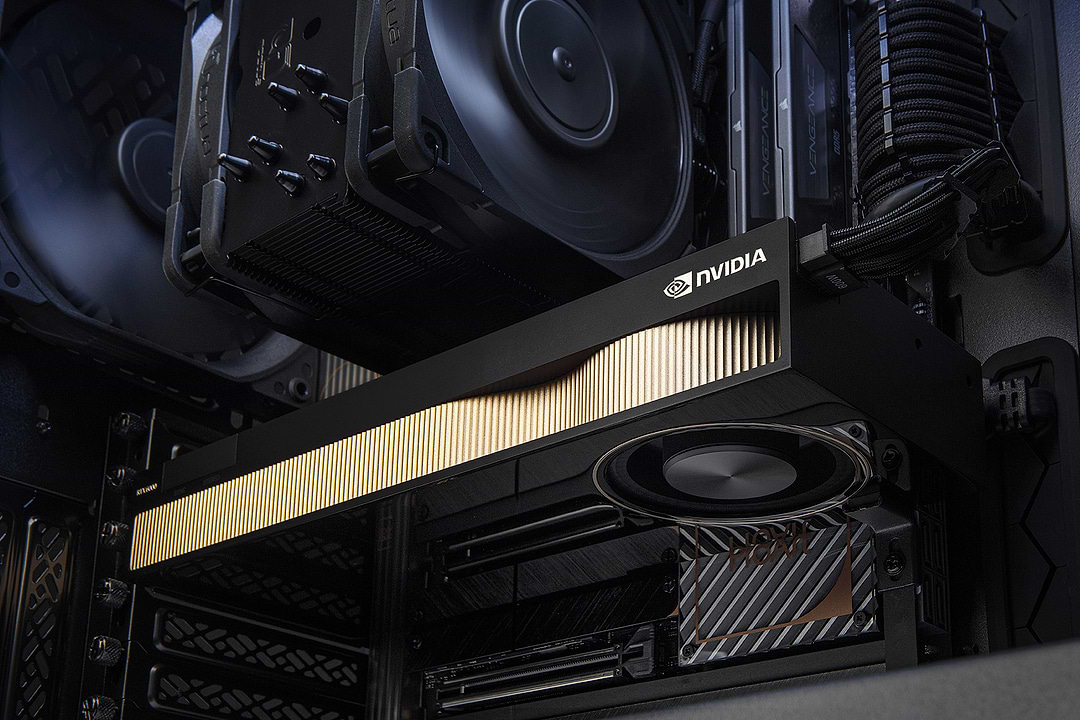

- NVIDIA GeForce RTX 5070 12GB | GIGABYTE Gaming OCPower up your PC with the NVIDIA® GeForce RTX™ 5070. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. These are supported by the ultra-efficient NVIDIA Blackwell architecture and 12 GB of super-fast GDDR7 memory.
Technical details - Memory type12GB GDDR7, 192bit, 28Gbps, 1750MHz, 672GB/s
- API supportDirectX 12 Ultimate (12_2) /​ CUDA 12.8 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.8
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5070
- VRAM12GB
- GPU clock2116MHz
- GPU clock (boost)TBD
- GPU fan3x axial fan with 0dB zero fan mode
- Power consumption250W (NVIDIA)
- Dimensions (WxHxD)282x110x50 mm (LxWxH)
- Special featuresAI acceleration, LED lighting (RGB), backplate, NVIDIA GeForce SFF-Ready
- Power supply1x 12V-2x6 (via adapter: 2x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 16GB RDIMM ECC DDR5-5600DDR5 with ECC error correction: Ensure the highest data integrity and uninterrupted performance. DDR5 ECC RAM not only offers the bandwidth of the latest memory generation, but also the protection against memory errors that is essential for professional and business-critical systems.
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
- Noctua NH-U14S TR5-SP6Noctua NH-U14S TR5/SP6: The custom-designed cooling solution for AMD's TR5/SP6 sockets. Delivers Noctua's renowned cooling performance and reliability for your high-end Threadripper or EPYC-based systems.
Technical details - Heatpipes6 heat pipes
- TDPk.A.
- Lighting-
- Dimensions (WxHxD)150 x 165 x 111 mm (W x H x D)
- Special features-
- Fan2x 140x140x25mm, 300–1500 rpm, 140.2 m³/h, 82.51 CFM, 24.6 dB(A), 2.08 mmH₂O, 1.56 W (NF-A15 HS-PWM, Link)
- Socket AMDsTR5/​SP6
- Socket Intel-
- 1TB SanDisk WD Blue SN5100NVMe™ - the engine for your creative workloads. The WD Blue SN5000 NVMe™ SSD is the latest generation of high-performance storage for creative and professional users. NVMe™ combined with PCIe® Gen 4 and Western Digital's nCache™ 4.0 technology delivers high speed for AI-powered applications and accelerated workflow execution. With a storage capacity of up to 4 TB1, there are no limits to your creativity. Whatever you're working on, the WD Blue SN5000 NVMe™ SSD makes every step easier and shortens the time from idea to final realization of your creative vision.
Technical details - Memory type3D NAND TLC, Kioxia, 112 layers (BiCS5)
- Storage capacity1TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7100MB/s
- Write speed6700MB/s SLC-Cached
- SSD controller-
- Mean time between failures1.75 million hours
- IOPS 4K1000K reading, 1300K writing
- Power supply3.9W (write), 3.9W (read), 4mW (idle)
- 850W - Corsair RMx 2024 | modular
Technical details - PSU power (Desc)850W
- Power 12V83.3A
- Power 3.3V20A
- Power 5V20A
- Power -12V-
- PSU certification80 PLUS Gold
- Fan140 mm, semi-passive
- Volume21.34 dB(A) (according to the Cybenetics certificate, 115 V), 21.37 dB(A) (according to the Cybenetics certificate, 230 V)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
230x466x453mm
Connectivity

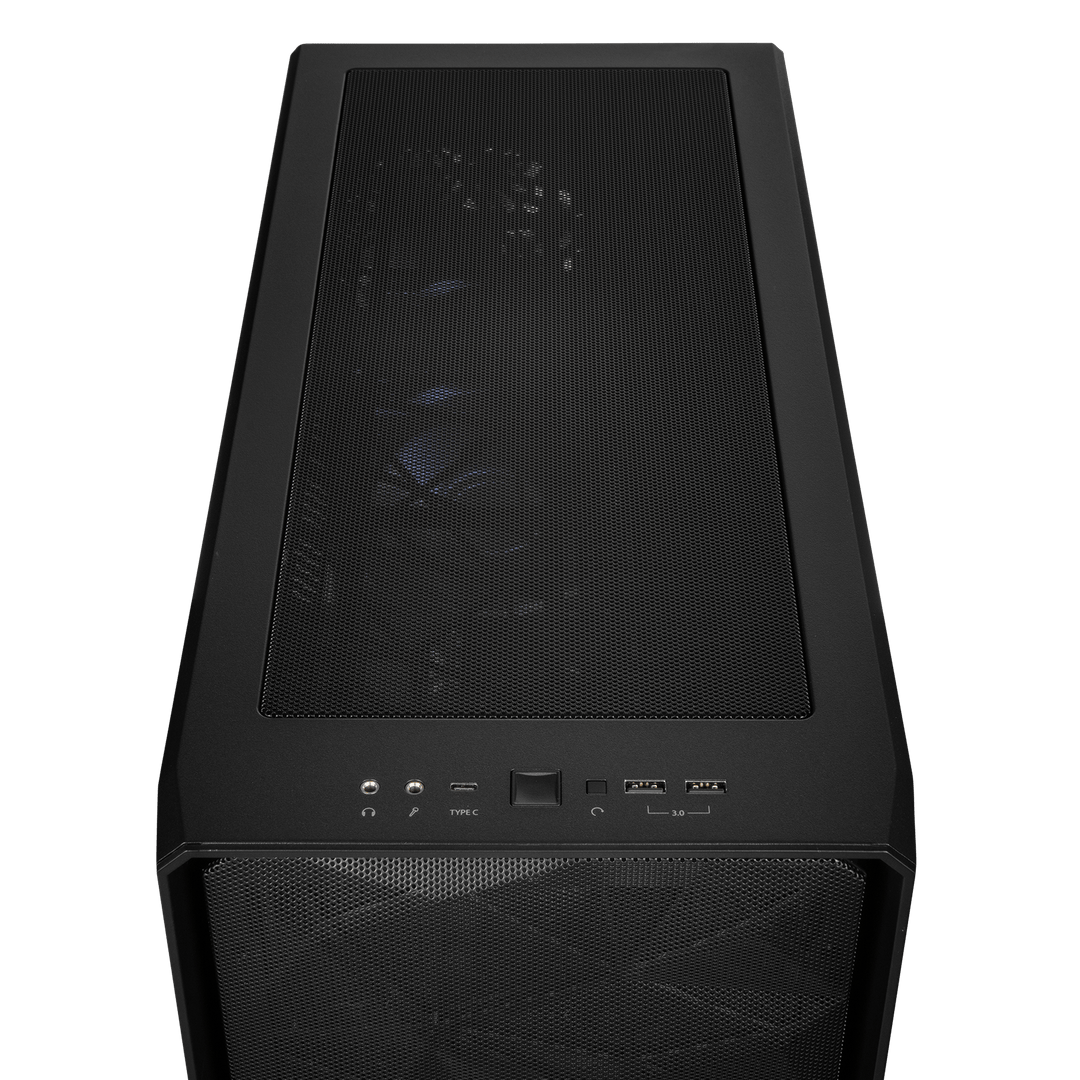

Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)

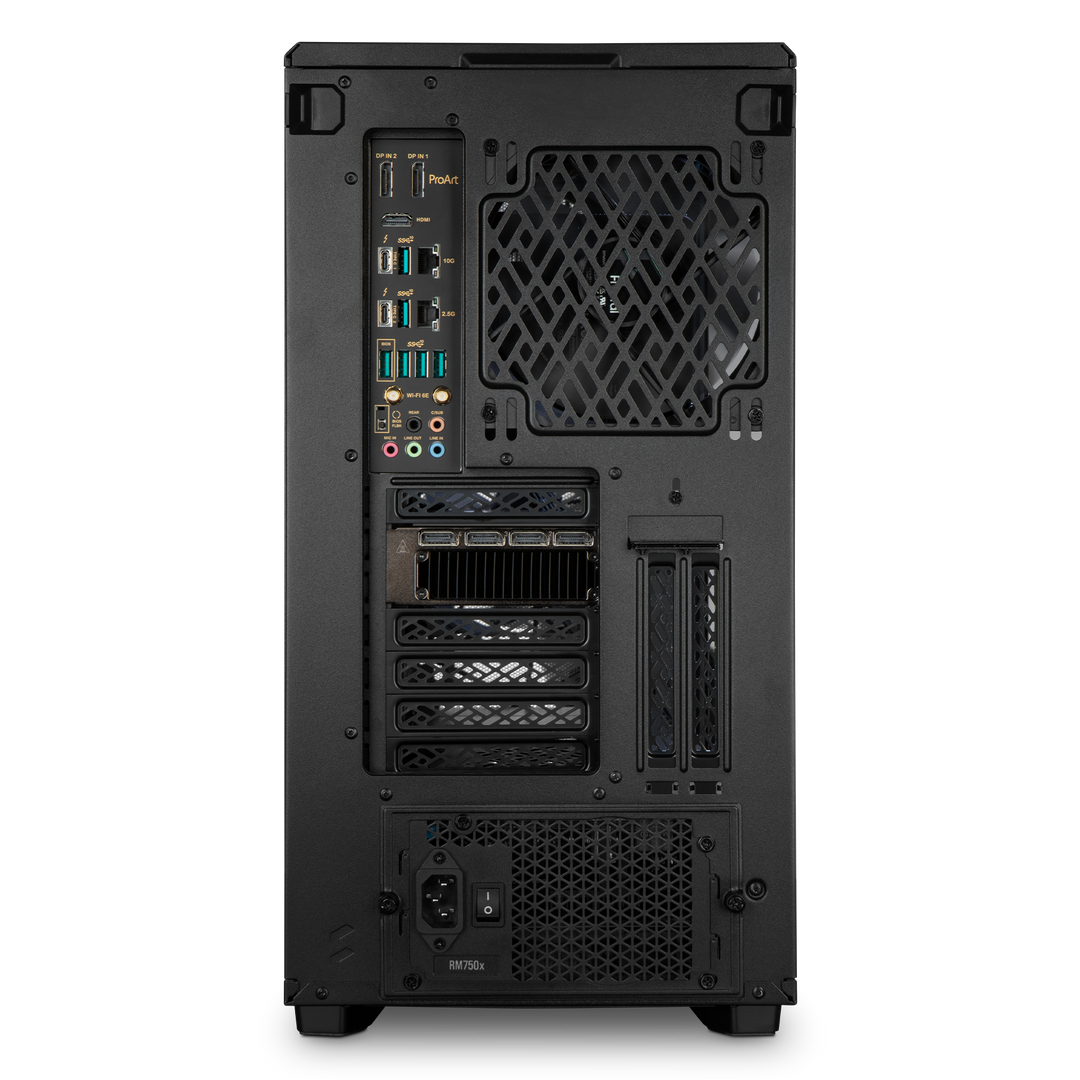

Rear
1x USB-C 3.2 (20Gb/s), 6x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 10GBase-T (Marvell AQtion AQC113CS), 1x 2.5GBase-T (Intel I226-LM), 2x jack, 1x Toslink, 2x antenna connection RP-SMA proprietary, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
