Workstation - Ryzen 9 9950X - RTX 5090
AMD Ryzen 9 9950X, 16C
ASUS X870E ProArt
RTX 5090 32GB, GIGABYTE
64GB DDR5-6000, Corsair
2TB WD_Black SN7100
11.499
,-
incl. VAT plusShipping
Pre-order:
approx. 1 month
3 year warranty
Lifetime support
>20 years of experience
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Ryzen 9 9950X - RTX 5090
This high-performance workstation is designed for developers, data scientists, and teams who want to run large on-premises LLMs without compromise. Thanks to the synergy between the 16-core AMD Ryzen 9 9950X processor and the NVIDIA GeForce RTX 5090, the system effortlessly handles even demanding models with high parameter counts and large context windows. All data processing remains 100% local and GDPR-compliant on-premises. The state-of-the-art SSD system drive via PCIe 5.0 guarantees minimal load times when switching between checkpoints, Ollama models, or Python environments.
Maximum high-end inference and accelerated fine-tuning for complex open-source LLMs
Technical details
Workstation - Ryzen 9 9950X - RTX 5090

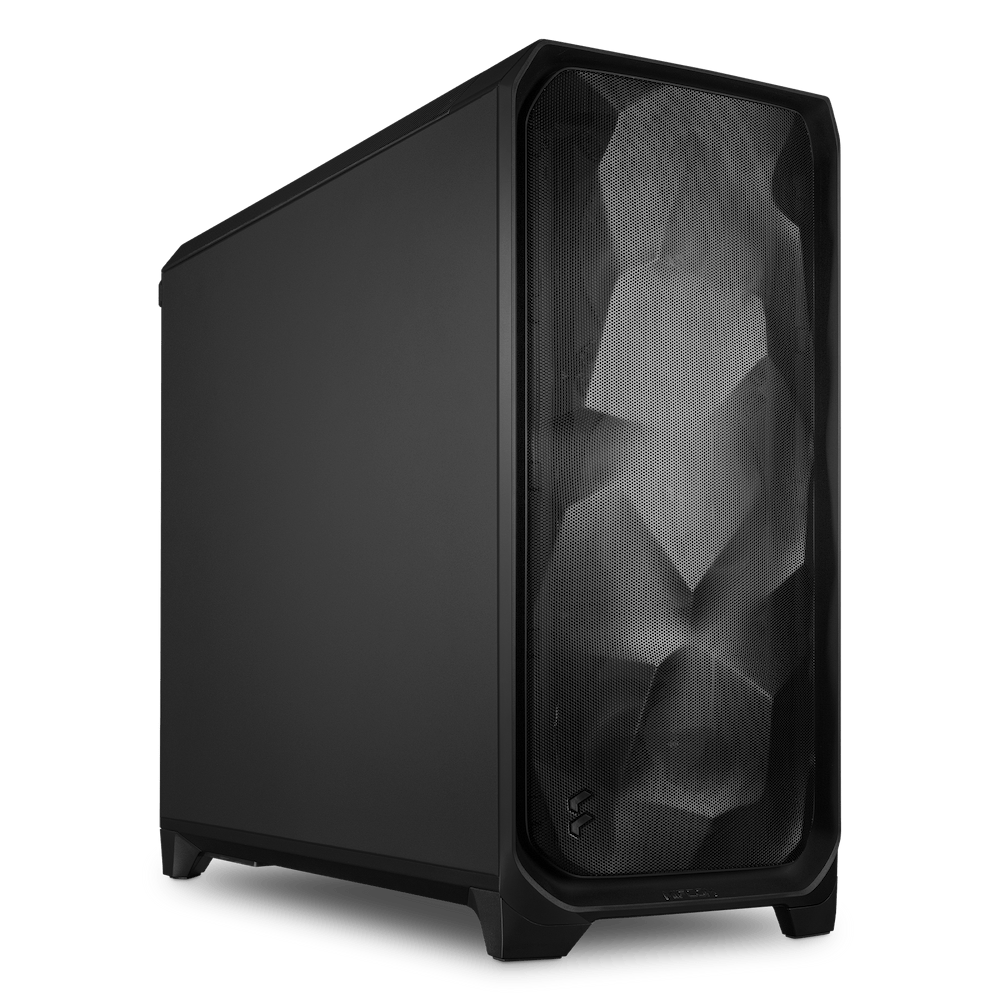

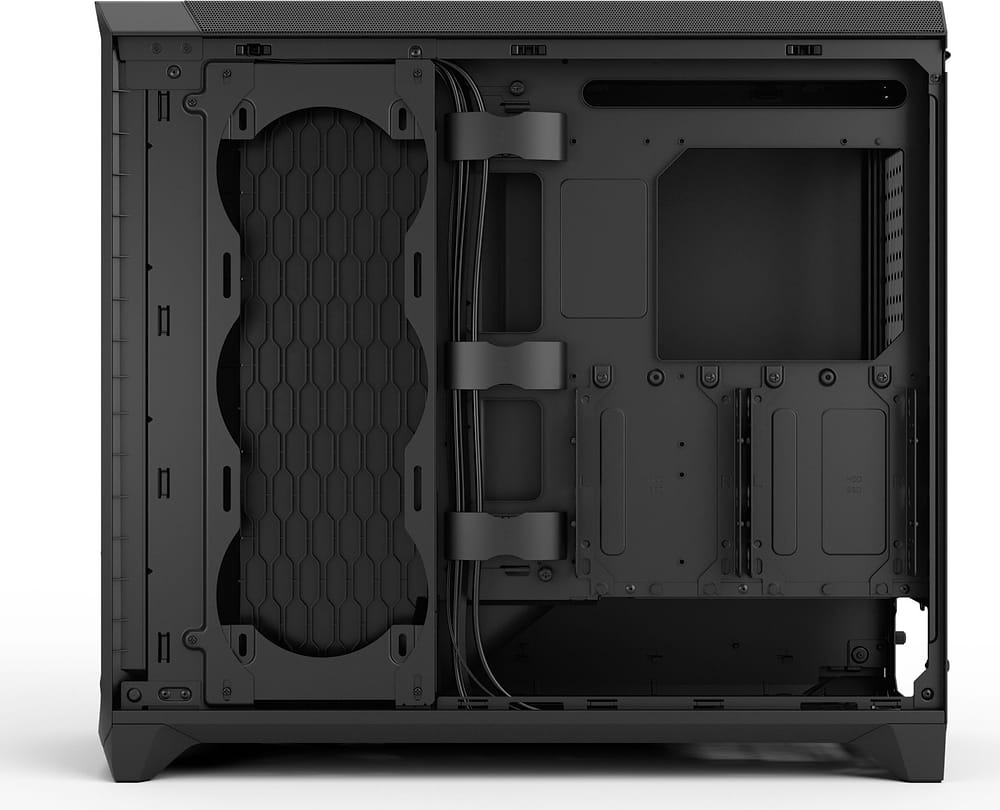

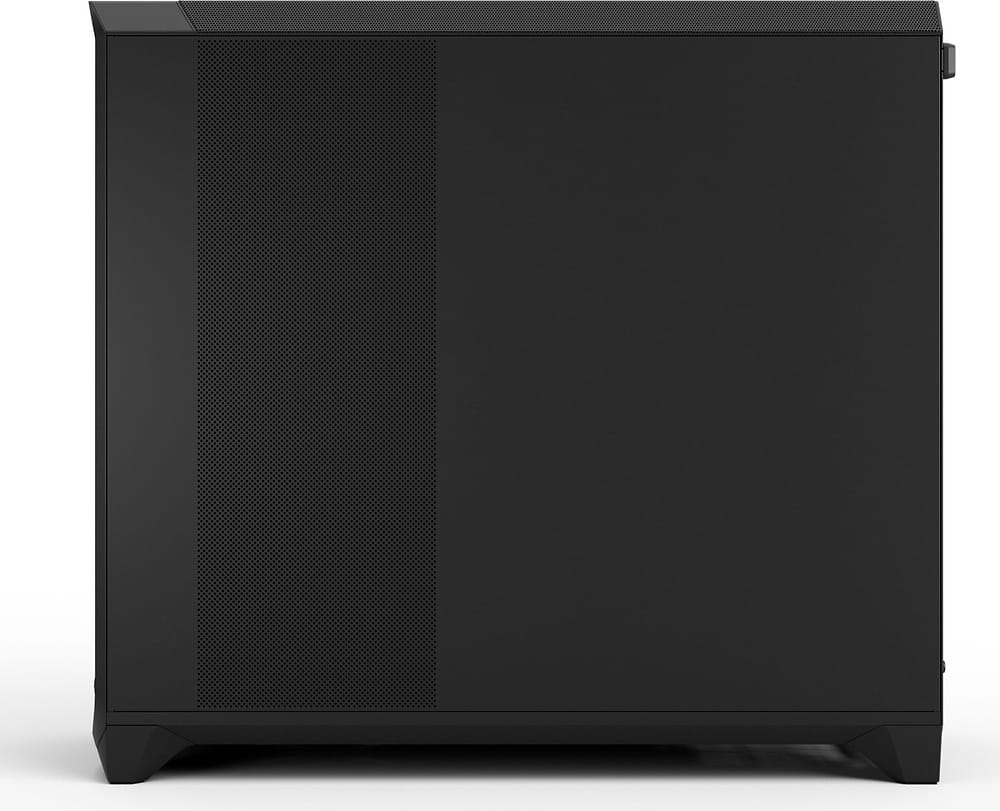

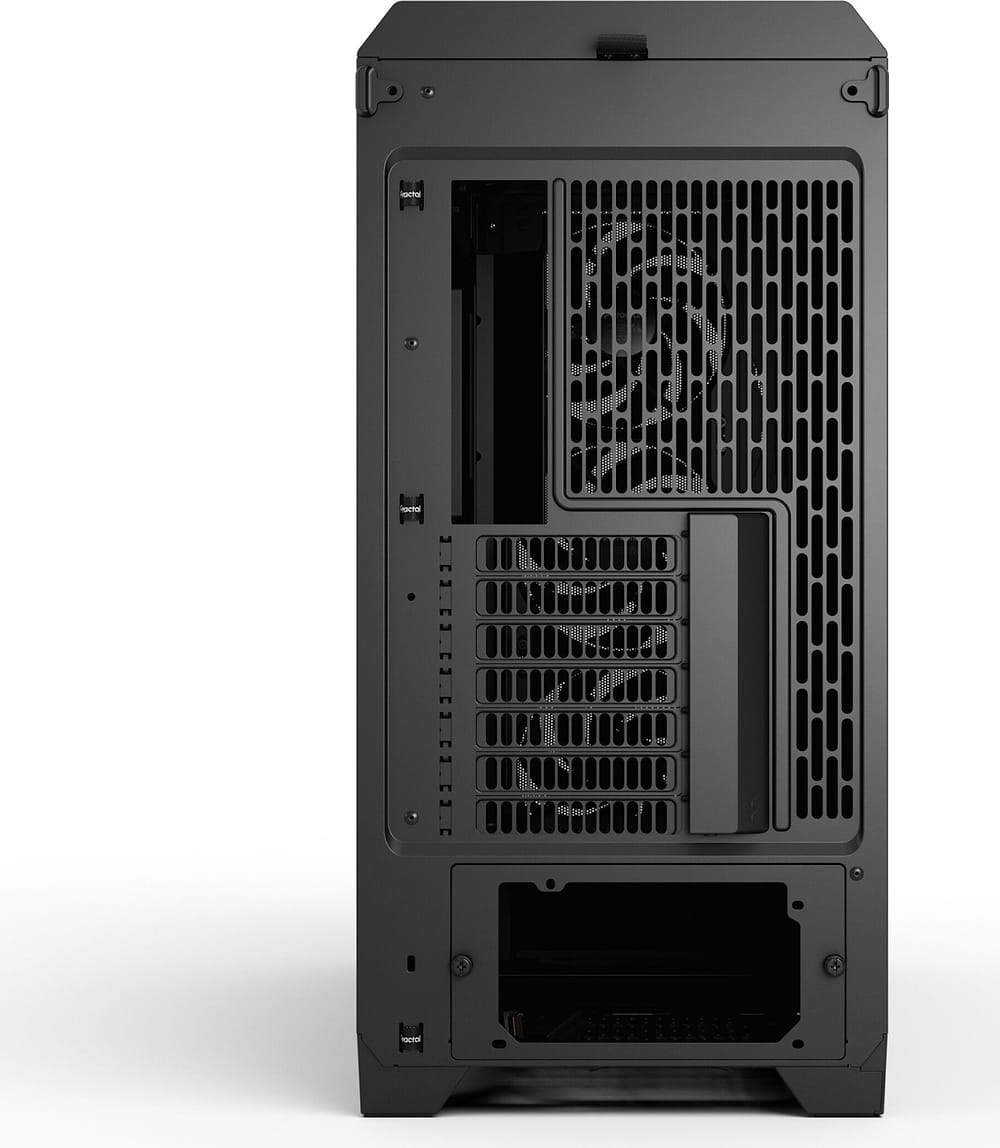

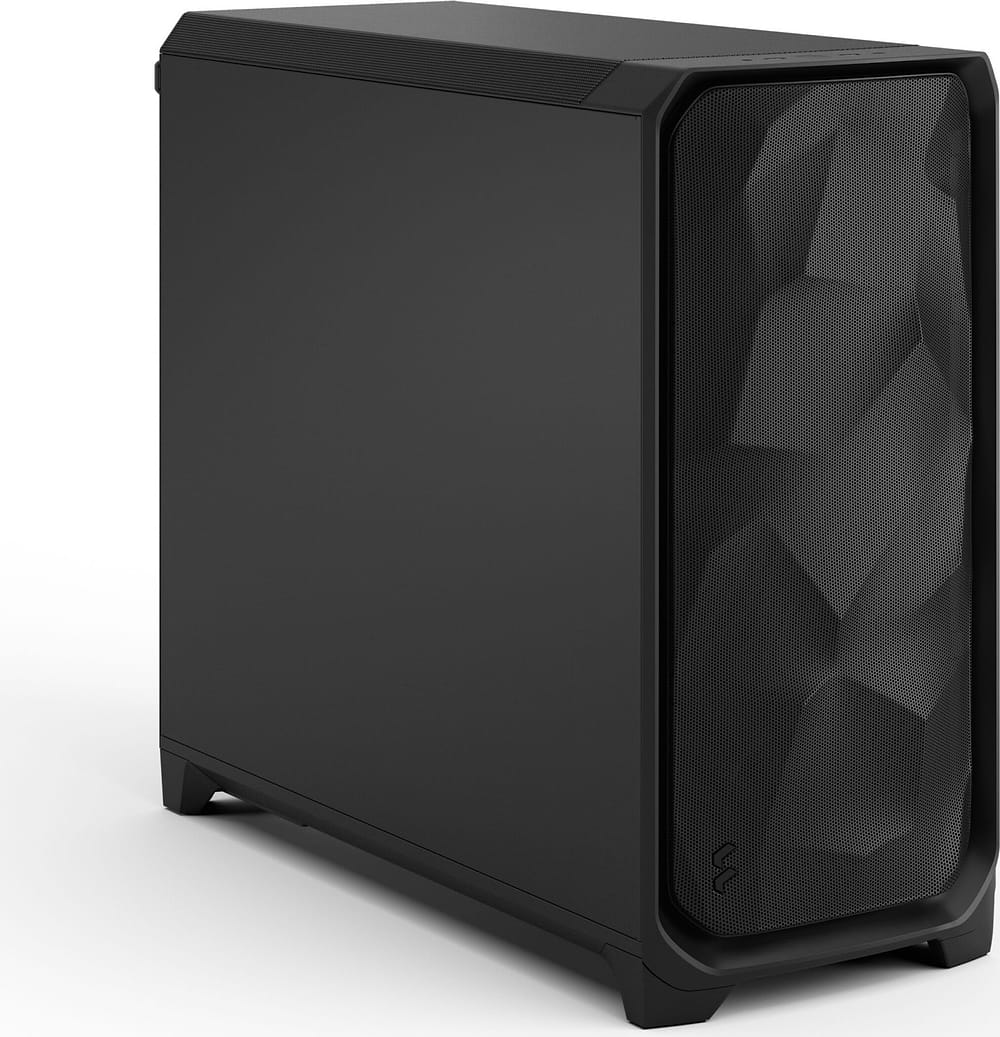

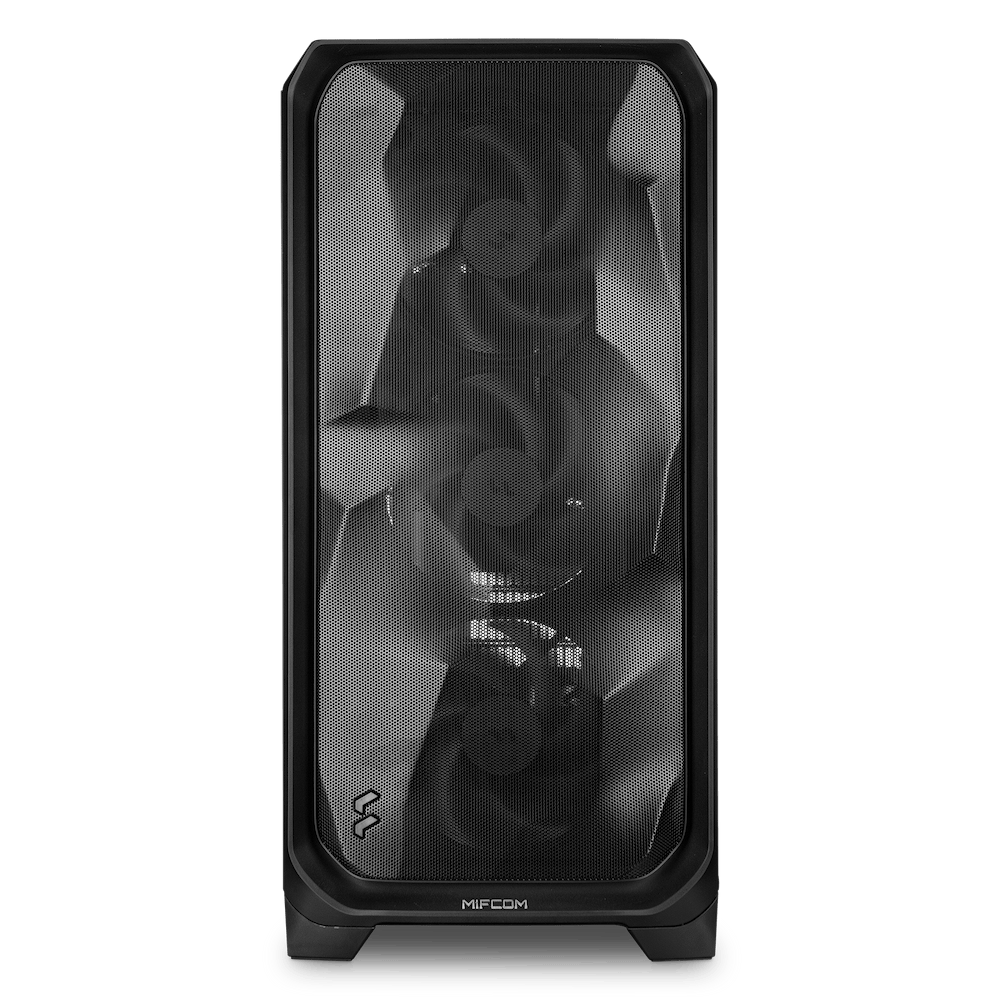

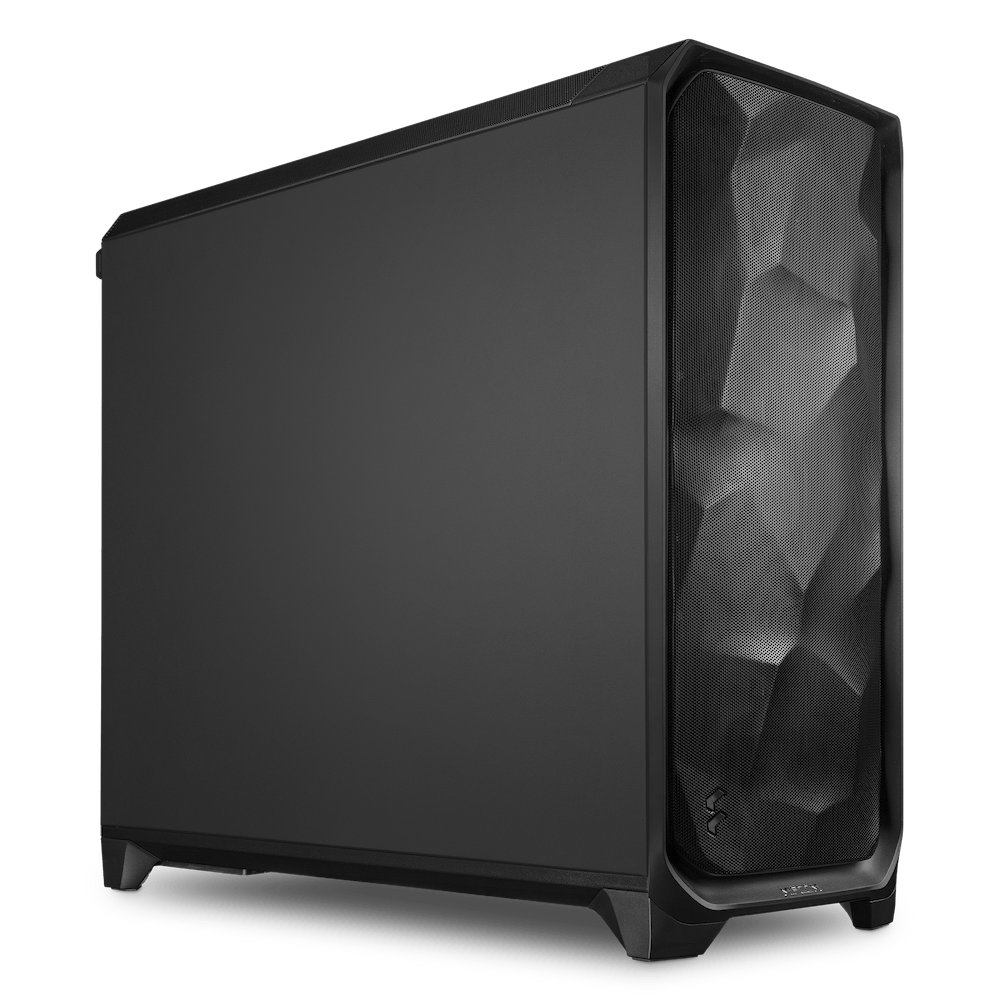

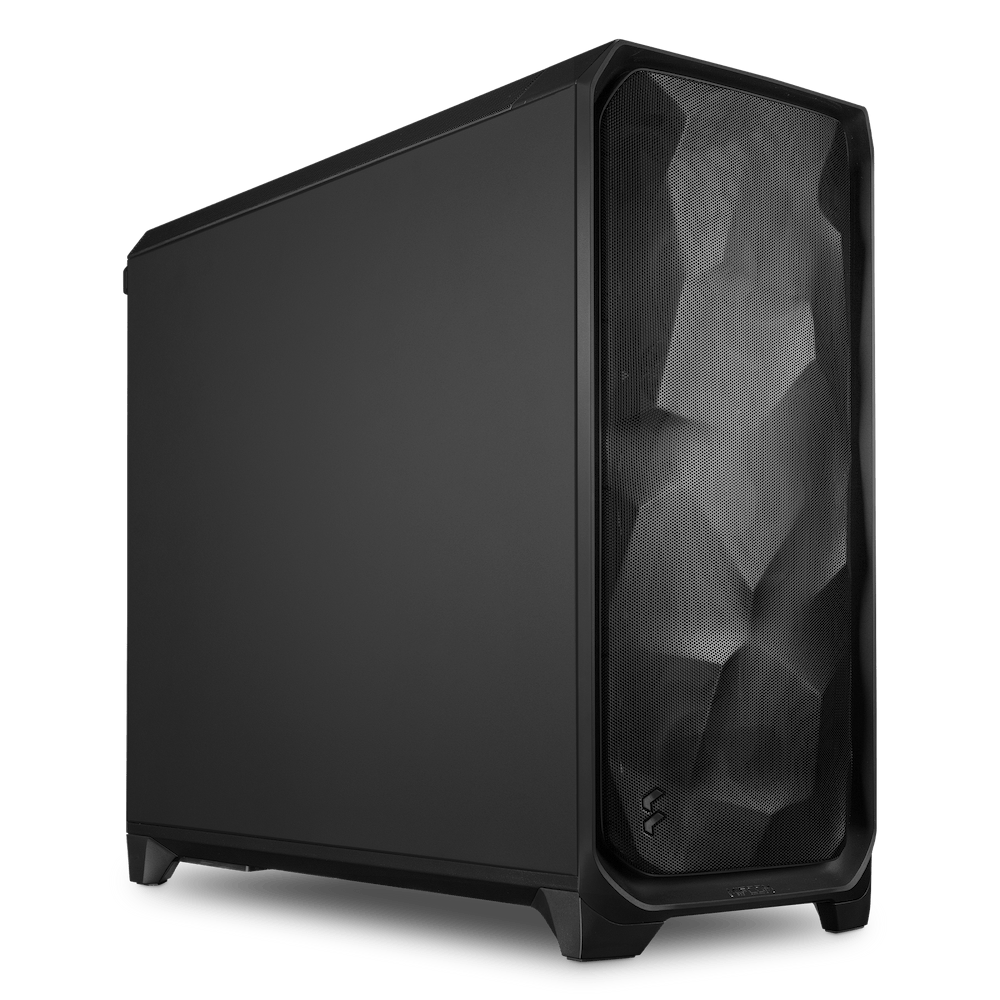

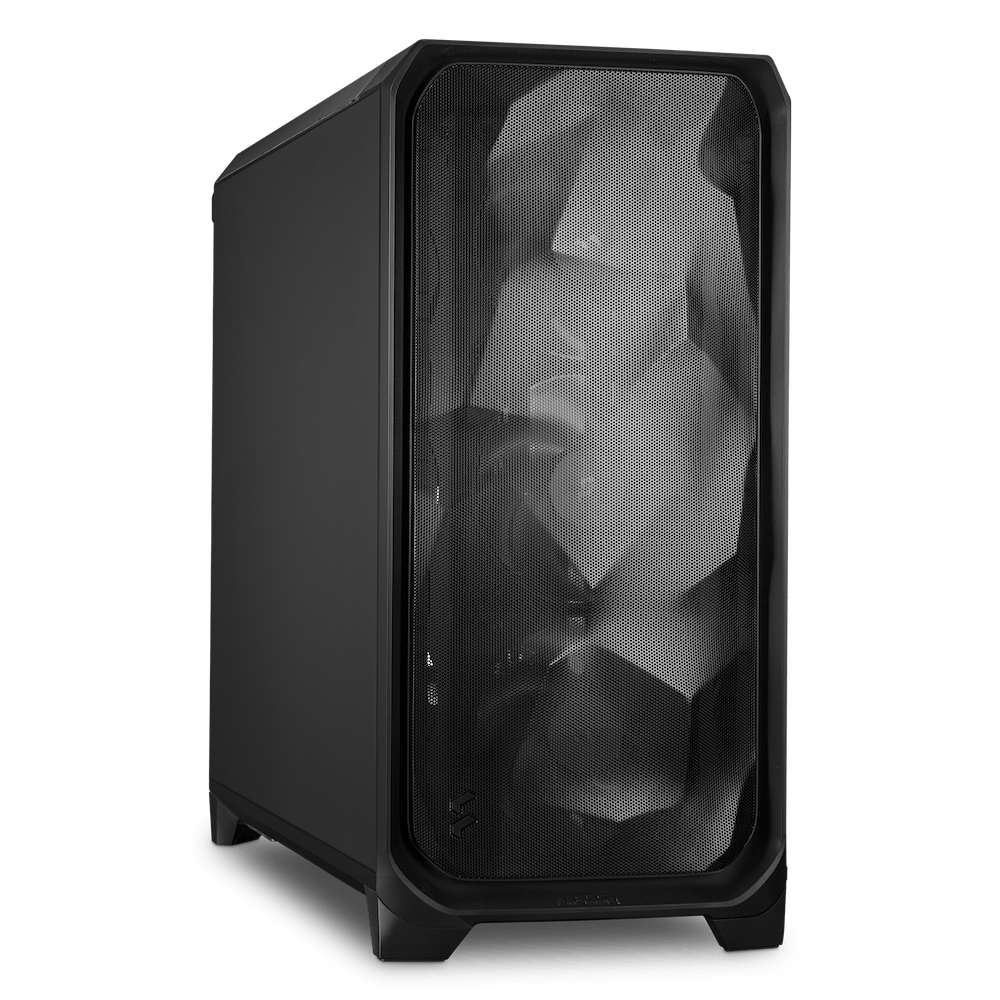

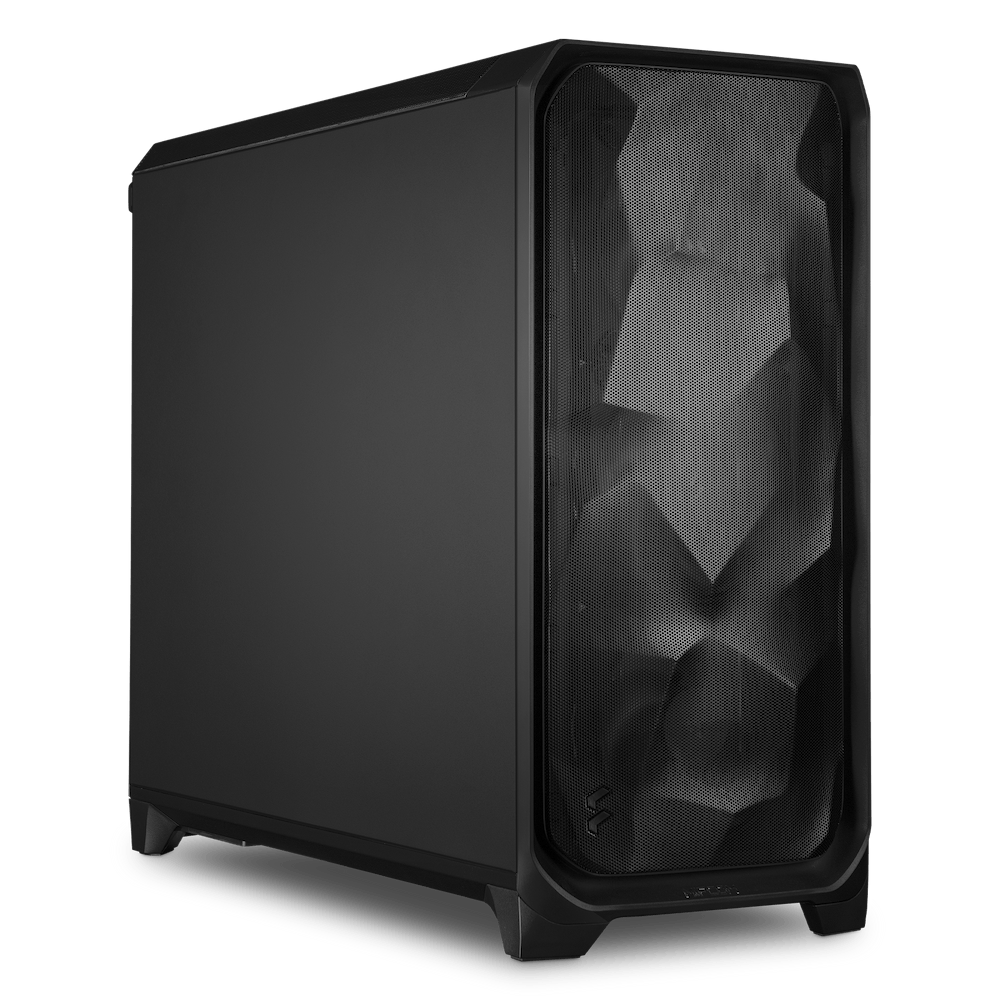

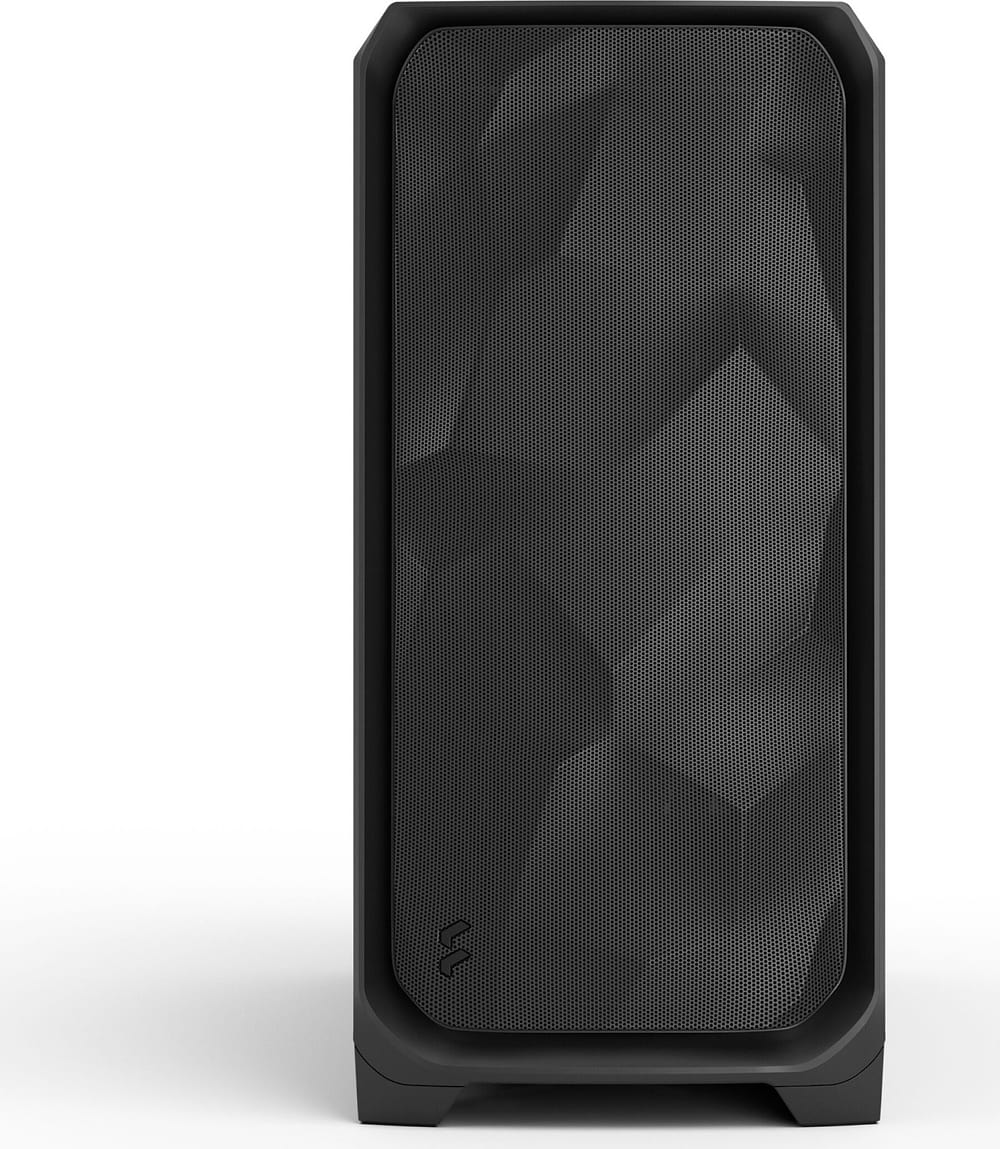

- Fractal Design Meshify 3 XL, BlackExperience advanced cooling and a striking, aerodynamic design that offers even more space for components with the Meshify 3 XL. The new generation of the award-winning Meshify series features numerous technical upgrades, three high-performance Momentum fans, and an enhanced, elegant mesh front panel with a faceted design
Technical details - DesignFull-Tower
- Mainboard compatibilityMini-ITX (6.7" x 6.7")/µATX (9.6" x 9.6")/ATX (12" x 9.6")/E-ATX (SSI CEB, 12" x 10.5")/E-ATX (SSI EEB, 12" x 13")/EE-ATX (13.68" x 13")
- Fan (front)3x 140 mm, 1,800 rpm, or 3x 120 mm (optional), or 2x 180 mm (optional)
- Fan (rear)1x 140 mm (optional) or 1x 120 mm (optional)
- Fan (top)3x 140 mm (optional) or 3x 120 mm (optional)
- Fan (lateral)3x 140 mm (optional; 120 mm not supported)
- Fan (bottom)-
- Internal drive bays4x 2.5", 1x 2.5" or Option 2: 1x 2.5", 2x 3.5"
- ManufacturerFractal
- Connections (CHA)1x USB-C 3.2 via USB header Key-A, 2x USB-A 3.0, 1x 3.5mm jack line-in/out
- Number of PCIe slots7
- Lighting-
- Dimensions (WxHxD)245 x 515 x 575 mm
- Special featuresCable management, dust filter
- AMD Ryzen 9 9950X, 16x 4.3GHzThe latest generation of AMD processors offer an impressive combination of performance, efficiency and future-proofing, which is particularly interesting for gamers. Thanks to the advanced Zen architecture, the current models impress with high single-core performance, which often makes the decisive difference in modern games. At the same time, many cores and threads ensure strong multitasking capability, ideal for streaming, content creation and demanding applications in the background.
Technical details - Processor cores16 (16C)
- BaseAMD AM5 (LGA1718)
- Processor threads32
- Base clock4.30GHz
- Turbo beat5.70GHz
- L2 cache16MB (16x 1MB)
- L3 cache128MB (2x 32MB + 64MB 3D cache)
- TDP170W
- iGPU type (label)AMD Radeon Graphics
- PCIe lanes24x PCIe 5.0
- Memory controllerDual Channel DDR5-5200 (PC5-41600), 83.2GB/s, max. 192GB (UEFI AGESA Basis 1.0.0.7 or higher)
- ManufacturingZen 5
- Code nameGranite Ridge
- ASUS ProArt X870E-Creator WiFi | AMD X870ASUS ProArt X870E-Creator: Unleash your creativity! This motherboard for the latest AMD Ryzen processors offers you PCIe 5.0 for GPU & SSDs, DDR5 memory, 10GbE + 2.5GbE LAN and Wi-Fi 7 - the ultimate basis for your demanding content creation projects.
Technical details - Processor socketAMD AM5
- RAM supportDDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
- Wireless standardsWi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4
- Form factorATX
- ChipsetAMD X870E
- Lighting-
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 4x M.2 passive coolers
- ColorSchwarz-Bronze
- Power supply1x 24-pin ATX, 2x 8-pin EPS12V
- FAN header2x CPU fan 4-pin, 5x fan 4-pin, 1x AIO pump 4-pin, 1x thermal sensor
- Audio descriptionRealtek ALC1220P
- Connections (rear)1x HDMI 2.1 (iGPU), 1x DisplayPort-In 1.4, 2x USB4 with DisplayPort 1.4a (40Gb/s, iGPU), 1x USB-C 3.2 (20Gb/s), 7x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x RJ-45 10Gb LAN (Marvell), 3x 3.5mm jack (Realtek ALC1220), 2x antenna connection Quick Connect
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/​s, PD 30W, QC4+), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB 3.0), 3x USB 2.0 Header 9-Pin (480Mb/​s, 6x USB 2.0), 4x SATA 6Gb/s (X870E)
- RAID level0/​1/​10 (X870E)
- Expansion slots2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x16 (x4), 2x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)

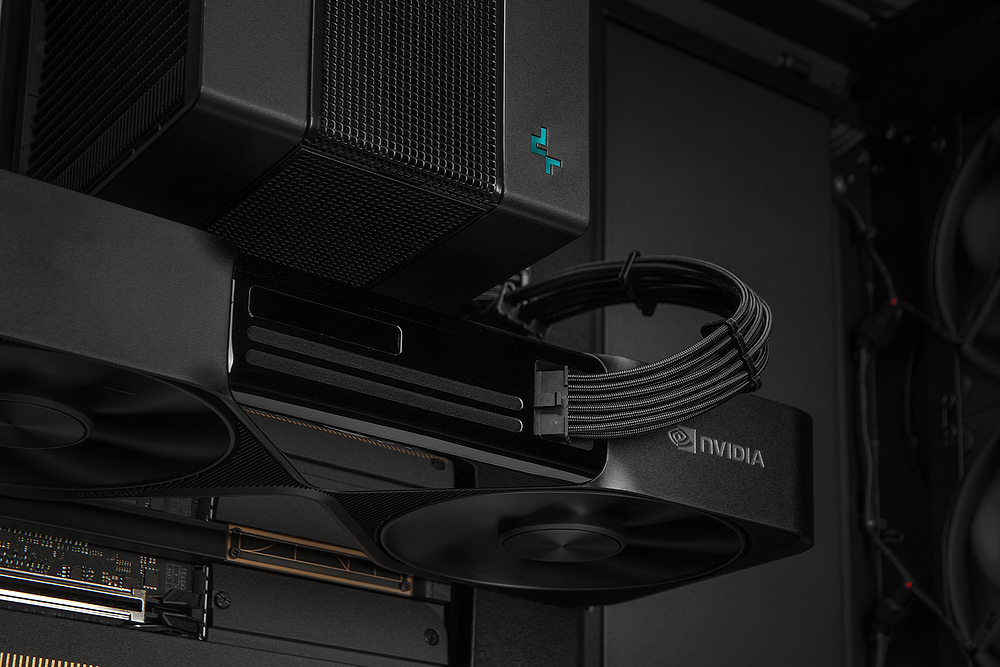

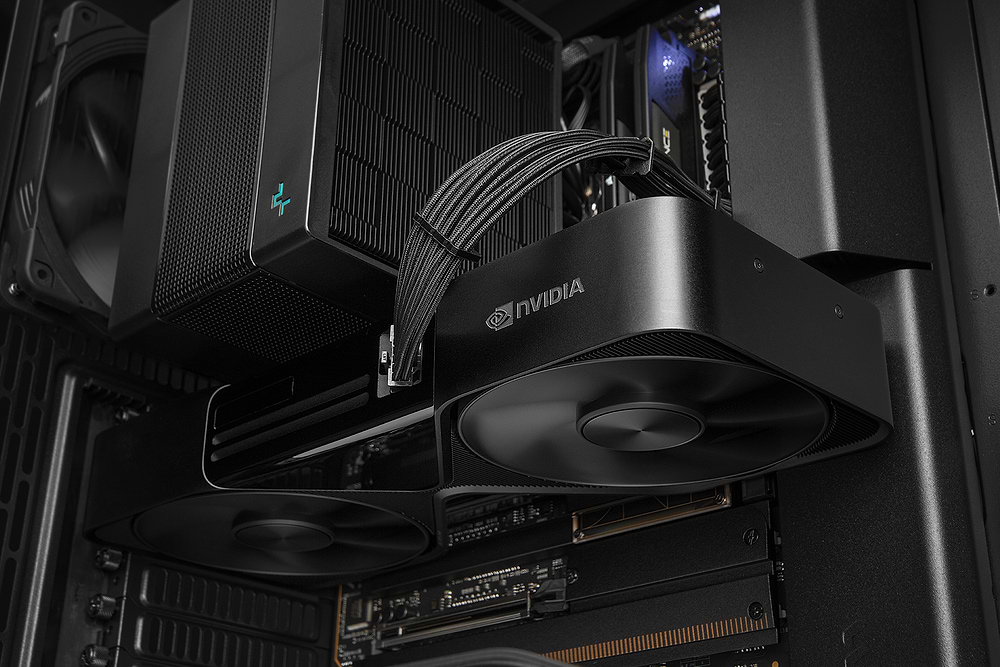

- NVIDIA GeForce RTX 5090 32GB | GIGABYTE Aorus MasterNVIDIA® GeForce RTX™ 5090 is the ultimate GeForce GPU. It delivers huge advances in performance, efficiency and AI-powered graphics. Experience ultra-high-performance gaming, incredibly detailed virtual worlds, unprecedented productivity and new ways to create. They are based on the NVIDIA Ada Lovelace architecture and are equipped with 32GB of GDDR7 memory to deliver the ultimate experience for gamers and creators.
Technical details - Memory type32GB GDDR7, 512bit, 28Gbps, 1750MHz, 1792GB/s
- API supportDirectX 12 Ultimate (12_2) /​ CUDA 8.9 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.7
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5090
- VRAM32GB
- GPU clock2467MHz
- GPU clock (boost)2535MHz
- GPU fan3x axial fan with 0dB zero fan mode
- Power consumption575W (NVIDIA)
- Dimensions (WxHxD)358x150.2x75.2mm (LxWxH)
- Special featuresAI acceleration, backplate, dual BIOS switch, graphics card holder
- Power supply1x 16-pin PCIe 5.0 (via adapter: 3x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 64GB Corsair Vengeance DDR5-6000 | 2x 32GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an excellent combination of performance, stability and design. With high clock rates and low latencies, it ensures that modern games run smoothly and enable short loading times - even in combination with demanding processors and graphics cards.
Technical details - RAM type designationDDR5 DIMM 288-pin, on-die ECC
- RAM size64GB
- RAM total64GB
- Memory clock Label6000MT/s
- Latency40
- RAM coolingHeatspreader
- Special features-

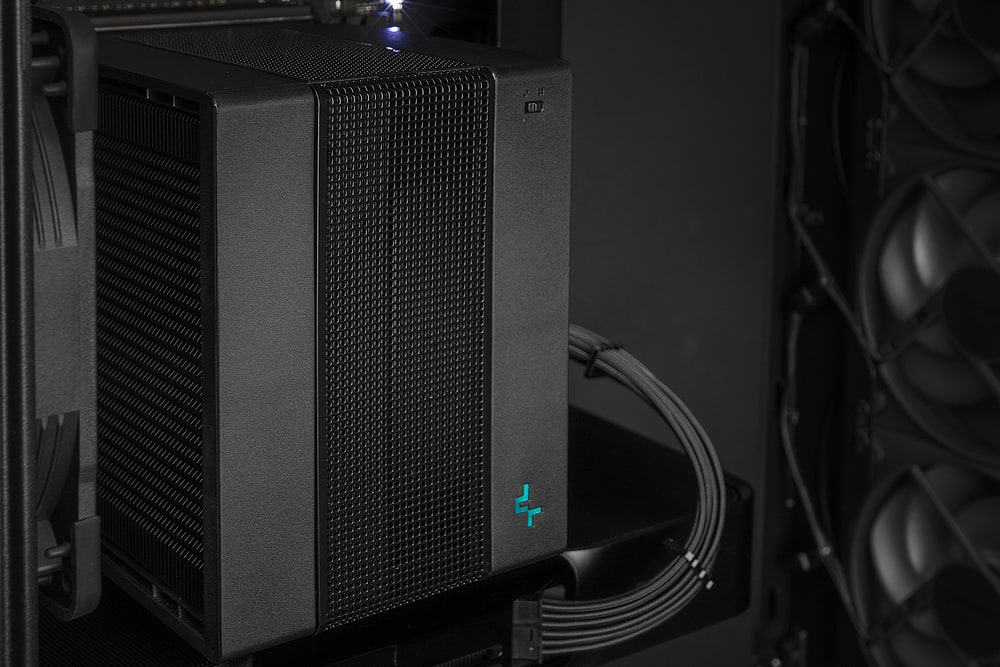

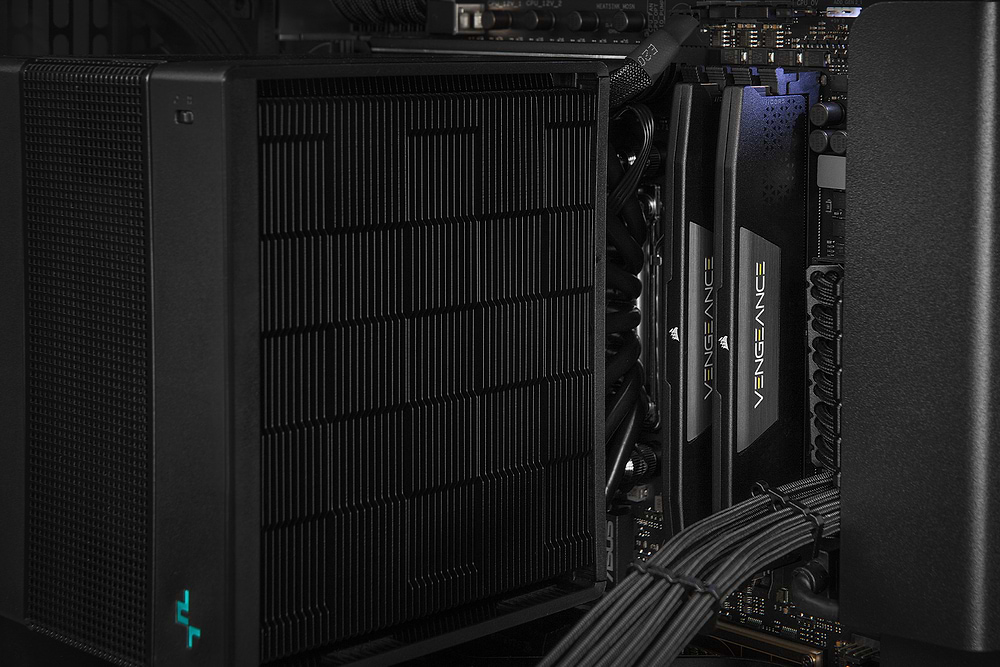

- DeepCool Assassin 4S | 140mm fanThe DeepCool Assassin 4S is a powerful single-fan tower cooler that relies on the proven technology of the Assassin series and transfers it into a slimmer, more space-saving format. With its large heat sink, six heat pipes and a centrally positioned 140 mm fan, it offers impressive cooling performance - even for modern high-end processors.
Technical details - Heatpipes7 heatpipes (6mm)
- TDP280W
- Lighting-
- Dimensions (WxHxD)147x164x116mm (WxHxD)
- Special featuresblack heat sink
- Fan1x 140x140x25mm, 500-1800rpm, 82.5-104.08m³/h, 48.55-61.25 CFM, 22.6-29.3dB(A), 2.46-3.76mmH₂O, 3.6W, hydrodynamic plain bearing (FDB)
- Socket AMDAM5, AM4
- Socket Intel1700, 1150/​1151/​1155/​1156/​1200
- 2TB SanDisk WD Black SN7100The WD Black SN7100 SSD is a high-performance NVMe solution for demanding gamers and power users who rely on high speed and modern technology. With PCIe 4.0 connectivity and advanced storage technology, it delivers fast load times and a noticeably more responsive system - ideal for the latest AAA titles, large amounts of data and creative applications.
Technical details - Memory type3D NAND TLC, Kioxia, 162 layers (BiCS6)
- Storage capacity2TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7250MB/s
- Write speed6900MB/s
- SSD controller-
- Mean time between failures1.75 million hours
- IOPS 4K1000k reading, 1400k writing
- Power supply6.3W (maximum), 75mW (operation), 5mW (idle)
- 1200W - be quiet! Power Zone 2 ATX 3.1 | modular
Technical details - PSU power (Desc)1200W
- Power 12V100A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Platinum
- Volume7.70-25.50dB(A) (according to manufacturer)
- Form factorATX
- Special features12V-2x6 cable 90° angled
- Fan140mm, 2100rpm, semi-passive
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
245 x 515 x 575 mm
Connectivity
Front
1x USB-C 3.2 via USB header Key-A, 2x USB-A 3.0, 1x 3.5mm jack line-in/out

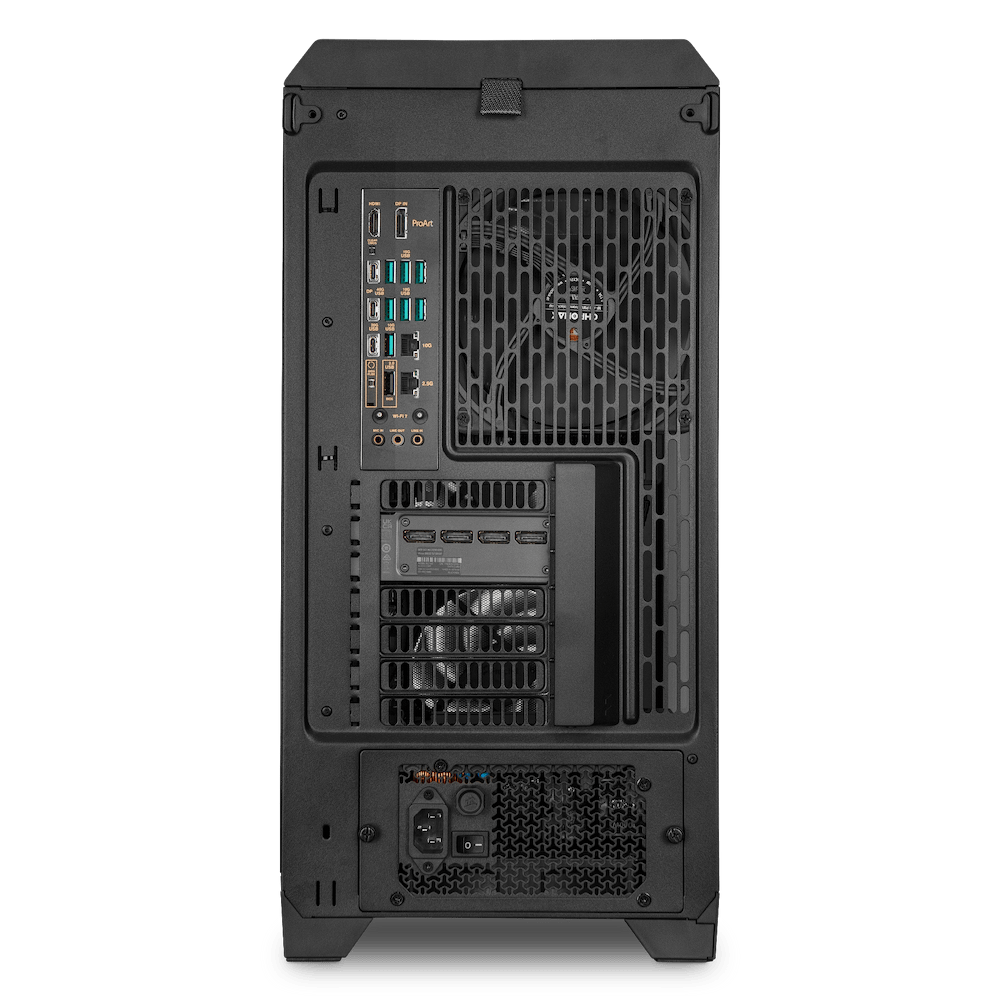

Rear
1x HDMI 2.1 (iGPU), 1x DisplayPort-In 1.4, 2x USB4 with DisplayPort 1.4a (40Gb/s, iGPU), 1x USB-C 3.2 (20Gb/s), 7x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x RJ-45 10Gb LAN (Marvell), 3x 3.5mm jack (Realtek ALC1220), 2x antenna connection Quick Connect, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
