Workstation - Ryzen 9 9900X - RTX 5070
AMD Ryzen 9 9900X, 12C
RTX 5070 12GB, Gainward
2TB WD Black SN850X
ASUS X870E ProArt
64GB DDR5-6400, Crucial
3.549
,-
incl. VAT plusShipping
64
,81
Delivery time:
5-7 business days
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Ryzen 9 9900X - RTX 5070
This system is particularly suitable for more demanding tasks in AdobeĀ® Photoshop and Lightroom. Image editing programs benefit enormously from the excellent single-core performance of the AMD Ryzen 9 9900X. In these applications, high performance per core and clock rate is particularly important to achieve maximum performance. A dedicated graphics card also provides significantly increased performance in certain parts of the application. When working with several GPU-accelerated effects at the same time, the video memory of the graphics card is used to capacity. For most users, we therefore recommend an NVIDIA RTX 5070. Depending on the size of the project file, 16GB - 64GB RAM may be required. The built-in SSD system drive ensures lightning-fast loading & response times of the operating system and applications.
With this workstation, you are well equipped for all tasks in Adobe Photoshop and Lightroom for the coming years
Technical details

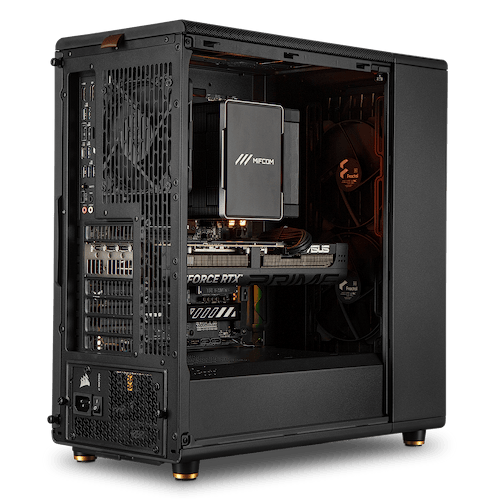

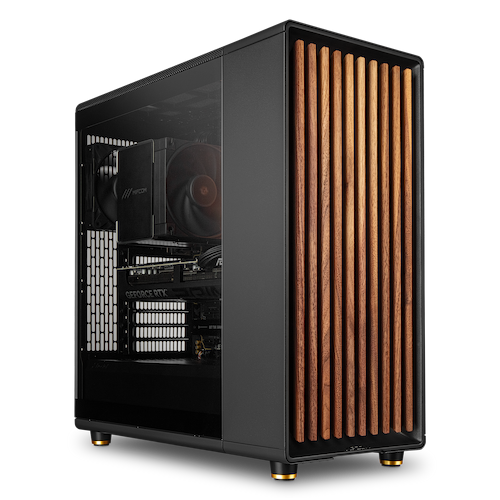

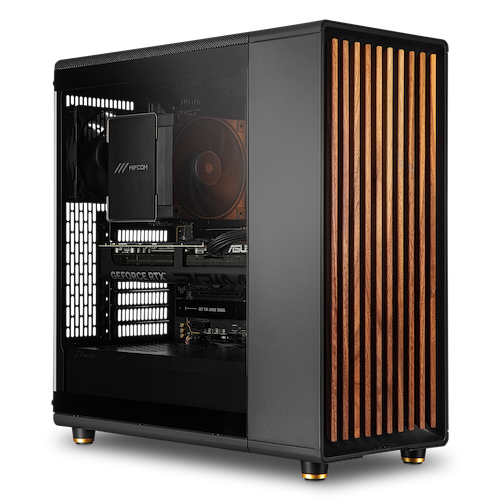

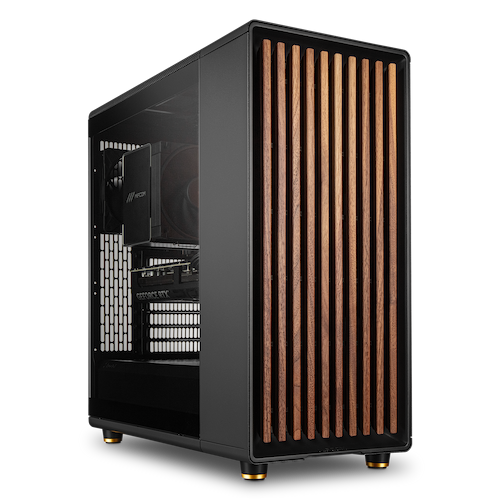

Workstation - Ryzen 9 9900X - RTX 5070

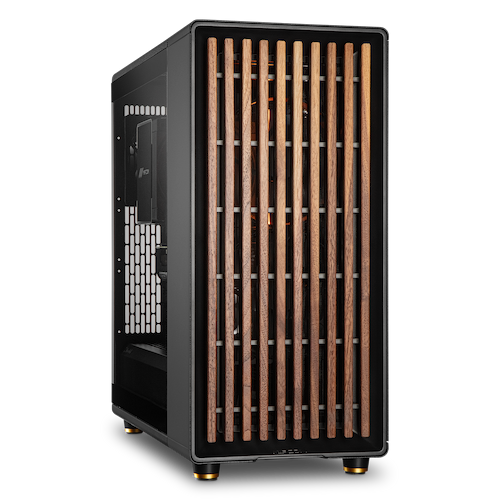

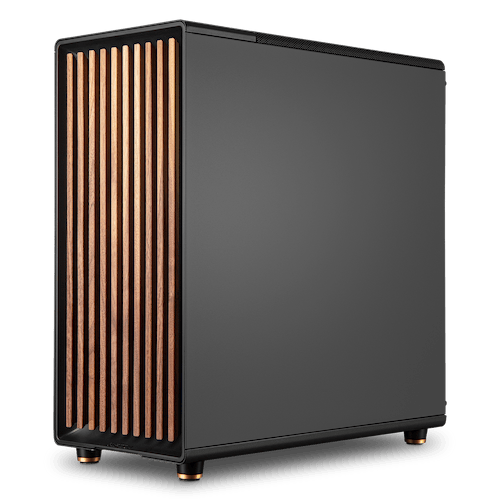

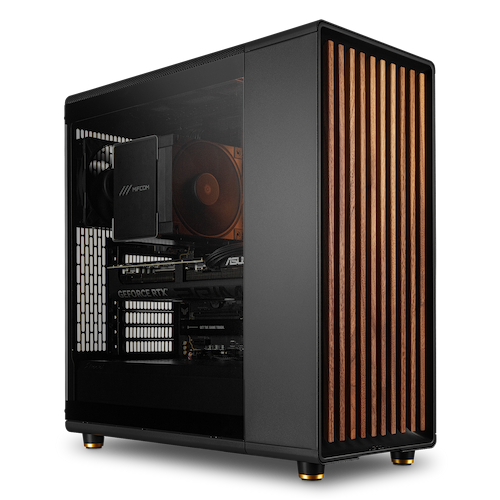

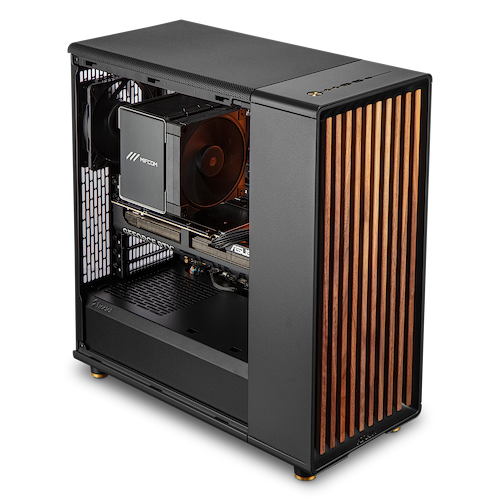

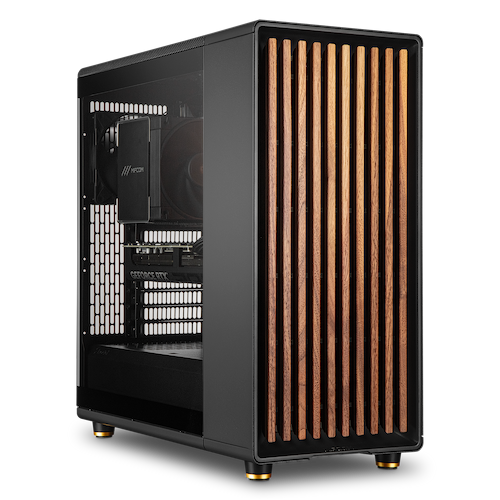

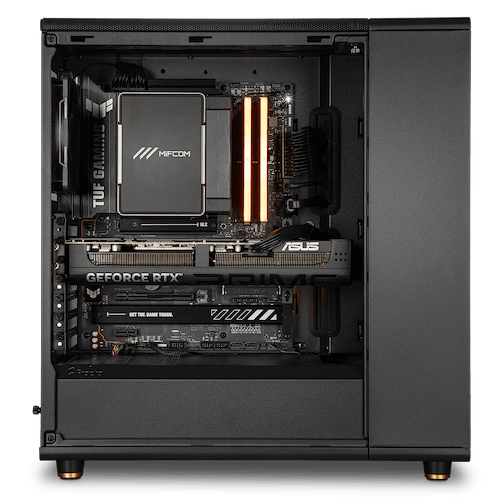

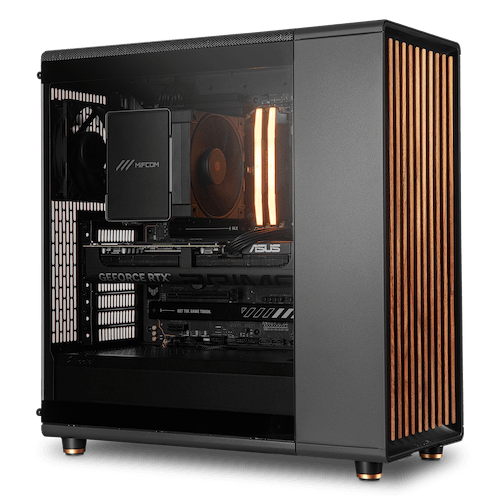

- Fractal Design North, blackThe Fractal Design North redefines the gaming PC, transforming gaming setups into a stylish addition to the home with natural materials and refined highlights. The design has been specially optimized to enhance the user experience, while the airflow functionality and intuitive layout ensure smooth installation and an excellent gaming experience.

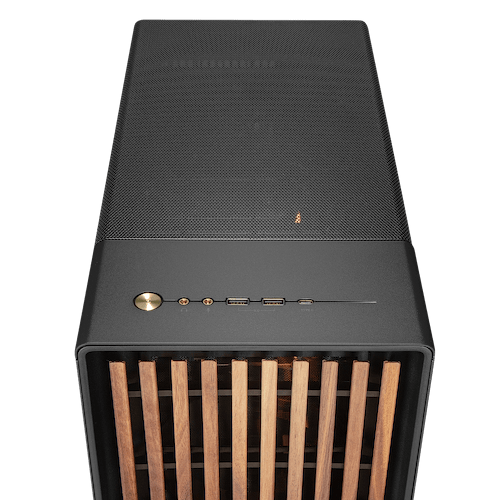

Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots7
- DesignMidi-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/ĀµATX (9.6 "x9.6")/ATX (12 "x9.6")
- Fan (front)2x 140mm, 500-1700rpm, 0.3-2.05mmHāO, 34-132.5mĀ³/h (20.01-77.98 CFM), 10-35.5dB(A) or 3x 120mm (optional)
- Fan (rear)1x 120mm (optional)
- Fan (top)2x 120mm (optional) or 2x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)-
- Internal drive bays2x 2.5"/3.5" (horizontal, drive rails), 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)215x469x447mm
- Special featuresCable management, dust filter, glass viewing window
- AMD Ryzen 9 9900X, 12x 4.4GHzThe latest generation of AMD processors offer an impressive combination of performance, efficiency and future-proofing, which is particularly interesting for gamers. Thanks to the advanced Zen architecture, the current models impress with high single-core performance, which often makes the decisive difference in modern games. At the same time, many cores and threads ensure strong multitasking capability, ideal for streaming, content creation and demanding applications in the background.
Technical details - Processor cores12 (12C)
- BaseAMD AM5 (LGA1718)
- Processor threads24
- Base clock4.40GHz
- Turbo beat5.60GHz
- L2 cache12MB (12x 1MB)
- L3 cache64MB (2x 32MB)
- TDP120W
- iGPU type (label)AMD Radeon Graphics
- PCIe lanes24x PCIe 5.0
- Memory controllermax. DDR5-5600 (PC5-44800, 89.6GB/s)
- ManufacturingZen 5
- Code nameGranite Ridge
- ASUS ProArt X870E-Creator WiFi | AMD X870ASUS ProArt X870E-Creator: Unleash your creativity! This motherboard for the latest AMD Ryzen processors offers you PCIe 5.0 for GPU & SSDs, DDR5 memory, 10GbE + 2.5GbE LAN and Wi-Fi 7 - the ultimate basis for your demanding content creation projects.
Technical details - Processor socketAMD AM5
- RAM supportDDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
- Wireless standardsWi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4
- Form factorATX
- ChipsetAMD X870E
- Lighting-
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 4x M.2 passive coolers
- ColorSchwarz-Bronze
- Power supply1x 24-pin ATX, 2x 8-pin EPS12V
- FAN header2x CPU fan 4-pin, 5x fan 4-pin, 1x AIO pump 4-pin, 1x thermal sensor
- Audio descriptionRealtek ALC1220P
- Connections (rear)1x HDMI 2.1 (iGPU), 1x DisplayPort-In 1.4, 2x USB4 with DisplayPort 1.4a (40Gb/s, iGPU), 1x USB-C 3.2 (20Gb/s), 7x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x RJ-45 10Gb LAN (Marvell), 3x 3.5mm jack (Realtek ALC1220), 2x antenna connection Quick Connect
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/ās, PD 30W, QC4+), 1x USB 3.0 Header 20-Pin (5Gb/ās, 2x USB 3.0), 3x USB 2.0 Header 9-Pin (480Mb/ās, 6x USB 2.0), 4x SATA 6Gb/s (X870E)
- RAID level0/ā1/ā10 (X870E)
- Expansion slots2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x16 (x4), 2x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header3x 3-Pin ARGB (+5V/āDATA/āGND, max. 3A, ASUS Gen2)

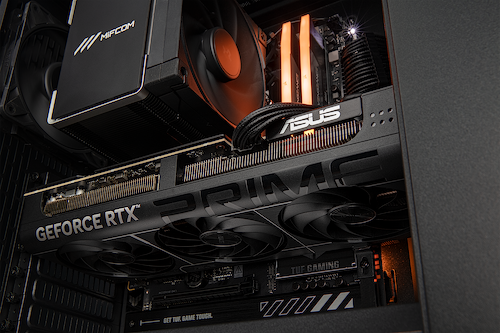

- NVIDIA GeForce RTX 5070 12GB | Gainward Phython IIIPower up your PC with the NVIDIAĀ® GeForce RTXā¢ 5070. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. These are supported by the ultra-efficient NVIDIA Blackwell architecture and 12 GB of super-fast GDDR7 memory.
Technical details - Memory type12GB GDDR7, 192bit, 28Gbps, 1750MHz, 672GB/s
- API supportDirectX 12 Ultimate (12_2) /ā CUDA 12.8 /ā Vulkan 1.3 /ā OpenCL 3.0 /ā OpenGL 4.6 /ā Shader Model 6.8
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5070
- VRAM12GB
- GPU clock-
- GPU clock (boost)2542MHz
- GPU fan3x axial fan (100mm) with 0dB zero fan mode
- Power consumption250W (NVIDIA)
- Dimensions (WxHxD)291.9x116.5x41.3mm (LxWxH)
- Special featuresAI acceleration, backplate, NVIDIA GeForce SFF-Ready
- Power supply1x 12V-2x6 (via adapter: 2x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 64GB Crucial Pro Overclocking DDR5-6400 | 2x 32GBTake your performance to the next level with the incredible speed and bandwidth of Crucial DDR5 Pro OC Gaming Memory. Harness the power of low latency to get even faster and secure your next victory, instead of getting frustrated by performance bottlenecks.
Technical details - RAM type designationDDR5 288-pin DIMM
- RAM size2x 32GB
- RAM total64 GB
- Memory clock Label6400MT/s
- Latency40
- RAM coolingHeat Spreader
- Special features-

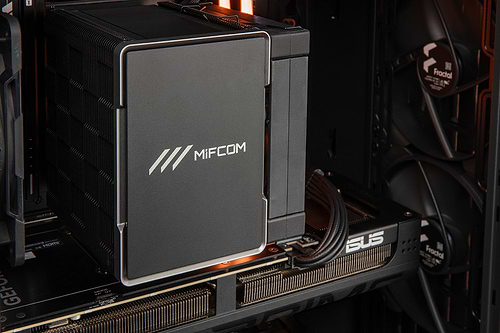

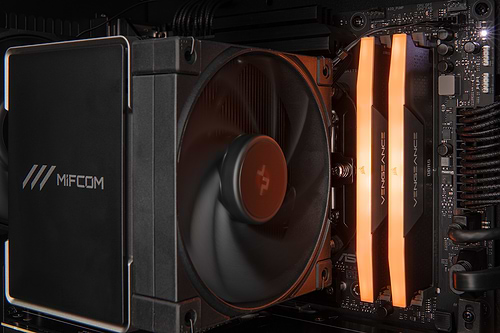

- DeepCool AK500 MIFCOM Black | 120mm fanThe DeepCool AK500 is a powerful tower cooler that has been specially developed for modern gaming and workstation systems. With its massive cooling surface, an asymmetrical heat sink design and a high-quality 120 mm fan, it offers impressive heat dissipation - ideal for powerful multi-core processors, even under continuous load.
Technical details - Heatpipes5 heatpipes (6mm)
- TDP240W
- Lighting-
- Dimensions (WxHxD)127x158x117mm (WxHxD)
- Special features-
- Fan1x 120x120x25mm, 500-1850rpm, 117.28mĀ³/h, 69.02 CFM, 31.5dB(A), 2.19mmHāO, hydrodynamic plain bearing (FDB)
- Socket AMDAM5, AM4
- Socket Intel1851/ā1700
- 2TB SanDisk WD Black SN850X
Technical details - Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
- Storage capacity2TB
- InterfaceM.2/āM-Key (PCIe 4.0 x4)
- Reading speed7300MB/s
- Write speed6600MB/s SLC-Cached
- SSD controllerWestern Digital Black G2
- Mean time between failures-
- IOPS 4K1200k reading, 1100k writing
- Power supply-
- 750W - be quiet! Pure Power 13 M | modular
Technical details - PSU power (Desc)750W
- Power 12V62.5A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Gold
- Fan120mm, 1800rpm, semi-passive
- Volume0-20.80dB(A) (according to manufacturer)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
215x469x447mm

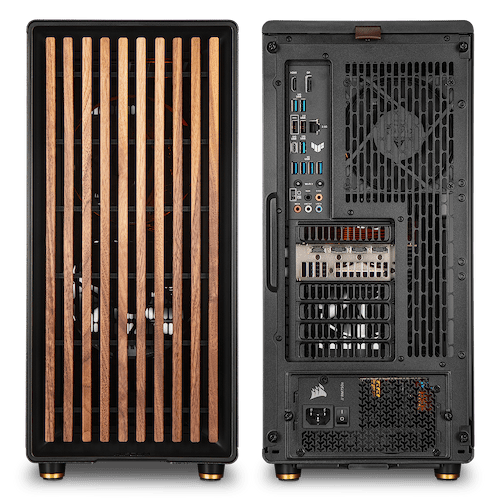

Connectivity
Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
Rear
1x HDMI 2.1 (iGPU), 1x DisplayPort-In 1.4, 2x USB4 with DisplayPort 1.4a (40Gb/s, iGPU), 1x USB-C 3.2 (20Gb/s), 7x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Intel I226-V), 1x RJ-45 10Gb LAN (Marvell), 3x 3.5mm jack (Realtek ALC1220), 2x antenna connection Quick Connect, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
