Workstation - Ryzen 9 9900X - PRO W7900
AMD Ryzen 9 9900X, 12C
GIGABYTE X870E Elite
Radeon PRO W7900 48GB
64GB DDR5-6000, Corsair
2TB WD Black SN850X
7.099
,-
incl. VAT plusShipping
129
,65
Delivery time:
7-9 business days
3 year warranty
Lifetime support
>20 years of experience
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Ryzen 9 9900X - PRO W7900
This system is particularly suitable for modeling in Autodesk® AutoCAD. CAD programs benefit enormously from the excellent single-core performance of the AMD Ryzen 9 9900X. In these applications, high performance per core and clock is particularly important in order to achieve maximum performance. A dedicated Professional graphics card also provides significantly increased performance and offers the best support for you thanks to its certification for CAD applications. In the case of Autodesk® AutoCAD, a graphics card with little video memory, such as the AMD Radeon PRO W7900 installed here, is sufficient for most users. Depending on the size of the assemblies and the files opened at the same time, 16GB - 32GB RAM may be necessary. The built-in SSD system drive ensures lightning-fast loading & response times of the operating system and applications.
If, on the other hand, your focus is also on rendering in these applications, we recommend a processor with multiple cores and high clock rates, or one of our CPU rendering workstations.
The certified AMD Radeon PRO W7900 graphics card with 32GB VRAM takes care of the system's graphical calculations.
With this workstation, all CAD tasks are no longer a problem for you.
Technical details
Workstation - Ryzen 9 9900X - PRO W7900

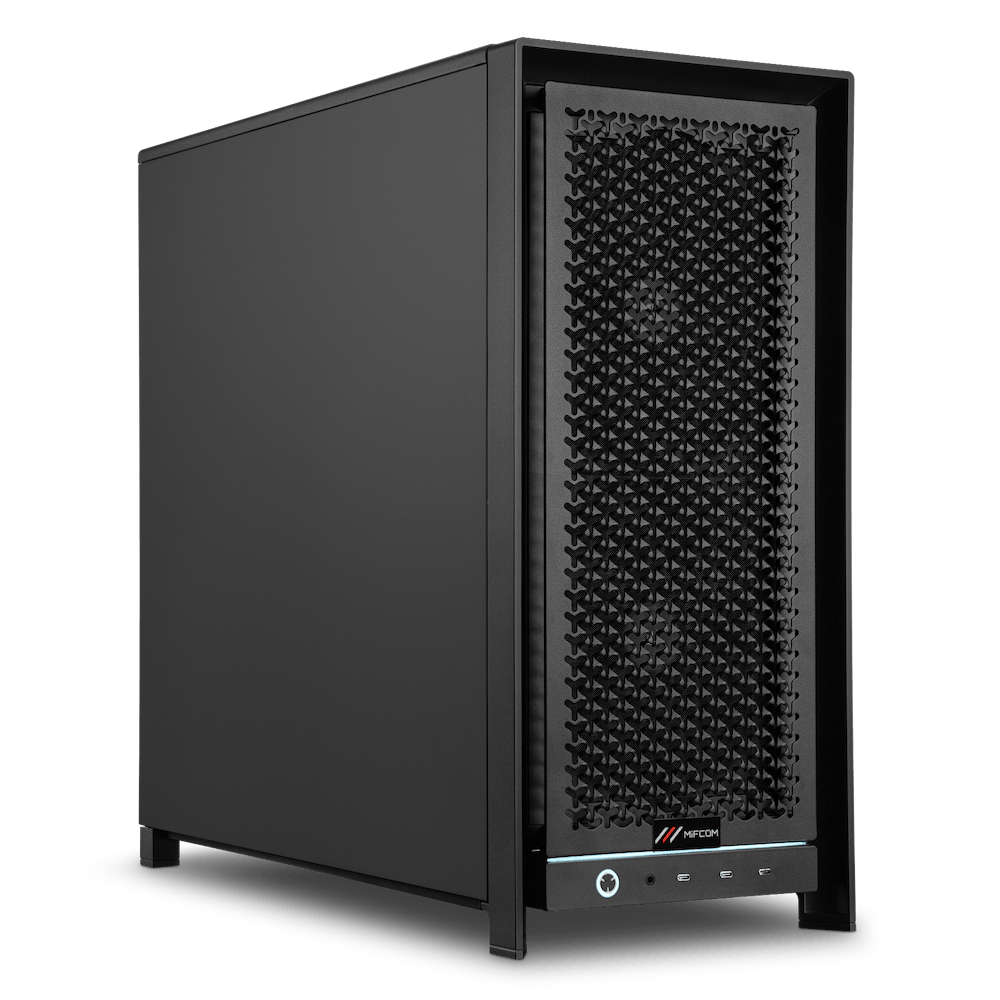

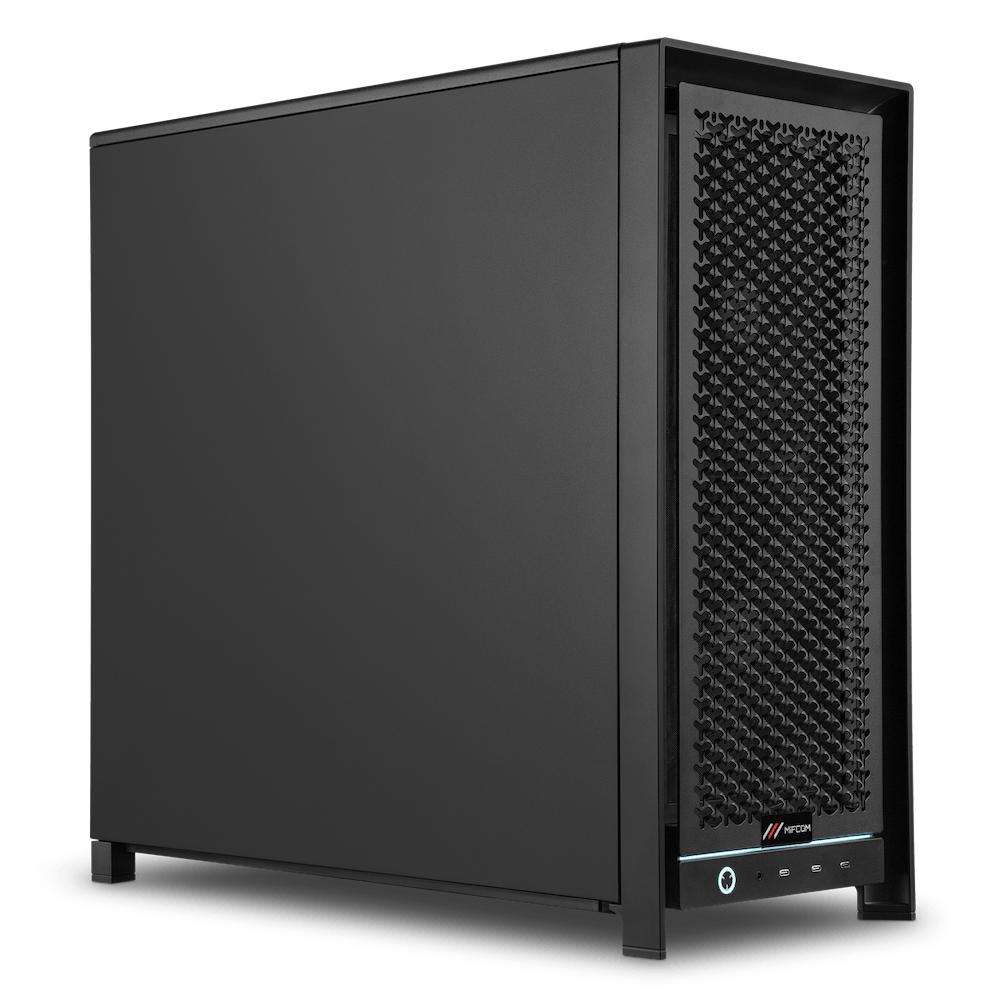

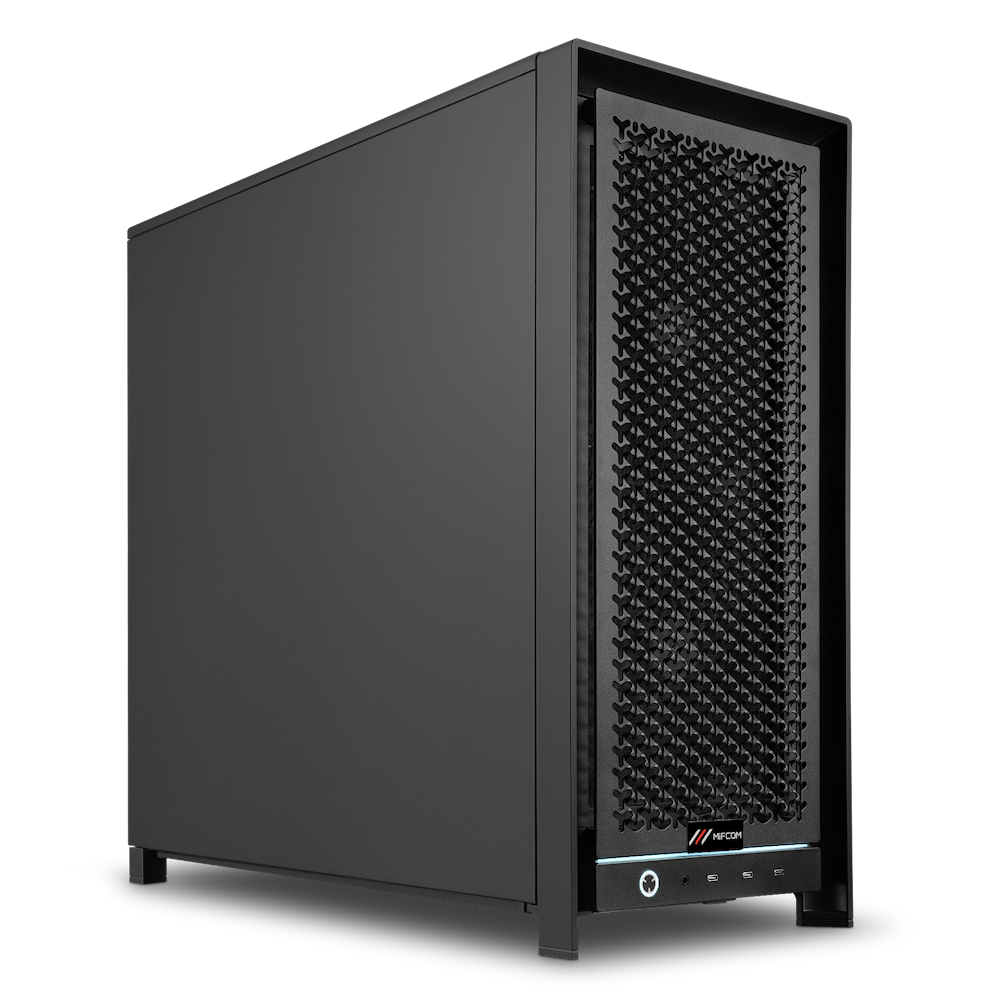

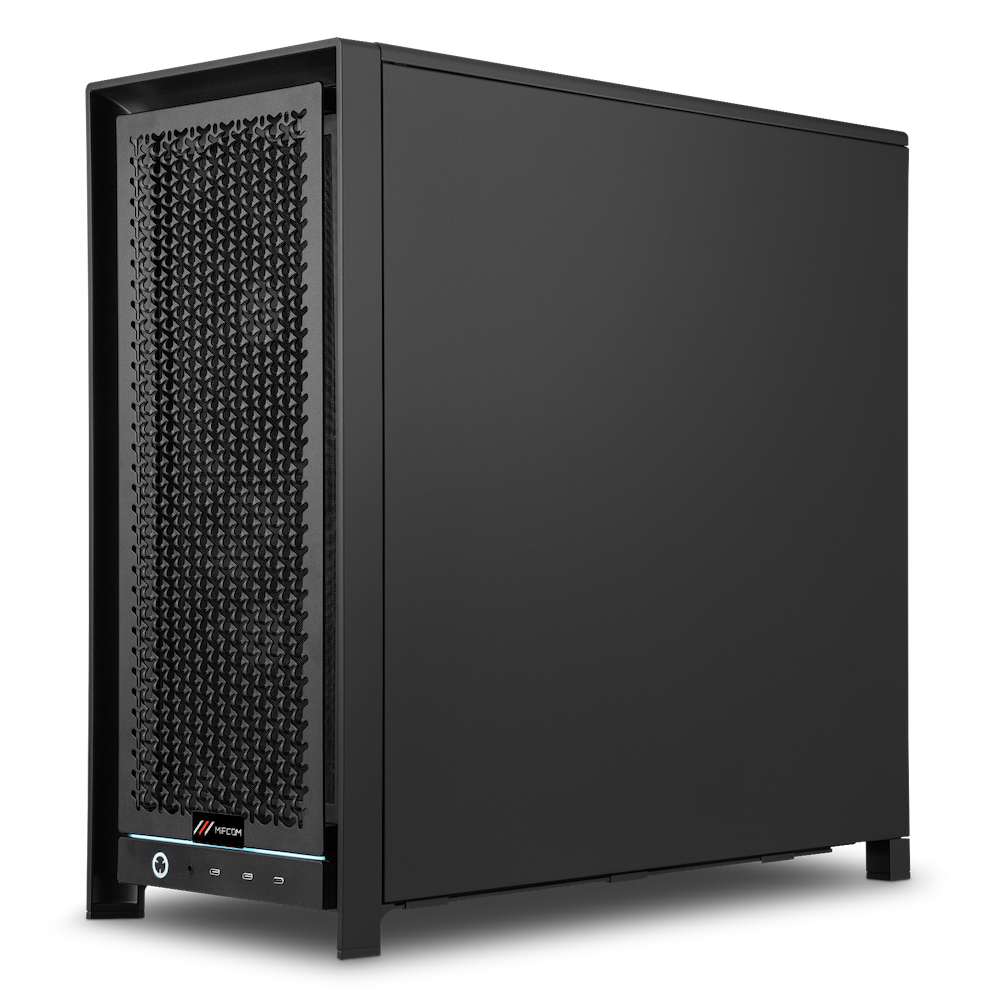

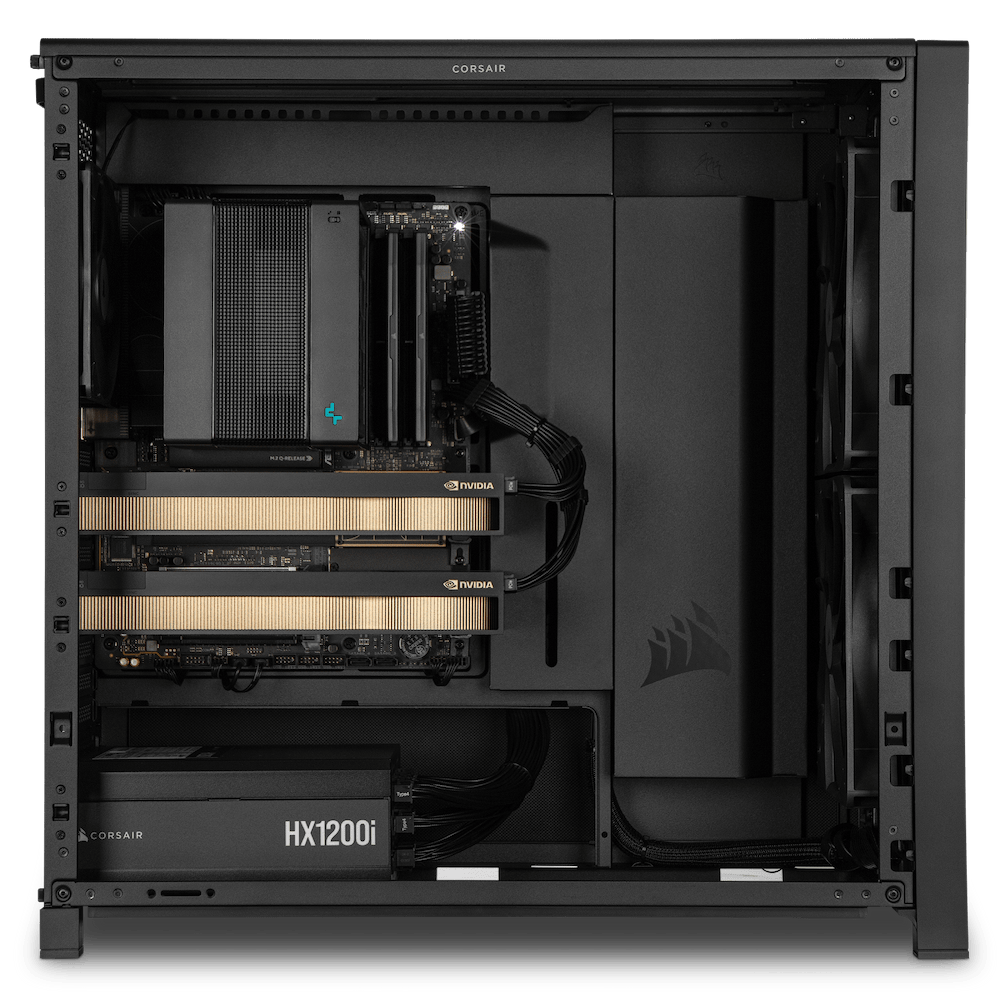

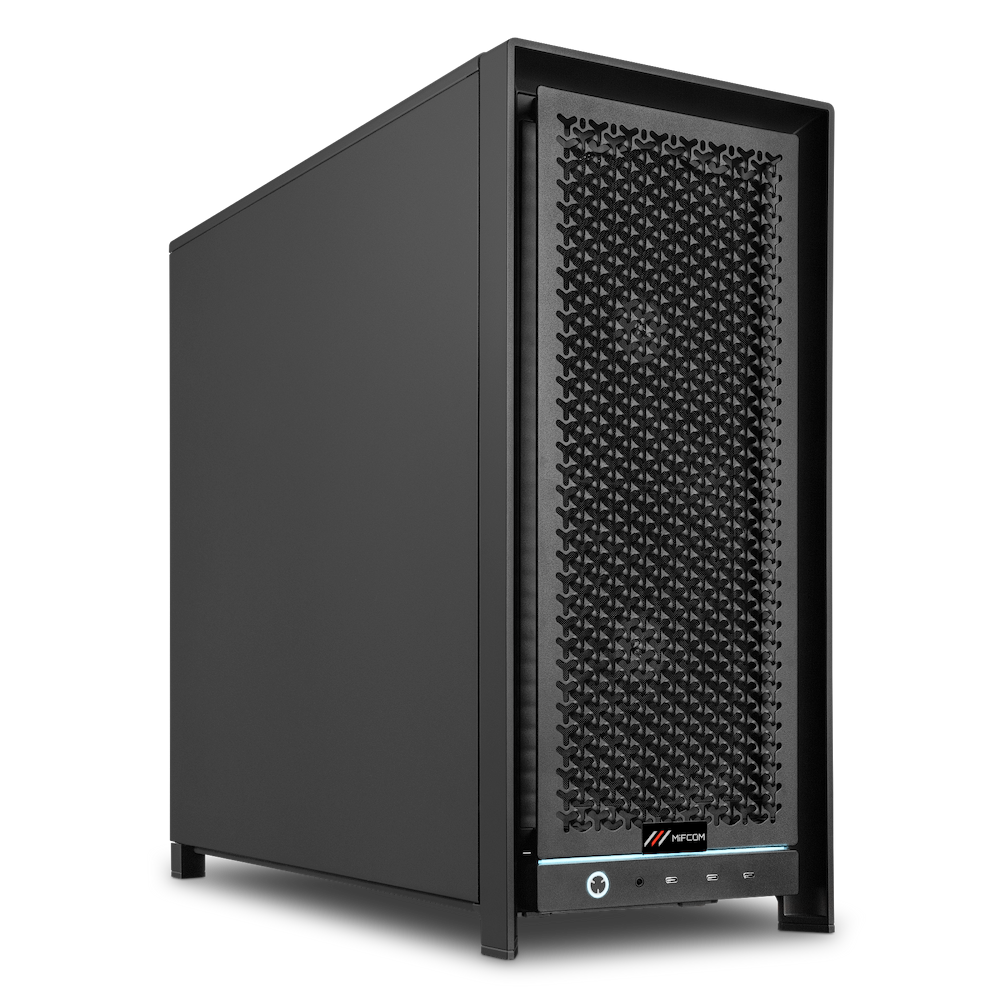

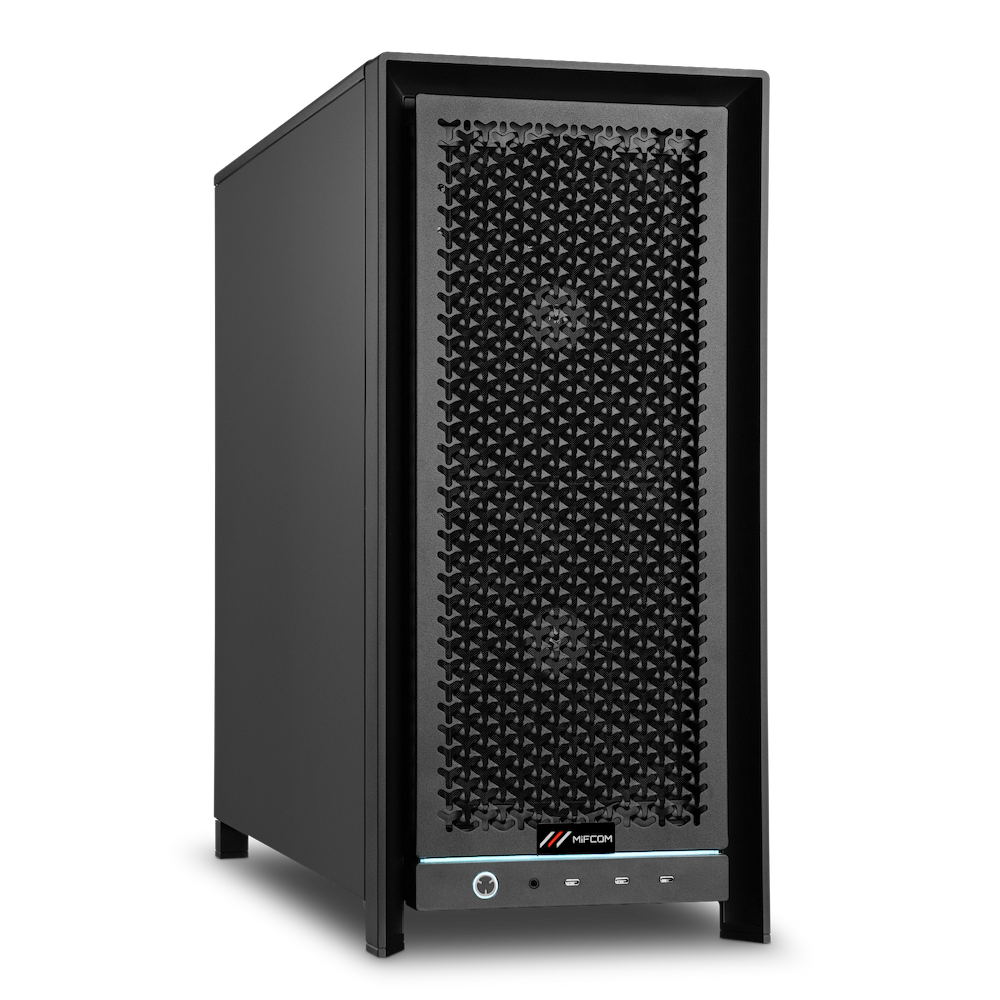

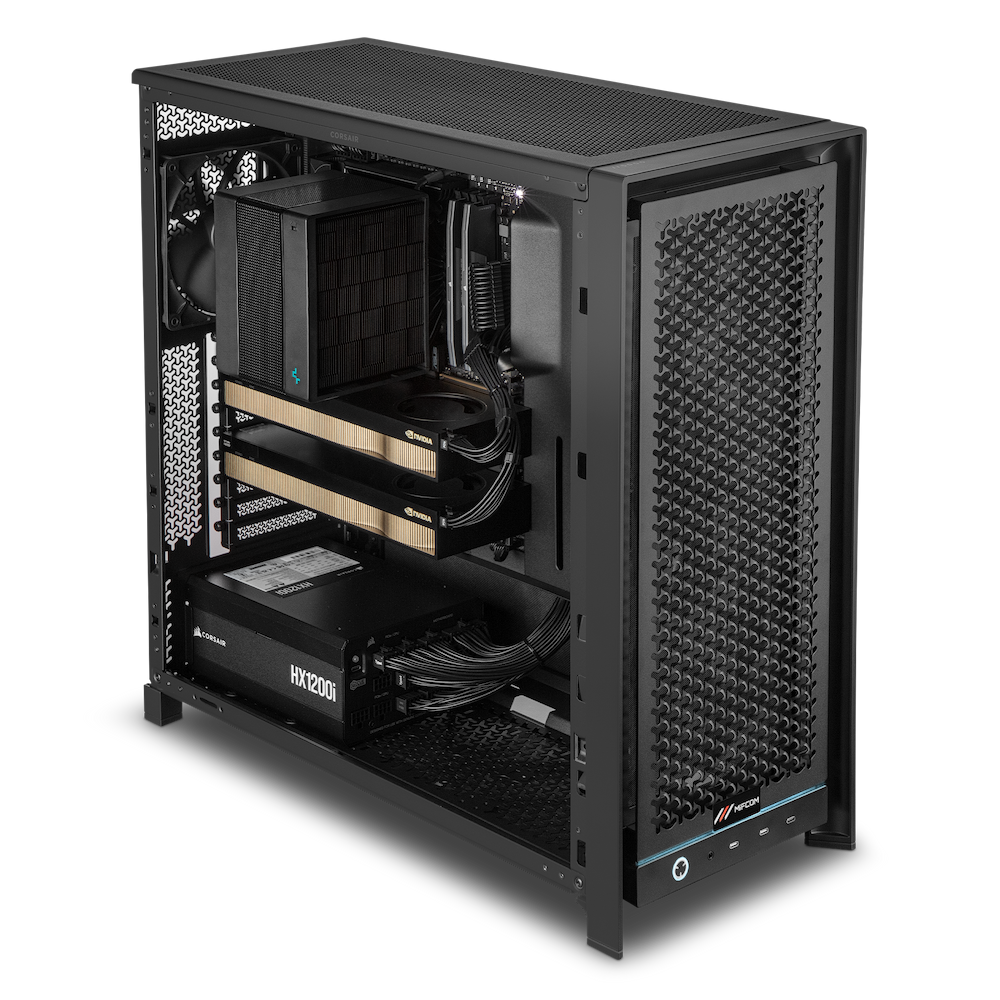

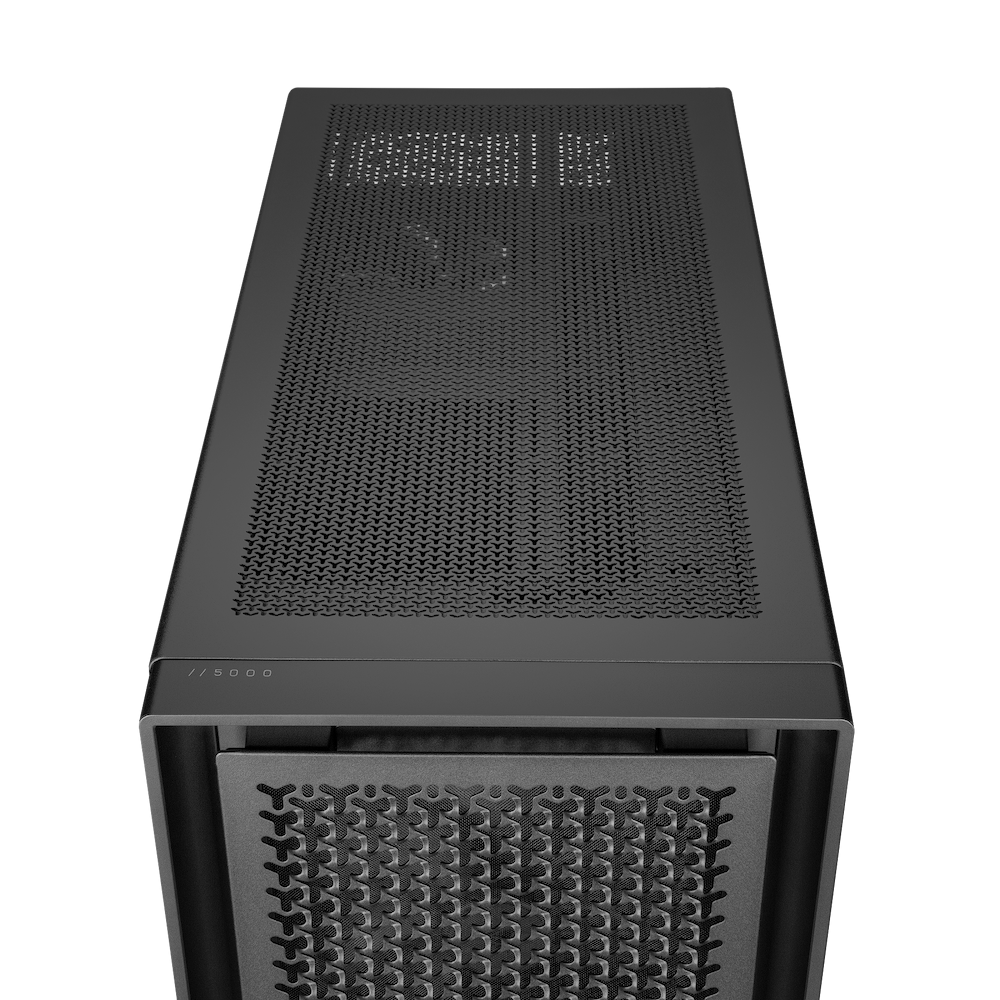

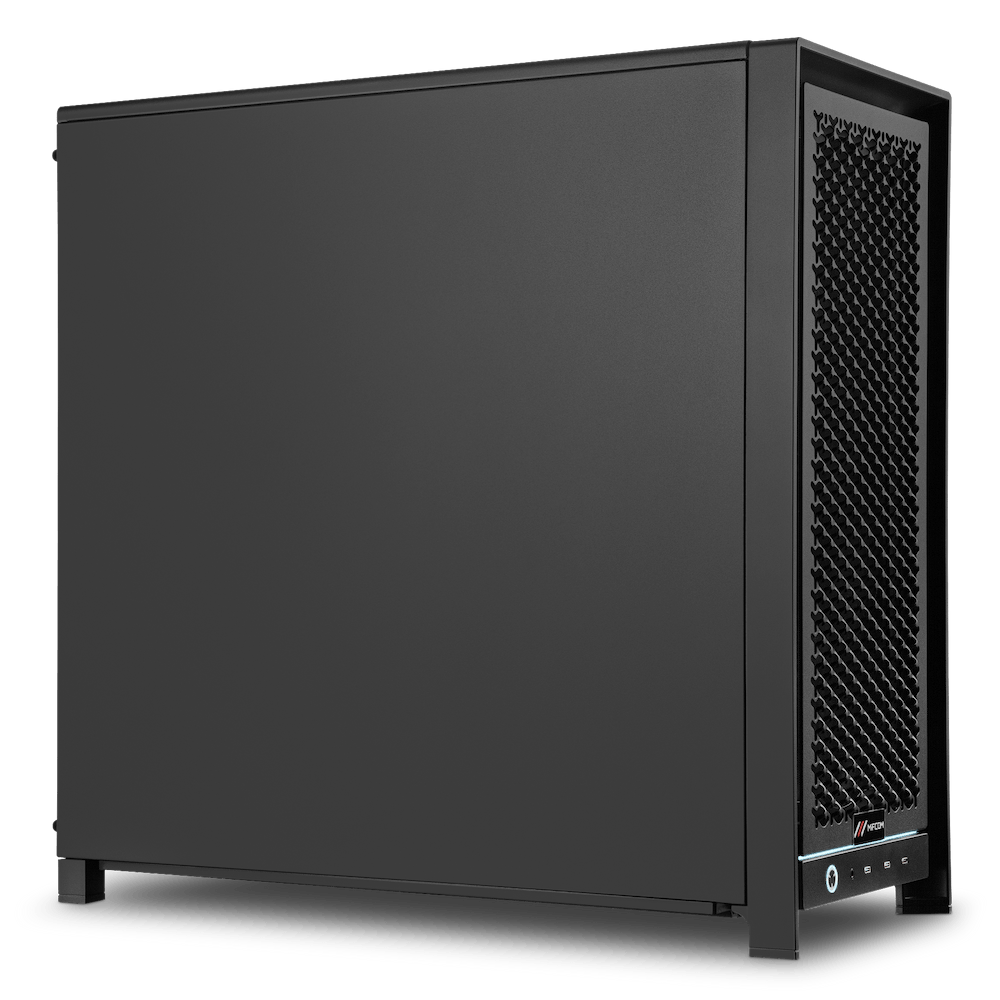

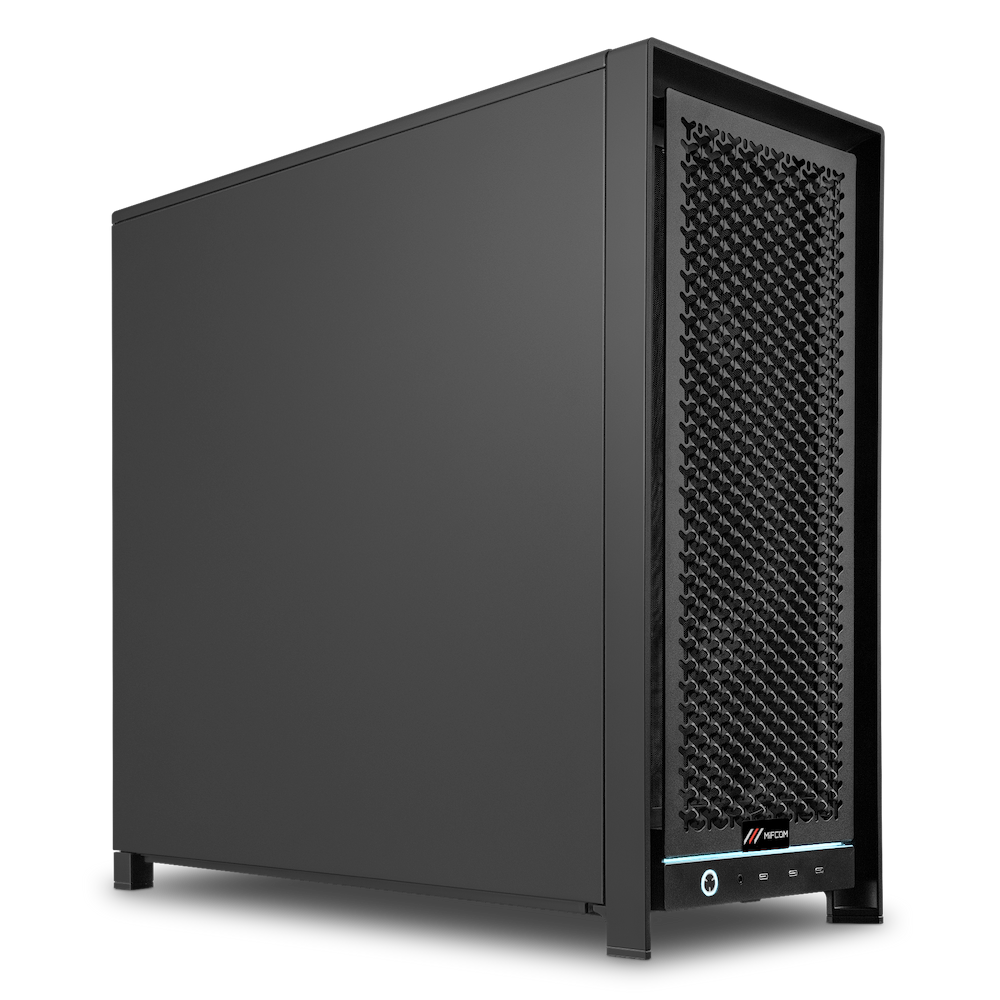

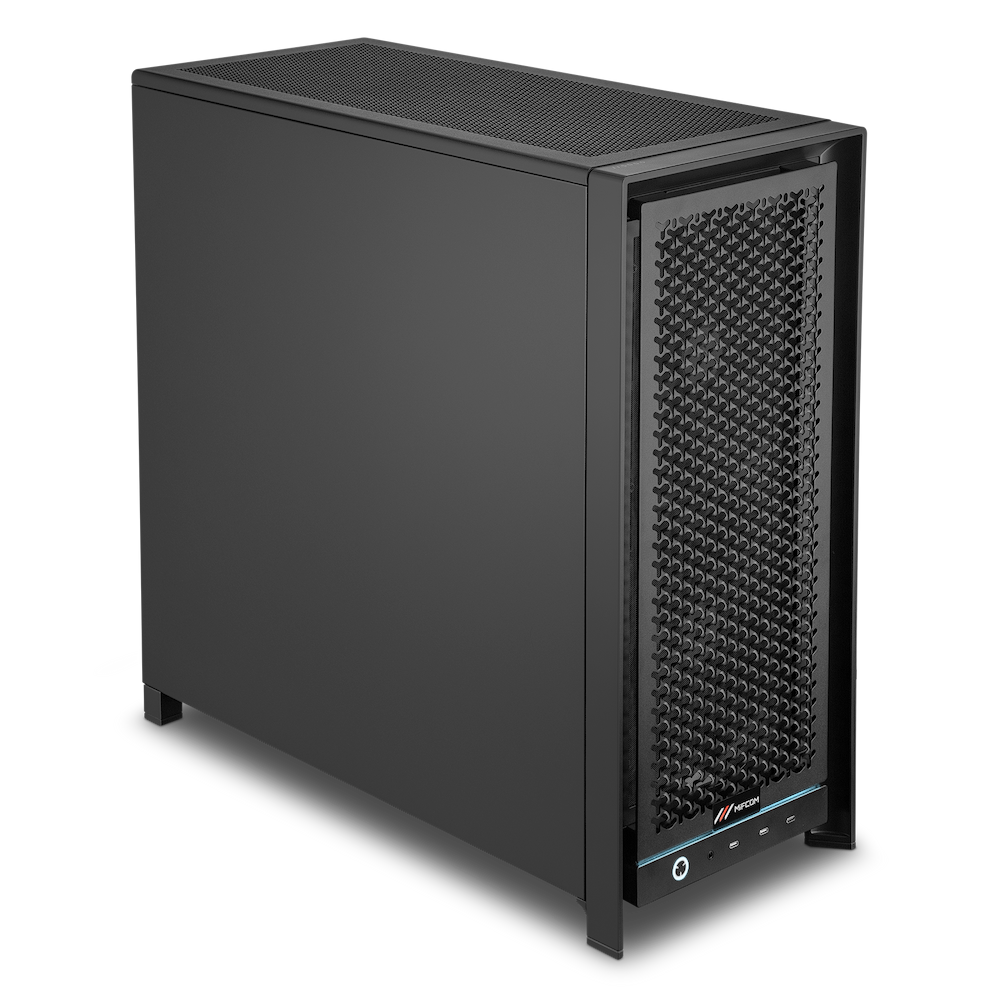

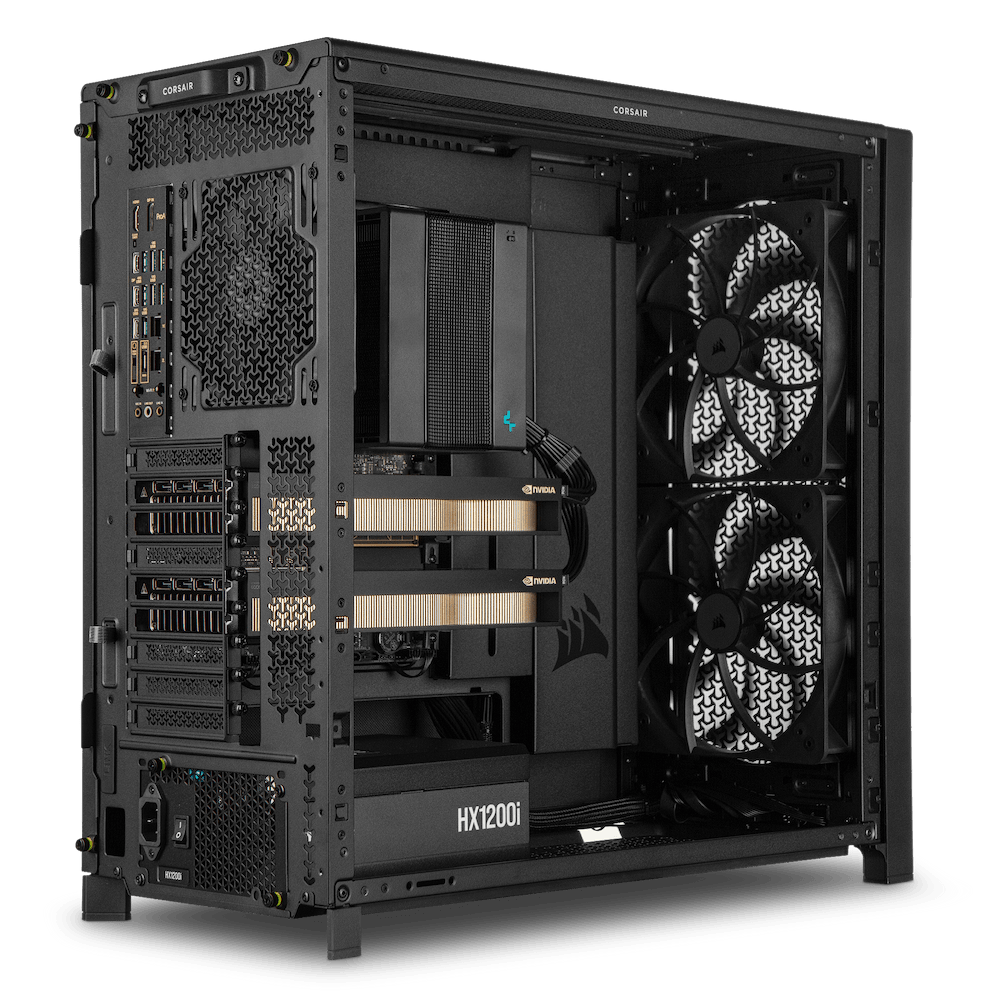

- Corsair 5000D Frame RS ARGB, blackThe CORSAIR FRAME 5000D RS ARGB is a modular and spacious mid-tower PC case with InfiniRail™ fan mounting system and RapidRoute 2.0 cable routing and is compatible with motherboards with rear connectors.
The revolutionary modular FRAME case system sets new standards in terms of customization. Would you like to upgrade the mainboard tray with billet aluminum? Would you like to replace your front I/O panel for more USB ports? It's now possible.
This case adapts to your needs and offers almost unlimited possibilities for upgrades and modifications.Technical details - Connections (CHA)1x USB-C 3.1 via USB header Key-A (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 3.5mm jack line-in/out
- Number of PCIe slots9
- DesignFull-Tower
- Mainboard compatibilitySupported mainboards: Mini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX special format (12 "x10.91", note for E-ATX)
- Fan (front)3x 140mm, ARGB illuminated (RS140) or 3x 120mm (optional) or 2x 200mm (optional) or 2x 160mm (optional)
- Fan (rear)1x 140mm, ARGB illuminated (RS140) or 1x 120mm (optional)
- Fan (top)3x 140mm (optional) or 3x 120mm (optional)
- Fan (lateral)3x 140mm (optional) or 2x 120mm (optional)
- Fan (bottom)-
- Internal drive baystotal: max. 6x 2.5", max. 2x 3.5"
- ManufacturerCorsair
- LightingRGB header 3-pin ARGB (+5V/DATA/GND), integrated LED lighting (ARGB, LED strip), illuminated fans
- Dimensions (WxHxD)556x250x542mm
- Special featuresCable management, dust filter, compatible with motherboards with rear motherboard connectors (ASUS BTF, Gigabyte Project Stealth, MSI Project Zero), graphics card holder, PCI slots can be mounted vertically, glass viewing window
- AMD Ryzen 9 9900X, 12x 4.4GHzThe latest generation of AMD processors offer an impressive combination of performance, efficiency and future-proofing, which is particularly interesting for gamers. Thanks to the advanced Zen architecture, the current models impress with high single-core performance, which often makes the decisive difference in modern games. At the same time, many cores and threads ensure strong multitasking capability, ideal for streaming, content creation and demanding applications in the background.
Technical details - Processor cores12 (12C)
- BaseAMD AM5 (LGA1718)
- Processor threads24
- Base clock4.40GHz
- Turbo beat5.60GHz
- L2 cache12MB (12x 1MB)
- L3 cache64MB (2x 32MB)
- TDP120W
- iGPU type (label)AMD Radeon Graphics
- PCIe lanes24x PCIe 5.0
- Memory controllermax. DDR5-5600 (PC5-44800, 89.6GB/s)
- ManufacturingZen 5
- Code nameGranite Ridge
- GIGABYTE X870E AORUS Elite WIFI7 | AMD X870AMD X870 motherboards are the first choice for high-end gaming systems and are aimed at users who want to get the most out of their hardware. They support the latest Ryzen processors with AM5 sockets and offer uncompromising features that meet even the highest demands. With full support for PCIe 5.0 and DDR5 memory, X870 boards are ideally equipped for current and upcoming high-end components.
Technical details - Processor socketAMD AM5
- RAM supportDDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
- Wireless standardsWi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4
- Form factorATX
- ChipsetAMD X870E
- LightingRGB, 1 zone (I/O cover)
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment display), integrated I/O panel, 4x M.2 passive coolers
- ColorSchwarz-Grau
- Power supply1x 24-pin ATX, 2x 8-pin EPS12V
- FAN header1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 3x fan 4-pin, 1x fan/pump 4-pin
- Audio descriptionRealtek ALC1220
- Connections (rear)1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4 (40Gb/s, iGPU), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Realtek), 1x Toslink S/PDIF Out (Realtek ALC1220), 2x 3.5mm jack (Realtek ALC1220), 2x antenna connection Quick Connect
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/s), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB 3.0), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (X870E), 1x HDMI 1.4 (iGPU), 1x TPM-Header
- RAID level0/1/10 (X870E)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2580/22110/2280), 2x M.2/M-Key (PCIe 5.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header3x 3-Pin ARGB (+5V/DATA/GND, max. 5A), 1x 4-Pin RGB (+12V/G/R/B, max. 2A)
- AMD Radeon PRO W7900, 48GBAMD Radeon PRO W7000 graphics cards: Experience the power of the RDNA 3 architecture for professional applications. Offers outstanding performance, generous VRAM and support for DisplayPort 2.1 - perfect for CAD/CAM, media editing and complex visualizations.
Technical details - Memory type48GB GDDR6 with ECC mode, 384bit, 18Gbps, 2250MHz, 864GB/s
- API supportDirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.2 / OpenGL 4.6 / Shader Model 6.7
- PCIe cut pointPCIe 4.0 x16
- GPU typeAMD Radeon PRO W7900 48GB
- VRAM48GB
- GPU clock1900MHz
- GPU clock (boost)2495MHz
- GPU fan1x radial fan (75mm)
- Power consumption295W (AMD)
- Dimensions (WxHxD)280x110x51mm (LxWxH)
- Special featuresN/A
- Power supply2x 8-pin PCIe
- Connections (rear)3x DisplayPort 2.1 UHBR20, 1x Mini DisplayPort 2.1 UHBR20
- 64GB Corsair Vengeance LPX DDR5-6000 | 2x 32GB
Technical details - RAM type designationDDR5 288-pin DIMM
- RAM size2x 32GB
- RAM total64 GB
- Memory clock Label6000MT/s
- Latency30
- RAM coolingHeat Spreader
- Special features-

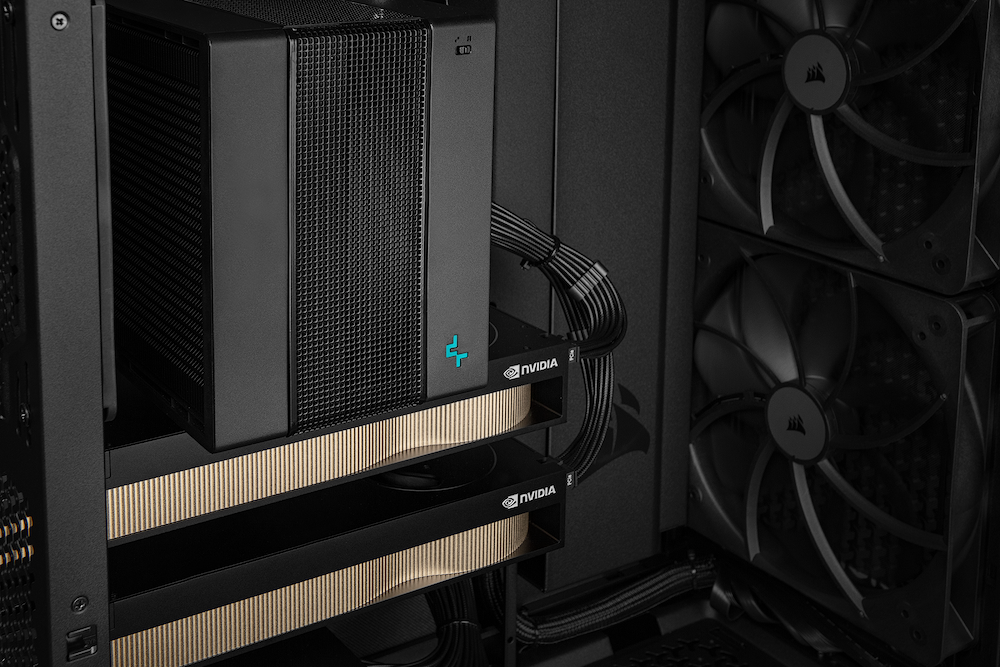

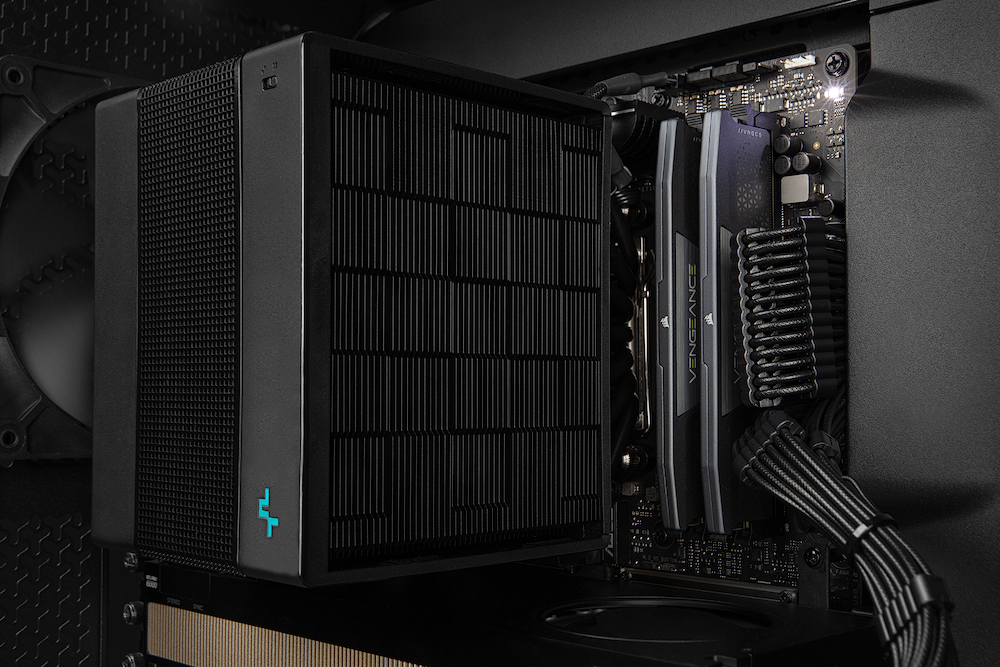

- DeepCool AK500 MIFCOM Black | 120mm fanThe DeepCool AK500 is a powerful tower cooler that has been specially developed for modern gaming and workstation systems. With its massive cooling surface, an asymmetrical heat sink design and a high-quality 120 mm fan, it offers impressive heat dissipation - ideal for powerful multi-core processors, even under continuous load.
Technical details - Heatpipes5 heatpipes (6mm)
- TDP240W
- Lighting-
- Dimensions (WxHxD)127x158x117mm (WxHxD)
- Special features-
- Fan1x 120x120x25mm, 500-1850rpm, 117.28m³/h, 69.02 CFM, 31.5dB(A), 2.19mmH₂O, hydrodynamic plain bearing (FDB)
- Socket AMDAM5, AM4
- Socket Intel1851/1700
- 2TB SanDisk WD Black SN850X
Technical details - Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
- Storage capacity2TB
- InterfaceM.2/M-Key (PCIe 4.0 x4)
- Reading speed7300MB/s
- Write speed6600MB/s SLC-Cached
- SSD controllerWestern Digital Black G2
- Mean time between failures-
- IOPS 4K1200k reading, 1100k writing
- Power supply-
- 850W - be quiet! Power Zone | modular
Technical details - PSU power (Desc)850W
- Power 12V70.8A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Platinum
- Volume6.50-24.90dB(A) (according to manufacturer), 19.84dB(A) (according to Cybenetics certificate, 115V), 19.31dB(A) (according to Cybenetics certificate, 230V)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- Fan140mm, 1800rpm, semi-passive
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
556x250x542mm
Connectivity
Front

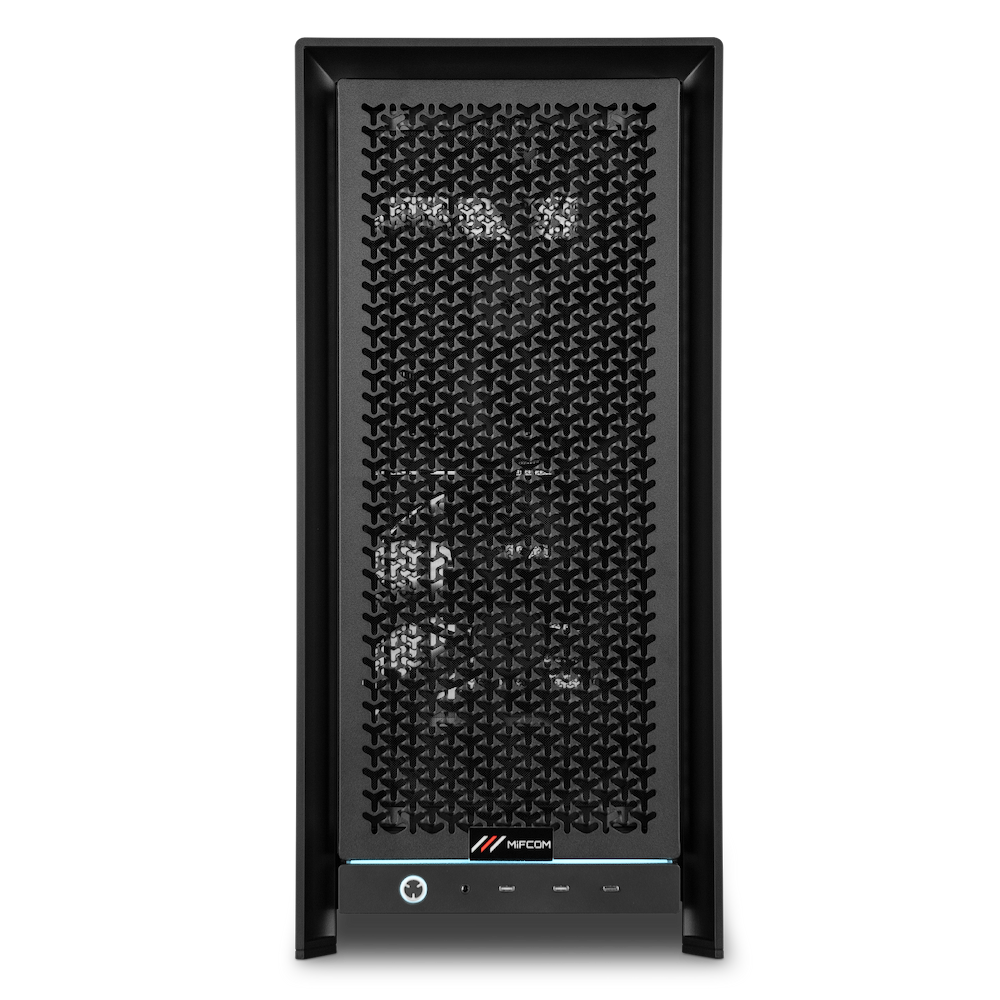

1x USB-C 3.1 via USB header Key-A (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 3.5mm jack line-in/out
Rear

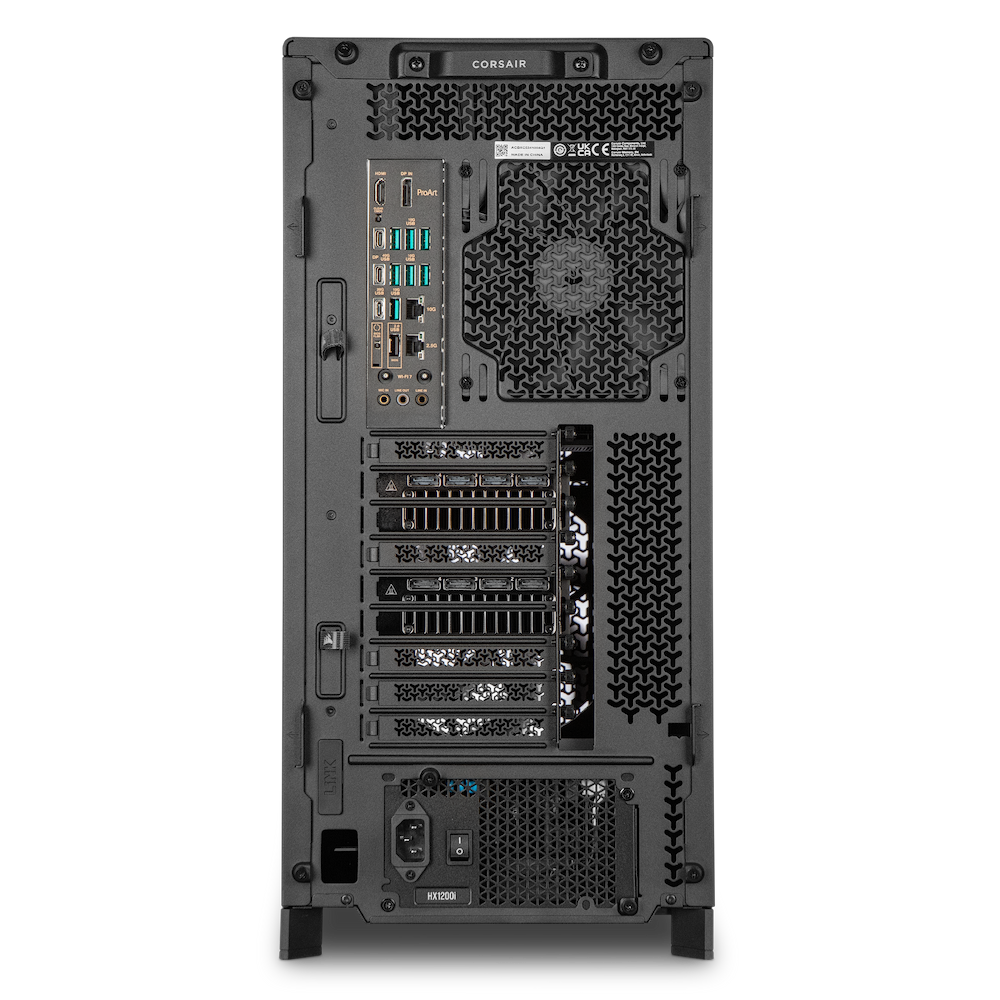

1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4 (40Gb/s, iGPU), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Realtek), 1x Toslink S/PDIF Out (Realtek ALC1220), 2x 3.5mm jack (Realtek ALC1220), 2x antenna connection Quick Connect, 3x DisplayPort 2.1 UHBR20, 1x Mini DisplayPort 2.1 UHBR20
