Workstation - Mini Core Ultra 9 285K - RTX 5080
Intel Core Ultra 9 285K, 8C + 16c
RTX 5080 16GB, GIGABYTE
2TB WD Black SN850X
GIGABYTE B860M Elite
32GB DDR5-6000, Corsair
3.899
,-
incl. VAT plusShipping
71
,20
Delivery time:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control

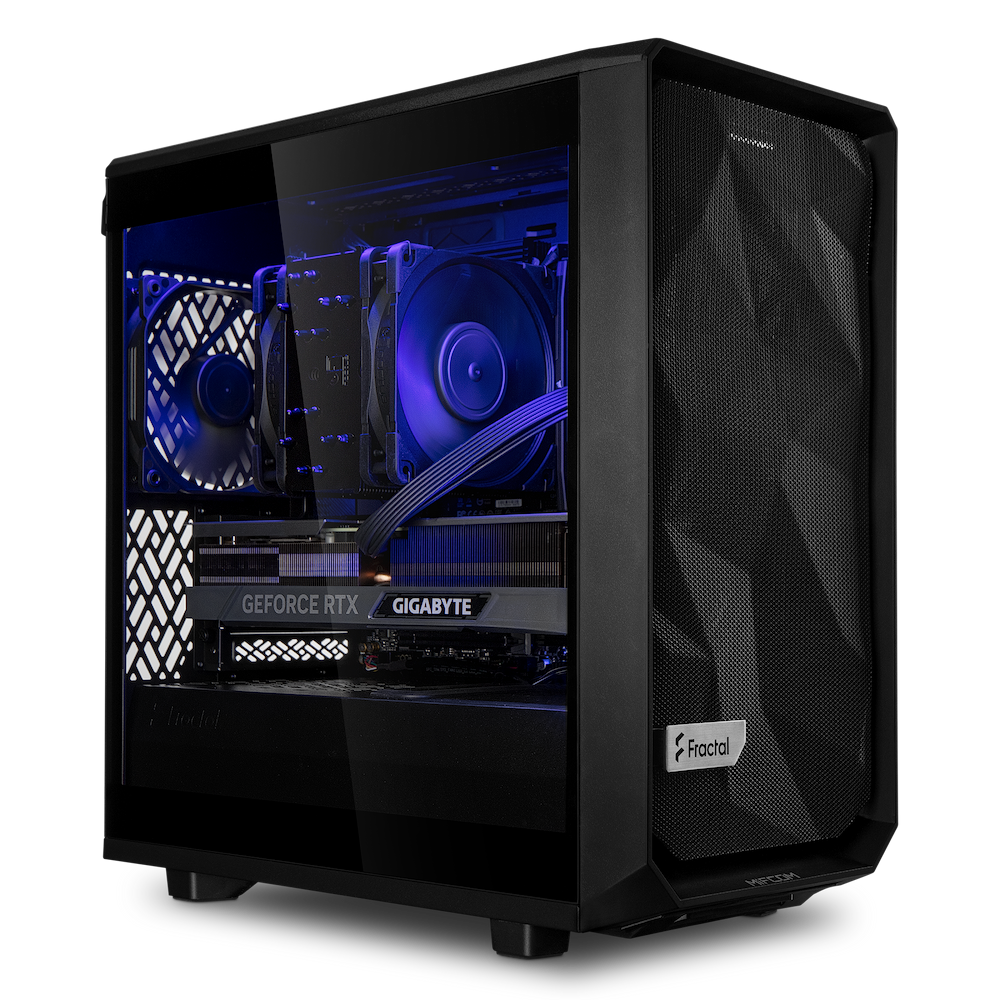

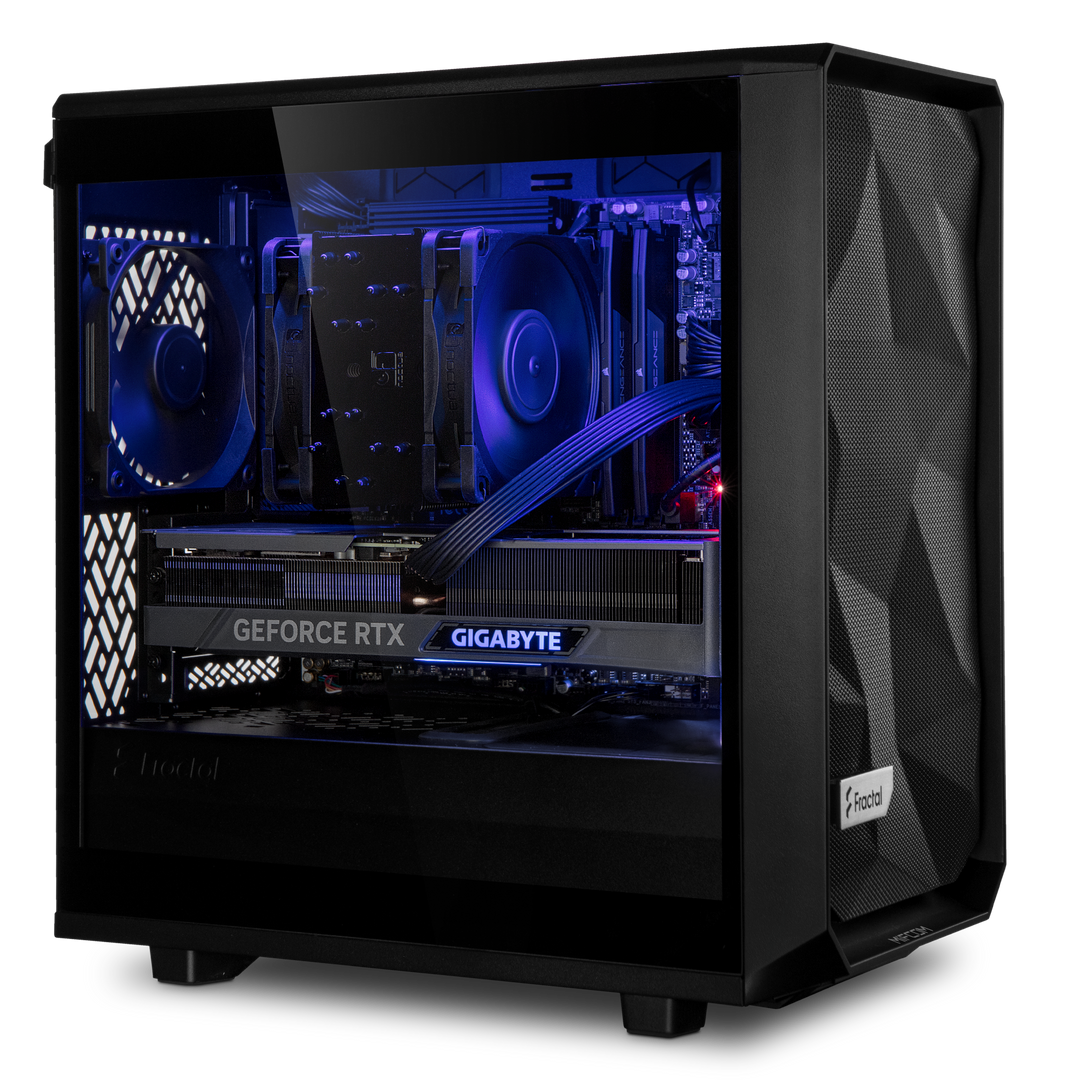

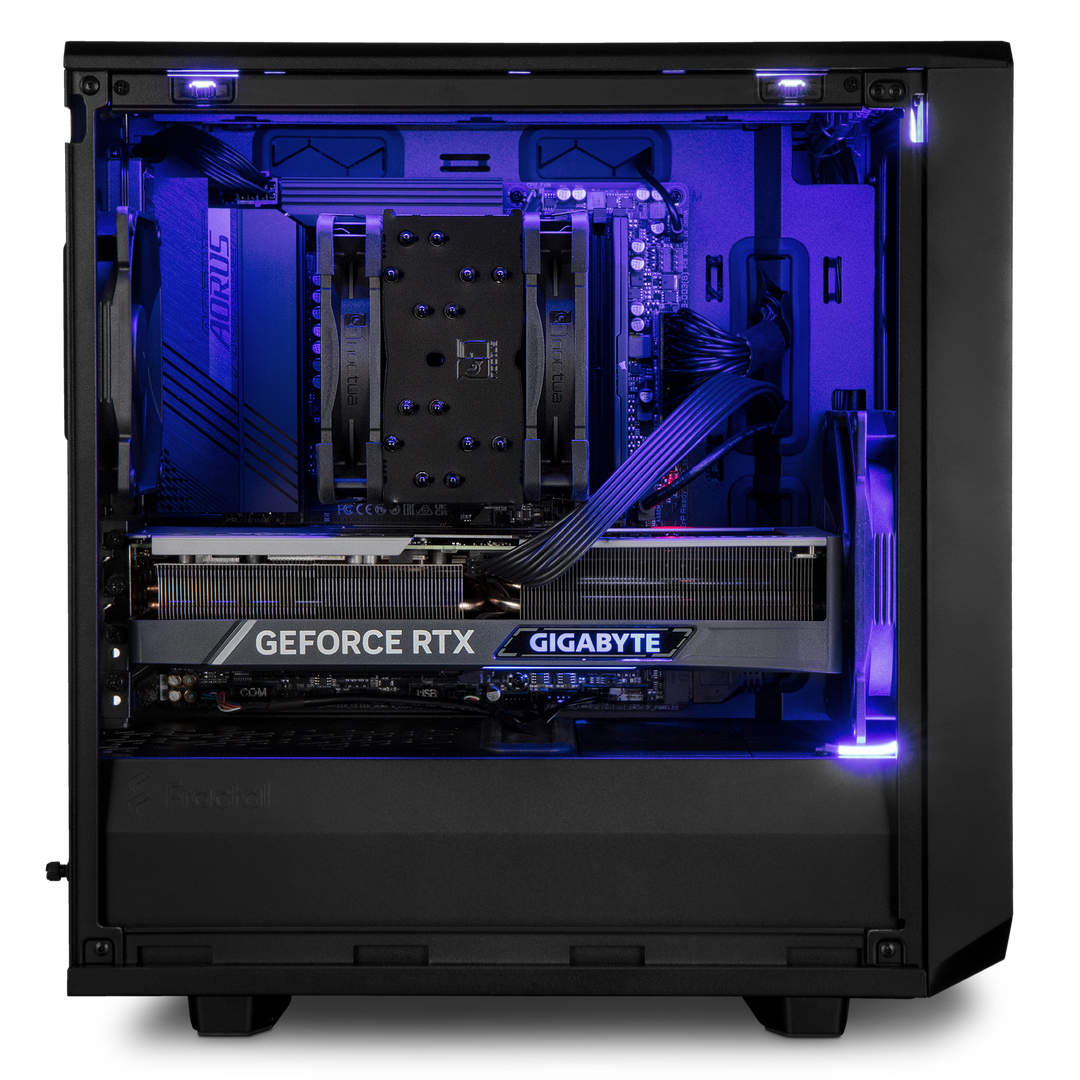

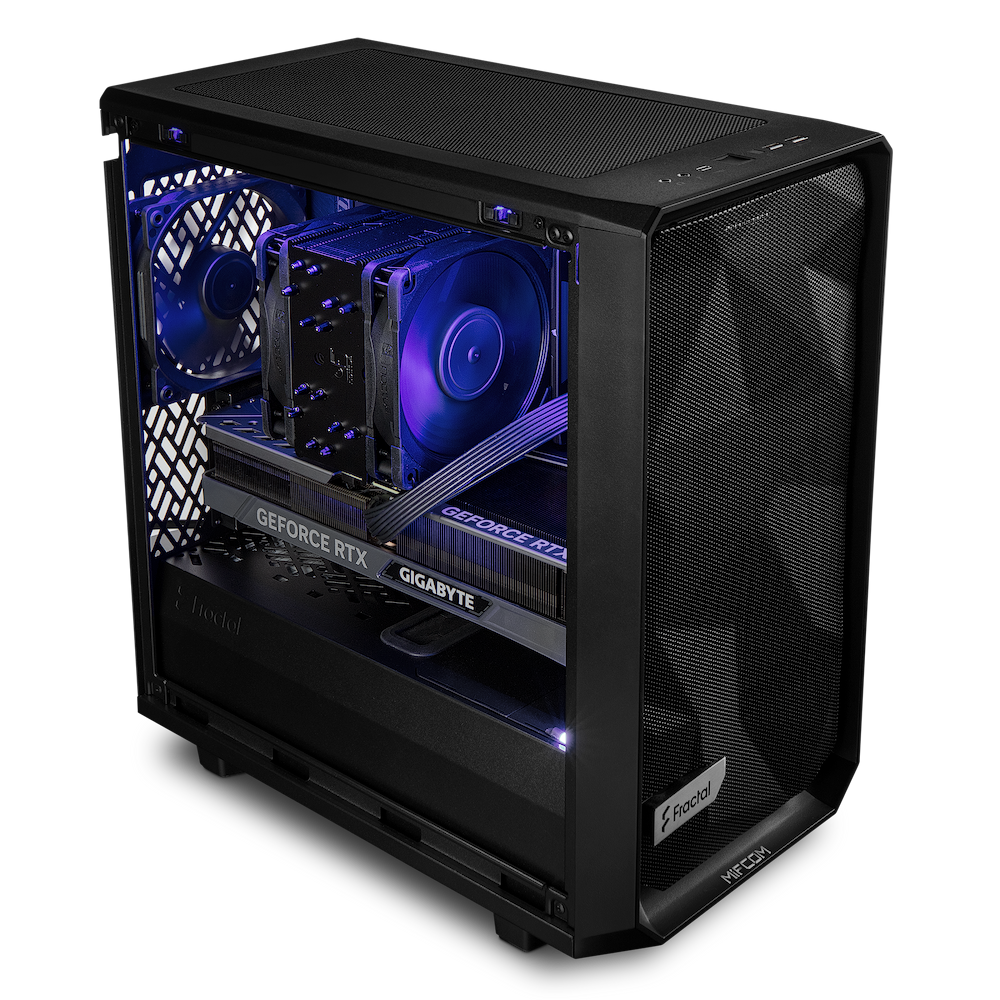

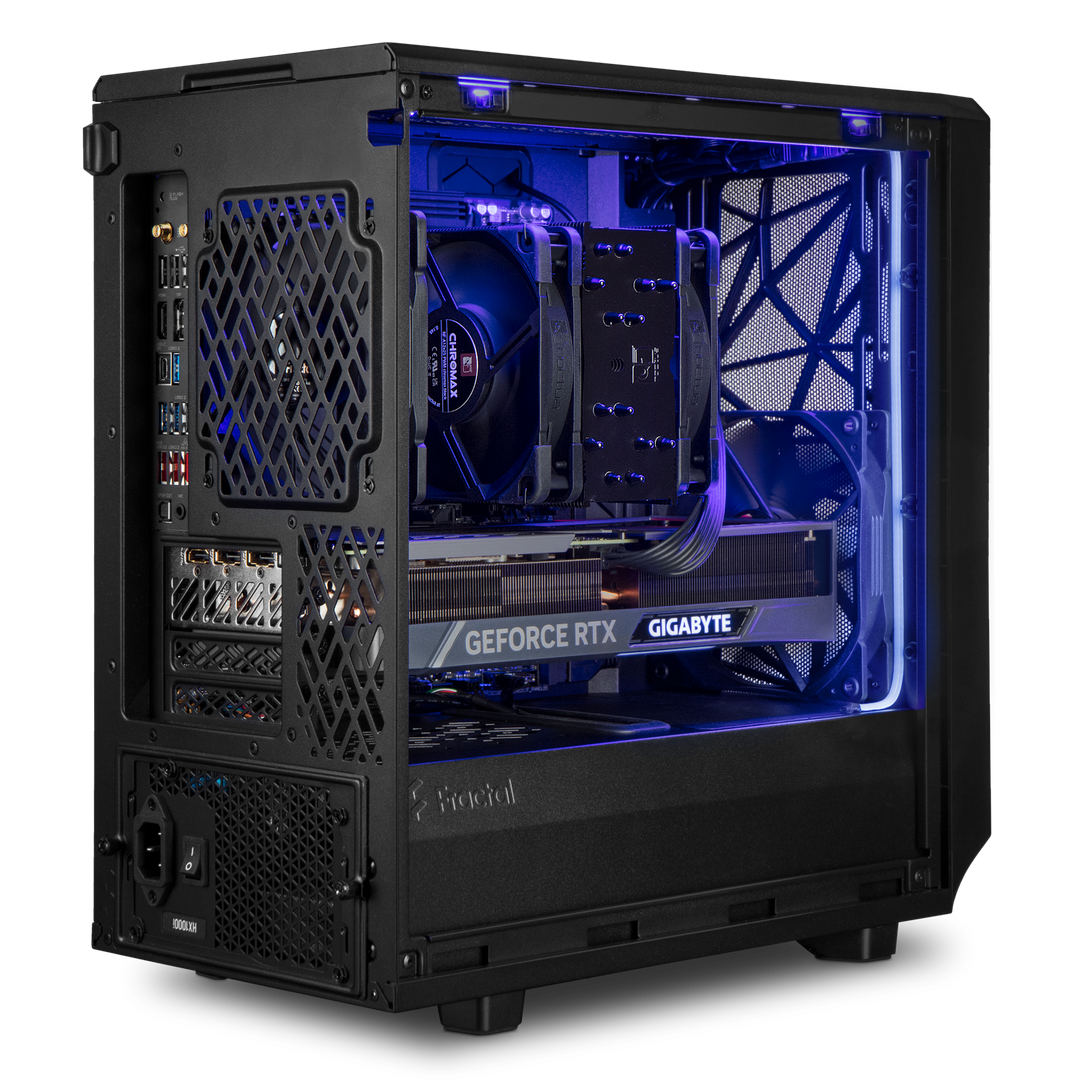

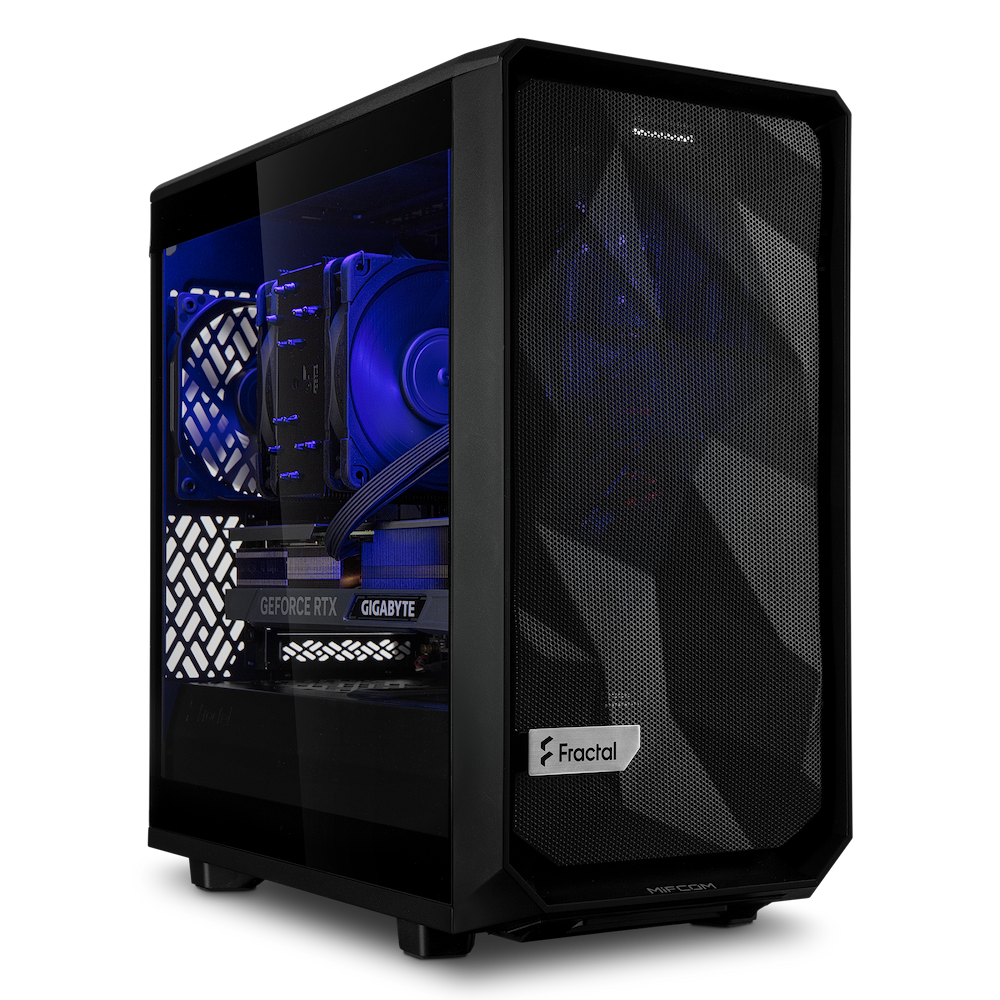

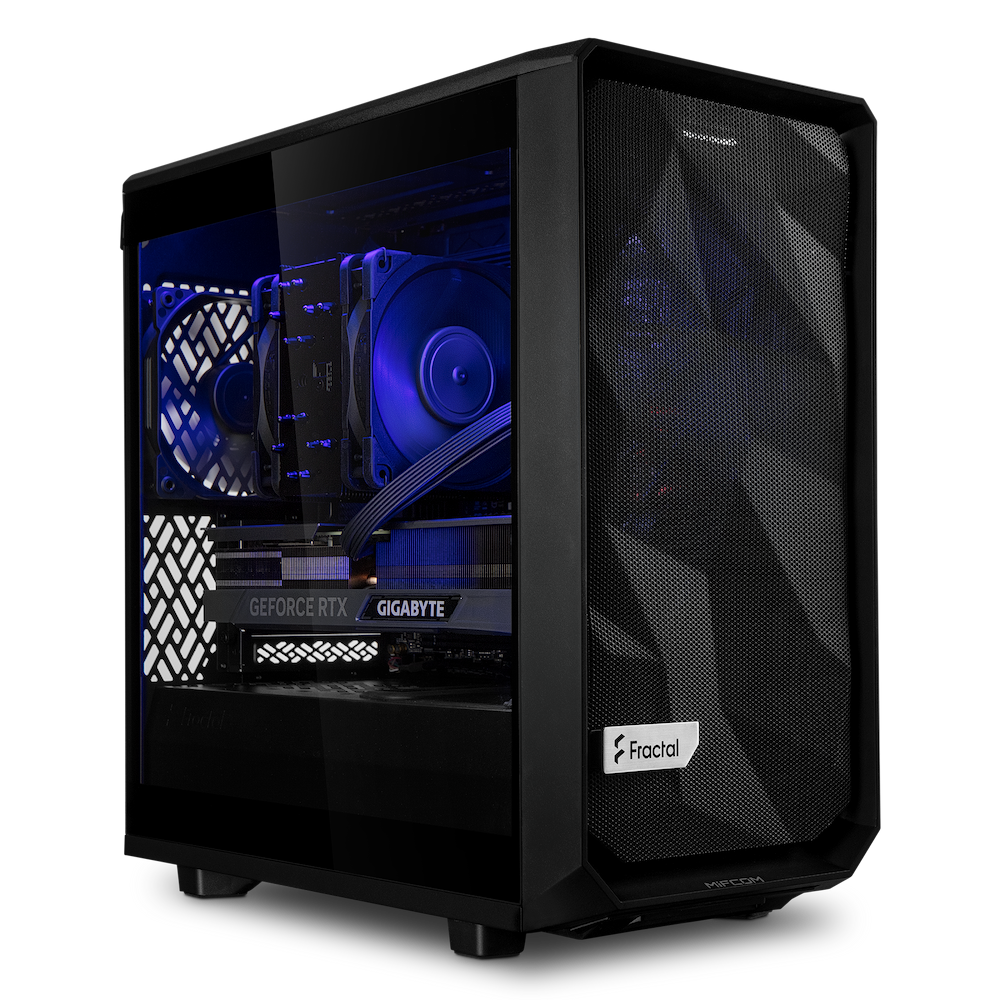

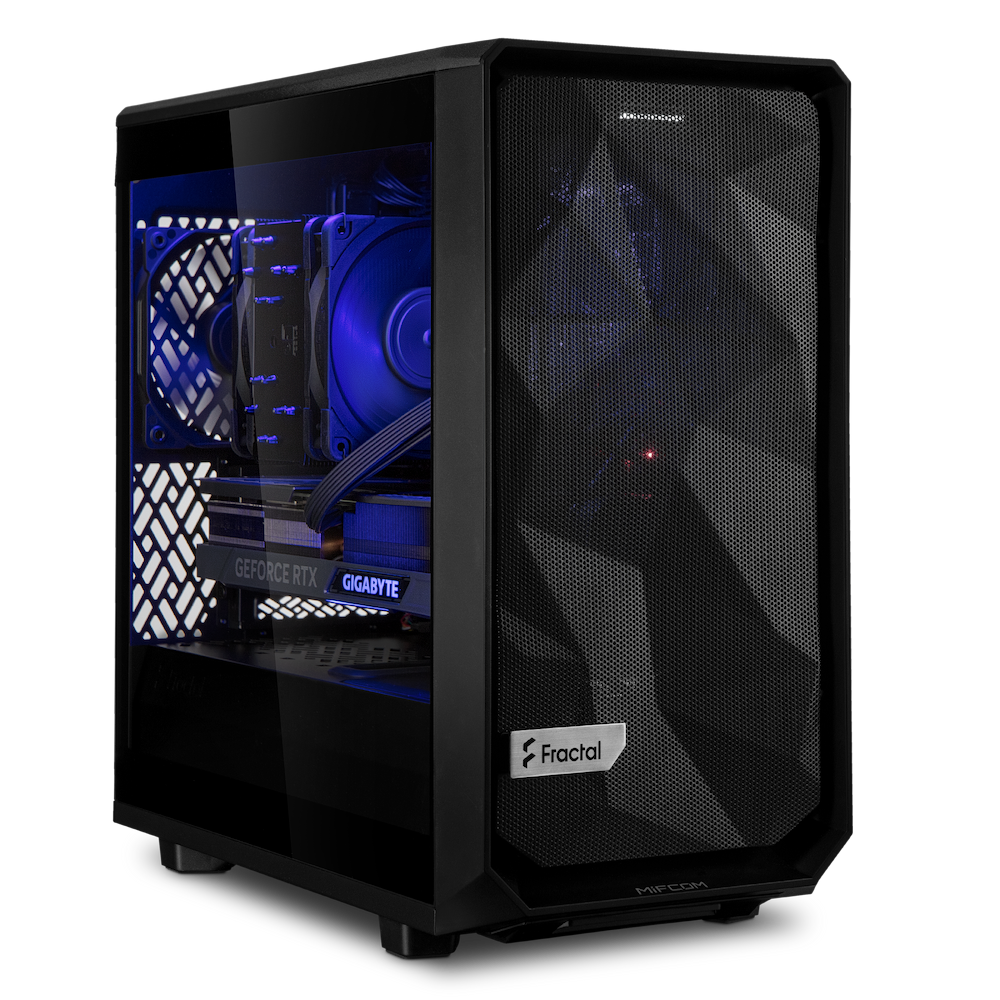

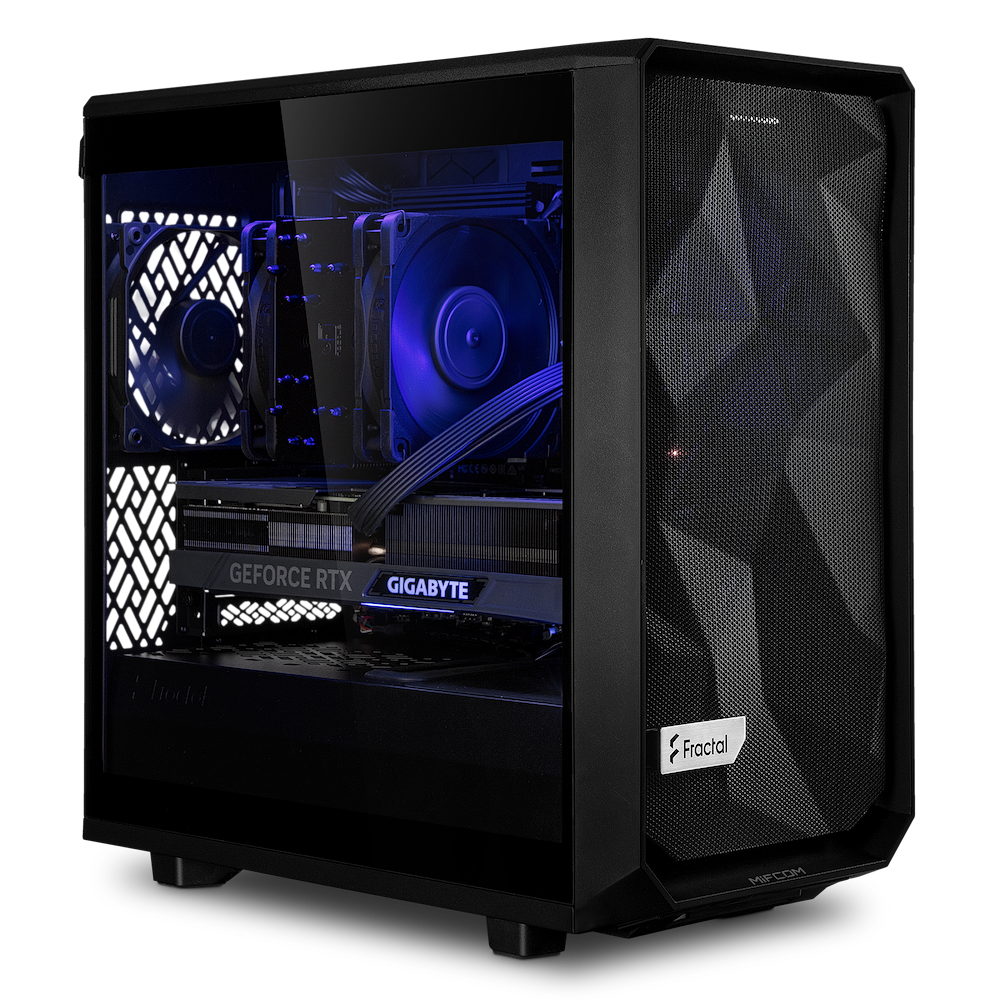

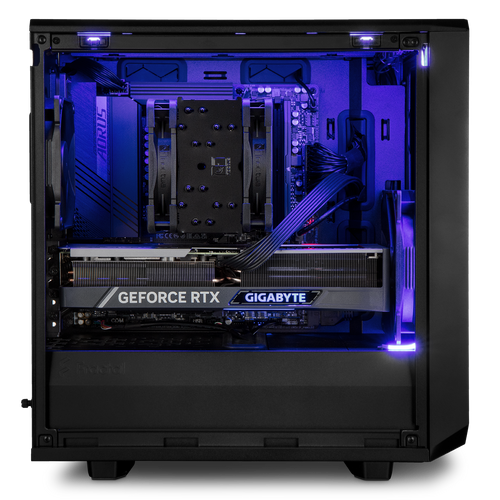

Workstation
Mini Core Ultra 9 285K - RTX 5080
Despite their small size, our mini workstations offer unbeatable performance in many professional applications and are therefore in no way inferior to larger desktop PCs. Thanks to the excellent single-core performance of the built-in Intel Core Ultra 9 285K, this workstation is perfect for photo and video editing as well as CAD and 3D applications. In these applications, high performance per core and clock is particularly important in order to achieve maximum performance. The dedicated NVIDIA GeForce RTX 5080 graphics card also significantly increases performance in creative applications. Our mini workstations can be combined with up to 128 GB of DDR4 memory. The built-in SSD system drive ensures lightning-fast loading & response times for the operating system and applications.
With this workstation, you are ideally equipped for all professional tasks for the coming years
Technical details
Workstation - Mini Core Ultra 9 285K - RTX 5080

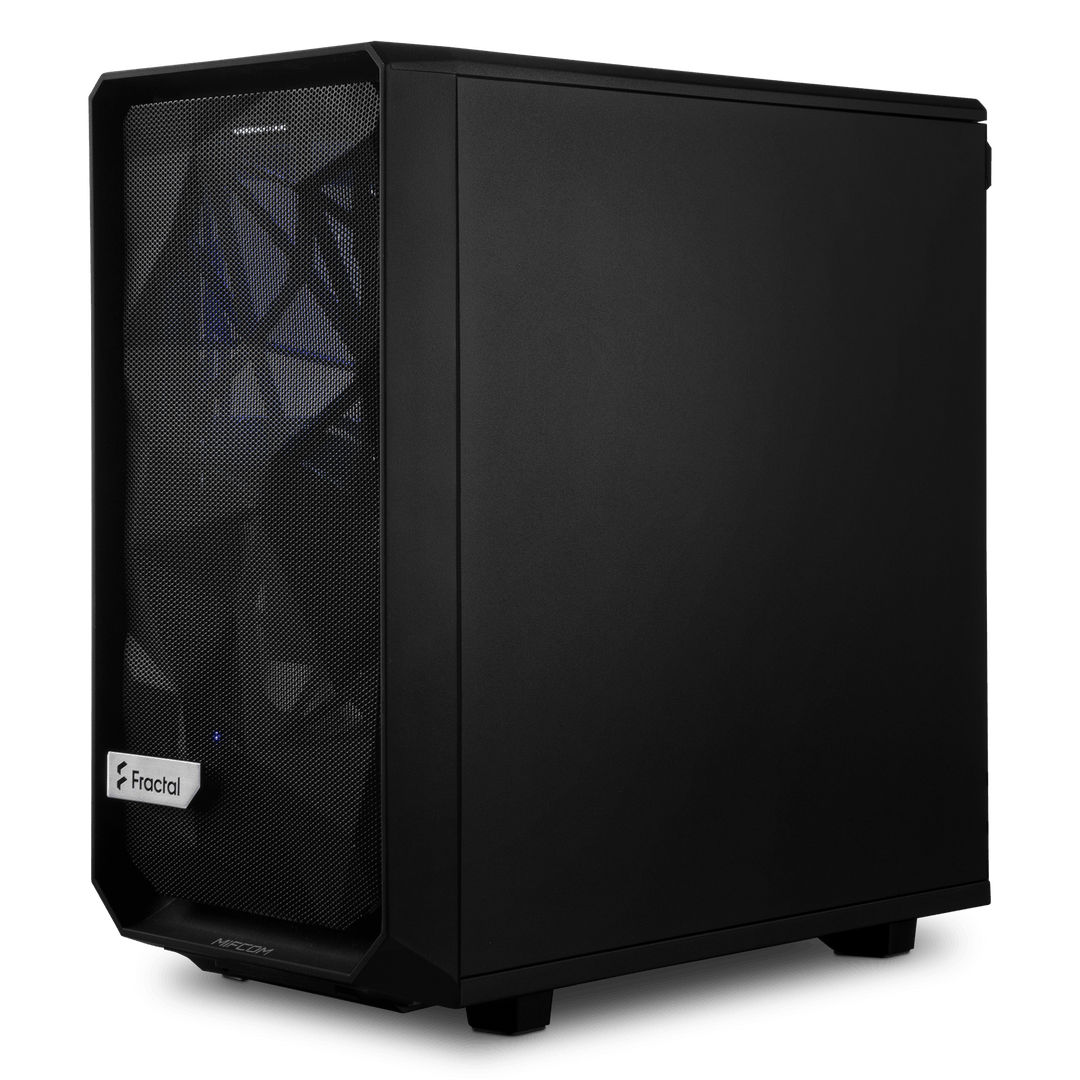

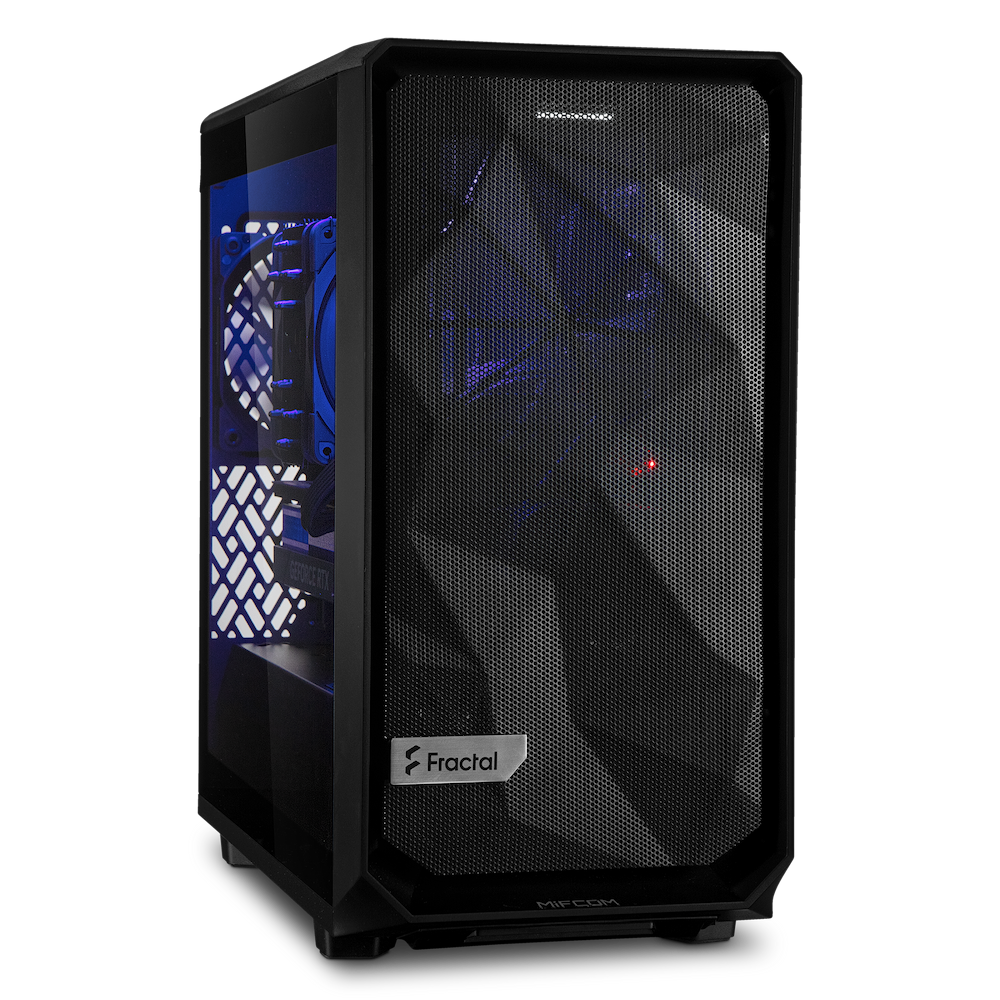

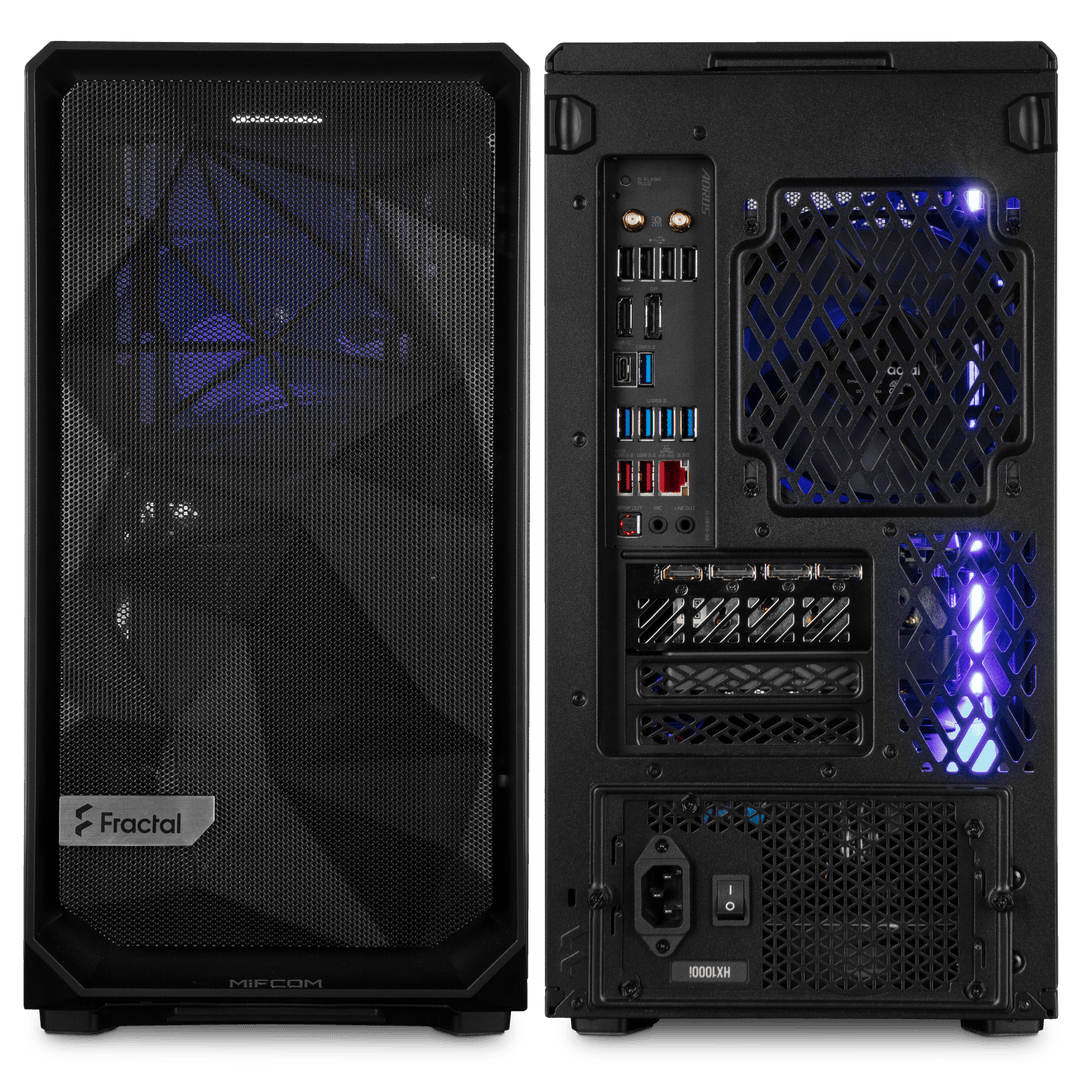

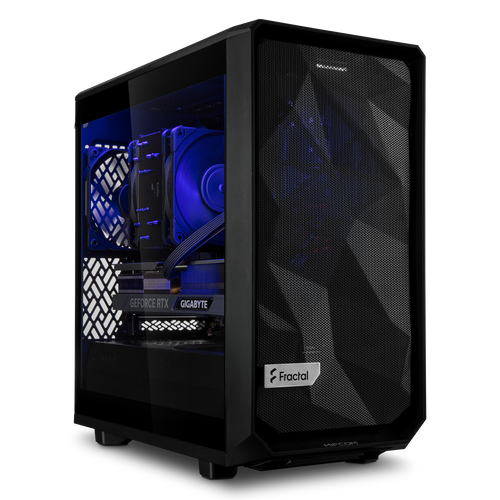

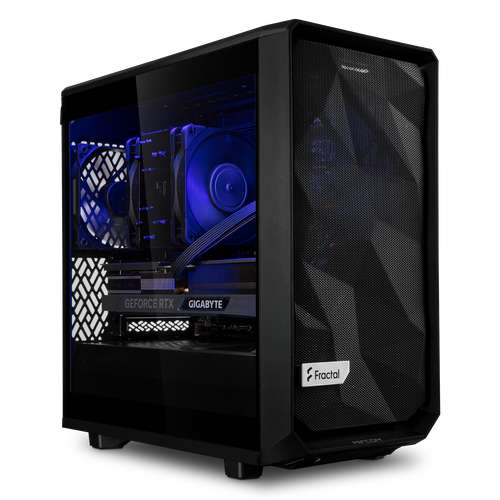

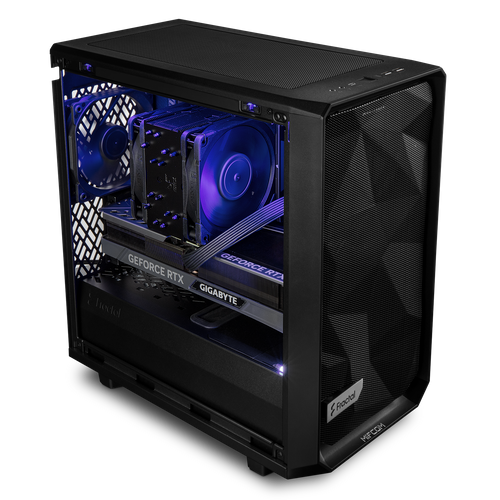

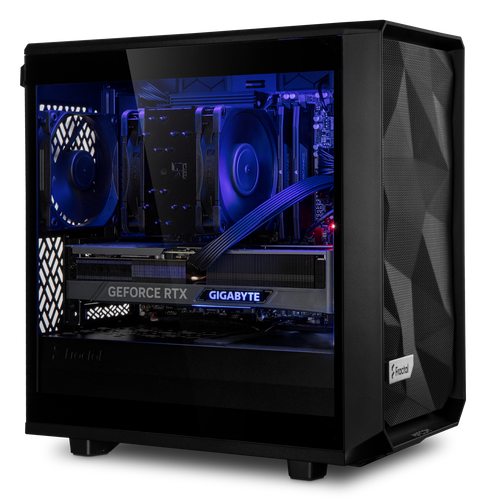

- Fractal Design Meshify 2 Mini, blackThe Meshify 2 Mini offers mATX enthusiasts an excellent combination of airflow and flexibility in their preferred form factor. Thanks to the high-quality workmanship, the Meshify 2 series impresses with style and performance in equal measure.

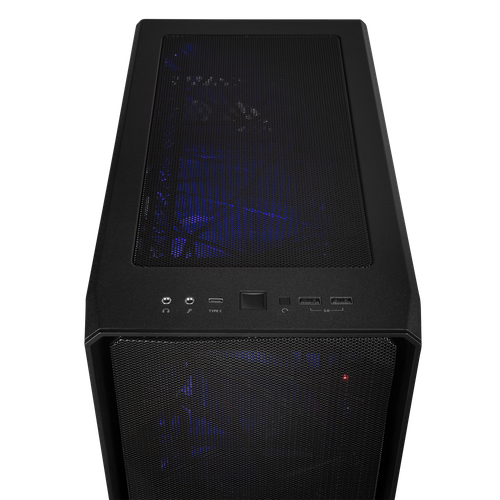

Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots4
- DesignMini-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/Mini-DTX (8 "x6.7")/DTX (9.6 "x8")/µATX (9.6 "x9.6")
- Fan (front)1x 140mm, 1000rpm, 0.71mmH₂O, 116m³/h (68.27 CFM), 18.9dB(A) or 3x 120mm (optional) or 2x 140mm (optional)
- Fan (rear)1x 120mm, 1200rpm, 0.88mmH₂O, 90.6m³/h (53.32 CFM), 19.4dB(A)
- Fan (top)2x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)1x 120mm (optional)
- Internal drive bays2x 2.5"/3.5" (horizontal, drive rails), 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)205x406x396mm
- Special featuresCable management, dust filter, glass viewing window
- Intel Core Ultra 9 285K, 8C + 16cThe new Intel Arrow Lake processors for socket 1851 mark a significant step towards efficiency and modern system architecture. Compared to the previous generation, both power consumption and waste heat have been noticeably reduced - without compromising on computing power. This is a clear advantage, especially for gamers who rely on quiet and energy-efficient systems.
Technical details - Processor cores24 (8C+16c)
- BaseIntel 1851 (LGA1851)
- Processor threads24 (8+16)
- Base clock3.70GHz (P-Core), 3.20GHz (E-Core)
- Turbo beat5.70GHz (Thermal Velocity Boost), 5.60GHz (Turbo Boost Max 3.0), 5.50GHz (P-Core), 4.60GHz (E-Core)
- L2 cache40MB (8x 3MB + 4x 4MB)
- L3 cache36MB
- TDP125W (Processor Base Power), 250W (Maximum Turbo Power)
- iGPU type (label)Intel Graphics
- PCIe lanes20x PCIe 5.0, 4x PCIe 4.0
- Memory controllerDual Channel DDR5-5600 UDIMM (PC5-44800, 89.6GB/s), max. DDR5-6400 CUDIMM (PC5-51200, 102.4GB/s), max. 192GB
- ManufacturingTSMC 3nm
- Code nameArrow Lake-S
- Gigabyte B860M AORUS Elite WIFI6E | Intel B860Intel B860 motherboards offer a reliable and price-conscious platform for gaming systems that need to deliver solid performance even without a high-end budget. They support the latest generation of Intel processors and are ideal for users who value modern technology and stability without having to rely on expensive additional features.
Technical details - Processor socketIntel 1851
- RAM support4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM)
- Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3 (Intel AX211 or Realtek RTL8852CE)
- Form factormATX
- ChipsetIntel B860
- LightingRGB, 1 zone (chipset cooler)
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 3x M.2 passive coolers
- Power supply1x 24-pin ATX, 2x 8-pin EPS12V
- FAN header1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 3x fan 4-pin PWM, 1x fan/pump 4-pin PWM
- Audio descriptionRealtek ALC1220
- Connections (rear)1x HDMI 2.1 (HDCP 2.3, iGPU), 1x DisplayPort 2.1 (iGPU), 1x USB4 with DisplayPort 2.1 (40Gb/s, iGPU), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 1x Toslink S/PDIF Out (Realtek), 2x 3.5mm jack (Realtek), 2x antenna connection Quick Connect
- Internal connections1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)
- RAID level0/​1/​5/​10 (B860)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x M.2/M-Key (PCIe 5.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 2580/2280), 1x M.2/M-Key (PCIe 4.0 x4, 25110/2580/22110/2280), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header1x 4-Pin RGB (+12V/​G/​R/​B, max. 2A), 3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, GIGABYTE Gen2)

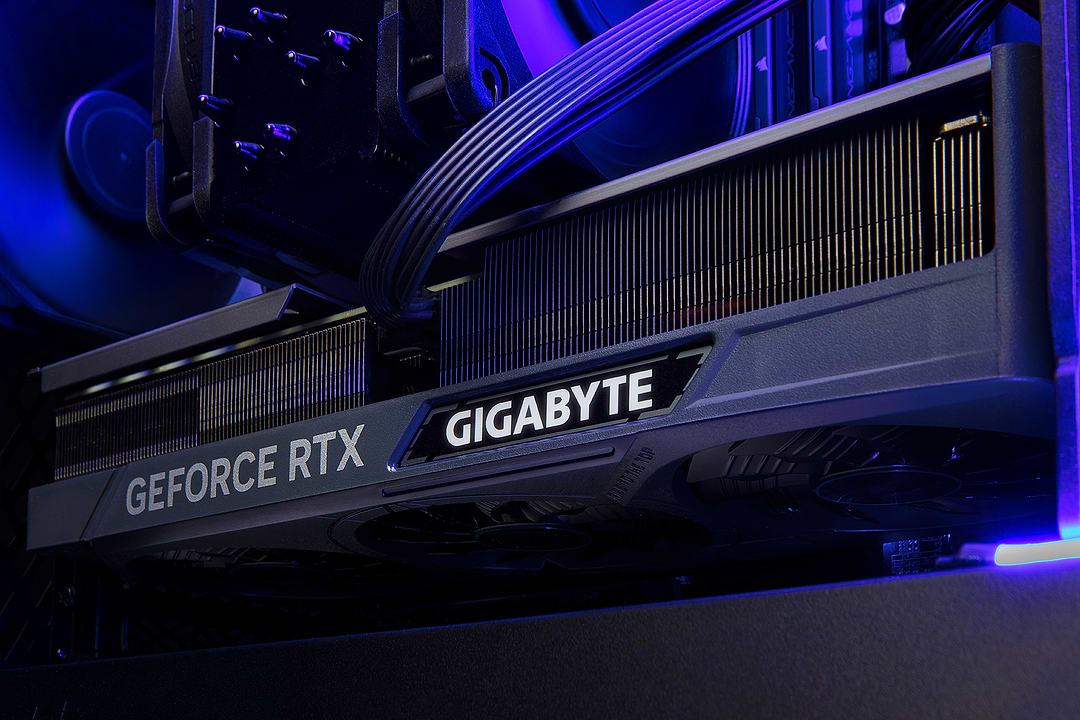

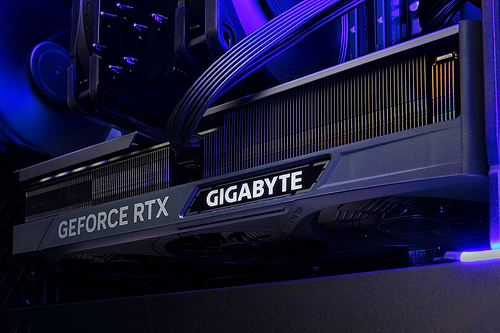

- NVIDIA GeForce RTX 5080 16GB | GIGABYTE Windforce OCPower up your PC with the NVIDIA® GeForce RTX™ 5080. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. These are supported by the ultra-efficient NVIDIA Blackwell architecture and 16 GB of super-fast GDDR7 memory.
Technical details - Memory type16GB GDDR7, 256bit, 30Gbps, 1875MHz, 960GB/s
- API supportDirectX 12 Ultimate (12_2) /​ CUDA 12.8 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.8
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5080
- VRAM16GB
- GPU clockTBA
- GPU clock (boost)TBA
- GPU fan3x axial fan with 0dB zero fan mode
- Power consumption360W (NVIDIA)
- Dimensions (WxHxD)304x126x50mm (LxWxH)
- Special featuresAI acceleration, backplate, NVIDIA GeForce SFF-Ready, dual BIOS switch, graphics card holder
- Power supply1x 12V-2x6 (via adapter: 3x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 32GB Corsair Vengeance DDR5-6000 | 2x 16GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an excellent combination of performance, stability and design. With high clock rates and low latencies, it ensures that modern games run smoothly and enable short loading times - even in combination with demanding processors and graphics cards.
Technical details - RAM type designationDDR5 DIMM 288-pin, on-die ECC
- RAM size2x 16GB
- RAM total32GB
- Memory clock Label6000MT/s
- Latency36
- RAM coolingHeatspreader
- Special features-

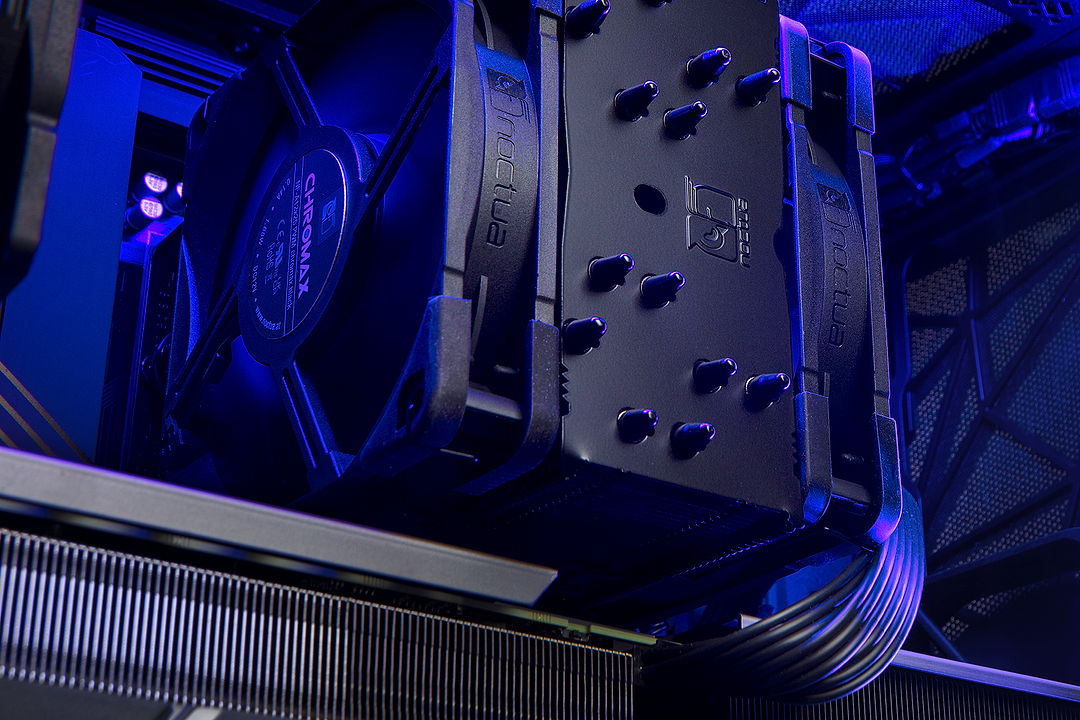

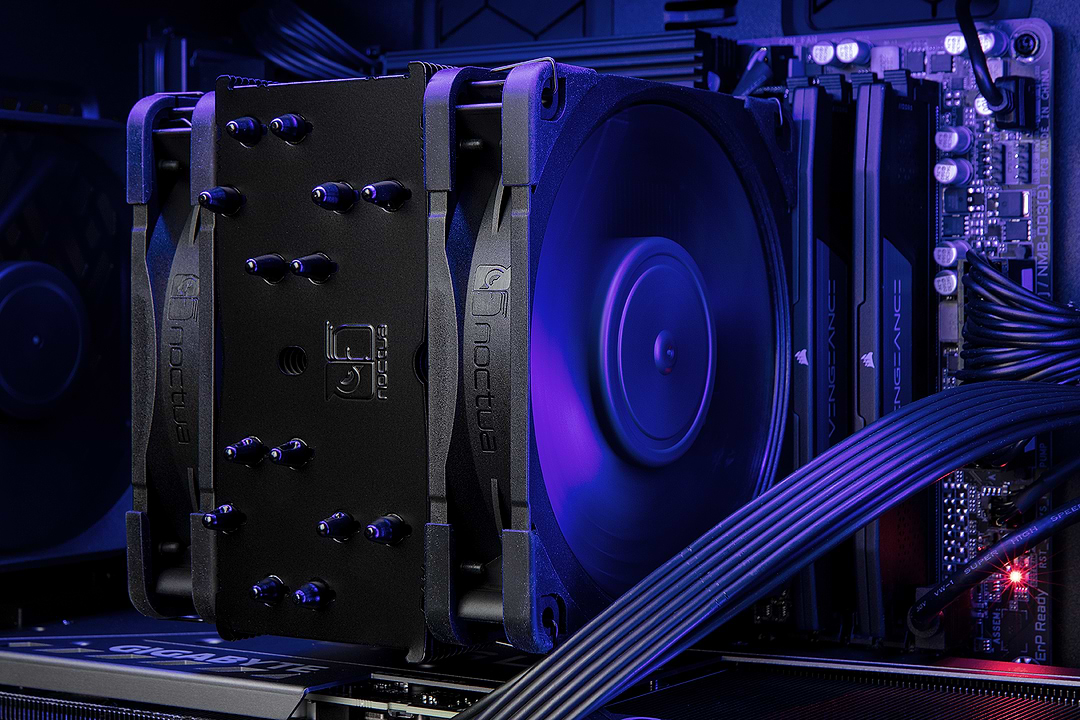

- Noctua NH-D15 chromax.black | 2x 140mm fanNoctua NH-D15 chromax.black: The reference for high-end air cooling, now in an elegant black design. This dual-tower cooler cools even the most demanding CPUs confidently and quietly - the first choice for enthusiasts and overclockers who don't compromise.
Technical details - Heatpipes6 heatpipes (6mm)
- Fan2x 140x150x25mm, 1500rpm, 140.2m³/h, 82.51 CFM, 24.6dB(A), 2.08mmH₂O, 1.56W (NF-A15 HS-PWM chromax.black, Link)
- Socket AMDAM5, AM4
- Socket Intel1700, 1150/​1151/​1155/​1156/​1200
- TDP-
- Lighting-
- Dimensions (WxHxD)150x165x161mm (WxHxD)
- Special featuresblack heat sink
- 2TB SanDisk WD Black SN850X
Technical details - Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
- Storage capacity2TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7300MB/s
- Write speed6600MB/s SLC-Cached
- SSD controllerWestern Digital Black G2
- Mean time between failures-
- IOPS 4K1200k reading, 1100k writing
- Power supply-
- 1000W - be quiet! Power Zone | modular
Technical details - PSU power (Desc)1000W
- Power 12V83.3A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Platinum
- Fan140mm, 1800rpm, semi-passive
- Volume6.50-27.20dB(A) (according to manufacturer), 19.66dB(A) (according to Cybenetics certificate, 115V), 19.12dB(A) (according to Cybenetics certificate, 230V)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
205x406x396mm
Connectivity

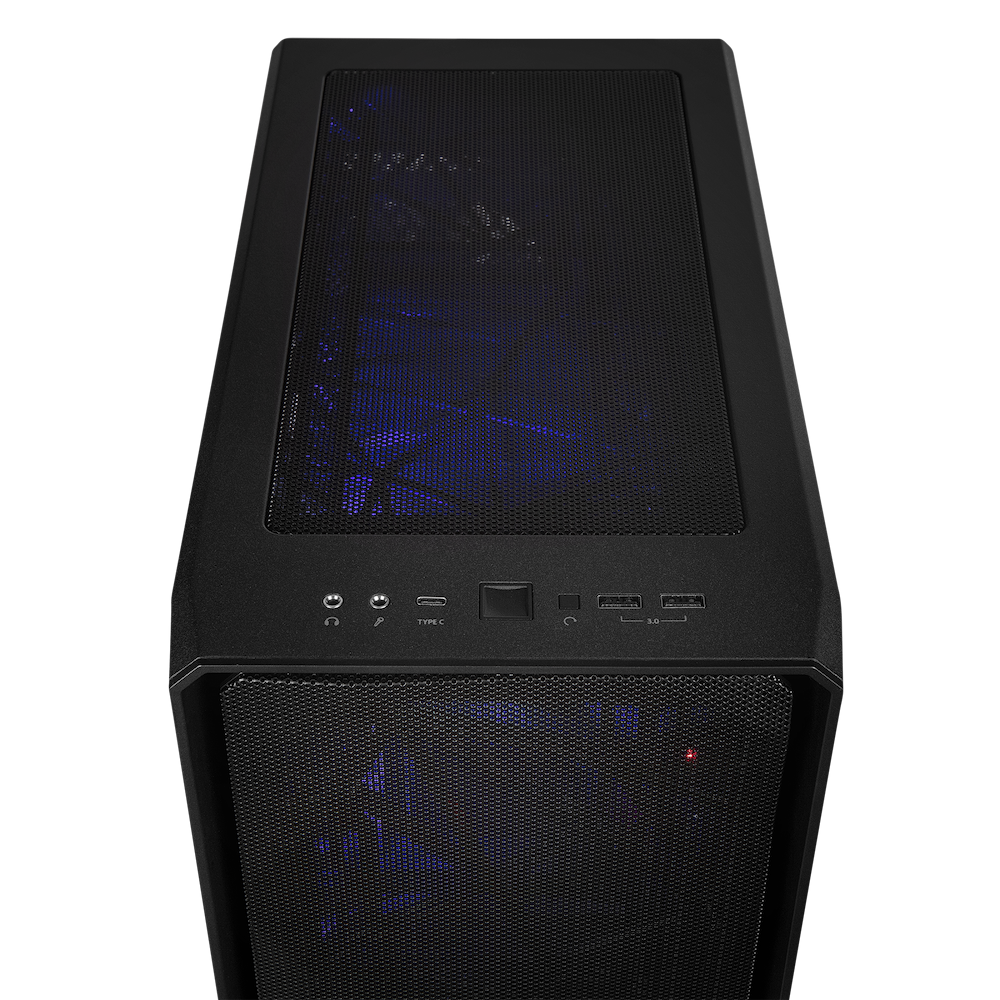

Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)

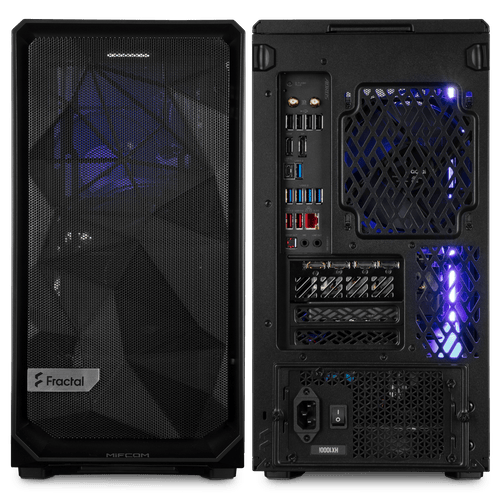

Rear
1x HDMI 2.1 (HDCP 2.3, iGPU), 1x DisplayPort 2.1 (iGPU), 1x USB4 with DisplayPort 2.1 (40Gb/s, iGPU), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 1x Toslink S/PDIF Out (Realtek), 2x 3.5mm jack (Realtek), 2x antenna connection Quick Connect, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
