ID: 20903

Workstation - Core i7-14700K - RTX PRO 4000 Blackwell

Intel Core i7-14700K, 8C + 12c
GIGABYTE B760 Gaming X WIFI6E GEN5
RTX PRO 4000 Blackwell, 24GB

32GB DDR5-6000, Corsair
1TB WD_Blue SN5100

5.699

incl. VAT plusShipping

Financefrom

/month

Delivery time:

7-9 business days

3-year warranty,
including pickup and return

Lifetime
Support

Professional
assembly

Rigorous testing and
quality control

Workstation

Core i7-14700K - RTX PRO 4000 Blackwell

This system is particularly suitable for modeling in Autodesk® AutoCAD. The excellent single-core performance of the built-in Intel Core i7-14700K benefits CAD programs enormously. In these applications, high performance per core and clock rate is particularly important in order to achieve maximum performance. A dedicated NVIDIA PRO graphics card also provides significantly increased performance and offers the best support thanks to its certification for CAD applications. In the case of Autodesk® AutoCAD, a graphics card with little video memory, such as the NVIDIA RTX PRO 4000 installed here, is already sufficient for most users. Depending on the size of the assemblies and the files opened at the same time, 16GB - 32GB RAM may be necessary. The built-in SSD system drive ensures lightning-fast loading & response times for the operating system and applications.

With this workstation, all CAD tasks are no longer a problem for you

Easy editing of projects in up to Full HD resolution

Sophisticated multitasking thanks to the latest Intel Core i7 processor

Ultra-fast response times thanks to SSD drive

Quiet cooling thanks to large tower cooler

Technical details

Workstation - Core i7-14700K - RTX PRO 4000 Blackwell

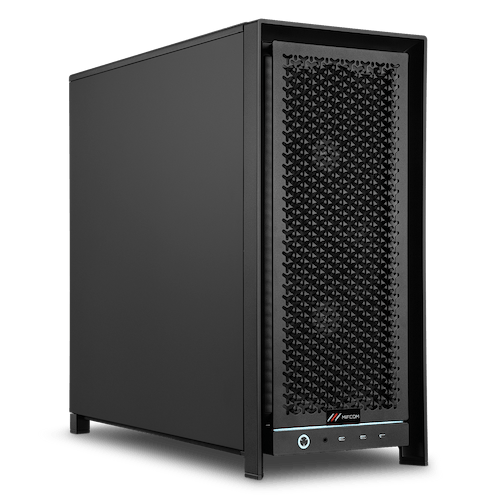

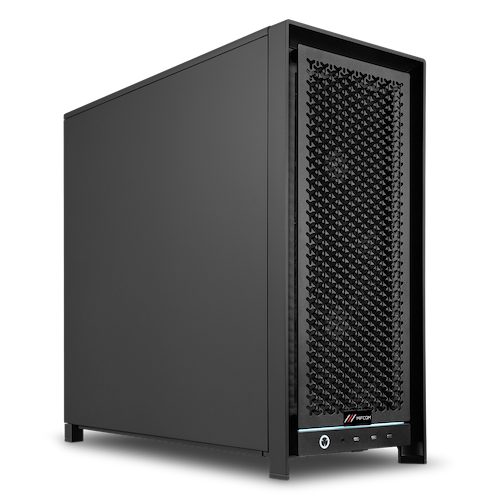

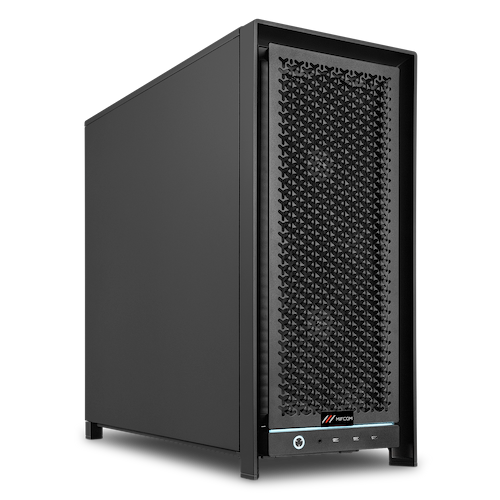

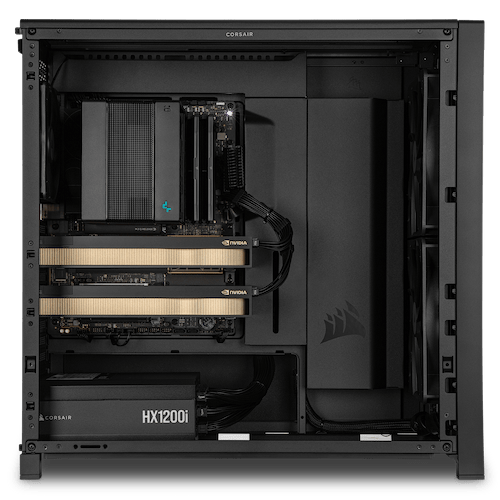

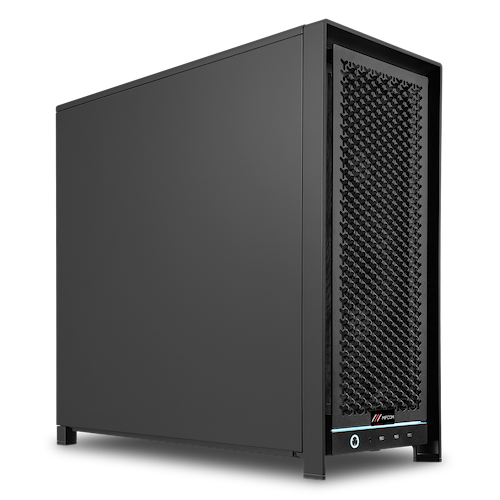

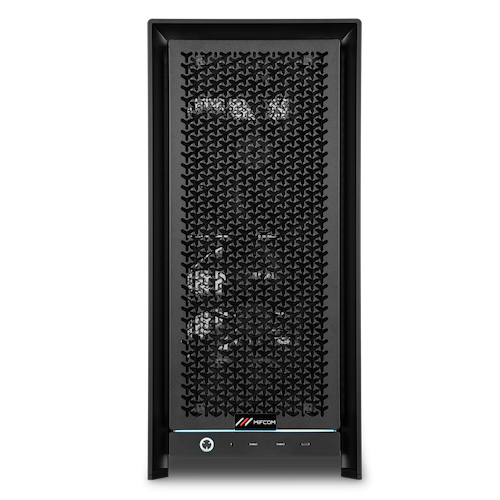

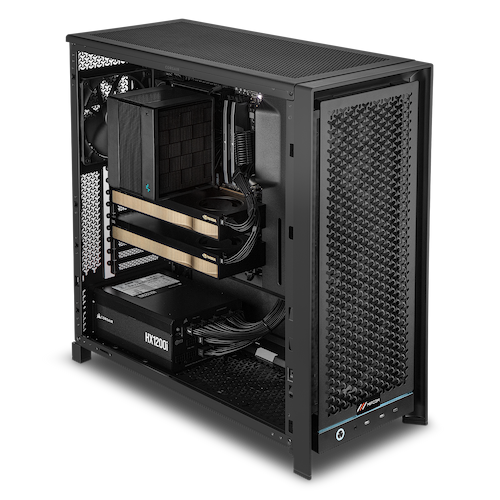

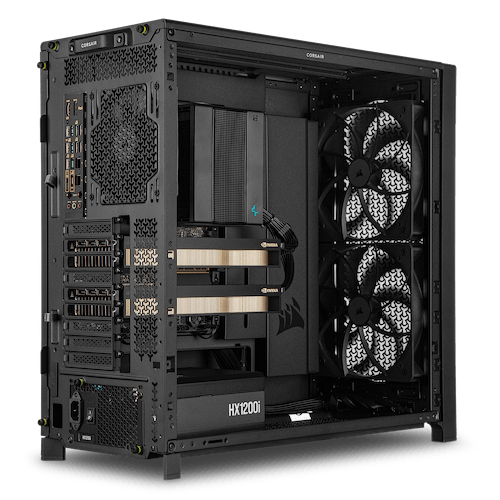

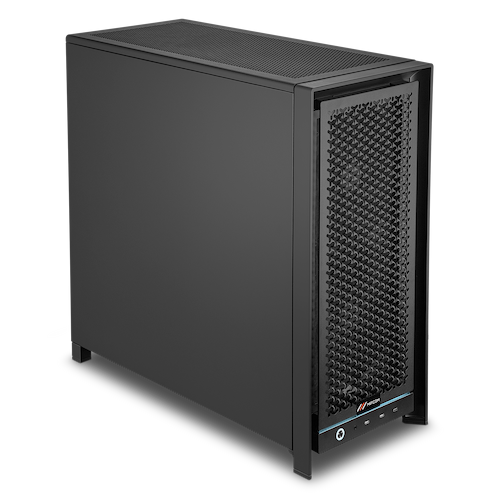

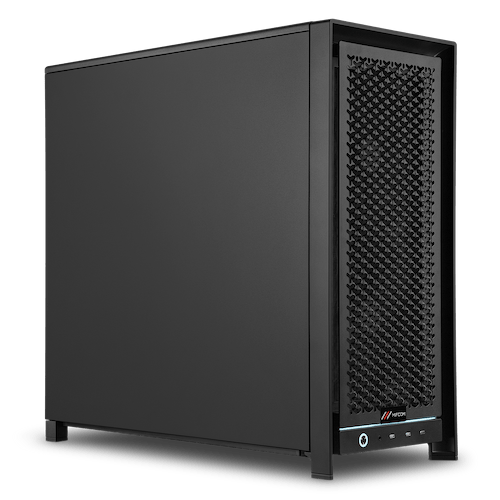

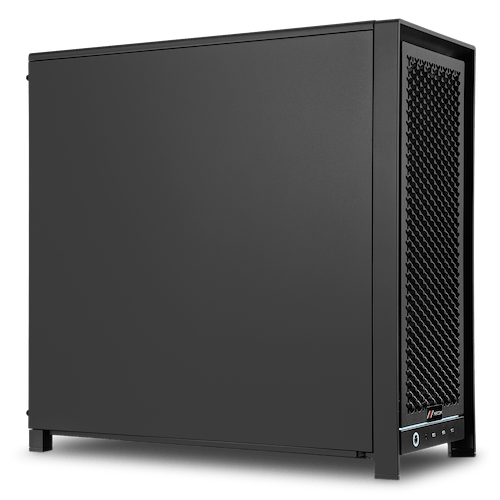

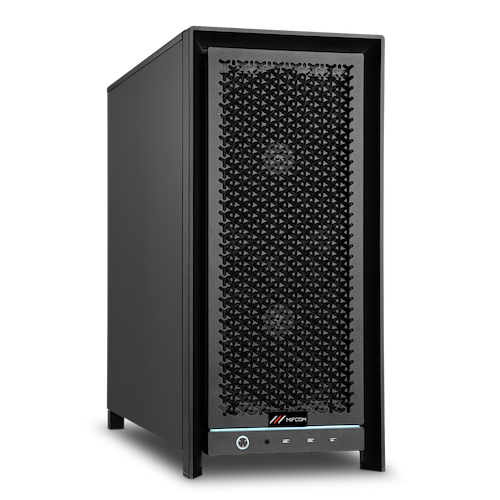

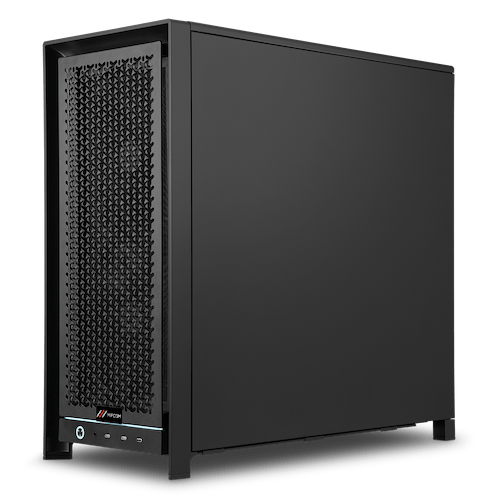

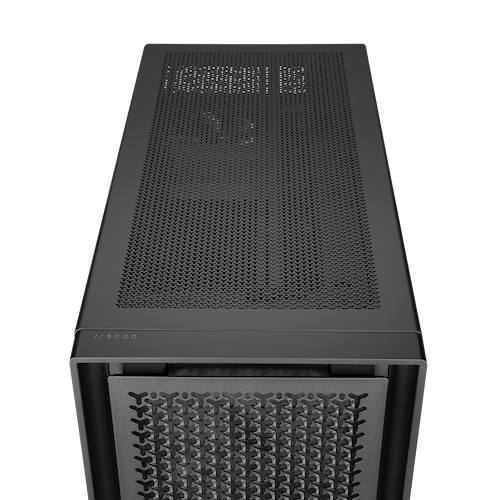

Corsair 5000D Frame RS ARGB, black
The CORSAIR FRAME 5000D RS ARGB is a modular and spacious mid-tower PC case with InfiniRail™ fan mounting system and RapidRoute 2.0 cable routing and is compatible with motherboards with rear connectors.

The revolutionary modular FRAME case system sets new standards in terms of customization. Would you like to upgrade the mainboard tray with billet aluminum? Would you like to replace your front I/O panel for more USB ports? It's now possible.

This case adapts to your needs and offers almost unlimited possibilities for upgrades and modifications.
Technical details
Connections (CHA)1x USB-C 3.1 via USB header Key-A (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 3.5mm jack line-in/out
Number of PCIe slots9
DesignFull-Tower
Mainboard compatibilitySupported mainboards: Mini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX special format (12 "x10.91", note for E-ATX)
Fan (front)3x 140mm, ARGB illuminated (RS140) or 3x 120mm (optional) or 2x 200mm (optional) or 2x 160mm (optional)
Fan (rear)1x 140mm, ARGB illuminated (RS140) or 1x 120mm (optional)
Fan (top)3x 140mm (optional) or 3x 120mm (optional)
Fan (lateral)3x 140mm (optional) or 2x 120mm (optional)
Fan (bottom)-
Internal drive baystotal: max. 6x 2.5", max. 2x 3.5"
ManufacturerCorsair
LightingRGB header 3-pin ARGB (+5V/DATA/GND), integrated LED lighting (ARGB, LED strip), illuminated fans
Dimensions (WxHxD)556x250x542mm
Special featuresCable management, dust filter, compatible with motherboards with rear motherboard connectors (ASUS BTF, Gigabyte Project Stealth, MSI Project Zero), graphics card holder, PCI slots can be mounted vertically, glass viewing window

Intel Core i7-14700K, 8C + 12c
The 14th generation Intel Core processors are based on an optimized hybrid architecture that combines powerful performance cores with efficient e-cores. This intelligent distribution of tasks ensures that games and computing-intensive applications run at maximum speed, while background processes are processed in a resource-saving manner. For gamers, this means stable frame rates, fast loading times and an overall smooth gaming experience - even with the latest AAA titles.
Technical details
Processor cores20 (8C+12c)
BaseIntel 1700 (LGA1700)
Processor threads28 (16+12)
Base clock3.40GHz (P-Core), 2.50GHz (E-Core)
Turbo beat5.60GHz (Turbo Boost Max 3.0), 5.50GHz (P-Core), 4.30GHz (E-Core)
L2 cache28MB (8x 2MB + 12x 1MB)
L3 cache33MB
TDP125W (Processor Base Power), 253W (Maximum Turbo Power)
iGPU type (label)Intel UHD Graphics 770
PCIe lanes16x PCIe 5.0, 4x PCIe 4.0
Memory controllerDual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 192GB
ManufacturingIntel 7
Code nameRaptor Lake-S

GIGABYTE B760 Gaming X WIFI6E GEN5, Intel B760
Intel B760 motherboards are aimed at anyone looking for a balanced combination of performance, features and price. They support the latest Intel processors with LGA1700 sockets and offer a modern platform for gaming systems that need to be reliable and future-proof - without immediately reaching into the high-end class.
Technical details
Processor socketIntel 1700
RAM support4x DDR5 DIMM, dual PC5-60800U/DDR5-7600 (OC), max. 192GB (UDIMM)
Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX210), Bluetooth 5.3
Form factorATX
ChipsetIntel B760
Lighting-
Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, integrated I/O panel, onboard TPM 2.0 support (Intel PTT)
Power supply1x 24-pin ATX, 1x 8-pin EPS12V
FAN header1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 3x fan 4-pin, 1x fan/pump 4-pin
Audio description7.1 (Realtek ALC897)
Connections (rear)1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 5x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 6x jack, 2x RP-SMA antenna connection
Internal connections1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x seriell, 1x TPM-Header, 1x S/PDIF-Header
RAID level0/1/5/10 (B760)
Expansion slots1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (x1), 3x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)
RGB header2x 4-Pin RGB (+12V/G/R/B, max. 2A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)

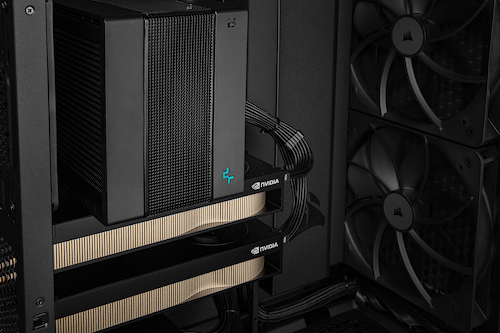

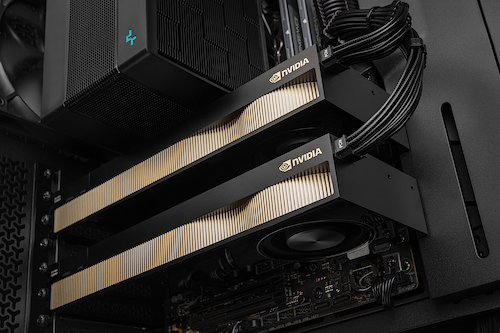

NVIDIA RTX PRO 4000 Blackwell, 24GB
NVIDIA RTX PRO Blackwell Generation: Experience the revolutionary Blackwell architecture. Designed for extreme performance in AI, professional visualization and complex simulations, this generation sets new standards for creativity and innovation.
Technical details
Memory type24GB GDDR7 with ECC mode, 192bit, 28Gbps, 1750MHz, 672GB/s
API supportDirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
PCIe cut pointPCIe 5.0 x16
GPU typeNVIDIA RTX PRO 4000 Blackwell 24GB
VRAM24GB
GPU clock1590MHz
GPU clock (boost)2617MHz
GPU fan1x radial fan (55mm)
Power consumption140W (NVIDIA)
Dimensions (WxHxD)267x111x20mm (LxWxH)
Special featuresNVIDIA reference design, backplate, NVIDIA GeForce SFF-Ready
Power supply1x 12V-2x6
Connections (rear)4x DisplayPort 2.1b UHBR20

32GB Corsair Vengeance LPX DDR5-6000 | 2x 16GB
Technical details
RAM type designationDDR5 288-pin DIMM
RAM size2 x 16 GB
RAM total32 GB
Memory clock Label6000MT/s
Latency38
RAM coolingHeat Spreader
Special features-

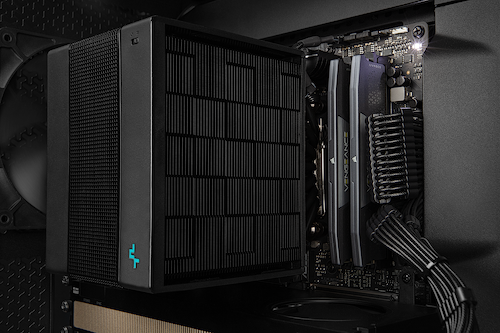

DeepCool AK500 MIFCOM Black | 120mm fan
The DeepCool AK500 is a powerful tower cooler that has been specially developed for modern gaming and workstation systems. With its massive cooling surface, an asymmetrical heat sink design and a high-quality 120 mm fan, it offers impressive heat dissipation - ideal for powerful multi-core processors, even under continuous load.
Technical details
Heatpipes5 heatpipes (6mm)
TDP240W
Lighting-
Dimensions (WxHxD)127x158x117mm (WxHxD)
Special features-
Fan1x 120x120x25mm, 500-1850rpm, 117.28m³/h, 69.02 CFM, 31.5dB(A), 2.19mmH₂O, hydrodynamic plain bearing (FDB)
Socket AMDAM5, AM4
Socket Intel1851/1700

1TB SanDisk WD Blue SN5100
NVMe™ - the engine for your creative workloads. The WD Blue SN5000 NVMe™ SSD is the latest generation of high-performance storage for creative and professional users. NVMe™ combined with PCIe® Gen 4 and Western Digital's nCache™ 4.0 technology delivers high speed for AI-powered applications and accelerated workflow execution. With a storage capacity of up to 4 TB1, there are no limits to your creativity. Whatever you're working on, the WD Blue SN5000 NVMe™ SSD makes every step easier and shortens the time from idea to final realization of your creative vision.
Technical details
Memory type3D NAND TLC, Kioxia, 112 layers (BiCS5)
Storage capacity1TB
InterfaceM.2/M-Key (PCIe 4.0 x4)
Reading speed7100MB/s
Write speed6700MB/s SLC-Cached
SSD controller-
Mean time between failures1.75 million hours
IOPS 4K1000K reading, 1300K writing
Power supply3.9W (write), 3.9W (read), 4mW (idle)

850W - be quiet! Power Zone | modular
Technical details
PSU power (Desc)850W
Power 12V70.8A
Power 3.3V20A
Power 5V20A
Power -12V0.3A
PSU certification80 PLUS Platinum
Volume6.50-24.90dB(A) (according to manufacturer), 19.84dB(A) (according to Cybenetics certificate, 115V), 19.31dB(A) (according to Cybenetics certificate, 230V)
Form factorATX
Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
Fan140mm, 1800rpm, semi-passive

3-year warranty | incl. pick-up & return
We grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details
Warranty period3 years
Pick-up and return service3 years
Telephone supportYes
Callback serviceYes
E-mail supportYes

Dimensions

WIDTH x HEIGHT x DEPTH

556x250x542mm

Connectivity

Front

1x USB-C 3.1 via USB header Key-A (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 3.5mm jack line-in/out

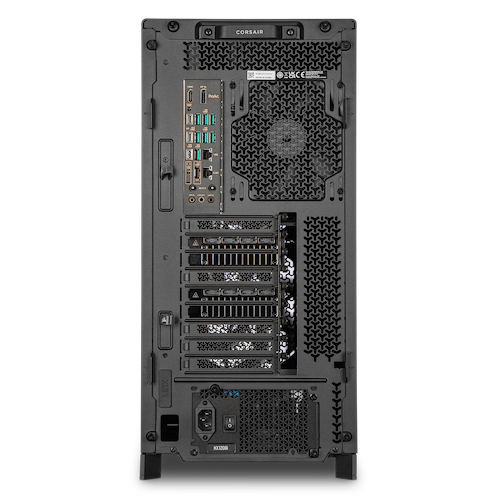

Rear

1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 5x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 6x jack, 2x RP-SMA antenna connection, 4x DisplayPort 2.1b UHBR20
