Workstation - Core i7-14700K - RTX 5070 Ti
Intel Core i7-14700K, 8C + 12c
Gigabyte Z790 Eagle AX
RTX 5070 Ti 16GB, GIGABYTE
32GB DDR5-6000, Corsair
1TB WD_Blue SN5100
3.199
,-
incl. VAT plusShipping
58
,42
Pre-order:
approx. 2-3 weeks
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation
Core i7-14700K - RTX 5070 Ti
This system is particularly suitable for the OTOY® OCTANE™ and Redshift® renders. These GPU-based renders benefit from maximum graphics card performance and show almost perfect scaling with any additional graphics card. Intel Core processors with high clock rates in combination with fast graphics cards such as the NVIDIA GeForce RTX 5080/5090 are suitable as an entry-level basis for these workstations. If CPU-heavy rendering tasks are to be performed with the workstation, hybrid systems with multiple cores and high clock frequencies are recommended. Depending on the rendering tasks, 32GB - 64GB RAM may be required. The built-in SSD system drive ensures lightning-fast loading & response times for the operating system and applications.
With this workstation, all rendering tasks are no longer a problem for you
Technical details
Workstation - Core i7-14700K - RTX 5070 Ti

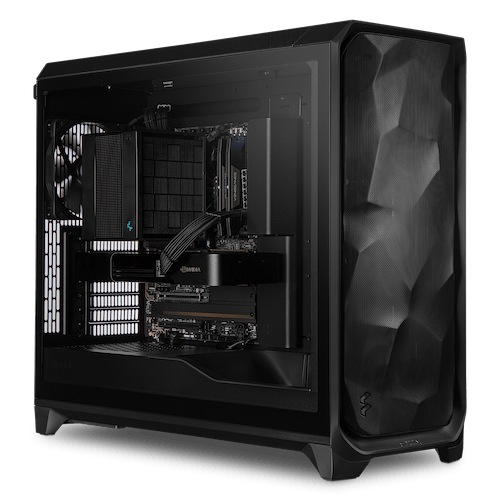

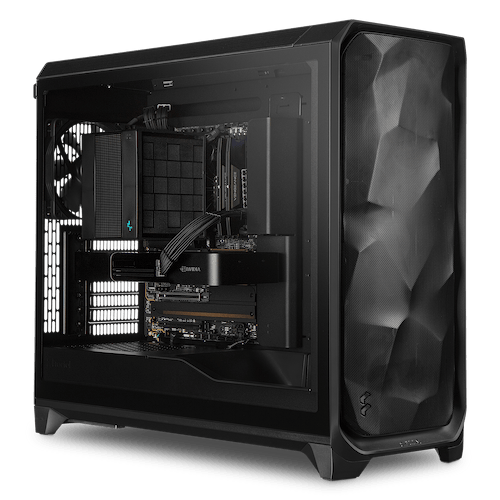

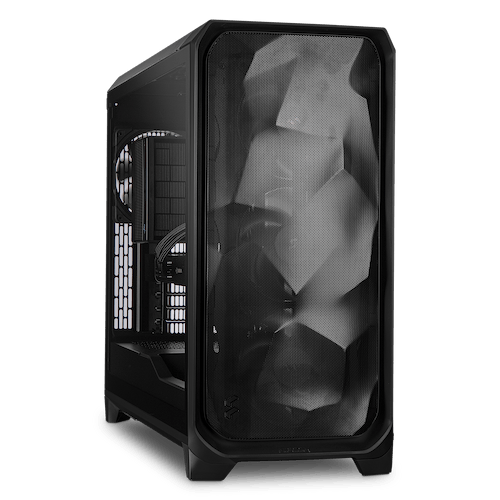

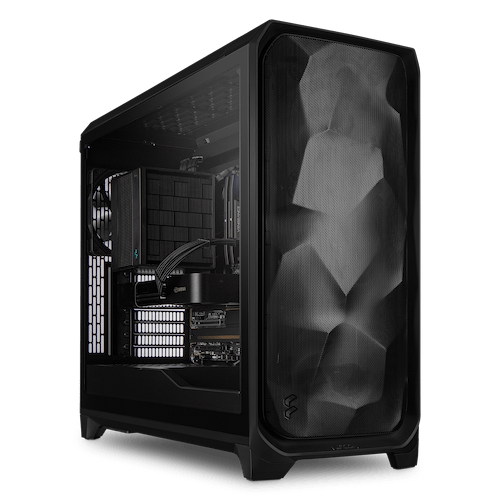

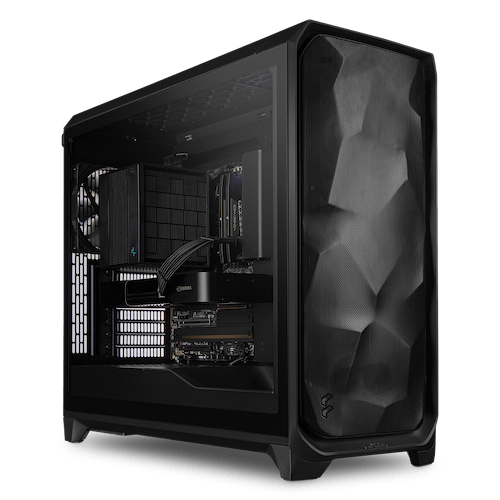

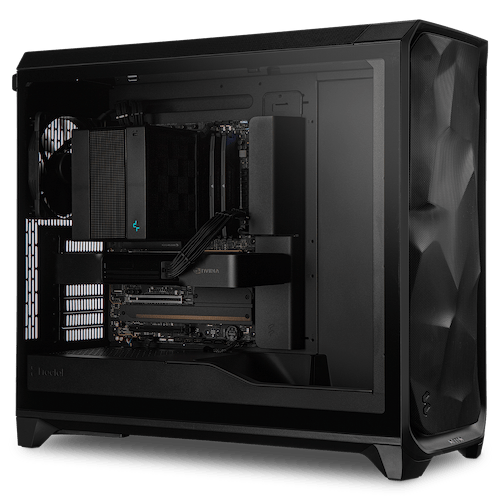

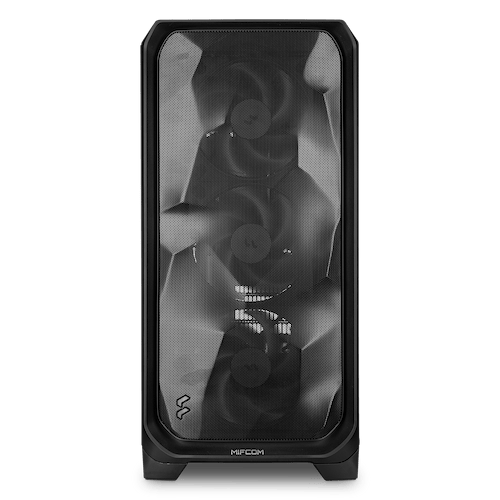

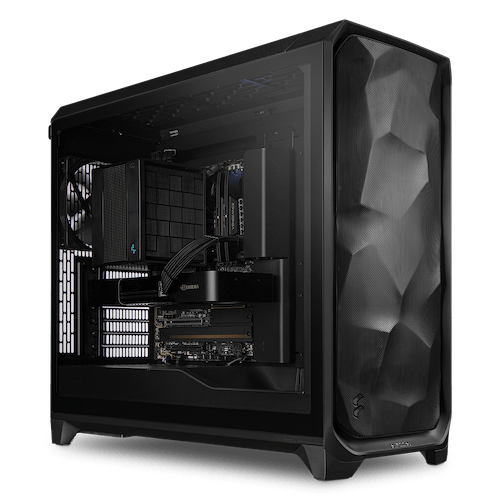

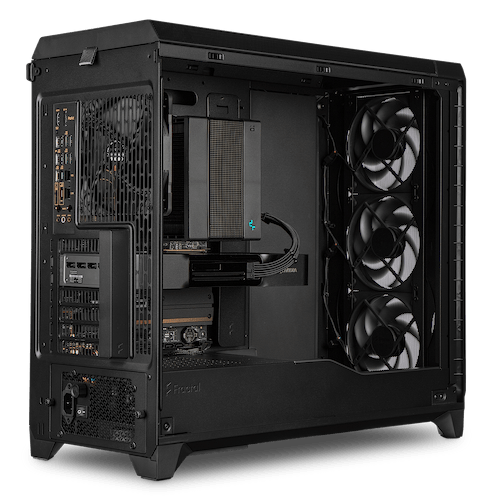

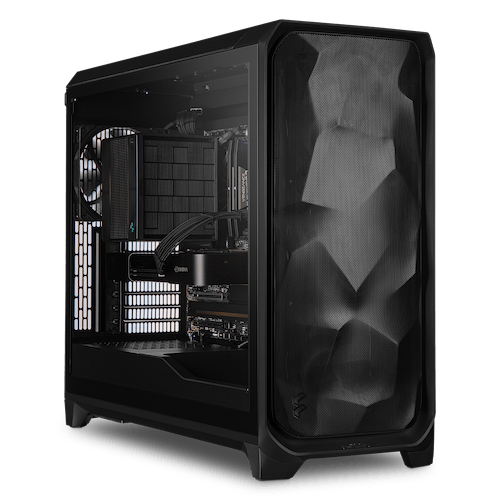

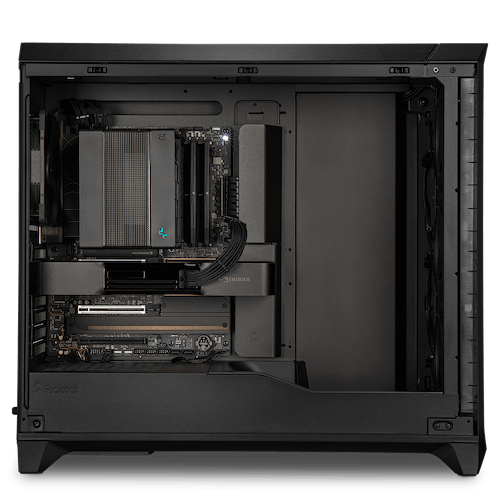

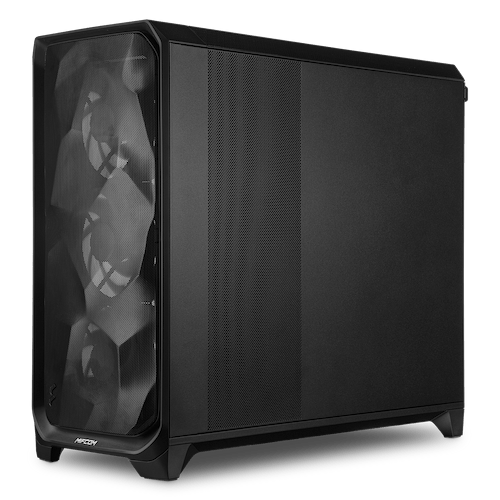

- Fractal Design Meshify 3 XL, blackExperience advanced cooling and a striking, aerodynamic design that offers even more space for components with the Meshify 3 XL. The new generation of the award-winning Meshify series features numerous technical upgrades, three high-performance Momentum fans, and an enhanced, elegant mesh front panel with a faceted design
Technical details - Connections (CHA)1x USB-C 3.2 via USB header Key-A, 2x USB-A 3.0, 1x 3.5mm jack line-in/out
- Number of PCIe slots7
- DesignFull-Tower
- Mainboard compatibilityMini-ITX (6.7" x 6.7")/µATX (9.6" x 9.6")/ATX (12" x 9.6")/E-ATX (SSI CEB, 12" x 10.5")/E-ATX (SSI EEB, 12" x 13")/EE-ATX (13.68" x 13")
- Fan (front)3x 140 mm, 1,800 rpm, or 3x 120 mm (optional), or 2x 180 mm (optional)
- Fan (rear)1x 140 mm (optional) or 1x 120 mm (optional)
- Fan (top)3x 140 mm (optional) or 3x 120 mm (optional)
- Fan (lateral)3x 140 mm (optional; 120 mm not supported)
- Fan (bottom)-
- Internal drive bays4x 2.5", 1x 2.5" or Option 2: 1x 2.5", 2x 3.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)245 x 515 x 575 mm
- Special featuresCable management, dust filter
- Intel Core i7-14700K, 8C + 12cThe 14th generation Intel Core processors are based on an optimized hybrid architecture that combines powerful performance cores with efficient e-cores. This intelligent distribution of tasks ensures that games and computing-intensive applications run at maximum speed, while background processes are processed in a resource-saving manner. For gamers, this means stable frame rates, fast loading times and an overall smooth gaming experience - even with the latest AAA titles.
Technical details - Processor cores20 (8C+12c)
- BaseIntel 1700 (LGA1700)
- Processor threads28 (16+12)
- Base clock3.40GHz (P-Core), 2.50GHz (E-Core)
- Turbo beat5.60GHz (Turbo Boost Max 3.0), 5.50GHz (P-Core), 4.30GHz (E-Core)
- L2 cache28MB (8x 2MB + 12x 1MB)
- L3 cache33MB
- TDP125W (Processor Base Power), 253W (Maximum Turbo Power)
- iGPU type (label)Intel UHD Graphics 770
- PCIe lanes16x PCIe 5.0, 4x PCIe 4.0
- Memory controllerDual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 192GB
- ManufacturingIntel 7
- Code nameRaptor Lake-S
- GIGABYTE Z790 Eagle AX, Intel Z790Intel Z790 motherboards are the ideal choice for demanding gamers and enthusiasts who want to get the most out of their system. They offer a first-class platform for Intel processors of the current generation and enable maximum performance and flexibility thanks to their extensive features and full support for overclocking.
Technical details - Processor socketIntel 1700
- RAM support4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC), max. 256GB (UDIMM)
- Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
- Form factorATX
- ChipsetIntel Z790
- LightingRGB, 1 zone (chipset cooler)
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 1x M.2 passive cooler
- Colorblack
- Power supply1x 24-pin ATX, 2x 8-pin EPS12V
- FAN header1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 3x fan 4-pin PWM, 1x fan/pump 4-pin PWM
- Audio descriptionRealtek ALC897
- Connections (rear)1x DisplayPort 1.2 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 4x USB 3.0 (5Gb/s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 1x PS/2 Combo, 2x antenna connector RP-SMA
- Internal connections1x USB 3.0 Header Key-A (5Gb/s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
- RAID level0/1/5/10 (Z790)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x1), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E-Key (2230, used with WiFi+BT module)
- RGB header2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)

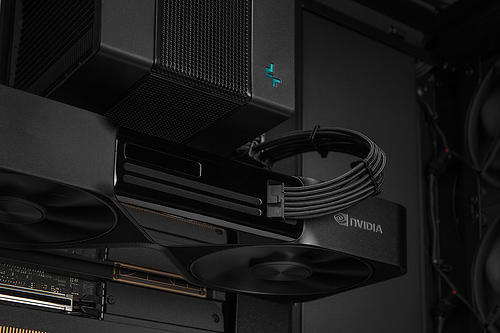

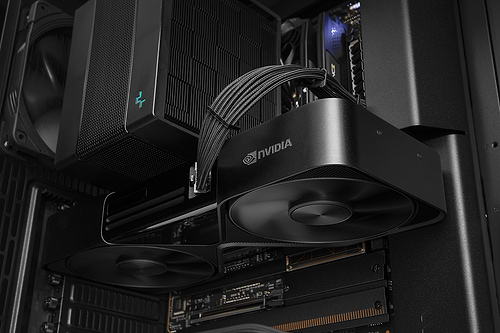

- NVIDIA GeForce RTX 5070 Ti 16GB | GIGABYTE Gaming OCPower up your PC with the NVIDIA® GeForce RTX™ 5070 Ti. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. These are supported by the ultra-efficient NVIDIA Blackwell architecture and 16 GB of super-fast GDDR7 memory.
Technical details - Memory type16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/s
- API supportDirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5070 Ti
- VRAM16GB
- GPU clock2452MHz
- GPU clock (boost)2588MHz
- GPU fan3x axial fan with 0dB zero fan mode
- Power consumption300W (NVIDIA)
- Dimensions (WxHxD)340x140x70mm (LxWxH)
- Special featuresAI acceleration, LED lighting (RGB, RGB illuminated fan), backplate, dual BIOS switch, graphics card holder
- Power supply1x 12V-2x6 (via adapter: 3x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

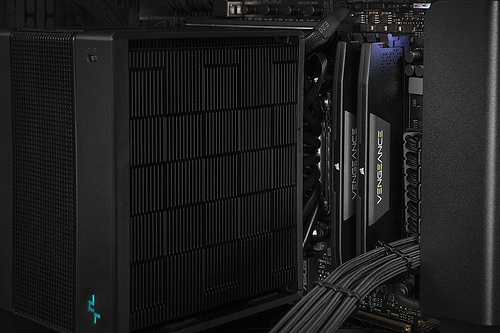

- 32GB Corsair Vengeance DDR5-6000 | 2x 16GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an outstanding combination of performance, stability, and design. With high clock speeds and low latencies, it ensures that modern games run smoothly and load quickly—even when paired with high-performance processors and graphics cards.
Technical details - RAM type designationDDR5 288-pin DIMM, on-die ECC
- RAM size2 x 16 GB
- RAM total32 GB
- Memory clock Label6000MT/s
- Latency36
- RAM coolingHeat Spreader
- Special features-

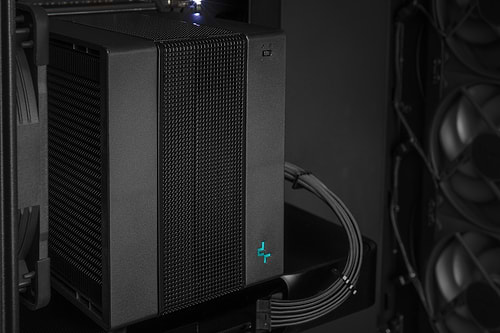

- DeepCool AK500 MIFCOM Black | 120mm fanThe DeepCool AK500 is a powerful tower cooler that has been specially developed for modern gaming and workstation systems. With its massive cooling surface, an asymmetrical heat sink design and a high-quality 120 mm fan, it offers impressive heat dissipation - ideal for powerful multi-core processors, even under continuous load.
Technical details - Heatpipes5 heatpipes (6mm)
- TDP240W
- Lighting-
- Dimensions (WxHxD)127x158x117mm (WxHxD)
- Special features-
- Fan1x 120x120x25mm, 500-1850rpm, 117.28m³/h, 69.02 CFM, 31.5dB(A), 2.19mmH₂O, hydrodynamic plain bearing (FDB)
- Socket AMDAM5, AM4
- Socket Intel1851/1700
- 1TB SanDisk WD Blue SN5100NVMe™ - the engine for your creative workloads. The WD Blue SN5000 NVMe™ SSD is the latest generation of high-performance storage for creative and professional users. NVMe™ combined with PCIe® Gen 4 and Western Digital's nCache™ 4.0 technology delivers high speed for AI-powered applications and accelerated workflow execution. With a storage capacity of up to 4 TB1, there are no limits to your creativity. Whatever you're working on, the WD Blue SN5000 NVMe™ SSD makes every step easier and shortens the time from idea to final realization of your creative vision.
Technical details - Memory type3D NAND TLC, Kioxia, 112 layers (BiCS5)
- Storage capacity1TB
- InterfaceM.2/M-Key (PCIe 4.0 x4)
- Reading speed7100MB/s
- Write speed6700MB/s SLC-Cached
- SSD controller-
- Mean time between failures1.75 million hours
- IOPS 4K1000K reading, 1300K writing
- Power supply3.9W (write), 3.9W (read), 4mW (idle)
- 850W - be quiet! Power Zone | modular
Technical details - PSU power (Desc)850W
- Power 12V70.8A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Platinum
- Fan140mm, 1800rpm, semi-passive
- Volume6.50-24.90dB(A) (according to manufacturer), 19.84dB(A) (according to Cybenetics certificate, 115V), 19.31dB(A) (according to Cybenetics certificate, 230V)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
245 x 515 x 575 mm
Connectivity
Front
1x USB-C 3.2 via USB header Key-A, 2x USB-A 3.0, 1x 3.5mm jack line-in/out
Rear

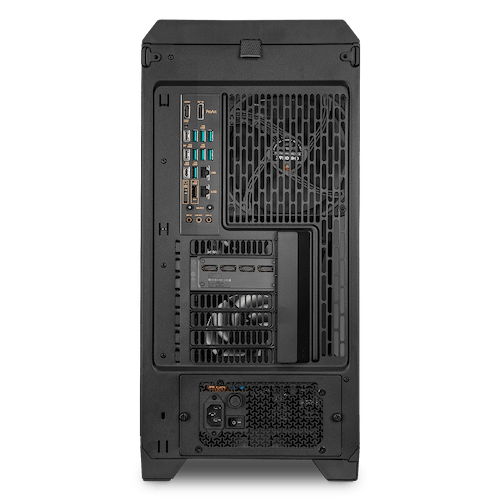

1x DisplayPort 1.2 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 4x USB 3.0 (5Gb/s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 1x PS/2 Combo, 2x antenna connector RP-SMA, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
