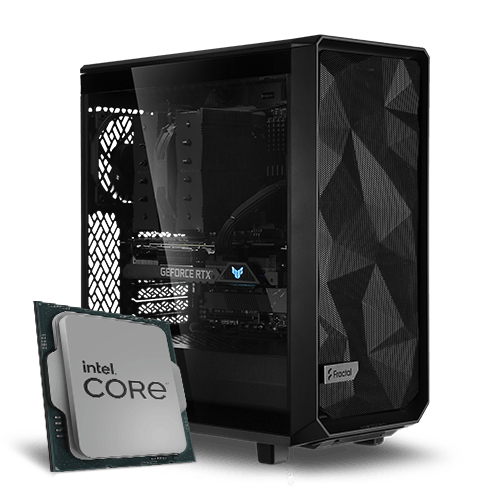

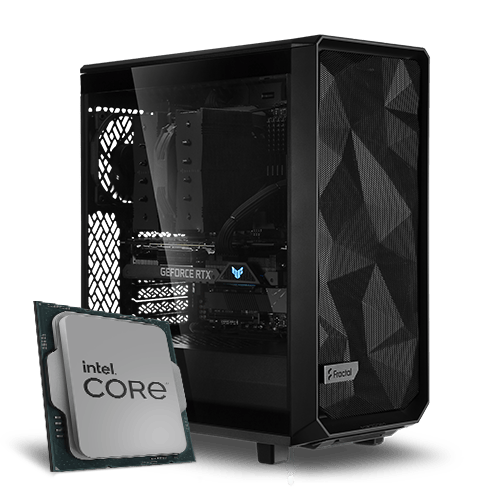

Workstation configurator - Intel (14th gen.) (So. 1700)
14th Gen Intel® Core
Max. 96GB DDR5 RAM
Up to 8+16 cores
1.369
,-
incl. VAT plusShipping
25
,00
Delivery time:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Workstation configurator
Intel (14th gen.) (So. 1700)
Here you have the opportunity to put together your own personal workstation configuration based on modern Intel Core 14th Gen (So. 1700) processors. The system is always delivered fully assembled and tested, with a full warranty.
Our workstation configurator automatically recognizes compatibility problems, so that an incorrect configuration is virtually impossible. Regardless of this, you can of course call our support team at any time for free advice and configure your desired PC online with the help of our support team. Even as a complete layman!
Every configuration is checked by us when the order is received. We will contact you immediately if there are any problems with the system you have ordered.
Important: The absence of components not included in the basic configuration is not considered an error by us - so you do not necessarily have to order a graphics card, hard disk, etc. In this way, we give you the option of upgrading the system yourself with components that you already have or have ordered elsewhere. However, overclocking can ONLY be set in conjunction with ordering a RAM.
Have fun configuring!
Comprehensive workstation configurator based on Intel Core 14th Gen (So. 1700).
Technical details
Workstation configurator - Intel (14th gen.) (So. 1700)
- Fractal Design Focus 2, black | soundproofedThe Focus 2 is a high-performance housing with a striking, elegant mesh design for optimum airflow.
Technical details - Connections (CHA)2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots7
- DesignMidi-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")
- Fan (front)2x 140mm, 1000rpm, 1.02mmH₂O, 69.7m³/h (41.02 CFM), 19.5dB(A) or 3x 120mm (optional)
- Fan (rear)1x 120mm (optional)
- Fan (top)2x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)-
- Internal drive bays2x 3.5", 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)215x451x472mm
- Special featuresCable management, dust filter
- Intel Core i5-14600K, 6C + 8cThe 14th generation Intel Core processors are based on an optimized hybrid architecture that combines powerful performance cores with efficient e-cores. This intelligent distribution of tasks ensures that games and computing-intensive applications run at maximum speed, while background processes are processed in a resource-saving manner. For gamers, this means stable frame rates, fast loading times and an overall smooth gaming experience - even with the latest AAA titles.
Technical details - Processor cores14 (6C+8c)
- BaseIntel 1700 (LGA1700)
- Processor threads20 (12+8)
- Base clock3.50GHz (P-Core), 2.60GHz (E-Core)
- Turbo beat5.30GHz (Turbo Boost 2.0), 5.30GHz (P-Core), 4.00GHz (E-Core)
- L2 cache20MB (6x 2MB + 8x 1MB)
- L3 cache24MB
- TDP125W (Processor Base Power), 181W (Maximum Turbo Power)
- iGPU type (label)Intel UHD Graphics 770
- PCIe lanes16x PCIe 5.0, 4x PCIe 4.0
- Memory controllerDual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 192GB
- ManufacturingIntel 7
- Code nameRaptor Lake-S
- GIGABYTE Z790 Eagle AX, Intel Z790Intel Z790 motherboards are the ideal choice for demanding gamers and enthusiasts who want to get the most out of their system. They offer a first-class platform for Intel processors of the current generation and enable maximum performance and flexibility thanks to their extensive features and full support for overclocking.
Technical details - Processor socketIntel 1700
- RAM support4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC), max. 256GB (UDIMM)
- Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
- Form factorATX
- ChipsetIntel Z790
- LightingRGB, 1 zone (chipset cooler)
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 1x M.2 passive cooler
- Colorblack
- Power supply1x 24-pin ATX, 2x 8-pin EPS12V
- FAN header1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 3x fan 4-pin PWM, 1x fan/pump 4-pin PWM
- Audio descriptionRealtek ALC897
- Connections (rear)1x DisplayPort 1.2 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 4x USB 3.0 (5Gb/s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 1x PS/2 Combo, 2x antenna connector RP-SMA
- Internal connections1x USB 3.0 Header Key-A (5Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A)
- RAID level0/​1/​5/​10 (Z790)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x1), 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E-Key (2230, used with WiFi+BT module)
- RGB header2x 3-Pin ARGB (+5V/​DATA/​GND, max. 5A)
- 32GB Corsair Vengeance DDR5-6000 | 2x 16GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an excellent combination of performance, stability and design. With high clock rates and low latencies, it ensures that modern games run smoothly and enable short loading times - even in combination with demanding processors and graphics cards.
Technical details - RAM type designationDDR5 DIMM 288-pin, on-die ECC
- RAM size2x 16GB
- RAM total32GB
- Memory clock Label6000MT/s
- Latency36
- RAM coolingHeatspreader
- Special features-
- DeepCool Assassin 4S | 140mm fanThe DeepCool Assassin 4S is a powerful single-fan tower cooler that relies on the proven technology of the Assassin series and transfers it into a slimmer, more space-saving format. With its large heat sink, six heat pipes and a centrally positioned 140 mm fan, it offers impressive cooling performance - even for modern high-end processors.
Technical details - Heatpipes7 heatpipes (6mm)
- Fan1x 140x140x25mm, 500-1800rpm, 82.5-104.08m³/h, 48.55-61.25 CFM, 22.6-29.3dB(A), 2.46-3.76mmH₂O, 3.6W, hydrodynamic plain bearing (FDB)
- Socket AMDAM5, AM4
- Socket Intel1700, 1150/​1151/​1155/​1156/​1200
- TDP280W
- Lighting-
- Dimensions (WxHxD)147x164x116mm (WxHxD)
- Special featuresblack heat sink
- 500GB brand M.2 SSDNVMe M.2 SSD
Technical details - Memory typedepending on model
- Storage capacity500GB
- Interfaceje nach Modell
- Reading speeddepending on model
- Write speeddepending on model
- SSD controller-
- Mean time between failuresdepending on model
- IOPS 4Kdepending on model
- Power supplydepending on model
- 750W - be quiet! Pure Power 13 M | modular
Technical details - PSU power (Desc)750W
- Power 12V62.5A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Gold
- Fan120mm, 1800rpm, semi-passive
- Volume0-20.80dB(A) (according to manufacturer)
- Form factorATX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
215x451x472mm
Connectivity
Front
2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
Rear
1x DisplayPort 1.2 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 4x USB 3.0 (5Gb/s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 1x PS/2 Combo, 2x antenna connector RP-SMA
