ID: 19558
Office PC Configurator - AMD Ryzen (So. AM5)
849
,-
incl. VAT plusShipping
15
,50
Delivery time:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control

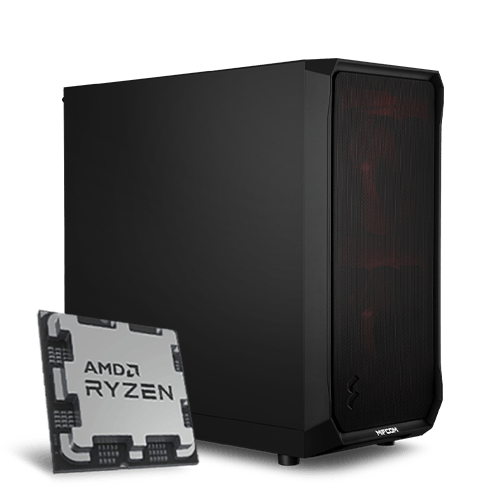

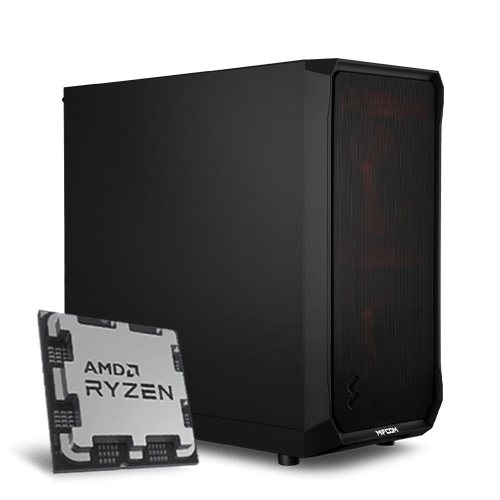

Office PC Configurator
AMD Ryzen (So. AM5)
Here you have the opportunity to put together your own personal PC configuration. The system is always delivered fully assembled and tested, with a full warranty
Our PC configurator automatically recognizes compatibility problems, so that an incorrect configuration is virtually impossible. Regardless of this, you can of course call our support team at any time for free advice and configure your desired PC online with the help of our support team. Even as a complete layman!
Every configuration is checked by us when the order is received. We will contact you immediately if there are any problems with the system you have ordered.
Important: The absence of components not included in the basic configuration is not considered an error by us - so you do not necessarily have to order a graphics card, hard disk, etc. In this way, we give you the opportunity to upgrade the system yourself with components that you already have or have ordered elsewhere.
Have fun configuring!The comprehensive Office PC configurator for AMD AM5
Technical details
Office PC Configurator - AMD Ryzen (So. AM5)
- Fractal Design Focus 2, black | soundproofedThe Focus 2 is a high-performance housing with a striking, elegant mesh design for optimum airflow.
Technical details - Connections (CHA)2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots7
- DesignMidi-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")
- Fan (front)2x 140mm, 1000rpm, 1.02mmH₂O, 69.7m³/h (41.02 CFM), 19.5dB(A) or 3x 120mm (optional)
- Fan (rear)1x 120mm (optional)
- Fan (top)2x 140mm (optional)
- Fan (lateral)-
- Fan (bottom)-
- Internal drive bays2x 3.5", 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)215x451x472mm
- Special featuresCable management, dust filter
- AMD Ryzen 5 7600, 6x 3.8GHzThe latest generation of AMD processors offer an impressive combination of performance, efficiency and future-proofing, which is particularly interesting for gamers. Thanks to the advanced Zen architecture, the current models impress with high single-core performance, which often makes the decisive difference in modern games. At the same time, many cores and threads ensure strong multitasking capability, ideal for streaming, content creation and demanding applications in the background.
Technical details - Processor cores6 (6C)
- BaseAMD AM5 (LGA1718)
- Processor threads12
- Base clock3.80GHz
- Turbo beat5.10GHz
- L2 cache6MB (6x 1MB)
- L3 cache32MB
- TDP65W
- iGPU type (label)AMD Radeon Graphics
- PCIe lanes24x PCIe 5.0
- Memory controllerDual Channel DDR5-5200 (PC5-41600), 83.2GB/s, max. 192GB (UEFI AGESA Basis 1.0.0.7 or higher)
- ManufacturingZen 4
- Code nameRaphael-X
- ASUS PRIME B840-Plus WIFIASUS Prime Series motherboards are expertly designed to unleash the full potential of AMD Ryzenâ„¢ 9000 Series processors. The PRIME B840-PLUS WIFI motherboard offers users and PC DIY builders a range of performance optimizations through intuitive software and firmware features. Designed to be "Advanced AI PC-ready", it provides the necessary performance and connectivity for demanding AI applications.
Technical details - Processor socketAMD AM5
- RAM supportDDR5-5200 (Ryzen 7000/​Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-7600 OC
- Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
- Form factorATX
- ChipsetAMD B840
- Lighting-
- Special featuresAudio+solid capacitors, integrated I/O panel, white build compatible (PCB primarily black), 1x M.2 passive cooler
- Colorblack and white
- Power supply1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
- FAN header2x CPU fan 4-pin PWM, 4x fan 4-pin PWM, 1x AIO pump 4-pin PWM
- Audio descriptionRealtek
- Connections (rear)1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s, PD-Out 15W), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 3x 3.5mm jack (Realtek), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenna connection Quick Connect
- Internal connections1x USB 3.0 Header Key-A (5Gb/s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A)
- RAID level0/​1/​10 (B850)
- Expansion slots1x PCIe 4.0 x16, 3x PCIe 3.0 x16 (1x x4, 2x x1), 1x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)
- 16GB Corsair Vengeance DDR5-6000 | 1x 16GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an excellent combination of performance, stability and design. With high clock rates and low latencies, it ensures that modern games run smoothly and enable short loading times - even in combination with demanding processors and graphics cards.
Technical details - RAM type designationDDR5 DIMM 288-pin, on-die ECC
- RAM size1x 16GB
- RAM total32GB
- Memory clock Label6000MT/s
- Latency36
- RAM coolingHeatspreader
- Special features-
- be quiet! Pure Rock 3 Black | 120mm PWM fanThe be quiet! Pure Rock 3 is the ideal cooling solution for price-conscious users looking for reliable cooling performance and quiet operation in a compact format. With four powerful heatpipes, a high-quality aluminum heatsink and the proven be quiet! fan design, the Pure Rock 3 offers solid heat dissipation for all common processors - perfect for all-round PCs and gaming systems in the medium performance range.
Technical details - Heatpipes4 heatpipes (6mm)
- Fan1x 120x120x25mm, 2000rpm, 101.27m³/h, 59.6 CFM, 31.2dB(A), 2.41mmH₂O, 3.6W, single plain bearing (Rifle)
- Socket AMDAM5, AM4
- Socket Intel2011-0/​2011-1/​2011-3/​2066, 1700, 1150/​1151/​1155/​1156/​1200
- TDP190W
- Lighting-
- Dimensions (WxHxD)124x154x71mm (WxHxD)
- Special featuresHeatpipe Direct Touch, black heat sink
- 512GB PNY CS1030NVMeâ„¢ - the engine for your creative workloads.
Technical details - Memory type3D NAND TLC
- Storage capacity512GB
- InterfaceM.2/​M-Key (PCIe 3.0 x4)
- Reading speed2000MB/s
- Write speed1100MB/s
- SSD controllerPhison PS5013-E13, 4 Kanäle
- Mean time between failures2 million hours
- 650W - MIFCOM Performance M1B | modularOur in-house MIFCOM performance power supplies impress with reliable components, a modern DC-DC platform and a particularly quiet and durable fan - at an affordable entry-level price. Our power supply units are ideal for use in modern gaming PCs with NVIDIA RTX and AMD RX graphics cards. All models also boast Bronze certification for efficient operation. From 550W upwards, our power supply units also have semi-modular connections, which significantly simplify installation and enable a clean look inside the PC.
Technical details - PSU power (Desc)648W
- Power 12V54A
- Power 3.3V20A
- Power 5V20A
- Power -12V0.3A
- PSU certification80 PLUS Bronze
- Fan120mm, semi-passive
- VolumeN/A
- Form factorATX
- Special featuresFDB fan
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
215x451x472mm
Connectivity
Front
2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
Rear
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s, PD-Out 15W), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 3x 3.5mm jack (Realtek), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenna connection Quick Connect
