Mini Office PC - Intel Core i7-14700
Intel Core i5-14400, 6C + 4c
ASRock B760
16GB DDR4-3200, Crucial
512GB PNY CS1030
849
,-
incl. VAT plusShipping
15
,50
Delivery time:
7-9 business days
3 year warranty
Lifetime support
>20 years of experience
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control

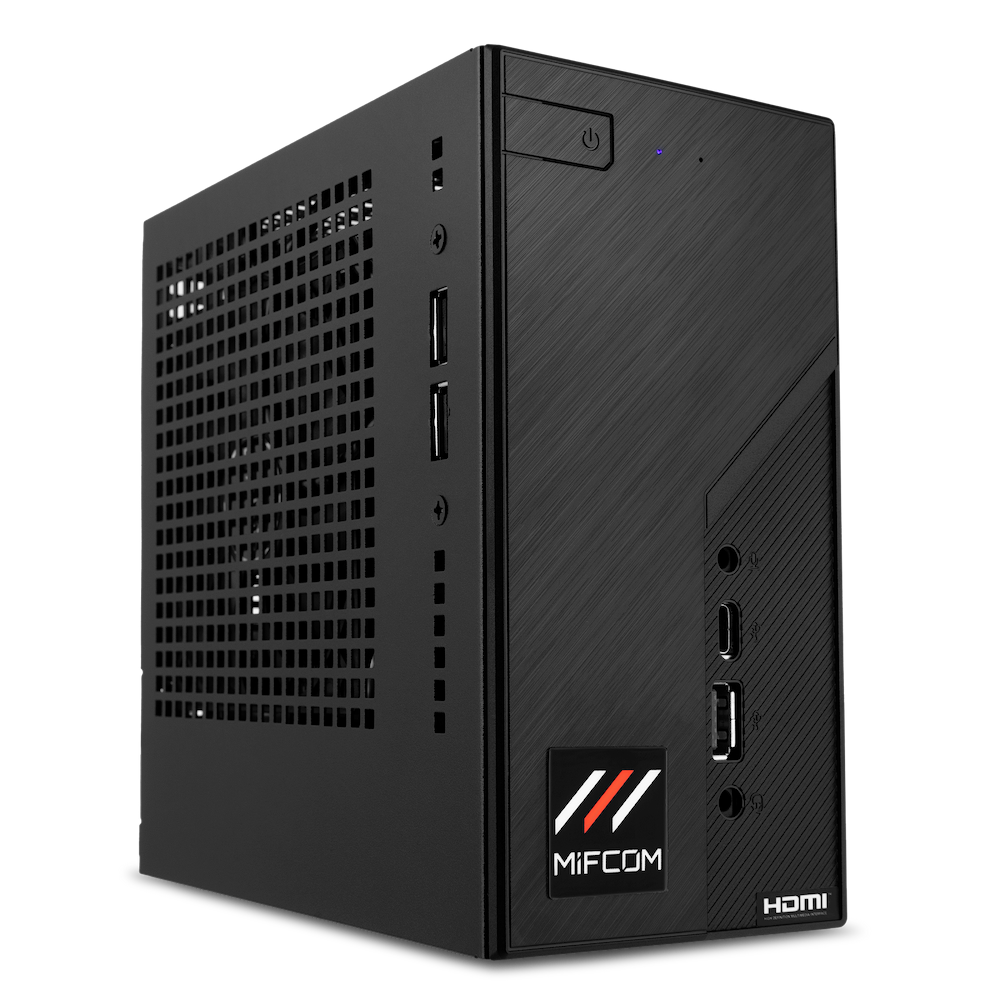

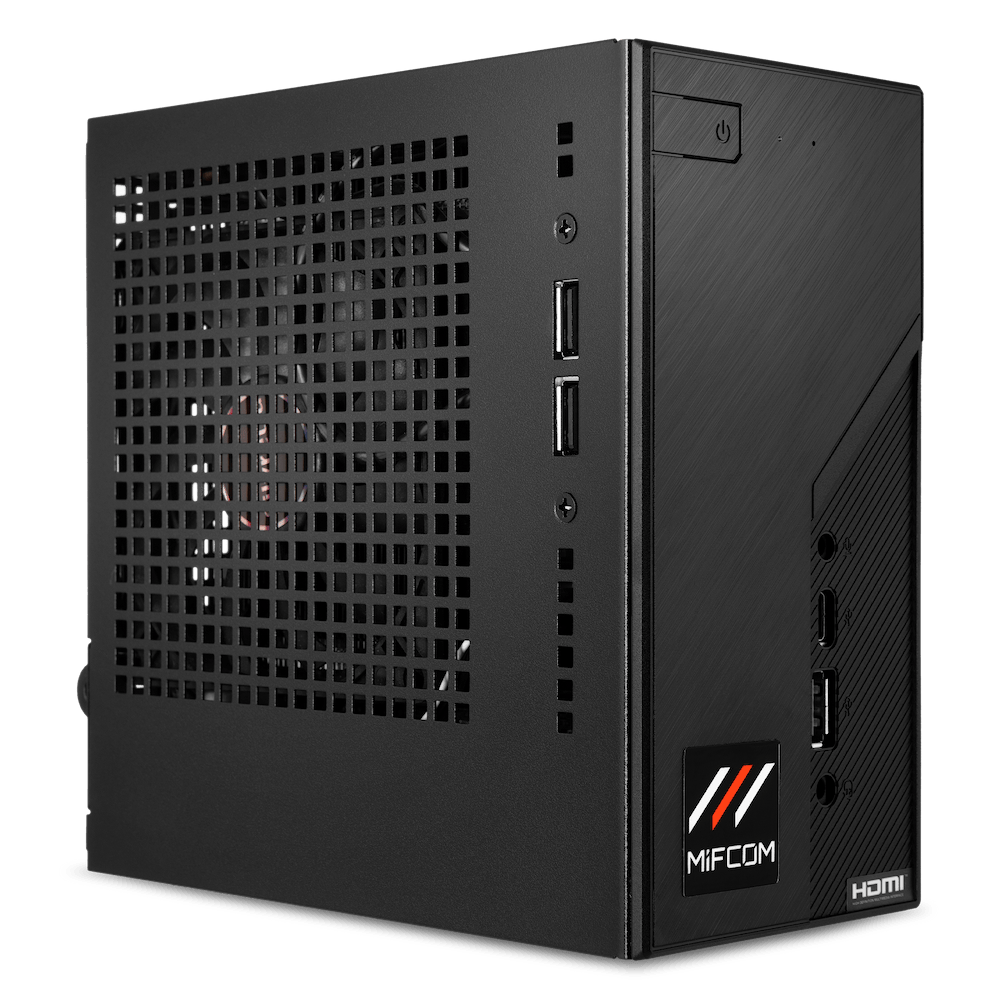

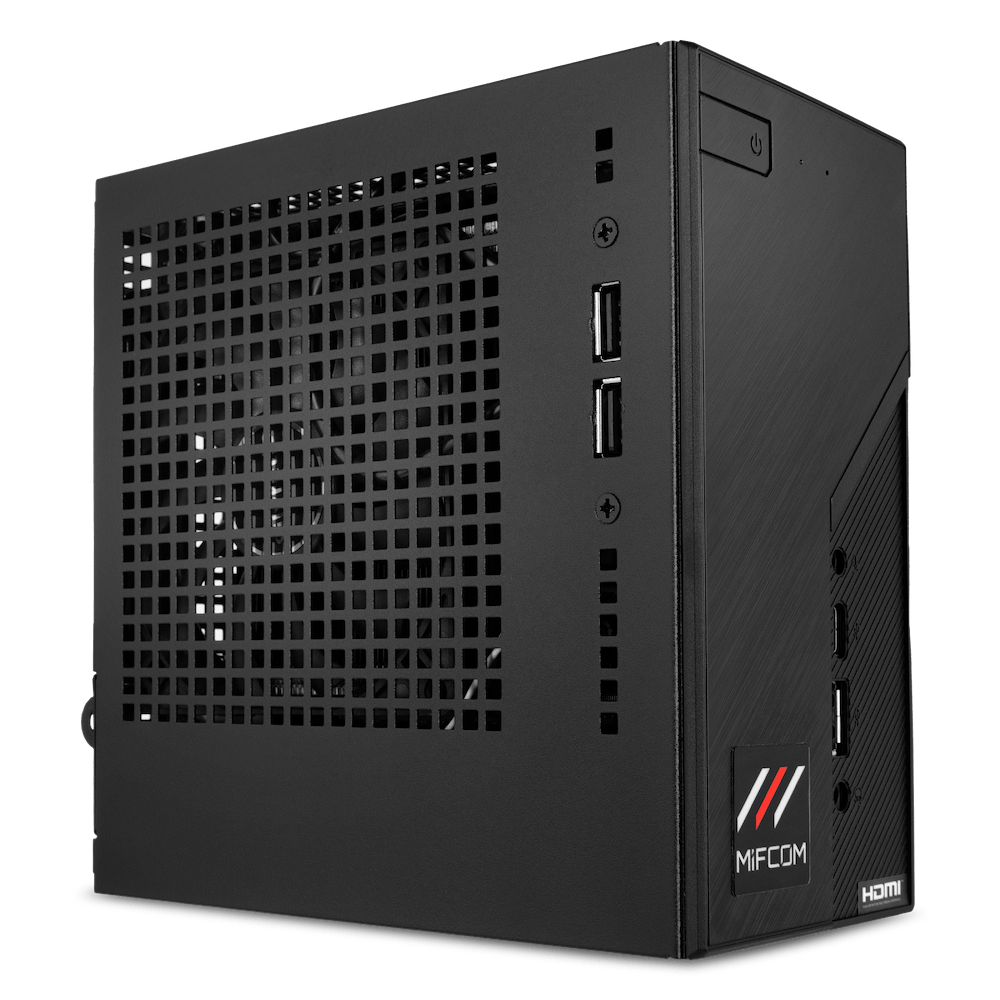

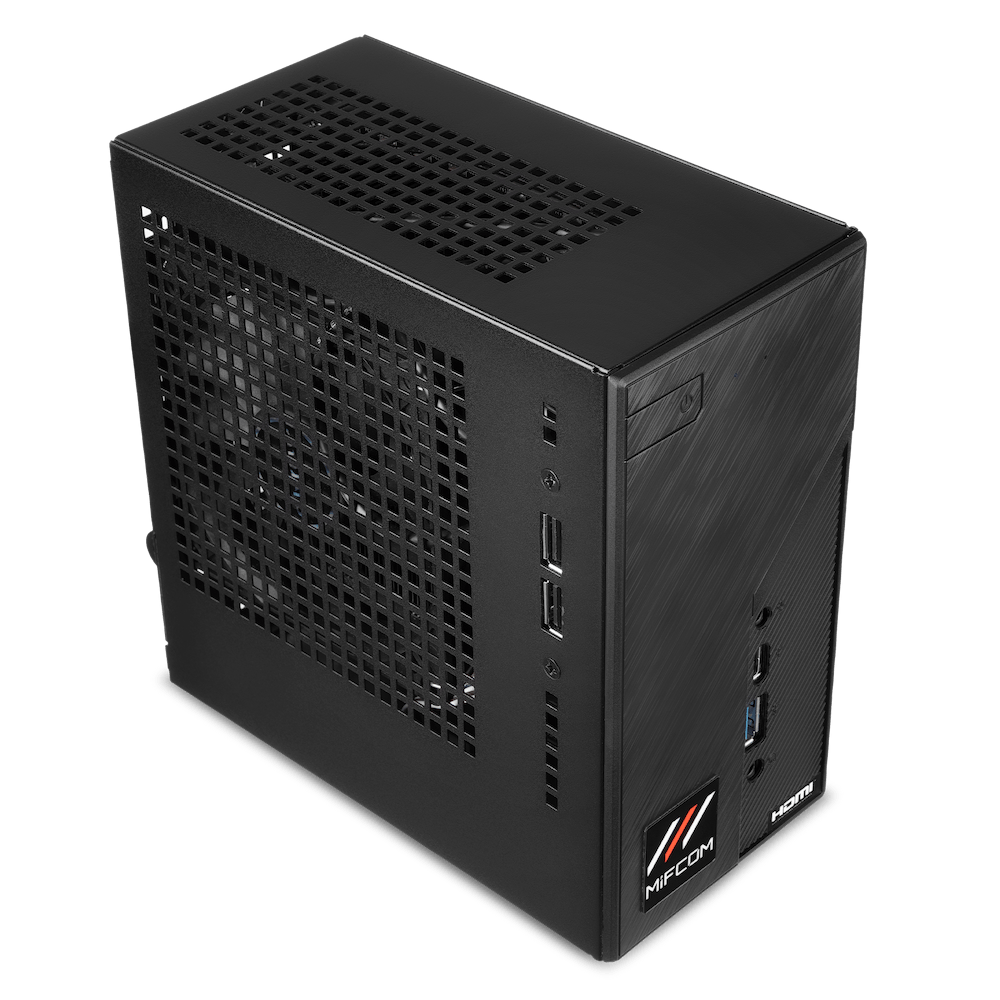

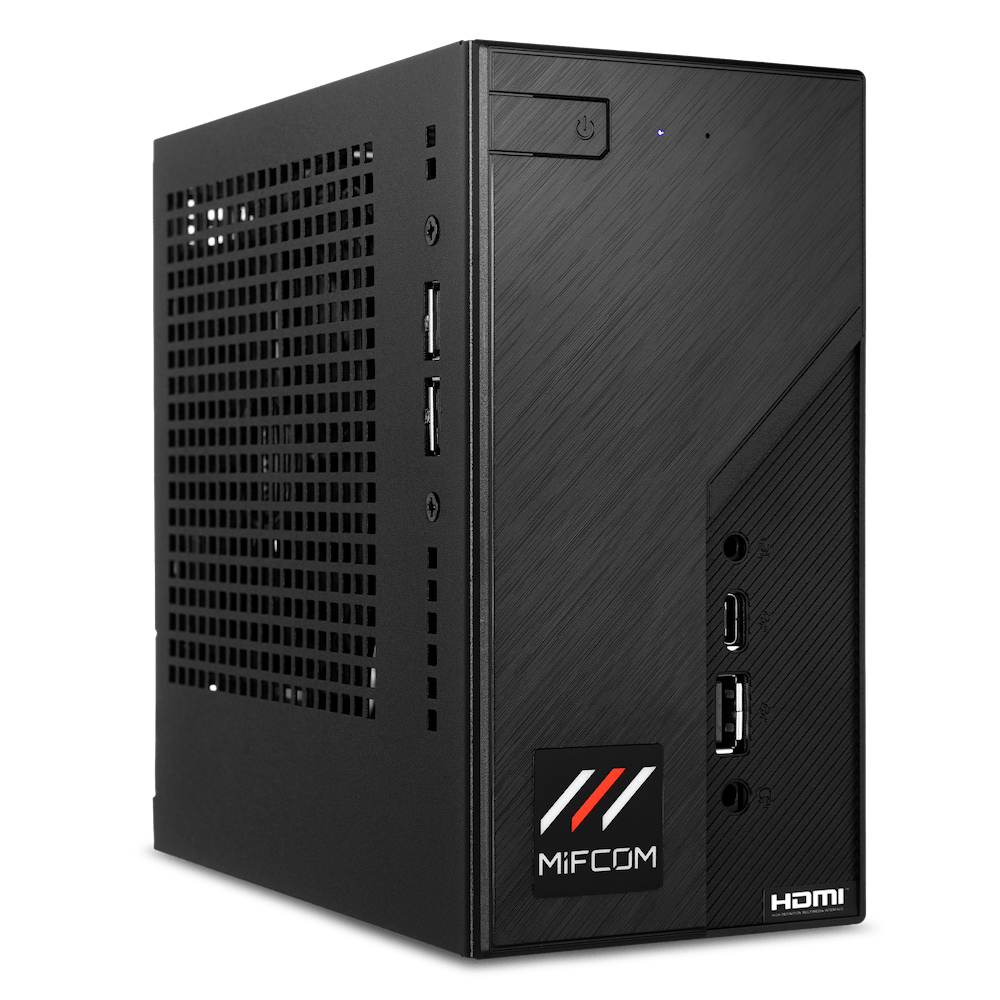

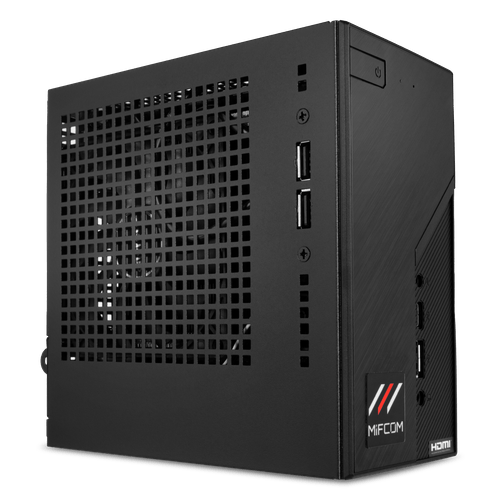

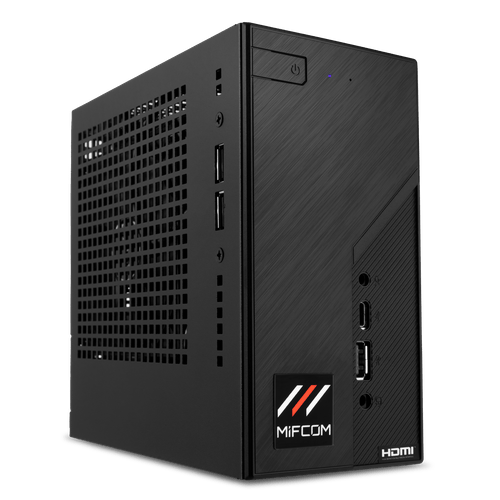

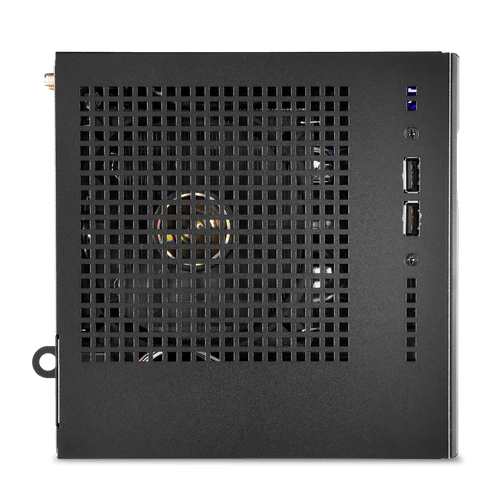

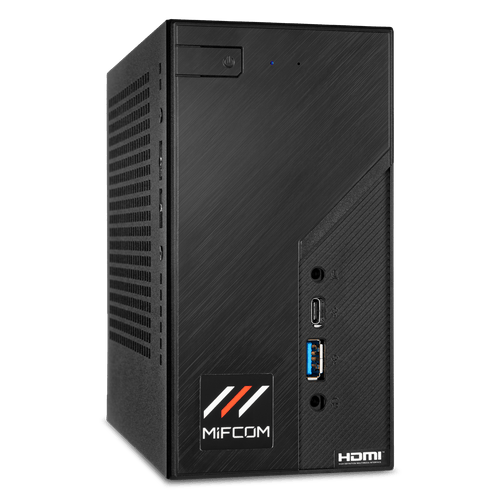

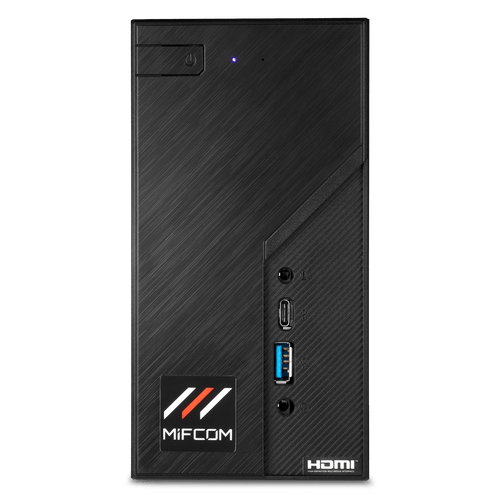

Mini Office PC
Intel Core i7-14700
This mini PC offers a perfect office solution in a compact form. It uses an Intel 14th Gen processor. The built-in NVMe SSD ensures lightning-fast loading & response times for the operating system & applications.
All-round office PC for everyday use
Technical details
Mini Office PC - Intel Core i7-14700
- ASROCK B760 | Intel B760
Technical details - Connections (CHA)1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x 3.5mm jack (Realtek ALC269)
- Number of PCIe slots-
- DesignMini-PC
- Mainboard compatibilityMini-STX
- Fan (front)-
- Fan (rear)-
- Fan (top)-
- Fan (lateral)-
- Fan (bottom)-
- Internal drive bays2x 2.5"
- ManufacturerASUS
- Lighting-
- Dimensions (WxHxD)80x155x155mm

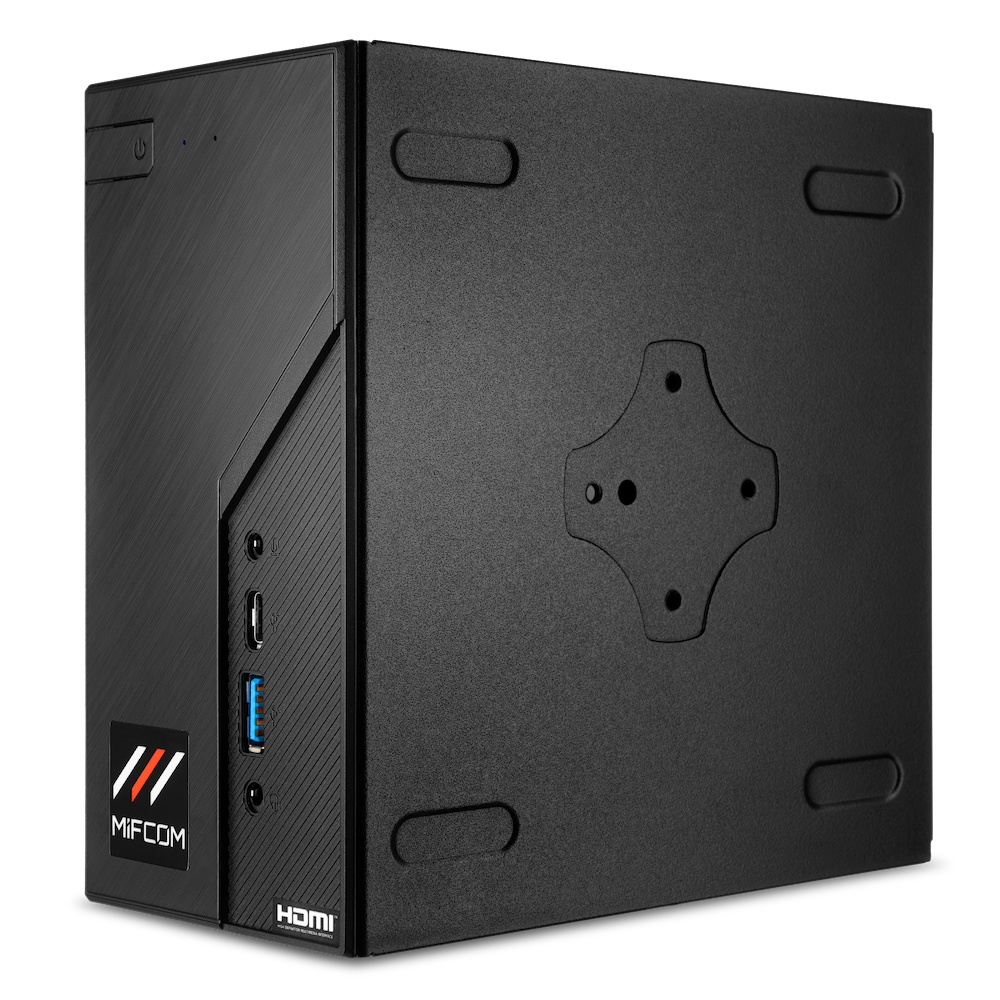

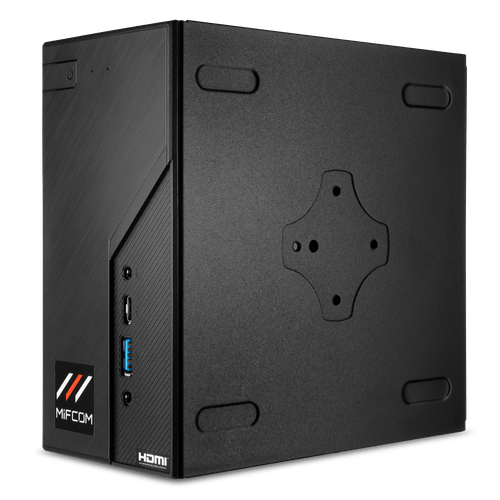

- Special features75x75/100x100 (optional), Kensington lock
- Intel Core i5-14400, 6C + 4cThe 14th generation Intel Core processors are based on an optimized hybrid architecture that combines powerful performance cores with efficient e-cores. This intelligent distribution of tasks ensures that games and computing-intensive applications run at maximum speed, while background processes are processed in a resource-saving manner. For gamers, this means stable frame rates, fast loading times and an overall smooth gaming experience - even with the latest AAA titles.
Technical details - Processor cores10 (6C+4c)
- BaseIntel 1700 (LGA1700)
- Processor threads16 (12+4)
- Base clock2.50GHz (P-Core), 1.80GHz (E-Core)
- Turbo beat4.70GHz (Turbo Boost 2.0), 4.70GHz (P-Core), 3.50GHz (E-Core)
- L2 cache9.5MB (6x 1.25MB + 4x 512kB)
- L3 cache20MB
- TDP65W (Processor Base Power), 148W (Maximum Turbo Power)
- iGPU type (label)Intel UHD Graphics 770
- PCIe lanes16x PCIe 5.0, 4x PCIe 4.0
- Memory controllerDual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 192GB
- ManufacturingIntel 7
- Code nameRaptor Lake-S
- ASRock Deskmini | B760
Technical details - Processor socketSo. 1700
- RAM support2x DDR4 SO-DIMM, dual PC4-25600S/DDR4-3200, max. 64GB (UDIMM)
- Wireless standardsWIFI 6E (WLAN module included and pre-installed)
- Form factorproprietär (Mini-STX)
- ChipsetIntel B760
- Lighting-
- Special featuresSecurity lock (Kensington), Mini-STX
- Color-
- Power supplyexternal, 1x barrel connector (120W/19V)
- FAN header-
- Audio descriptionRealtek ALC269
- Connections (rear)1x VGA, 1x HDMI 2.0, 1x DisplayPort 1.4, 1x USB-C 3.1 with DisplayPort 1.4 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Realtek RTL8125BG), 1x hollow socket (power connection)
- Internal connections-
- RAID level-
- Expansion slots-
- RGB header-
- 16GB Crucial SO-DIMM DDR4-3200 | 2x 8GBReliable DDR4 SO-DIMM memory for notebooks and MiniPCs from Crurcial.
Technical details - RAM type designationCrucial
- RAM size2x 8GB
- RAM total16GB
- Memory clock Label3200MT/s
- LatencyCL22
- RAM cooling-
- Special features-
- Noctua NH-L9i-17xx
Technical details - Heatpipes2 heat pipes
- TDP-
- Lighting-
- Dimensions (WxHxD)95x37x95 mm (WxHxD)
- Special features2U-compatible
- Fan1x 92x92x14mm, 600–2500 rpm, 57.5 m³/h, 33.84 CFM, 23.6 dB(A), 2.11 mmH₂O, 2.52 W (NF-A9x14 HS-PWM)
- Socket AMD-
- Socket Intel1700
- 512GB PNY CS1030NVMe™ - the engine for your creative workloads.
Technical details - Memory type3D NAND TLC
- Storage capacity512GB
- InterfaceM.2/M-Key (PCIe 3.0 x4)
- Reading speed2000MB/s
- Write speed1100MB/s
- SSD controllerPhison PS5013-E13, 4 Kanäle
- Mean time between failures2 million hours
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
80x155x155mm
Connectivity

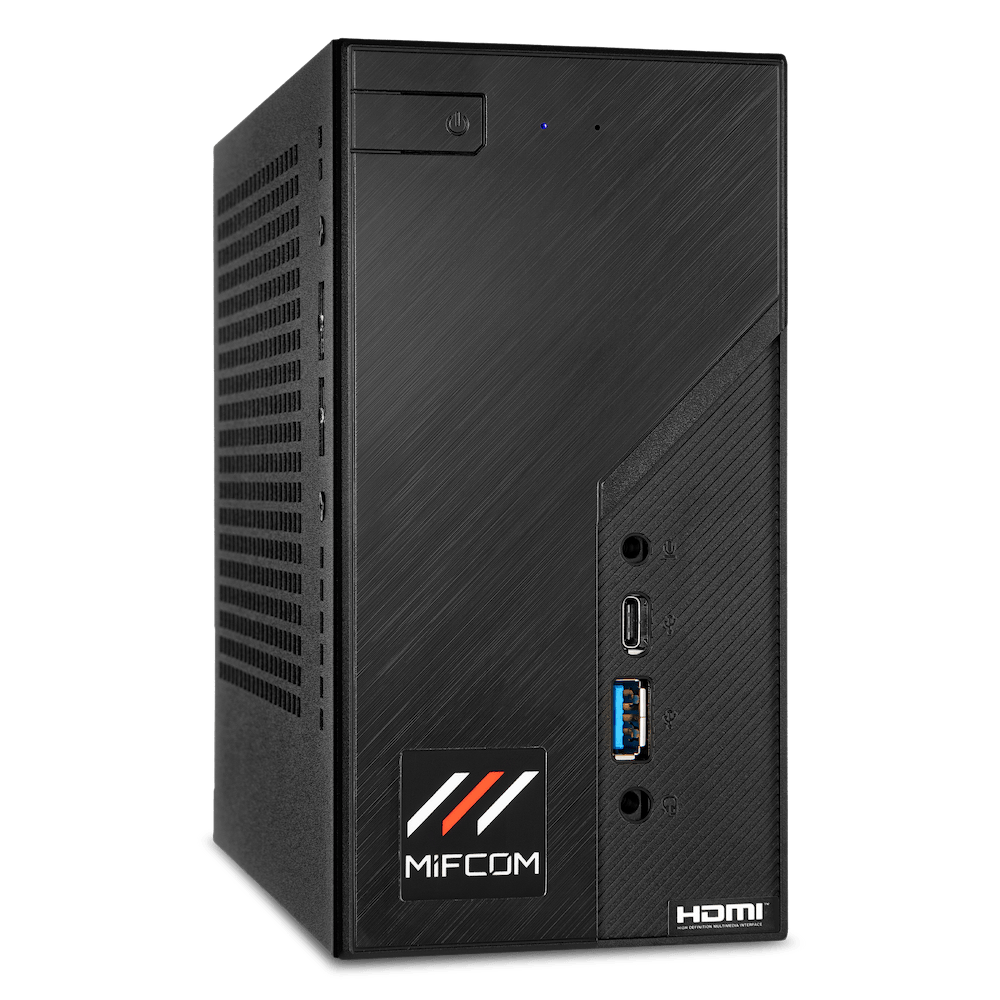

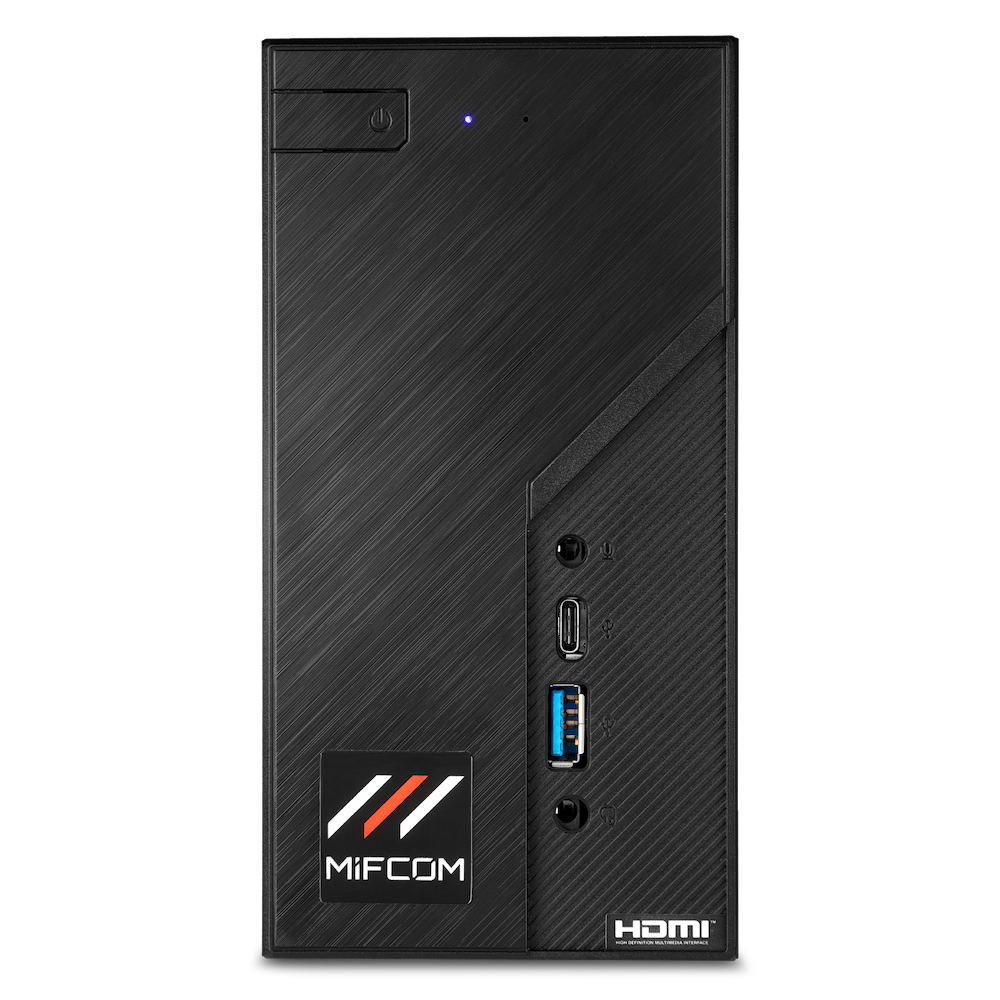

Front
1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x 3.5mm jack (Realtek ALC269)

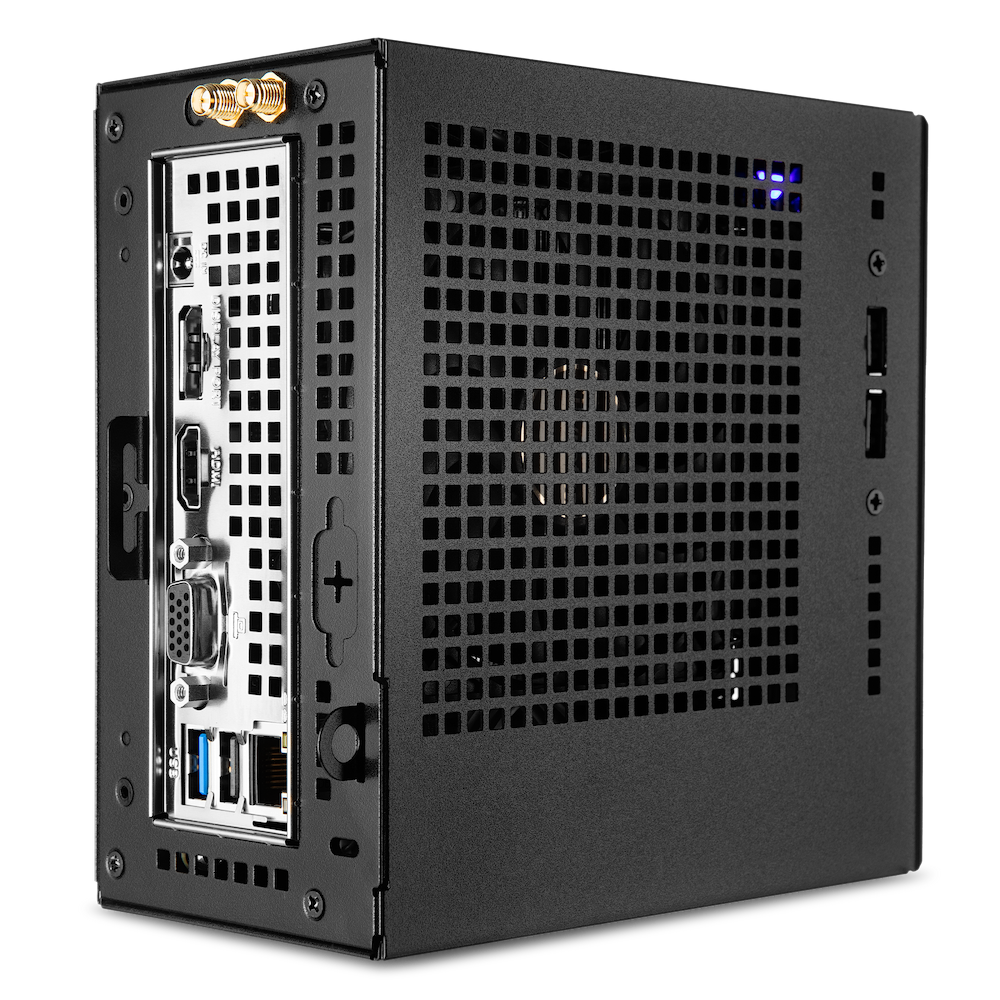

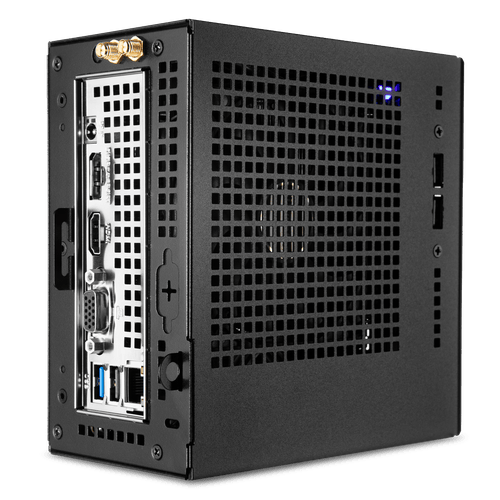

Rear
1x VGA, 1x HDMI 2.0, 1x DisplayPort 1.4, 1x USB-C 3.1 with DisplayPort 1.4 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Realtek RTL8125BG), 1x hollow socket (power connection)
