Mini Gaming PC Configurator - AMD Ryzen 9000 (So. AM5)
So. AMD AM5
Max. 16C
AMD Ryzen 9000
X3D V-Cache
1.049
,-
incl. VAT plusShipping
19
,15
Delivery time:
4-6 Werktage
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control

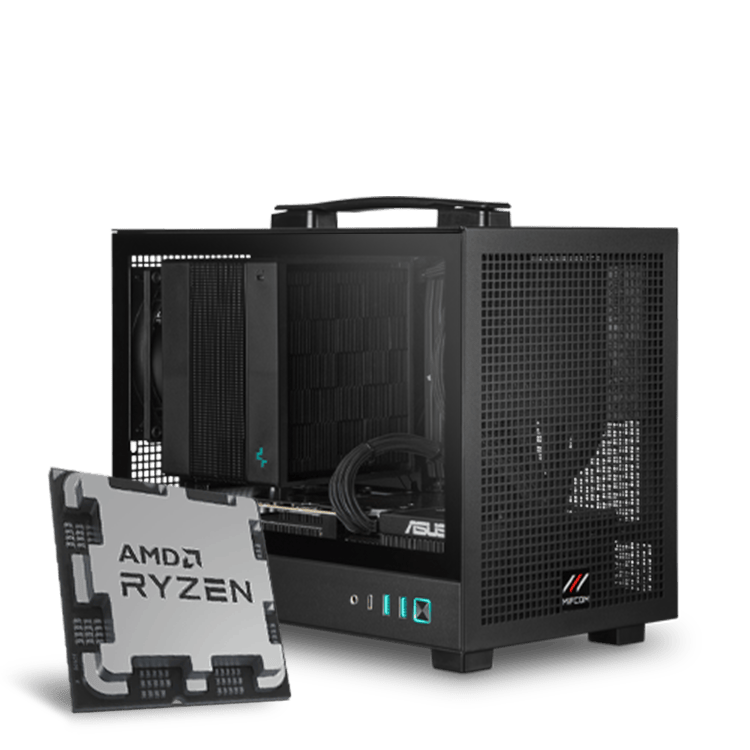

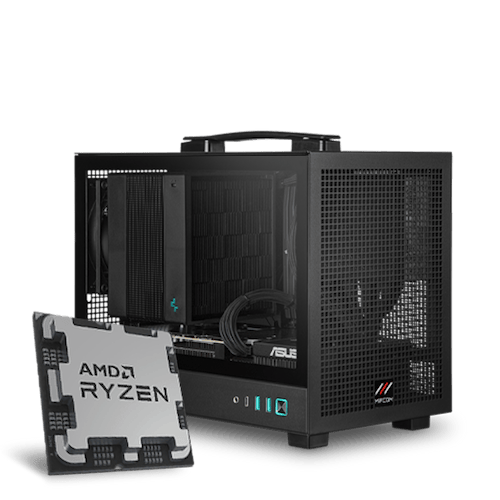

Mini Gaming PC Configurator
AMD Ryzen 9000 (So. AM5)
Our PC configurator automatically detects compatibility problems, so that incorrect configuration is virtually impossible. Regardless of this, you can of course call our support team at any time for free advice and configure your desired PC online with the help of our support team. Even as a complete layman!
Every configuration is checked by us when the order is received. We will contact you immediately if there are any problems with the system you have ordered.
Important: We do not consider the absence of components not included in the basic configuration to be a fault - so you do not necessarily have to order a graphics card, hard disk, etc. In this way, we give you the option of upgrading the system yourself with components that you already have or have ordered elsewhere.
Have fun configuring!
The comprehensive Mini Gaming PC Configurator for AMD AM5
Technical details
Mini Gaming PC Configurator - AMD Ryzen 9000 (So. AM5)
- DeepCool CH160 Plus, black
Technical details - Connections (CHA)1x USB-C 3.0 (5Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack Line-In/Out
- Number of PCIe slots3
- DesignmATX
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/mATX (9.6 "x9.6")
- Fan (front)1
- Fan (rear)1
- Fan (top).
- Fan (lateral).
- Fan (bottom).
- Internal drive bays1x 2.5"/3.5"
- ManufacturerDeepCool
- Lighting-
- Dimensions (WxHxD)195x323.5x375mm
- Special featuresCarrying handle, glass viewing window
- AMD Ryzen 5 9600X, 6x 3.9GHzThe latest generation of AMD processors offer an impressive combination of performance, efficiency and future-proofing, which is particularly interesting for gamers. Thanks to the advanced Zen architecture, the current models impress with high single-core performance, which often makes the decisive difference in modern games. At the same time, many cores and threads ensure strong multitasking capability, ideal for streaming, content creation and demanding applications in the background.
Technical details - Processor cores6 (6C)
- BaseAMD AM5 (LGA1718)
- Processor threads12
- Base clock3.90GHz
- Turbo beat5.40GHz
- L2 cache6MB (6x 1MB)
- L3 cache32MB
- TDP65W
- iGPU type (label)AMD Radeon Graphics
- PCIe lanes24x PCIe
- Memory controllermax. DDR5-5600 (PC5-44800, 89.6GB/s)
- ManufacturingZen 5
- Code nameGranite Ridge
- GIGABYTE B850M Gaming X WIFI6E | AMD B850AMD B850 motherboards offer a powerful yet balanced all-round solution for modern gaming systems. They are designed for the latest Ryzen processors with AM5 sockets and form a future-proof platform that is ideal for demanding games, creative work and smooth multitasking. With support for PCIe 5.0 and DDR5, B850 boards provide the technical basis for high data rates and short load times.
Technical details - Processor socketAMD AM5
- RAM supportDDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
- Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3
- Form factormATX
- ChipsetAMD B850
- LightingRGB, 1 zone (chipset cooler)
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 1x M.2 passive cooler
- Power supply1x 24-pin ATX, 1x 8-pin EPS12V
- FAN header1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 1x fan 4-pin PWM, 1x fan/pump 4-pin PWM
- Audio descriptionRealtek
- Connections (rear)1x HDMI 2.1 (HDCP 2.3, iGPU), 2x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 3x 3.5mm jack (Realtek), 1x PS/2 Combo, 2x antenna connection Quick Connect
- Internal connections1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C 3.1), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A 3.0), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB-A 2.0)
- RAID level0/​1/​10 (B850)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2580/22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 25110/2580/22110/2280), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header3x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, GIGABYTE Gen2), 1x 4-Pin RGB (+12V/​G/​R/​B, max. 2A)
- 16GB Corsair Vengeance DDR5-6000 | 1x 16GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an excellent combination of performance, stability and design. With high clock rates and low latencies, it ensures that modern games run smoothly and enable short loading times - even in combination with demanding processors and graphics cards.
Technical details - RAM type designationDDR5 DIMM 288-pin, on-die ECC
- RAM size1x 16GB
- RAM total32GB
- Memory clock Label6000MT/s
- Latency36
- RAM coolingHeatspreader
- Special features-
- be quiet! Pure Rock 3 Black | 120mm PWM fanThe be quiet! Pure Rock 3 is the ideal cooling solution for price-conscious users looking for reliable cooling performance and quiet operation in a compact format. With four powerful heatpipes, a high-quality aluminum heatsink and the proven be quiet! fan design, the Pure Rock 3 offers solid heat dissipation for all common processors - perfect for all-round PCs and gaming systems in the medium performance range.
Technical details - Heatpipes4 heatpipes (6mm)
- Fan1x 120x120x25mm, 2000rpm, 101.27m³/h, 59.6 CFM, 31.2dB(A), 2.41mmH₂O, 3.6W, single plain bearing (Rifle)
- Socket AMDAM5, AM4
- Socket Intel2011-0/​2011-1/​2011-3/​2066, 1700, 1150/​1151/​1155/​1156/​1200
- TDP190W
- Lighting-
- Dimensions (WxHxD)124x154x71mm (WxHxD)
- Special featuresHeatpipe Direct Touch, black heat sink
- 500GB brand M.2 SSDNVMe M.2 SSD
Technical details - Memory typedepending on model
- Storage capacity500GB
- Interfaceje nach Modell
- Reading speeddepending on model
- Write speeddepending on model
- SSD controller-
- Mean time between failuresdepending on model
- IOPS 4Kdepending on model
- Power supplydepending on model
- 750W - Corsair SF Series | modular
Technical details - PSU power (Desc)750W
- Power 12V62.5A
- Power 3.3V20A
- Power 5V20A
- Power -12V0A
- PSU certification80 PLUS Platinum
- Fan92mm, semi-passive
- Volume32.98dB(A) (according to Cybenetics certificate, 115V), 31.72dB(A) (according to Cybenetics certificate, 230V)
- Form factorSFX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states, incl. SFX to ATX power supply adapter
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
195x323.5x375mm
Connectivity
Front
1x USB-C 3.0 (5Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack Line-In/Out
Rear
1x HDMI 2.1 (HDCP 2.3, iGPU), 2x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 3x 3.5mm jack (Realtek), 1x PS/2 Combo, 2x antenna connection Quick Connect
