BOSS - Ryzen TR PRO 9965WX - RTX 5090
AMD TR PRO 9965WX, 24C
RTX 5090 32GB
1TB WD_Blue SN5100
ASUS Pro WS WRX90E-Sage SE
4x 16GB RDIMM DDR5-5600
13.999
,-
incl. VAT plusShipping
Delivery time:
ca. 2-3 Wochen
3 year warranty
Lifetime support
30-day return policy
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
BOSS
Ryzen TR PRO 9965WX - RTX 5090

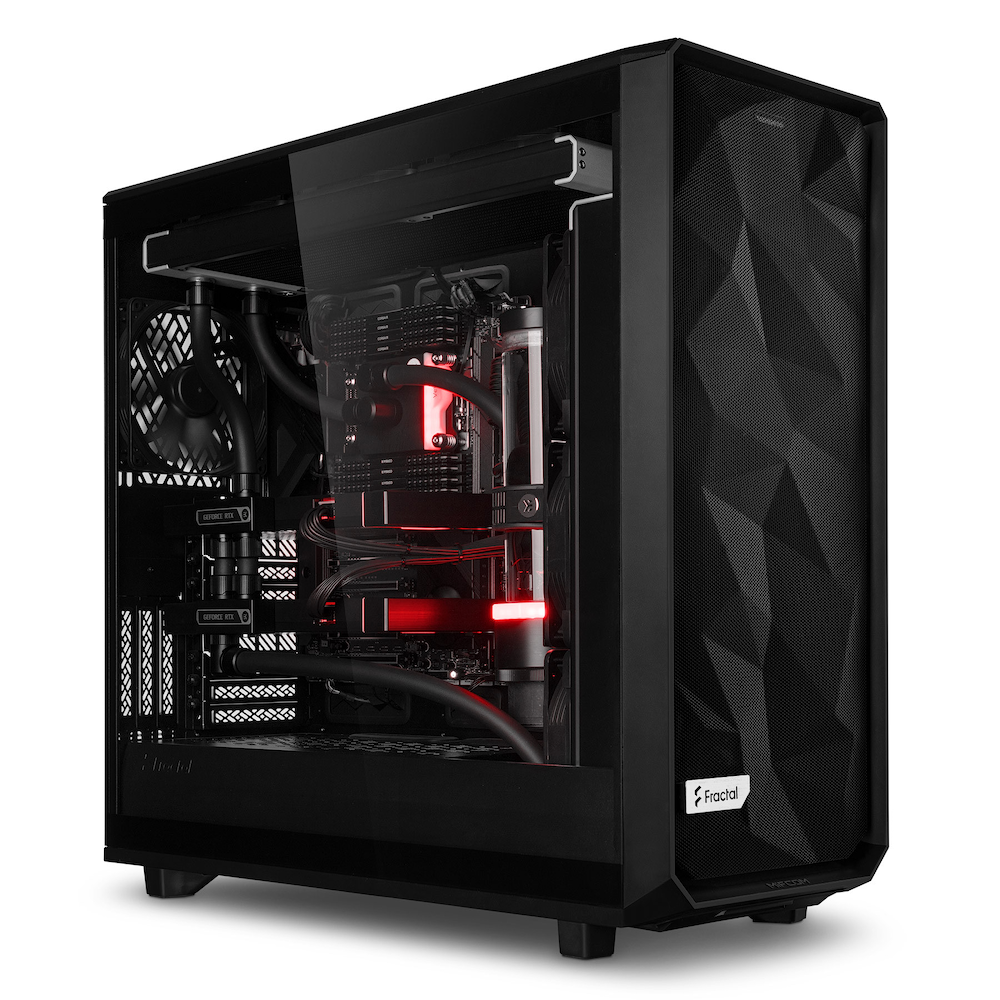

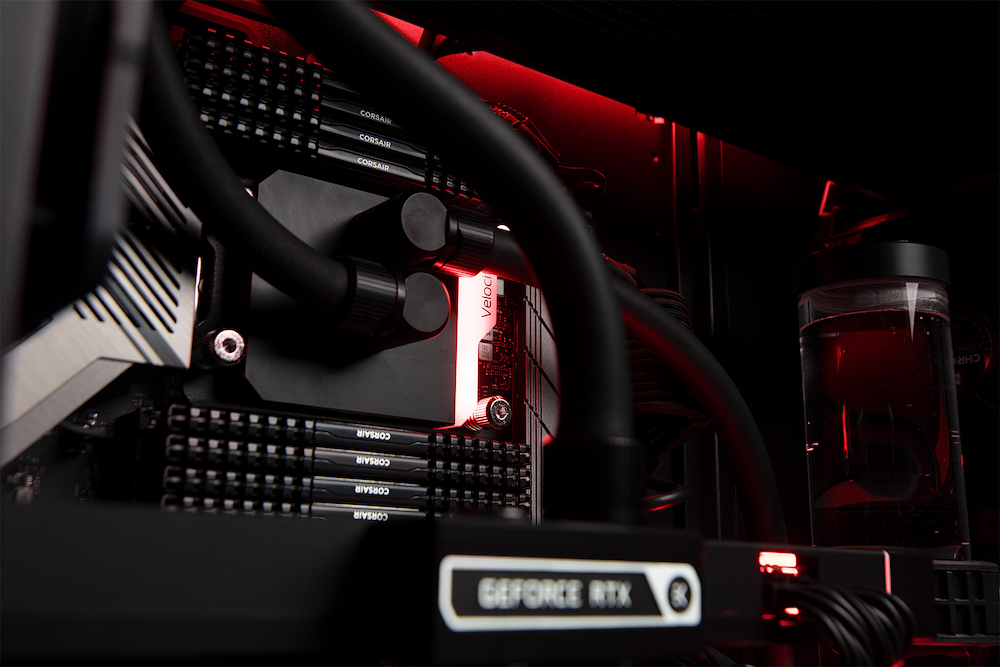

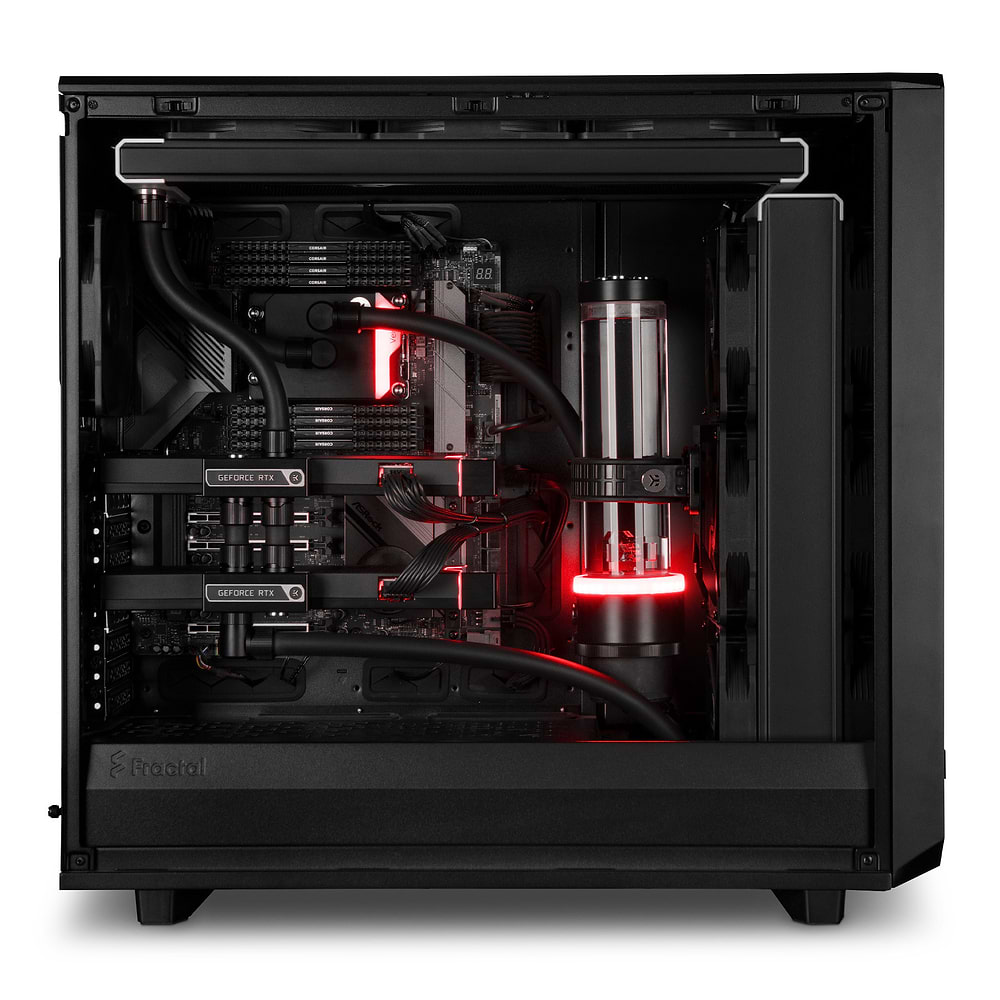

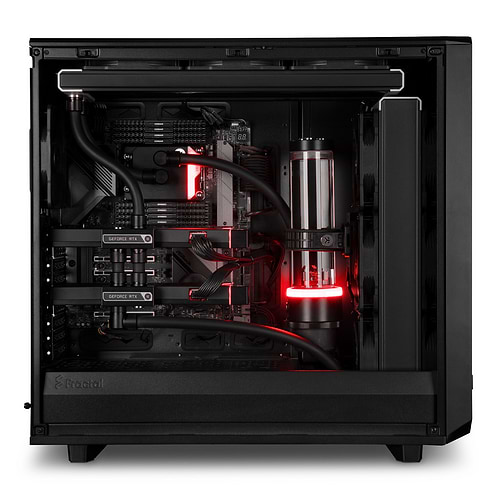

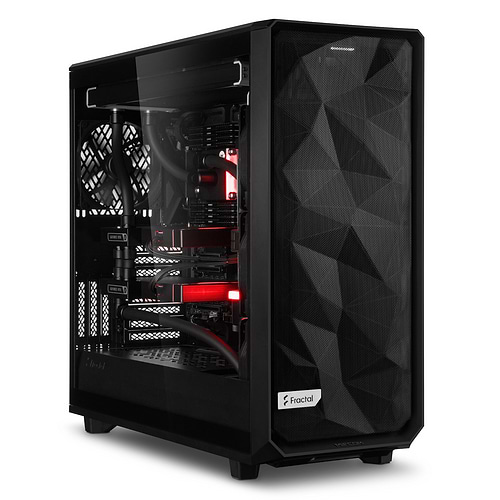

Water-cooled BOSS systems offer you maximum performance in all professional applications. For the best possible performance, we integrate the latest Intel Core, Intel Xeon, AMD Ryzen and AMD Threadripper processors into a custom water cooling loop from EKWB in BOSS systems. This guarantees that the Turbo Boost of the processor can always be utilized to the maximum and the CPU always clocks to the limit.

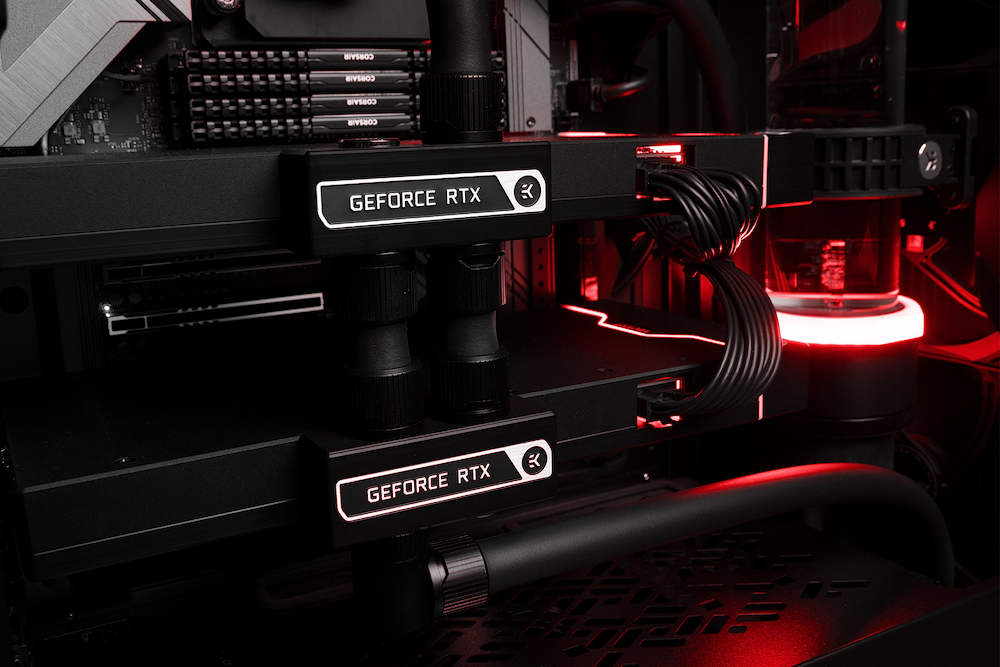

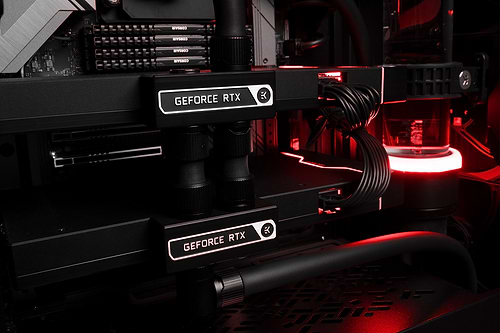

We always install a water-cooled NVIDIA GeForce RTX 5090 graphics card in our Boss systems. The powerful cooling of the custom watercooling loop also increases the service life of the components and prevents temperature-related throttling during longer calculations in the SLI network.
With the BOSS systems, we dispense with eye-catching lighting, our custom workstations with water cooling appear in a decent look with maximum performance - perfect for business customers.

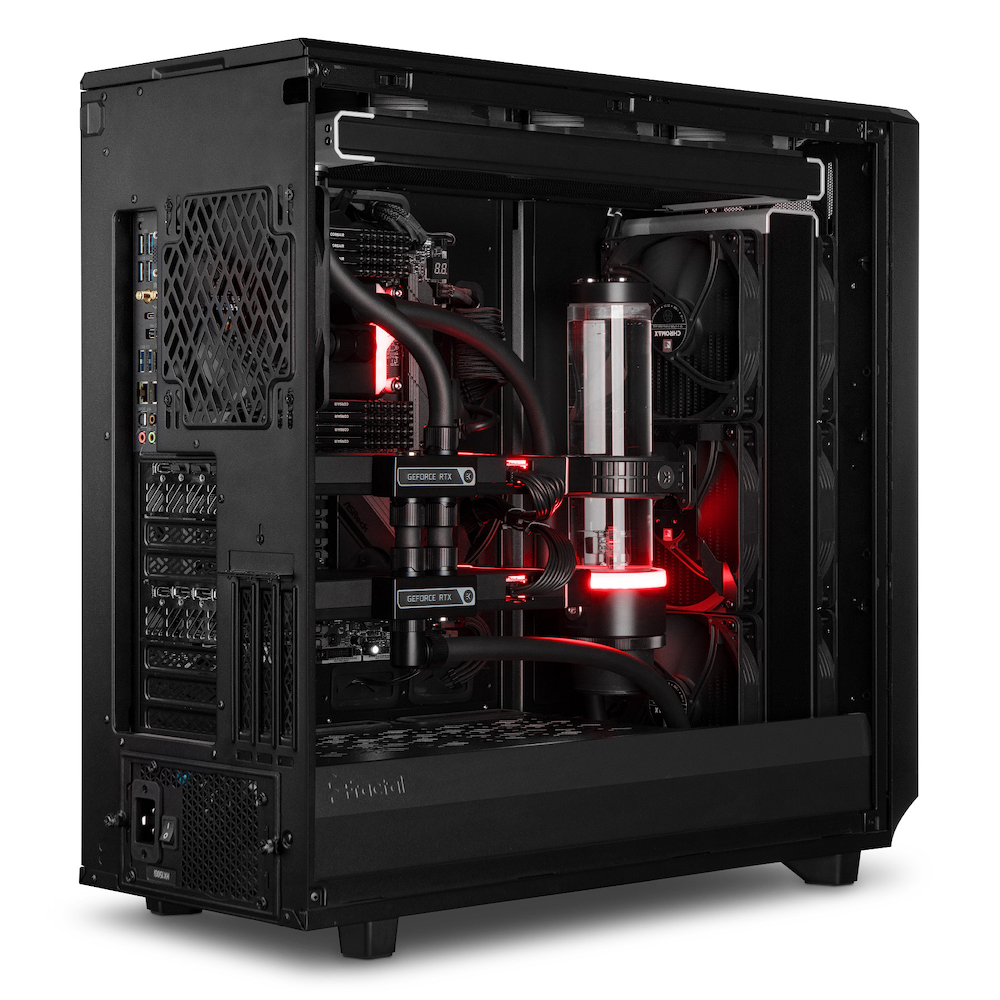

High-end performance through custom water cooling
Technical details
BOSS - Ryzen TR PRO 9965WX - RTX 5090

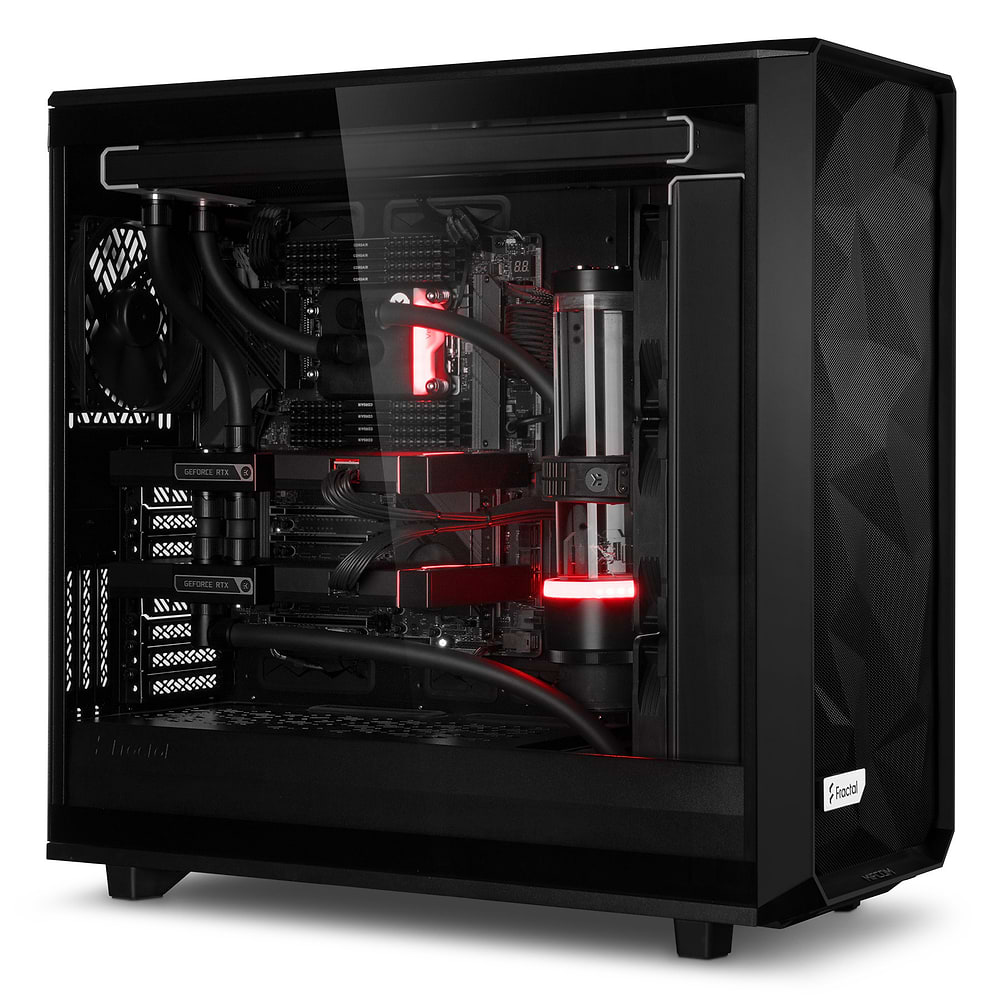

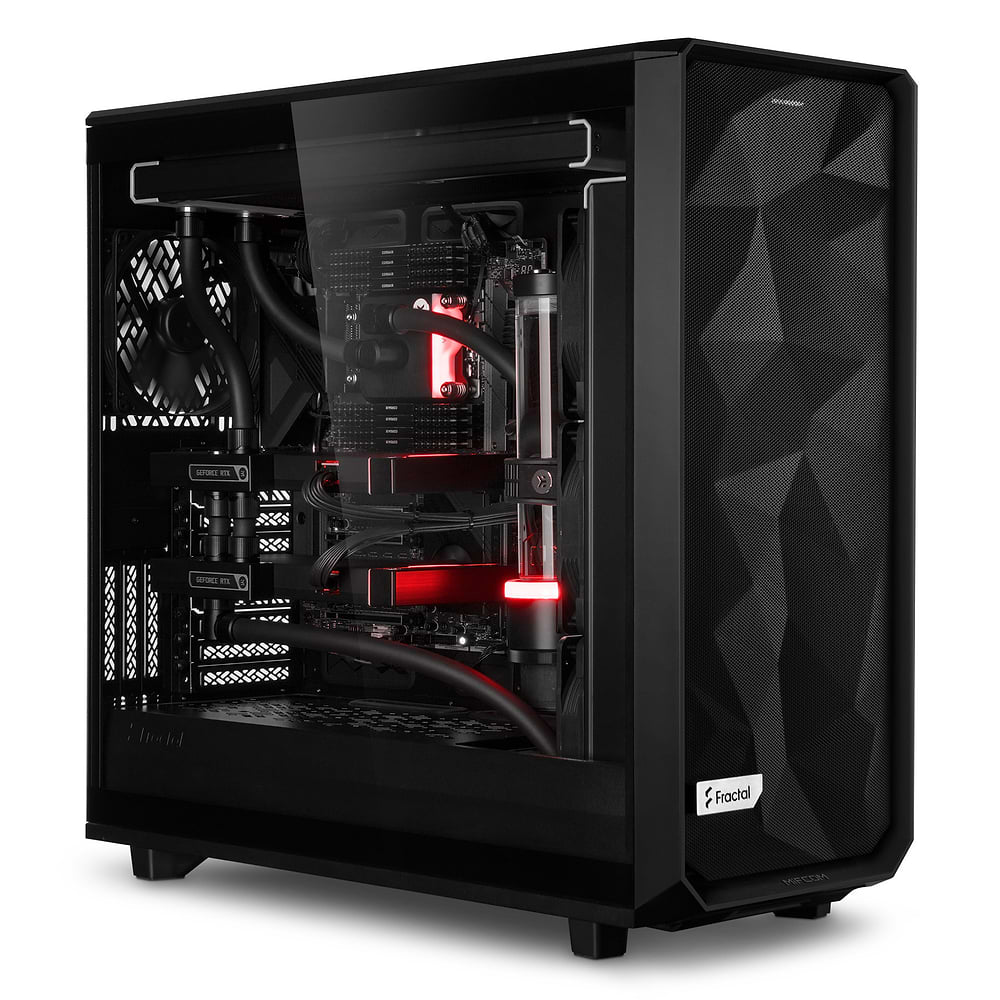

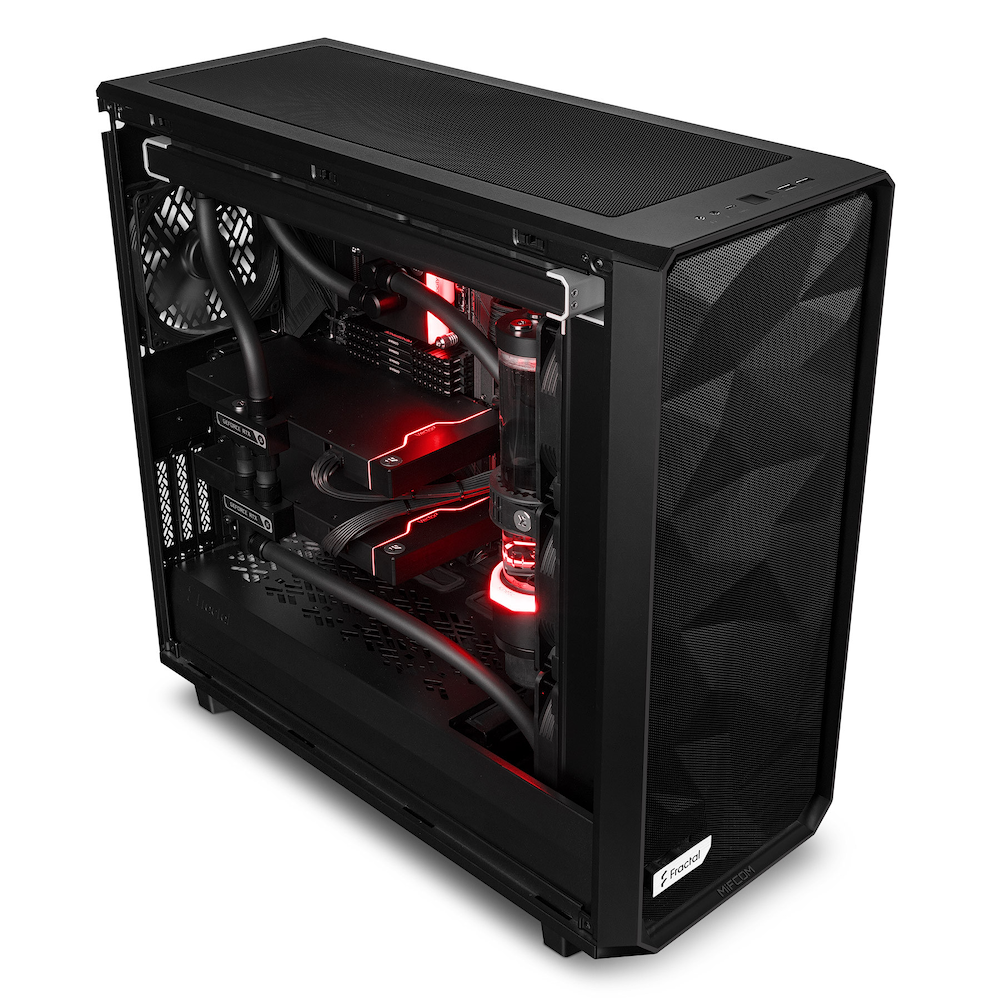

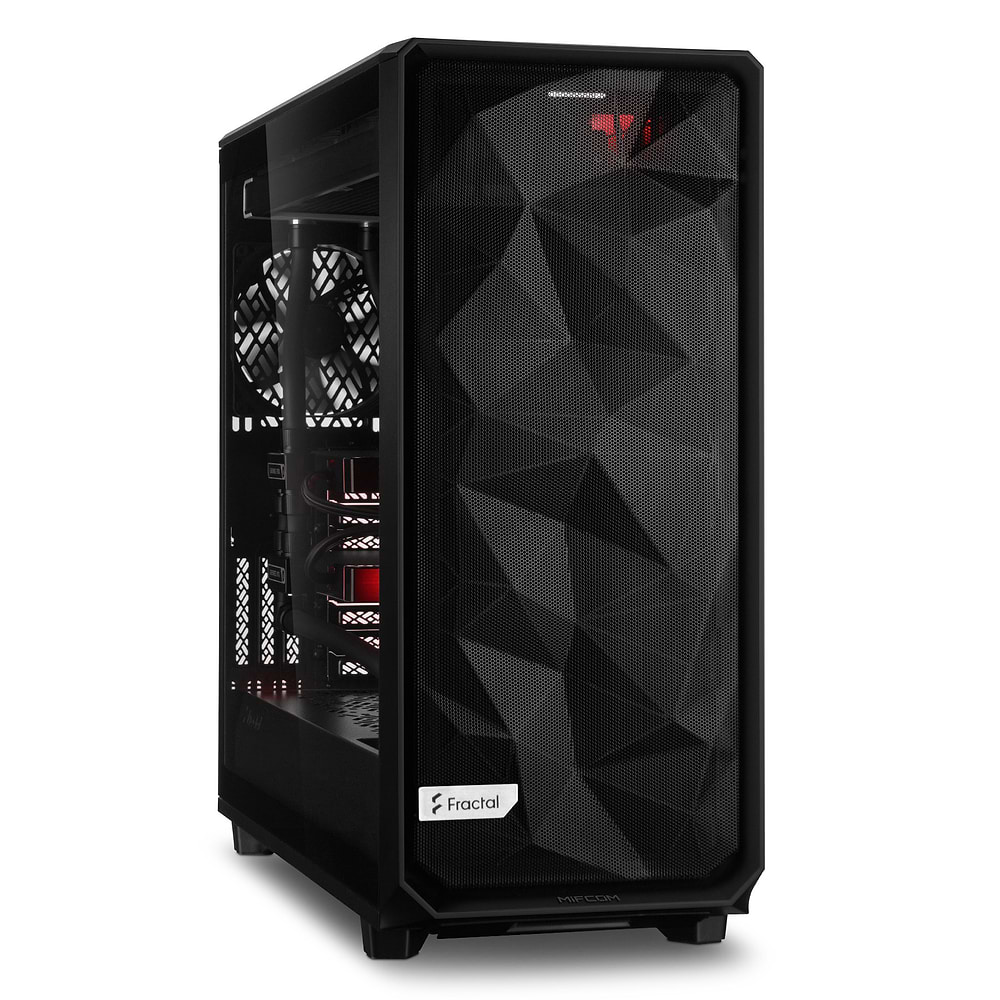

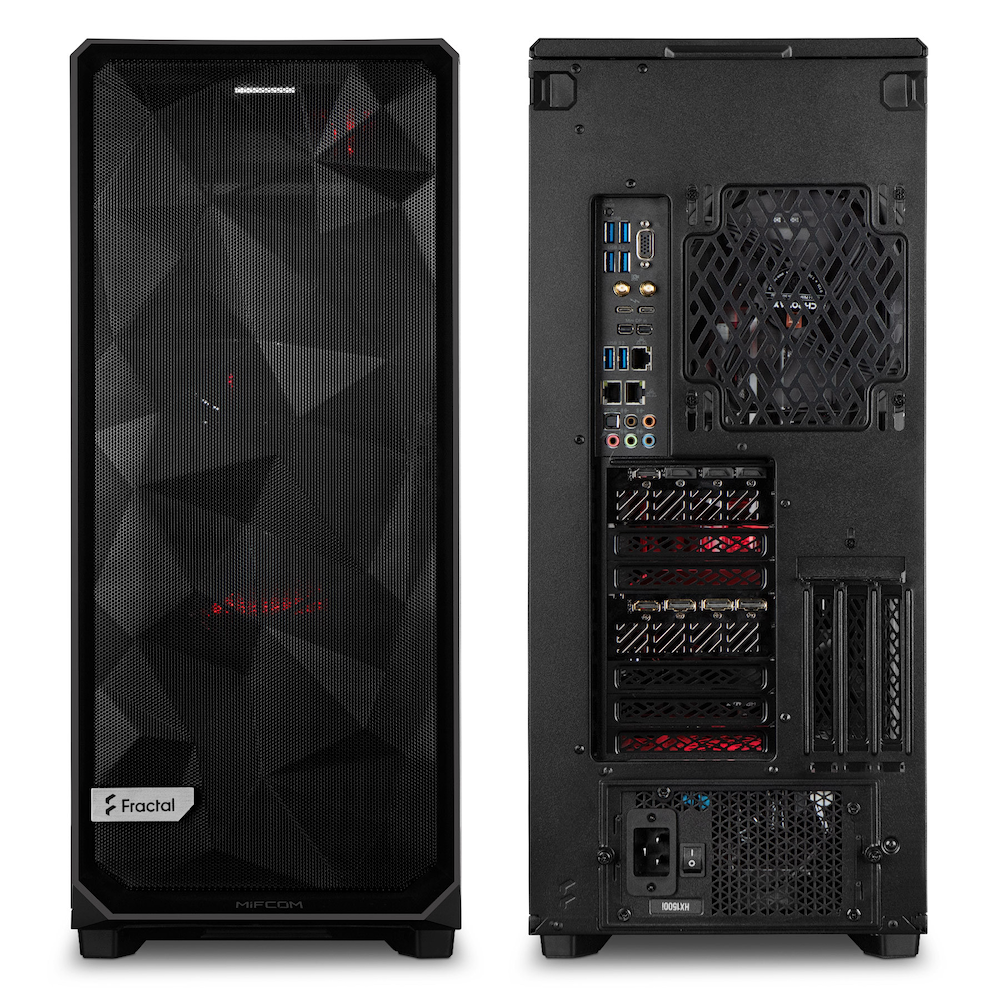

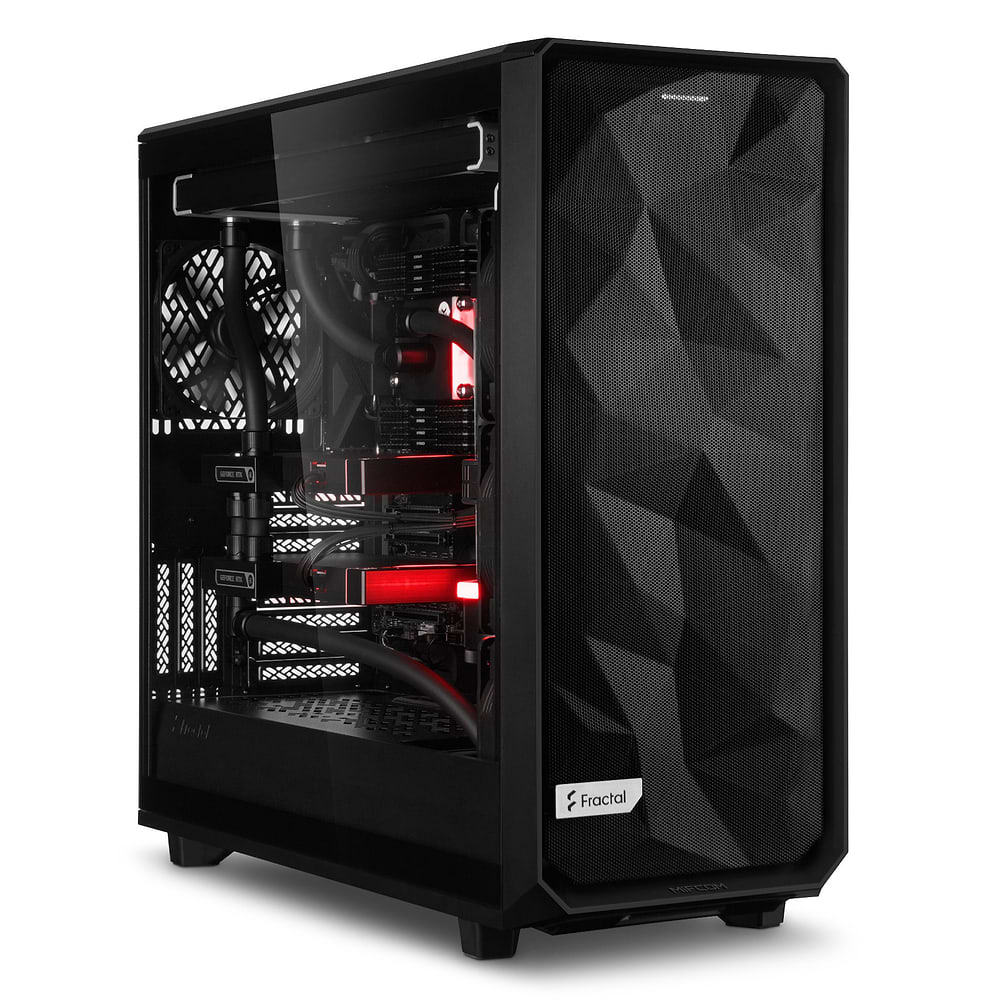

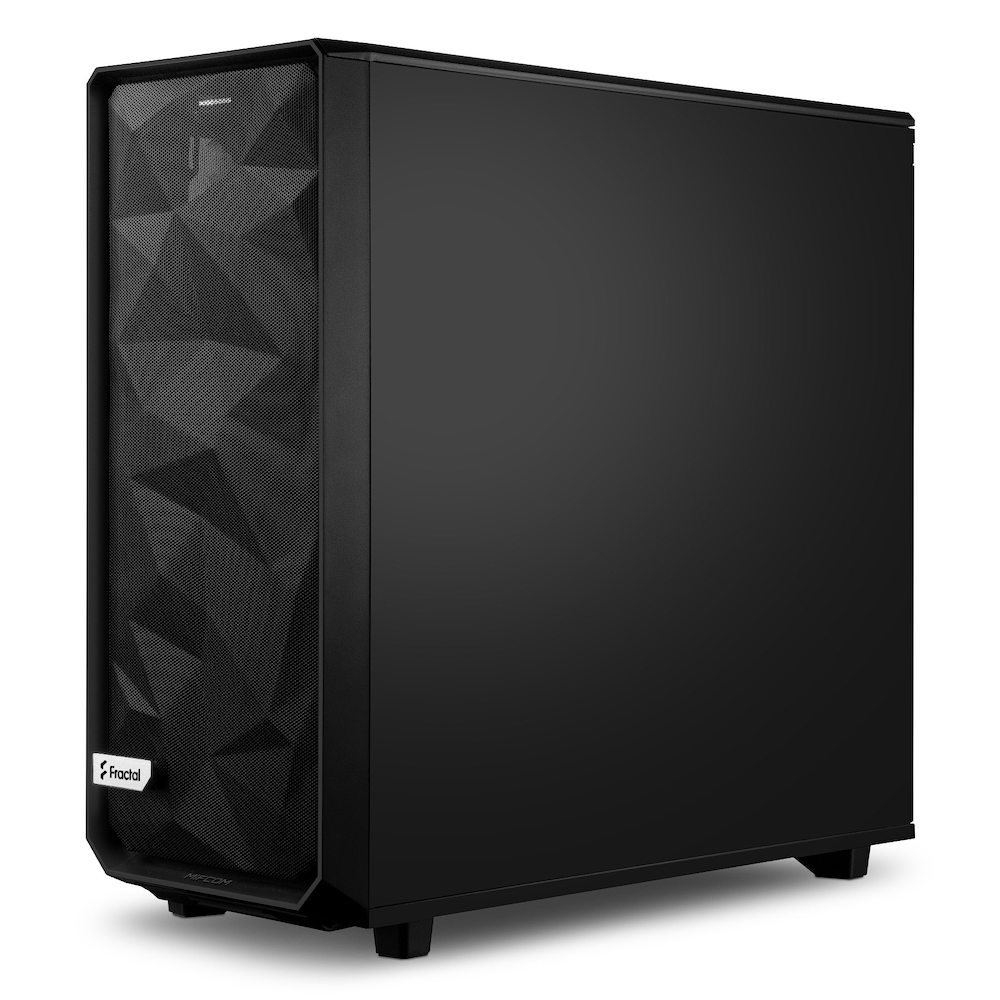

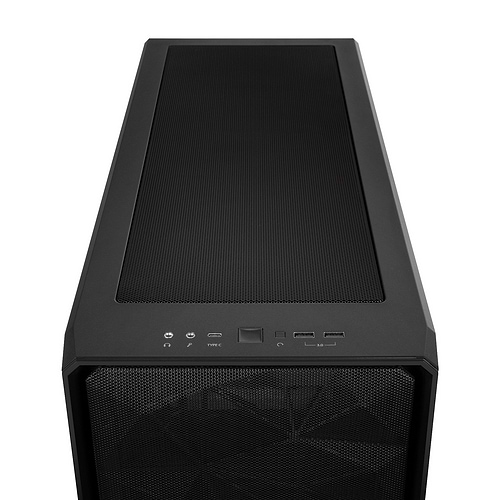

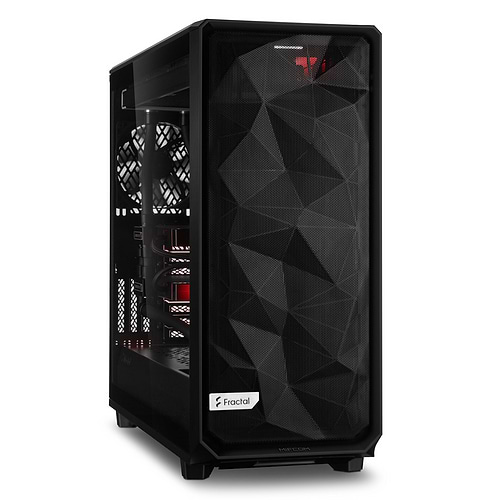

- Fractal Design Meshify 2 XL, blackThe Meshify 2 XL joins the Fractal Design lineup with unbeatable cooling performance and an innovative look. The angular and asymmetrical airflow front panel makes the Meshify 2 XL a convincing high-airflow case.
Technical details - Connections (CHA)1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
- Number of PCIe slots12 (3x Riser Card)
- DesignFull-Tower
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/µATX (9.6 "x9.6")/ATX (12 "x9.6")/E-ATX (SSI CEB, 12 "x10.5")/E-ATX (SSI EEB, 12 "x13")/EE-ATX (13.68 "x13")
- Fan (front)2x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A) or 3x 140mm (optional) or 4x 120mm (optional)
- Fan (rear)1x 140mm, 1000rpm, 0.71mmH₂O, 116.2m³/h (68.39 CFM), 18.9dB(A)
- Fan (top)3x 140mm (optional) or 4x 120mm (optional)
- Fan (lateral)-
- Fan (bottom)2x 140mm (optional)
- Internal drive bays6x 2.5"/3.5" (horizontal, drive rails), 2x 2.5"
- ManufacturerFractal
- Lighting-
- Dimensions (WxHxD)240x566x600mm
- Special featuresintegrated fan control, cable management, dust filter, graphics card can be mounted vertically, glass viewing window
- AMD Ryzen Threadripper PRO 9965WX, 24x 4.2GHz, 128MB L3 cacheEnhance workstation performance for maximum productivity - From blockbuster movies to ambitious architecture and next-gen designs, bring your ideas to life quickly with the ultimate workstation performance of AMD Ryzen Threadripper PRO 9000 WX-Series processors.
Technical details - Processor cores24
- BaseAMD sTR5
- Processor threads48
- Base clock4.20 GHz
- Turbo beat5.40 GHz
- L2 cache24MB (24x 1MB)
- L3 cache128MB (4x 32MB)
- TDP350 Watt
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0, 16x PCIe 4.0
- Memory controller8 Channel DDR5-6400 RDIMM (PC5-51200, 409.6GB/s), max. 2TB
- ManufacturingZen 5
- Code nameShimada Peak
- ASUS Pro WS WRX90E-Sage SE | AMD WRX90
Technical details - Processor socketAMD sTR5
- RAM support8x DDR5 DIMM, octa PC5-41600R/DDR5-5200, max. 2TB (RDIMM-3DS)
- Wireless standardsN/A
- Form factorE-ATX (SSI EEB)
- ChipsetAMD WRX90
- LightingN/A
- Special featuresAudio+solid capacitors, Diagnostic LED (segment display), 1x M.2 active cooler, 3x M.2 passive coolers, integrated I/O panel, voltage measuring points, backplate, ECC support, support for 2 power supplies, onboard TPM 2.0 support (AMD fTPM, see additional manufacturer link)
- Power supply1x 24-pin ATX (PSU1), 2x 8-pin EPS12V, 3x 8-pin PCIe, 1x 8-pin PCIe
- FAN header2x CPU fan 4-pin, 6x fans, 1x pump 4-pin, 3x 4-pin proprietary (occupied), 1x thermal sensor
- Audio description7.1 (Realtek ALC1220)
- Connections (rear)1x VGA (AST2600), 2x USB4 (40Gb/s, ASMedia ASM4242), 6x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 2x 10GBase-T (Intel), 2x jack, 2x DisplayPort-In (Mini DisplayPort), 1x management port (RJ-45)
- Internal connections1x USB-C 3.2 Key-A Header (20Gb/​s), 1x USB 3.0 Header (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/​s, 4x USB 2.0), 4x SATA 6Gb/s (WRX90), 1x seriell, 1x Cardreader (microSD), 1x TPM-Header, 1x Chassis Intrusion-Header, 1x BMC-Header, 1x Message LED Header, 2x LAN LED Header, 1x Location LED Header, 1x Location Button Header, 1x PSU SMB Header, 1x VGA-Header, 1x VPP I2C Header
- RAID level0/​1/​10 (WRX90)
- Expansion slots7x PCIe 5.0 x16 (6x x16, 1x x8), 2x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260/2242), 2x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230), 2x Slim SAS SFF-8654 (PCIe 4.0 x4)
- RGB headerN/​A
- NVIDIA GeForce RTX 5090 32GB NVIDIA | Black GPU coolerNVIDIA® GeForce RTX™ 5090 is the ultimate GeForce GPU. It delivers huge advances in performance, efficiency and AI-powered graphics. Experience ultra-high-performance gaming, incredibly detailed virtual worlds, unprecedented productivity and new ways to create. They are based on the NVIDIA Ada Lovelace architecture and are equipped with 32GB of GDDR7 memory to deliver the ultimate experience for gamers and creators.
Technical details - Memory type32GB GDDR7, 512bit, 28Gbps, 1750MHz, 1792GB/s
- API supportDirectX 12 Ultimate (12_2) /​ CUDA 8.9 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.7
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5090
- VRAM32GB
- GPU clock2017MHz
- GPU clock (boost)2535MHz
- GPU fan-
- Power consumption575W (NVIDIA)
- Dimensions (WxHxD)-
- Special features-
- Power supply1x 16-pin PCIe 5.0
- Connections (rear)depending on manufacturer, (typical: 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20)
- 16GB RDIMM ECC DDR5-5600DDR5 with ECC error correction: Ensure the highest data integrity and uninterrupted performance. DDR5 ECC RAM not only offers the bandwidth of the latest memory generation, but also the protection against memory errors that is essential for professional and business-critical systems.
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD

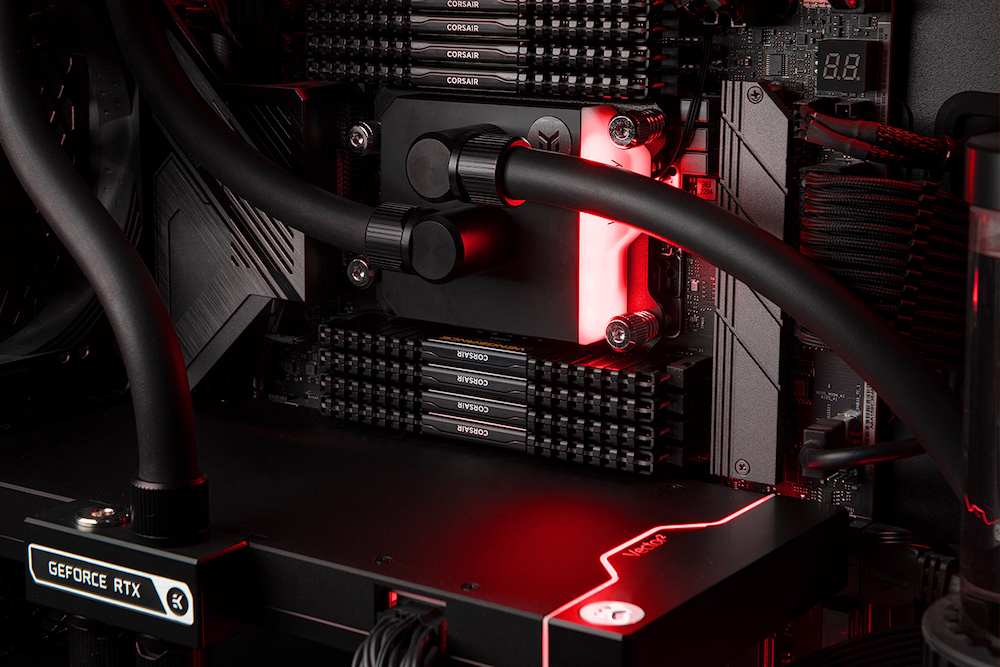

- Watercool HEATKILLER IV Pro - Black CopperThe water coolers in the HEATKILLER® CPU series are among the best-known and most powerful processor water coolers in the world. Since its presentation in 2001, the model series has been continuously expanded and perfected. The HEATKILLER® IV represents the most comprehensive and latest development.
- 1TB SanDisk WD Blue SN5100NVMe™ - the engine for your creative workloads. The WD Blue SN5000 NVMe™ SSD is the latest generation of high-performance storage for creative and professional users. NVMe™ combined with PCIe® Gen 4 and Western Digital's nCache™ 4.0 technology delivers high speed for AI-powered applications and accelerated workflow execution. With a storage capacity of up to 4 TB1, there are no limits to your creativity. Whatever you're working on, the WD Blue SN5000 NVMe™ SSD makes every step easier and shortens the time from idea to final realization of your creative vision.
Technical details - Memory type3D NAND TLC, Kioxia, 112 layers (BiCS5)
- Storage capacity1TB
- InterfaceM.2/​M-Key (PCIe 4.0 x4)
- Reading speed7100MB/s
- Write speed6700MB/s SLC-Cached
- SSD controller-
- Mean time between failures1.75 million hours
- IOPS 4K1000K reading, 1300K writing
- Power supply3.9W (write), 3.9W (read), 4mW (idle)
- 1200W - Corsair HXi Platinum 2025 | modular
Technical details - PSU power (Desc)1200W
- Power 12V100A
- Power 3.3V25A
- Power 5V25A
- Power -12V0.3A
- PSU certification80 PLUS Platinum (according to manufacturer, 115V)
- Fan140mm, semi-passive
- VolumeN/A
- Form factorATX
- Special featuresErP Lot 6, digital signal processor, supports Haswell C6/C7 low-power states, digital interface (Corsair iCUE)
- Corsair - Hydro X Series XL5 | ClearThanks to the latest corrosion and bacteria inhibitors, Corsair XL5 coolant does not cause tarnishing or damage to blocks, fittings and pipes.
- Softtube Alphacool EPDM Schwarz 16/10
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
240x566x600mm
Connectivity

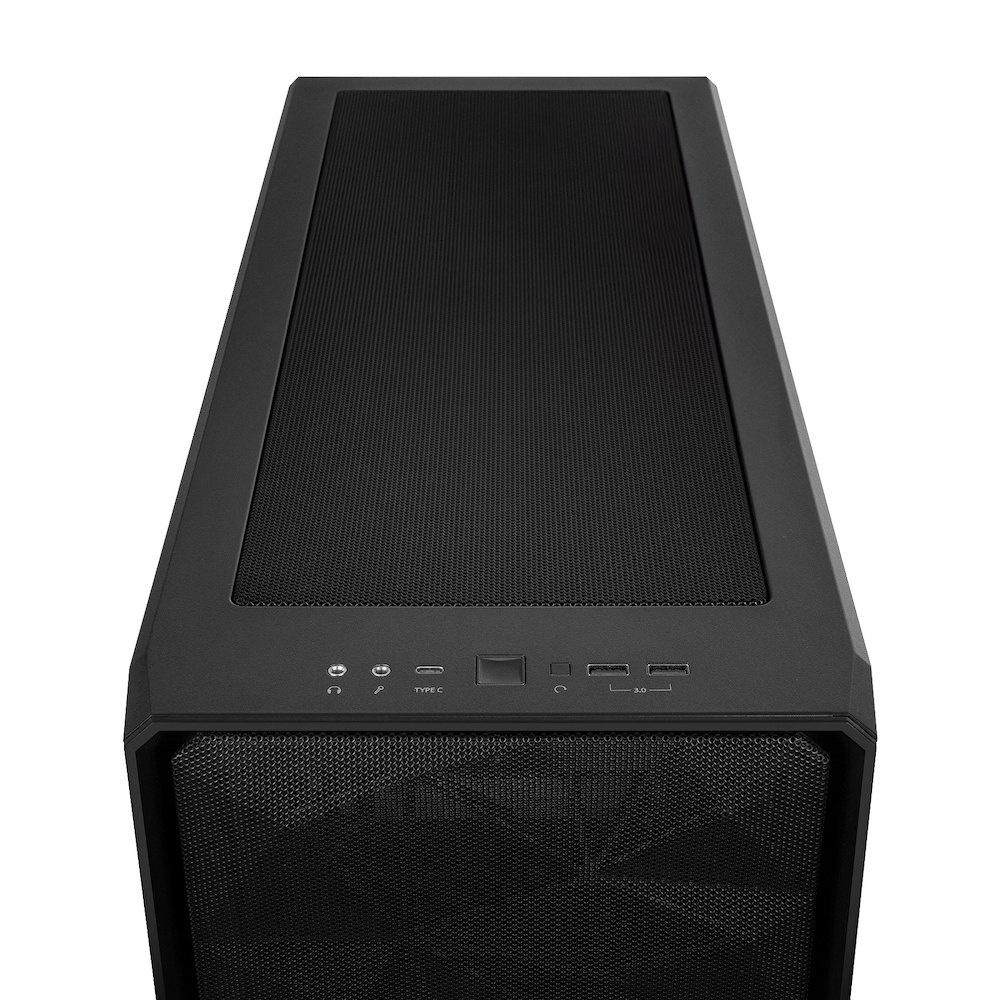

Front
1x USB-C 3.1 (10Gb/s, 20-pin Key-A header), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack (line-out), 1x 3.5mm jack (line-in)
Rear
1x VGA (AST2600), 2x USB4 (40Gb/s, ASMedia ASM4242), 6x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 2x 10GBase-T (Intel), 2x jack, 2x DisplayPort-In (Mini DisplayPort), 1x management port (RJ-45), depending on manufacturer, (typical: 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20)
