H200
ID: 22640
5U GPU server configurator - AMD Dual EPYC
AMD EPYC 9005 Turin
8x 2.5" Gen5 NVMe/SATA/SAS-4 Hot-Swap
Max. 2,304GB DDR5 ECC RAM
8x NVIDIA H200 HGX
355.999
,-
incl. VAT plusShipping
Pre-order:
1-3 business days
3 year warranty
Lifetime support
30-day return policy
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
5U GPU server configurator
AMD Dual EPYC
19" housing in 5U format based on the AMD EPYC Genoa (So. SP5) processors.
Technical details

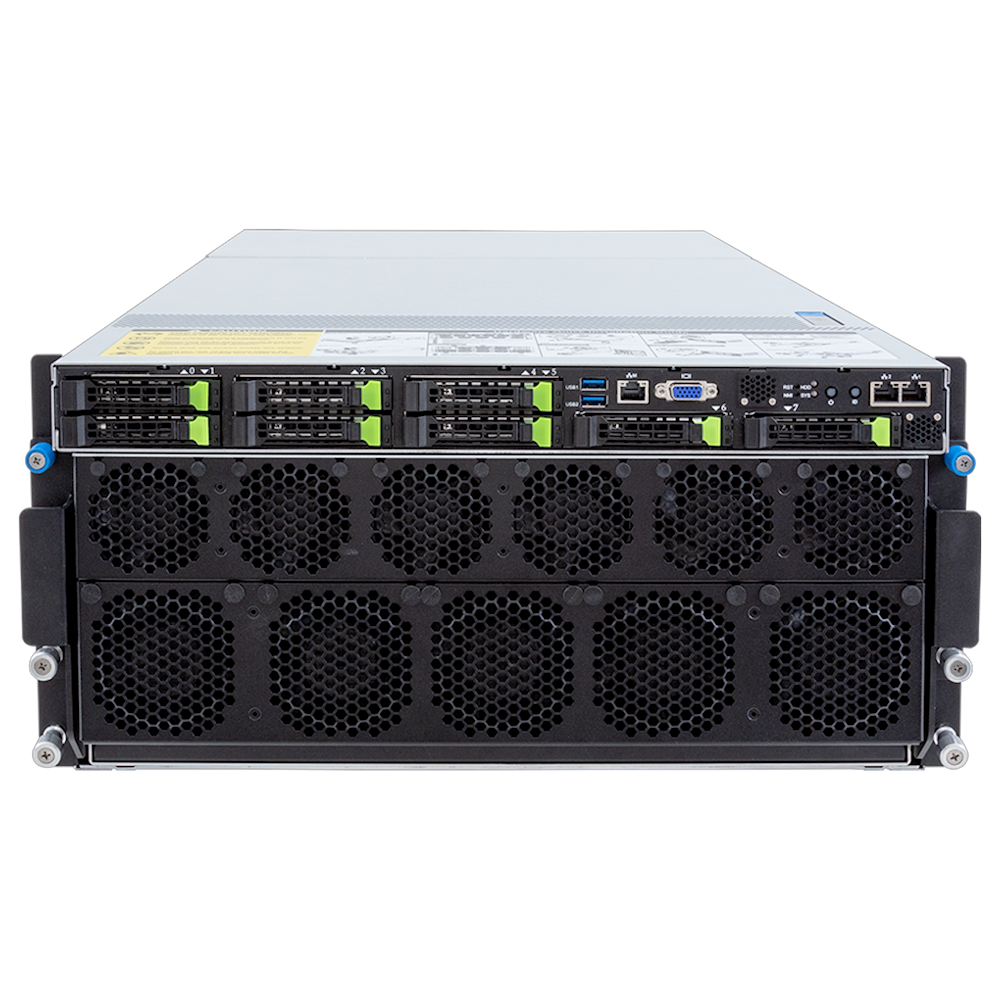

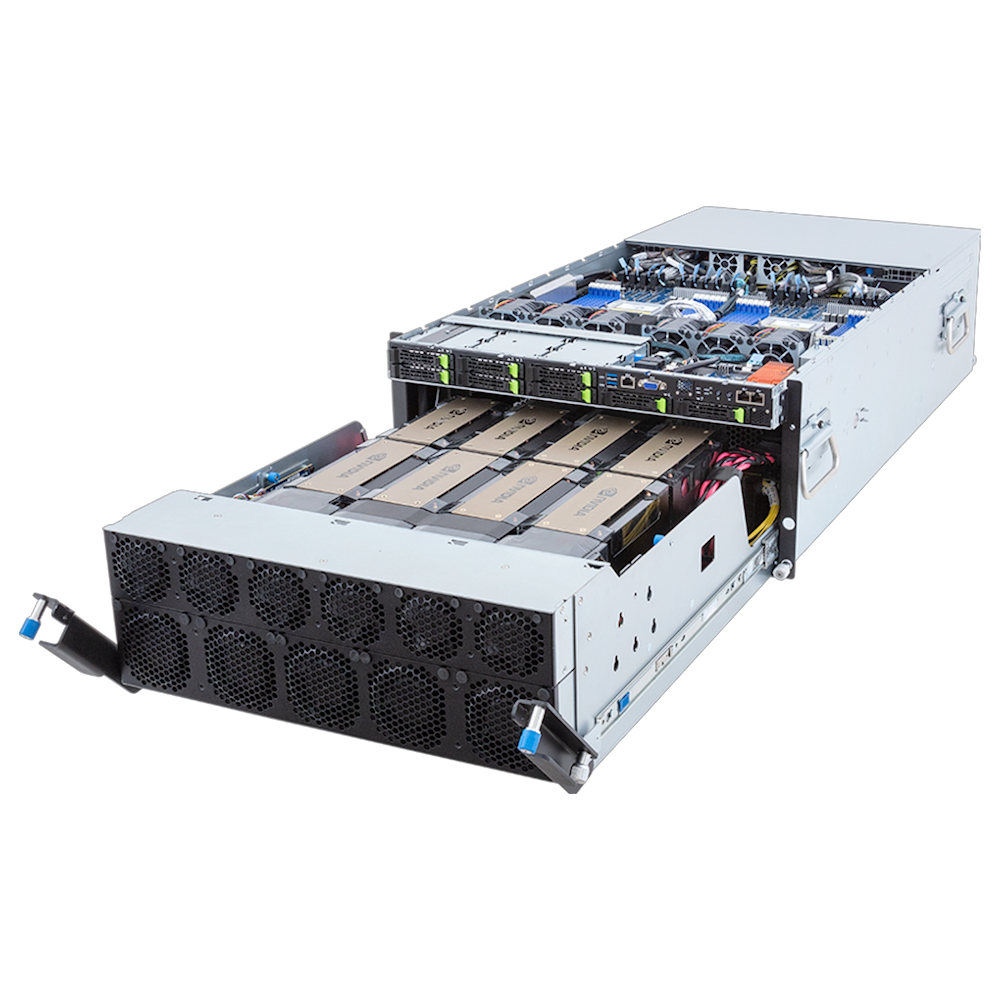

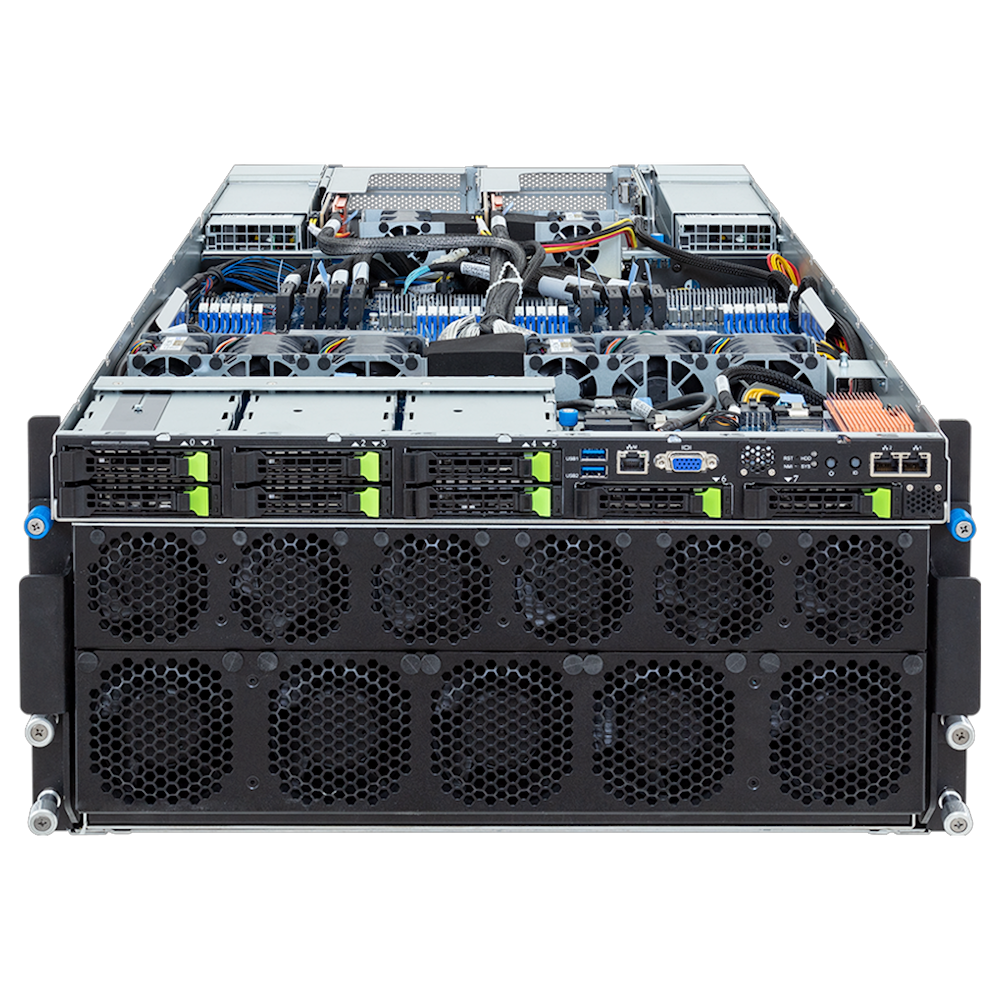

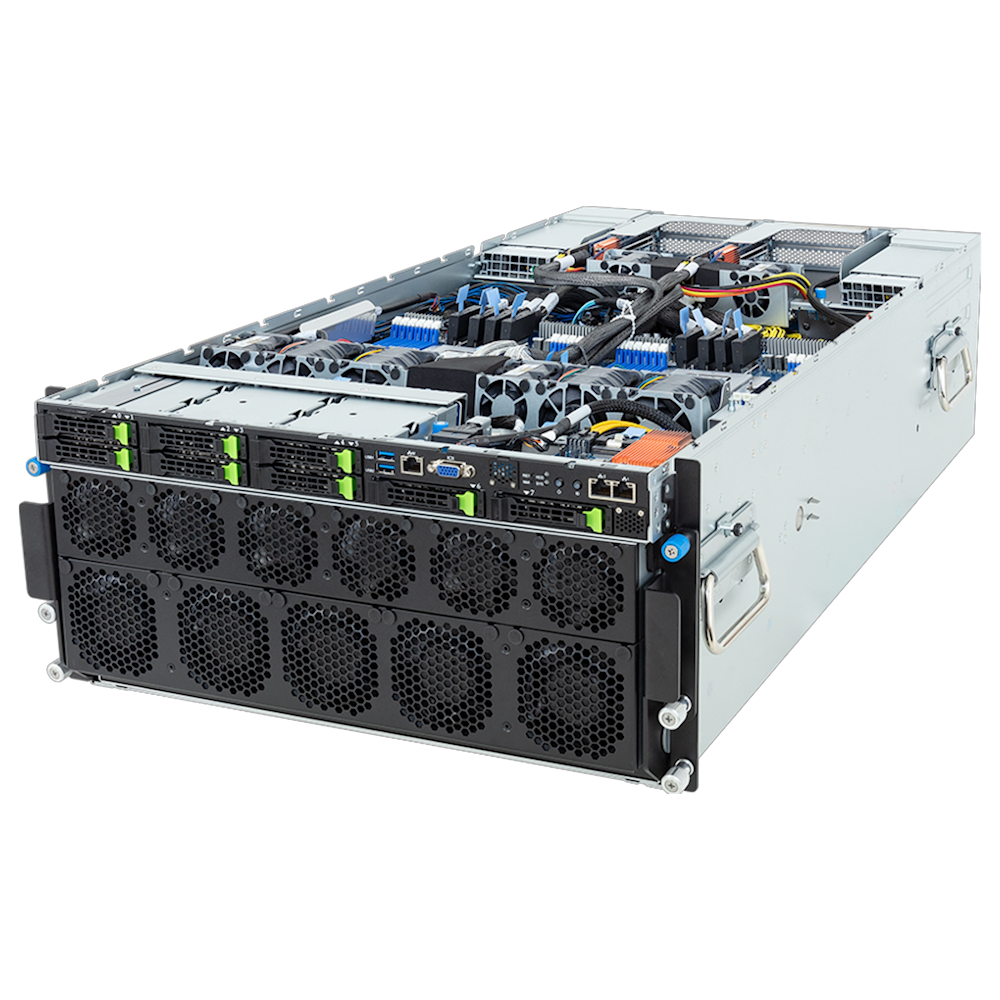

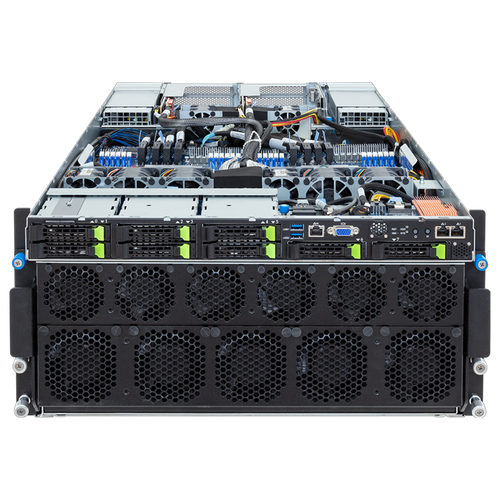

5U GPU server configurator - AMD Dual EPYC

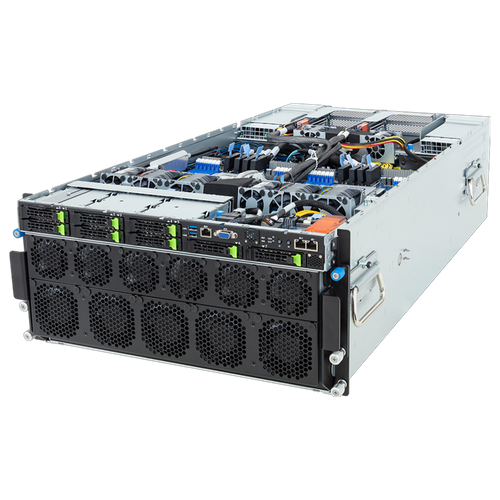

- 5U server enclosure - GigabyteThe Gigabyte G593-ZD1 server system offers you maximum performance based on two powerful AMD EPYC 9005 Turin processors. The system's memory can be expanded by 24 DDR5 DIMMs up to 2,304GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. 8x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency - ideal for data-intensive workloads. The system is equipped with eight NVIDIA H200 HGX accelerators and is therefore ideally equipped for AI, deep learning and complex simulations. Configure the Gigabyte G593-ZD1 now according to your individual needs and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)2x USB 3.2, 1x VGA, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- Number of PCIe slots8x LP x16 (Gen5 x16), 4x FHHL x16 (Gen5 x16)
- Number of hot swap slots8x 2.5" Gen5 NVMe/SATA/SAS-4
- Number of NVMe drives8x 2.5" Gen5 NVMe/SATA/SAS-4
- Server power supply4+2 3000W 80 PLUS Titanium
- Number of OCP 3.0 slotsN/A
- CPU support2x AMD SP5

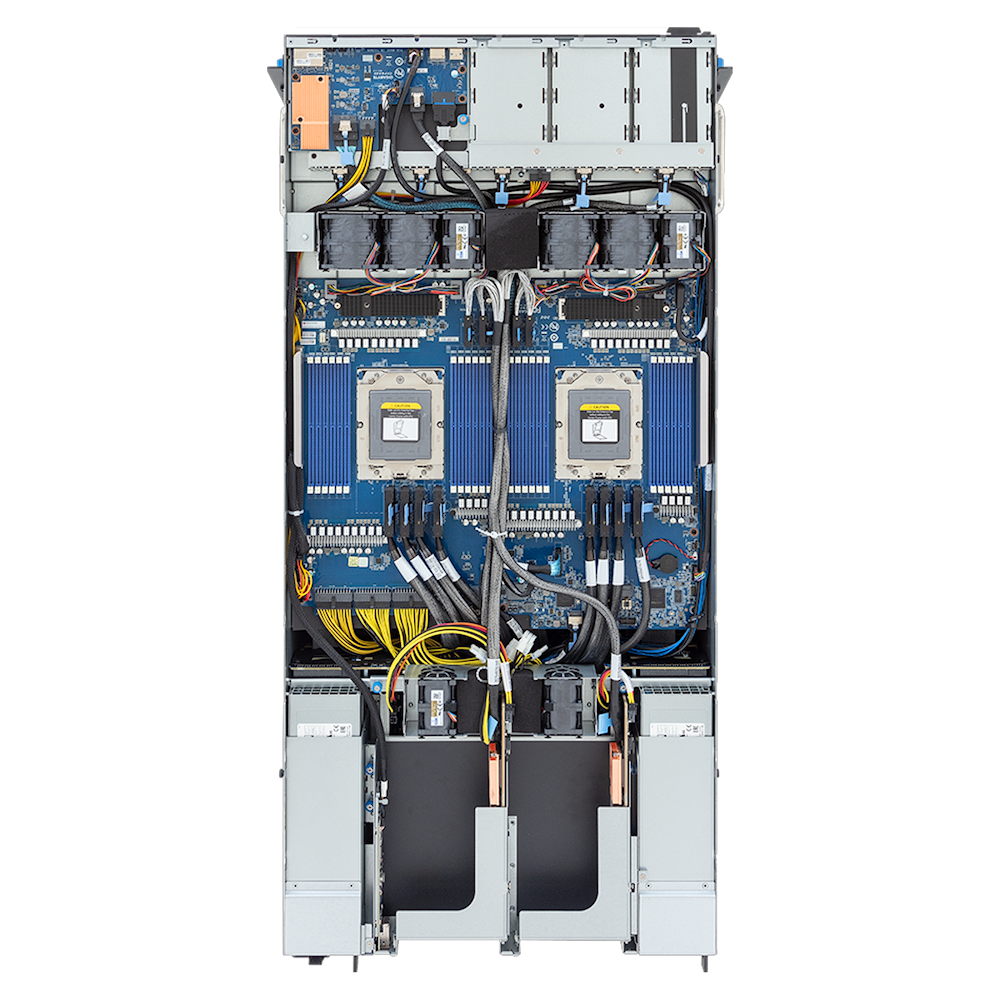

- Main boardGigabyte MZB3-G43
- Number of DIMM slots24x DDR5
- CPU thermal design power400 watts
- Height unit5U
- Dimensions (WxHxD)447mm x 220 mm x 945mm (WxHxD)
- Connections (rear)N/A
- 2x AMD Epyc 9015, 8x 3.6GHz, 64MB L3 cacheAMD EPYC 9005 Turin: redefine computing power. The advanced Zen 5 architecture delivers breakthrough performance per core, combined with even higher core counts and support for DDR5 and PCIe 5.0. The pinnacle for AI, HPC and future-proof cloud infrastructures.
Technical details - Processor cores8
- BaseAMD SP5
- Processor threads16
- Base clock3.60GHz
- Turbo beat4.10GHz
- L2 cache8MB (8x 1MB)
- L3 cache64MB (4x 16MB)
- TDP155W
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0
- Memory controller12 Channel DDR5-6000 (PC5-48000, 576GB/s), max. 6TB
- ManufacturingZen 5
- Code nameTurin

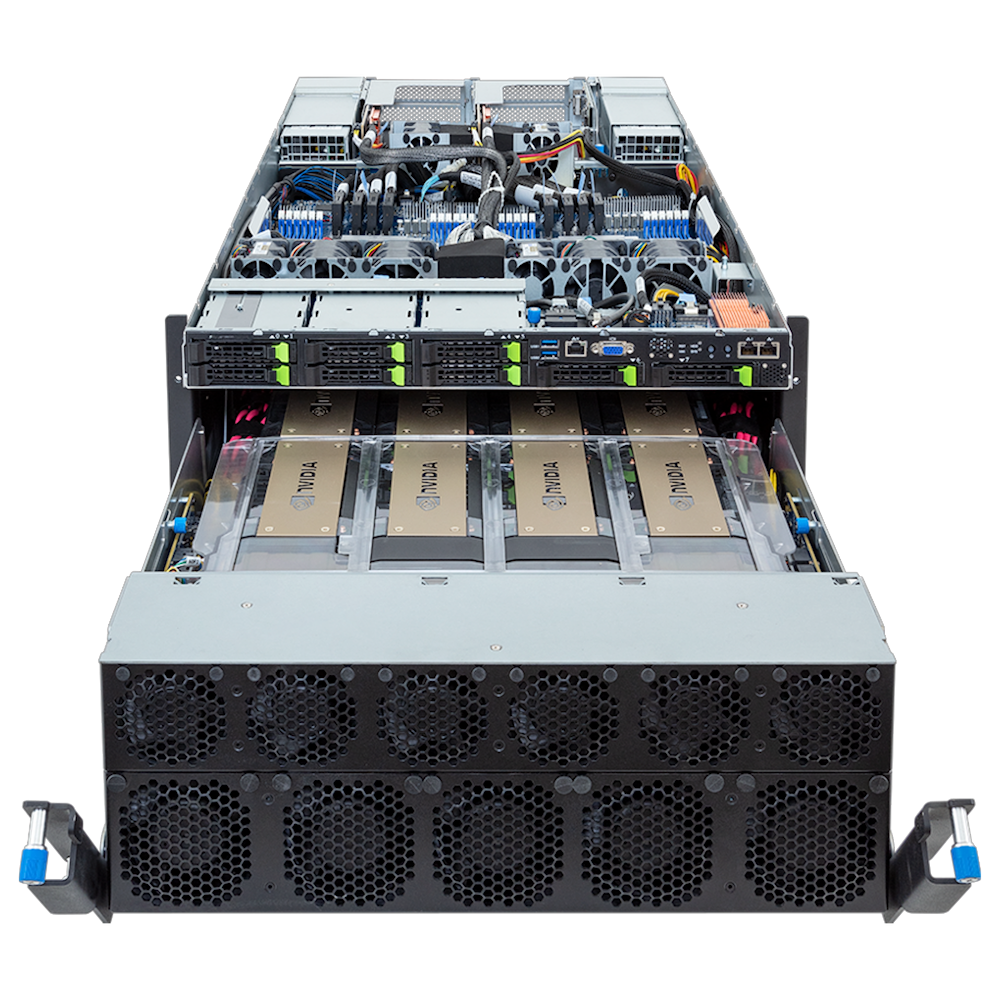

- NVIDIA H200 SXM, 141GB
Technical details - Memory type141GB HBM3e with ECC mode
- API supportN/A
- PCIe cut pointN/A
- GPU typeNVIDIA H200 SXM 141GB
- VRAM141GB
- GPU fanPassive cooling
- Power consumptionN/A
- Dimensions (WxHxD)N/A
- Special featuresN/A
- Power supplyN/A
- Connections (rear)N/A
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front

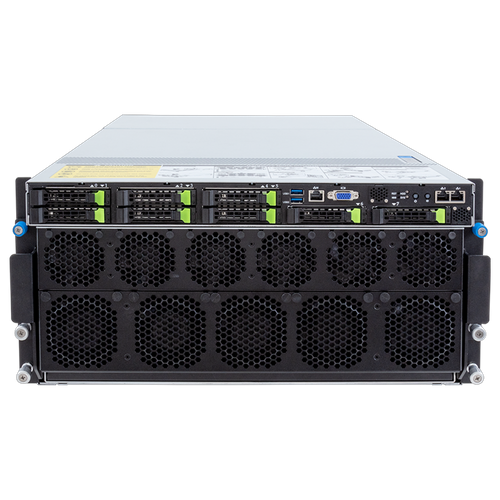

2x USB 3.2, 1x VGA, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)

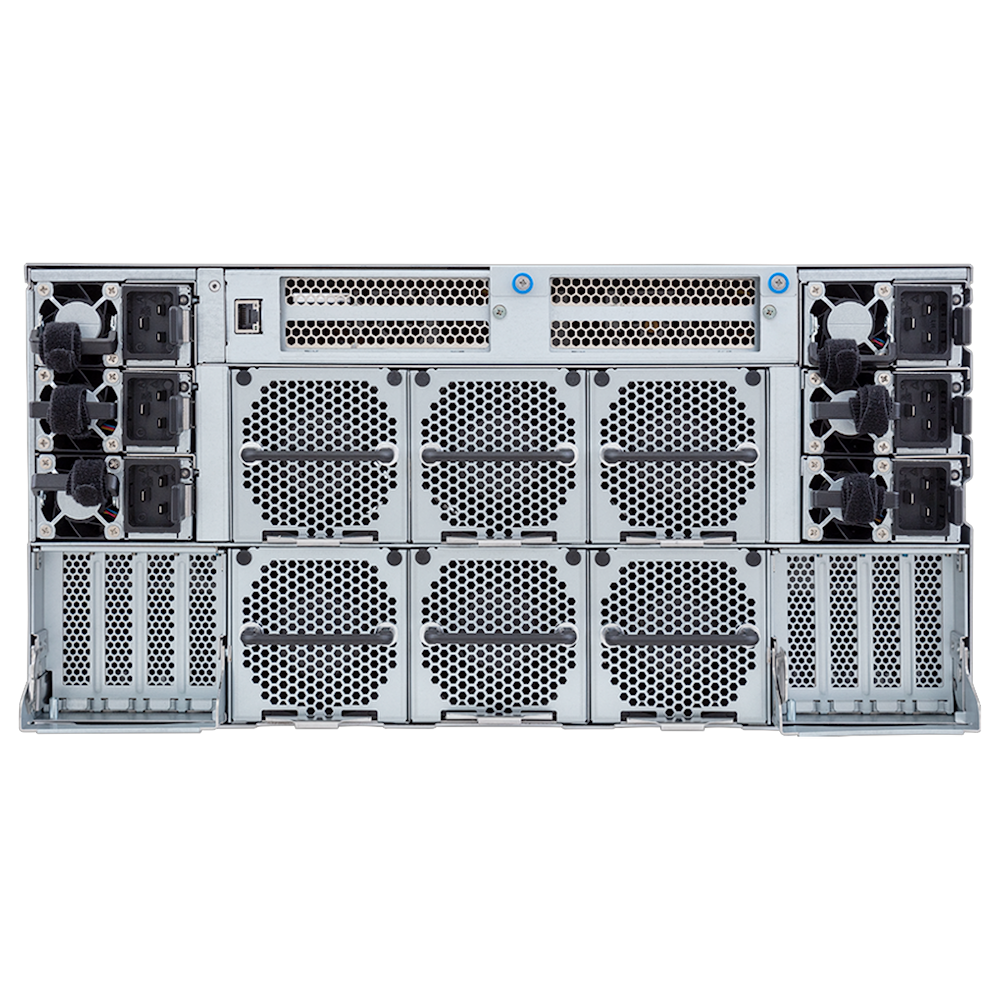

Rear

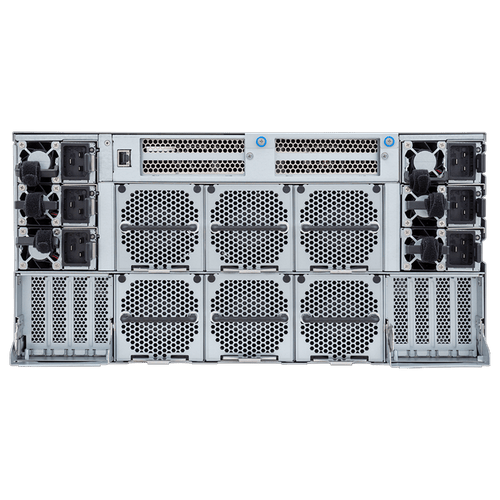

N/A, N/A
