H200
ID: 23884
4U GPU Server Configurator - AMD Dual EPYC
20.549
,-
incl. VAT plusShipping
Pre-order:
1-3 Werktage
3 year warranty
Lifetime support
30-day return policy
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
4U GPU Server Configurator
AMD Dual EPYC
19" housing in 4U format based on the AMD EPYC Genoa (So. SP5) processors.
Technical details
4U GPU Server Configurator - AMD Dual EPYC

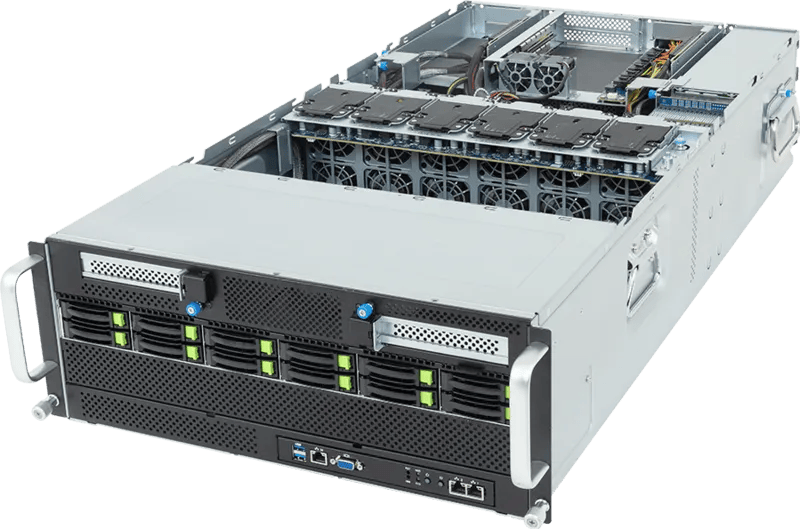

- 4U server enclosure - GigabyteThe Gigabyte G494-ZB4 server system offers you maximum performance based on two powerful AMD EPYC 9005 Turin processors. The system's memory can be expanded by 48 DDR5 DIMMs up to 4,608GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 12x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays, which enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency - ideal for data-intensive workloads. The system also offers space for up to eight graphics cards and is therefore ideally equipped for AI, deep learning and complex simulations. Configure the Gigabyte G494-ZB4 now according to your individual needs and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)2x USB 3.2, 1x VGA, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- Number of PCIe slots10x FHFL x16 (Gen5 x16), 3x LP x16 (Gen5 x16)
- Number of hot swap slotsN/A
- Number of NVMe drives12x 2.5" Gen5 NVMe/SATA/SAS-4
- Server power supply4x 3000W 80 PLUS Titanium
- Number of OCP 3.0 slotsN/A
- CPU support2x AMD SP5
- Main boardGigabyte MZB3-G41
- Number of DIMM slots48x DDR5
- CPU thermal design power400 watts
- Height unit4U
- Dimensions (WxHxD)448mm x 176mm x 880mm (WxHxD)
- Connections (rear)N/A
- 2x AMD Epyc 9015, 8x 3.6GHz, 64MB L3 cacheAMD EPYC 9005 Turin: redefine computing power. The advanced Zen 5 architecture delivers breakthrough performance per core, combined with even higher core counts and support for DDR5 and PCIe 5.0. The pinnacle for AI, HPC and future-proof cloud infrastructures.
Technical details - Processor cores8
- BaseAMD SP5
- Processor threads16
- Base clock3.60GHz
- Turbo beat4.10GHz
- L2 cache8MB (8x 1MB)
- L3 cache64MB (4x 16MB)
- TDP155W
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0
- Memory controller12 Channel DDR5-6000 (PC5-48000, 576GB/s), max. 6TB
- ManufacturingZen 5
- Code nameTurin
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
2x USB 3.2, 1x VGA, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
Rear
N/A
