2U server configurator - Intel Dual Xeon Scalable
Intel Xeon Scalable v5
Max. 3,072GB DDR5 ECC RAM
12x 3.5" Gen4 NVMe/SATA/SAS Hot-Swap
2x 2.5" SATA/SAS Hot-Swap
9.999
,-
incl. VAT plusShipping
182
,61
Pre-order:
approx. 1 month
3 year warranty
Lifetime support
>20 years of experience
/month
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
2U server configurator
Intel Dual Xeon Scalable

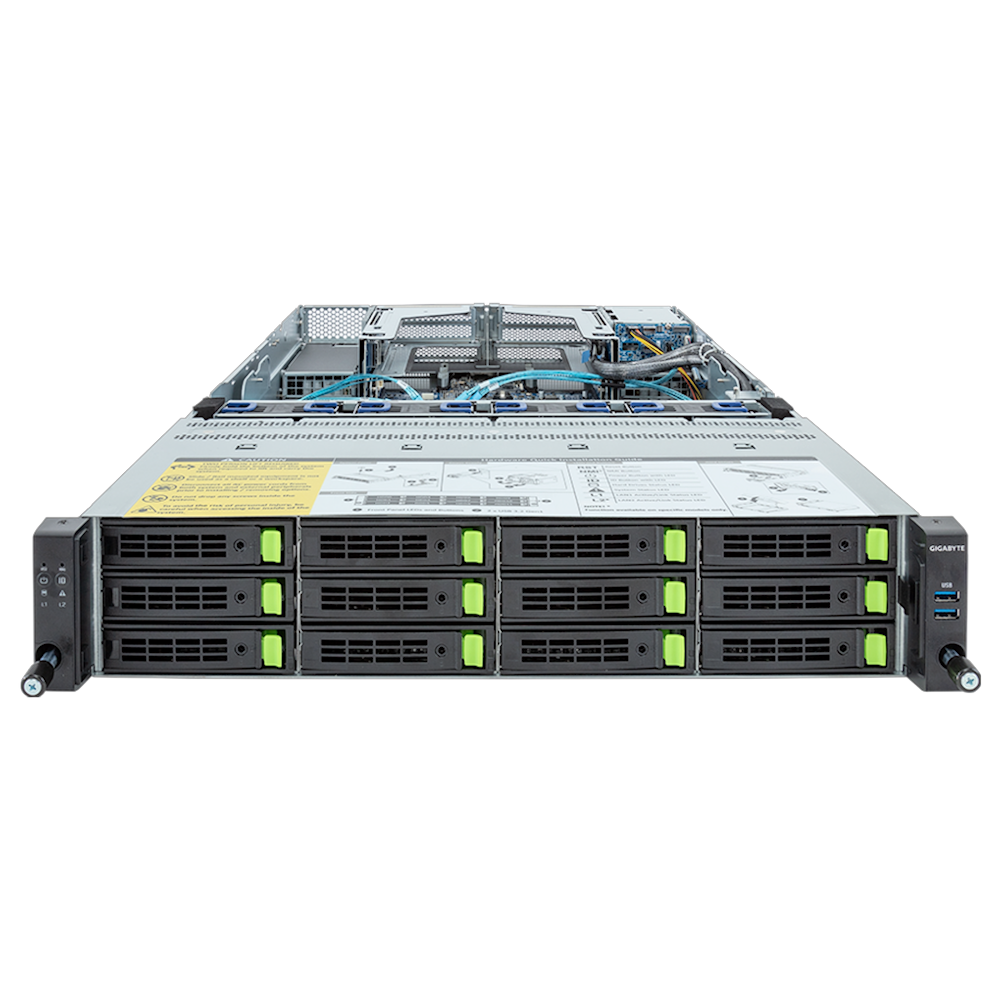

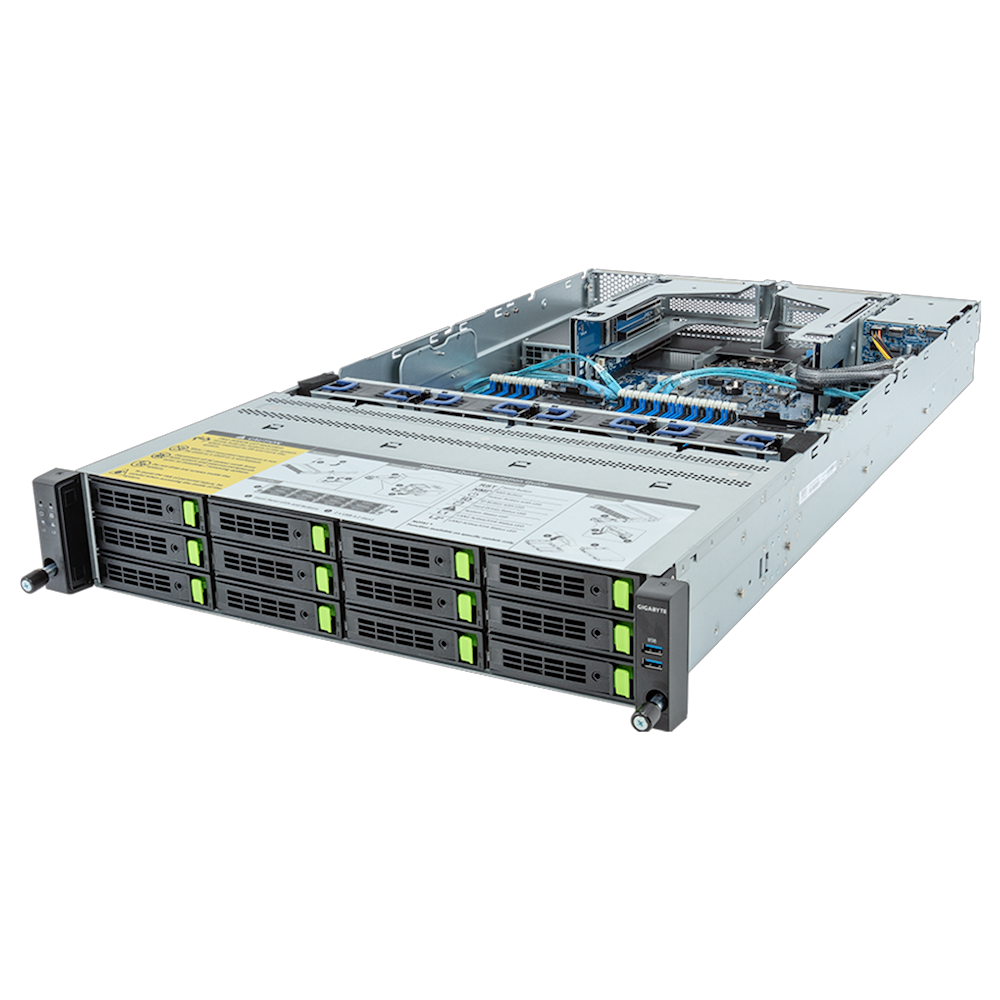

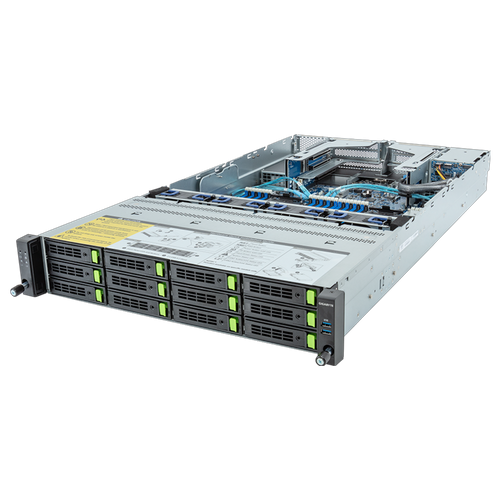

19" housing in 2U format based on Intel Xeon Scalable (So. 4677) processors.
Technical details
2U server configurator - Intel Dual Xeon Scalable
- 2U server enclosure - GigabyteThe Gigabyte R283-S94 server system offers you maximum performance based on two powerful Intel Xeon Scalable v5 processors. The system's memory can be expanded by 32 DDR5 DIMMs up to 3,072GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 2x 2.5" SATA/SAS hot-swap bays for cost-efficient mass storage. In addition, 12x 3.5" Gen4 NVMe/SATA/SAS hot-swap bays enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency - ideal for data-intensive workloads. The network connection is ensured by two flexible OCP NIC 3.0 slots. These allow you to equip the system with suitable network cards for speeds from 10GbE up to 200GbE and thus optimally integrate it into your existing infrastructure. Configure the Gigabyte R283-S94 now according to your individual requirements and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)2x USB 3.2
- Number of PCIe slots4x FHHL x16 (Gen5 x16)
- Number of hot swap slots2x 2.5" SATA/SAS
- Number of NVMe drives12x 3.5"/2.5" Gen4 NVMe/SATA/SAS
- Server power supplyDual 1600W 80 PLUS Titanium
- Number of OCP 3.0 slots2x OCP NIC 3.0 (Gen5 x16)
- CPU support2x Intel LGA 4677

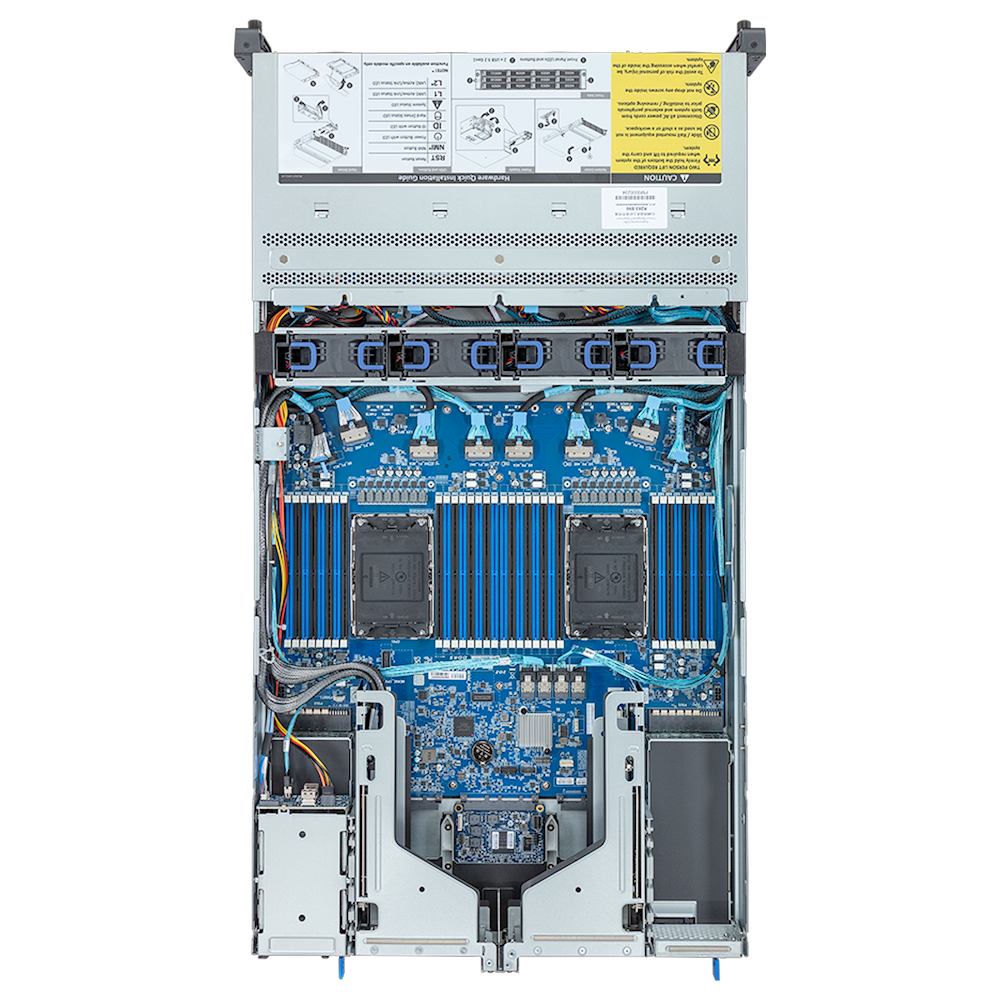

- Main boardGigabyte MS93-FS1
- Number of DIMM slots32x DDR5
- CPU thermal design power350
- Height unit2U
- Dimensions (WxHxD)438mm x 87.5mm x 815mm (WxHxD)

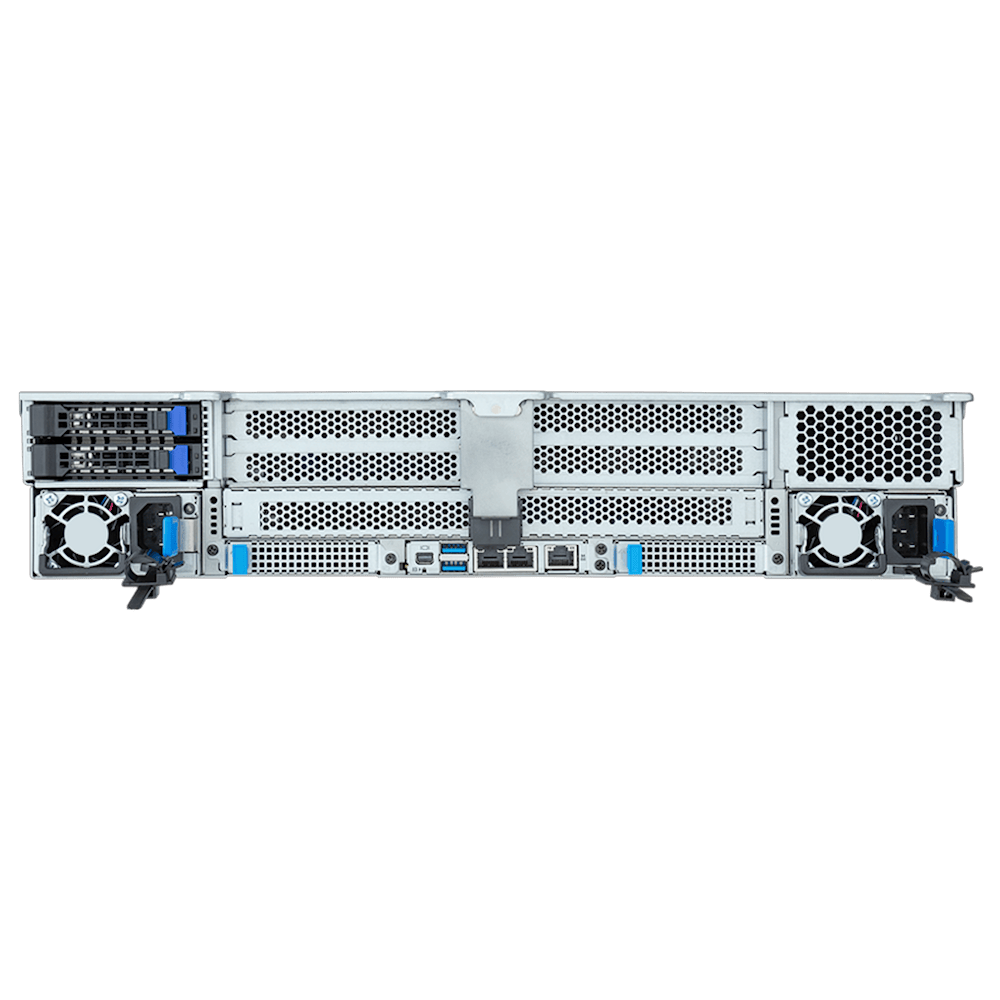

- Connections (rear)2x USB 3.2, 1x Mini-DP, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- 2x Intel Xeon Silver 4509Y, 8x 2.6GHz, 22.5MB L3 cache5th generation Intel Xeon Scalable processors: The optimized server CPU for top performance. Benefit from more cores, significantly larger cache and faster DDR5 memory on a proven platform with PCIe 5.0 and integrated accelerators. Ideal for demanding AI, HPC and cloud workloads.
Technical details - Processor cores8
- BaseLGA 4677
- Processor threads16
- Base clock2.60 GHz
- Turbo beat4.10 GHz
- L2 cache16MB (8x 2MB)
- L3 cache22.5MB
- TDP125 Watt
- iGPU type (label)N/A
- PCIe lanes80x PCIe 5.0
- Memory controller8 Channel DDR5-4400 (PC5-35200, 281.6GB/s), max. 4TB
- ManufacturingIntel 7
- Code nameSapphire Rapids-SP, Plattform: Eagle Stream
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
2x USB 3.2
Rear
2x USB 3.2, 1x Mini-DP, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
