2U server configurator - AMD Dual EPYC
AMD EPYC 9005 Turin
24x 2.5" Gen5 NVMe Hot-Swap
Max. 2,304GB DDR5 ECC RAM
4x 2.5" SATA/SAS-4 Hot-Swap
9.699
,-
incl. VAT plusShipping
177
,13
Pre-order:
approx. 3 months
3 year warranty
Lifetime support
30-day return policy
/month
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
2U server configurator
AMD Dual EPYC
19" housing in 2U format based on the AMD EPYC Turin (So. SP5) processors.
Technical details
2U server configurator - AMD Dual EPYC

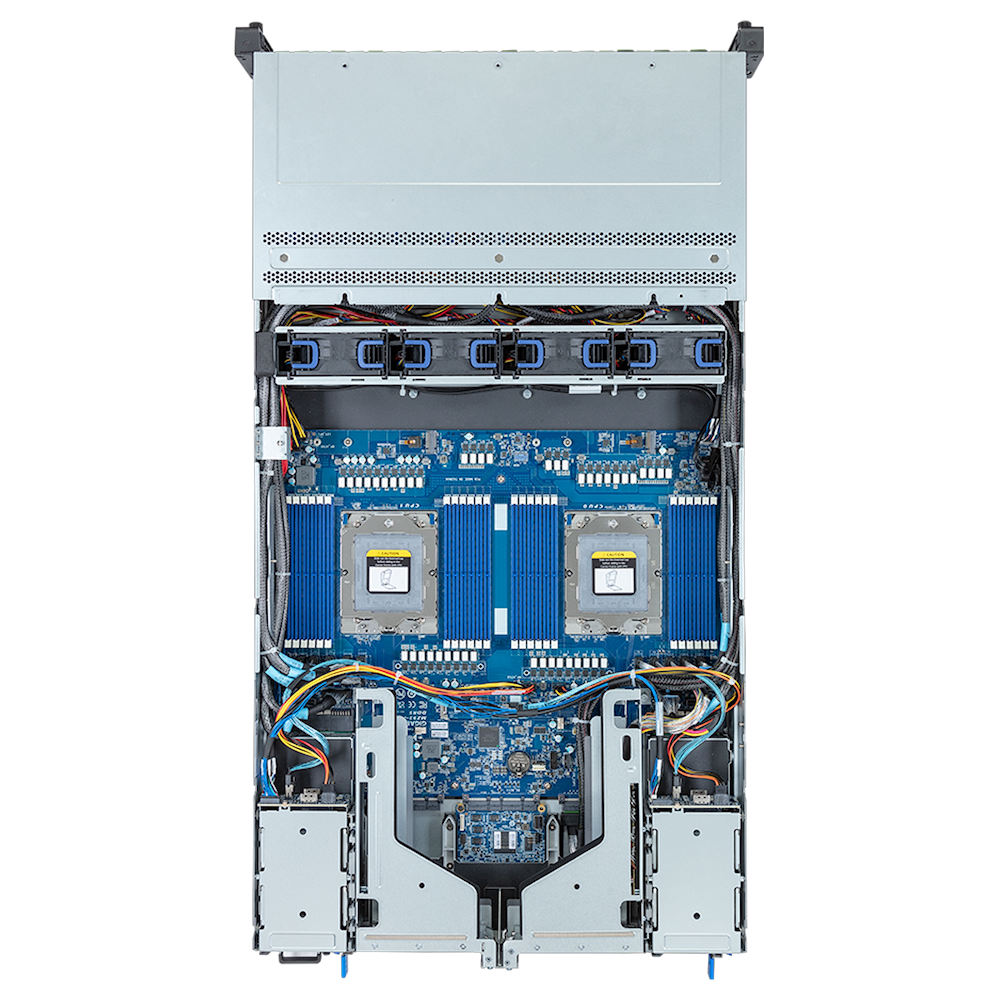

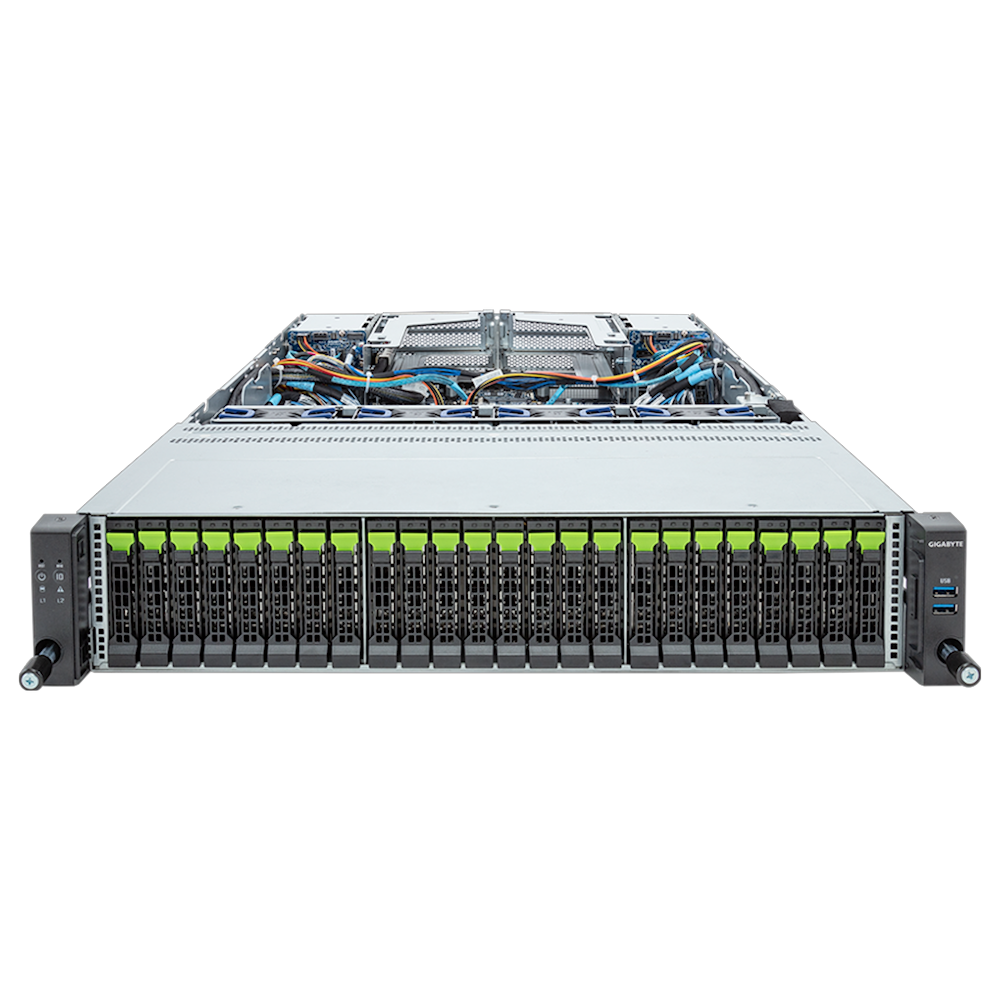

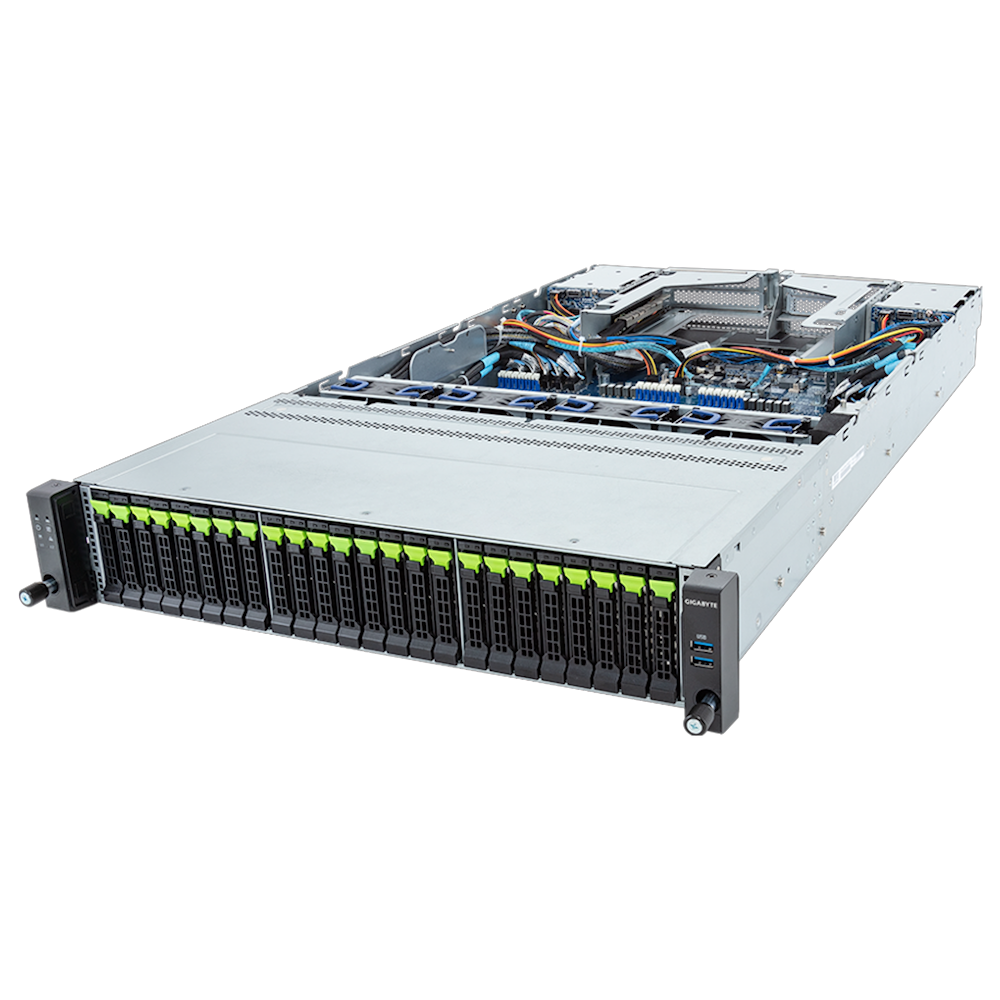

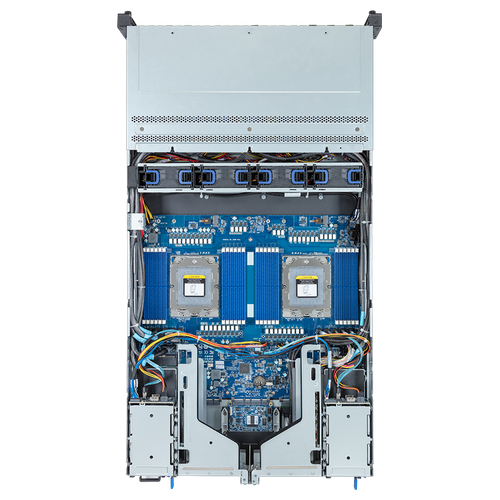

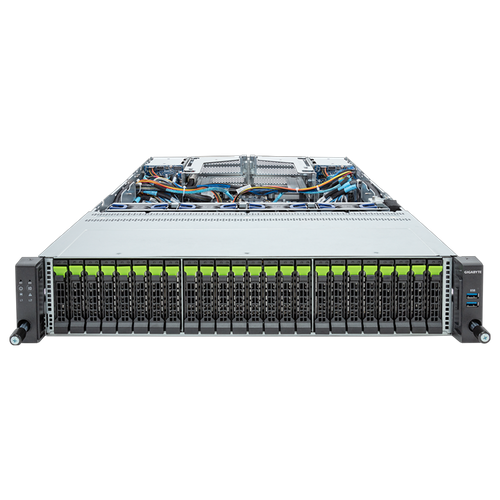

- 2U server enclosure - GigabyteThe Gigabyte R283-Z96 server system offers you maximum performance based on two powerful AMD EPYC 9005 Turin processors. The system's memory can be expanded by 24 DDR5 DIMMs up to 2,304 GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 4x 2.5" SATA/SAS-4 hot-swap bays for cost-efficient mass storage. In addition, 24x 2.5" Gen5 NVMe hot-swap bays enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency - ideal for data-intensive workloads. The network connection is ensured by a flexible OCP NIC 3.0 slot. This allows you to equip the system with suitable network cards for speeds from 10GbE to 200GbE and thus optimally integrate it into your existing infrastructure. Configure the Gigabyte R283-Z96 now according to your individual requirements and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)2x USB 3.2
- Number of PCIe slots1x FHHL x16 (Gen5 x16)
- Number of hot swap slots4x 2.5" SATA/SAS-4
- Number of NVMe drives24x 2.5" Gen5 NVMe
- Server power supply1+1 2400W 80 PLUS Platinum
- Number of OCP 3.0 slots1x OCP NIC 3.0 (Gen5 x16)
- CPU support2x AMD SP5
- Main boardGigabyte MZ93-FS1
- Number of DIMM slots24x DDR5
- CPU thermal design power400 watts
- Height unit2U
- Dimensions (WxHxD)438mm x 87.5mm x 815mm (WxHxD)

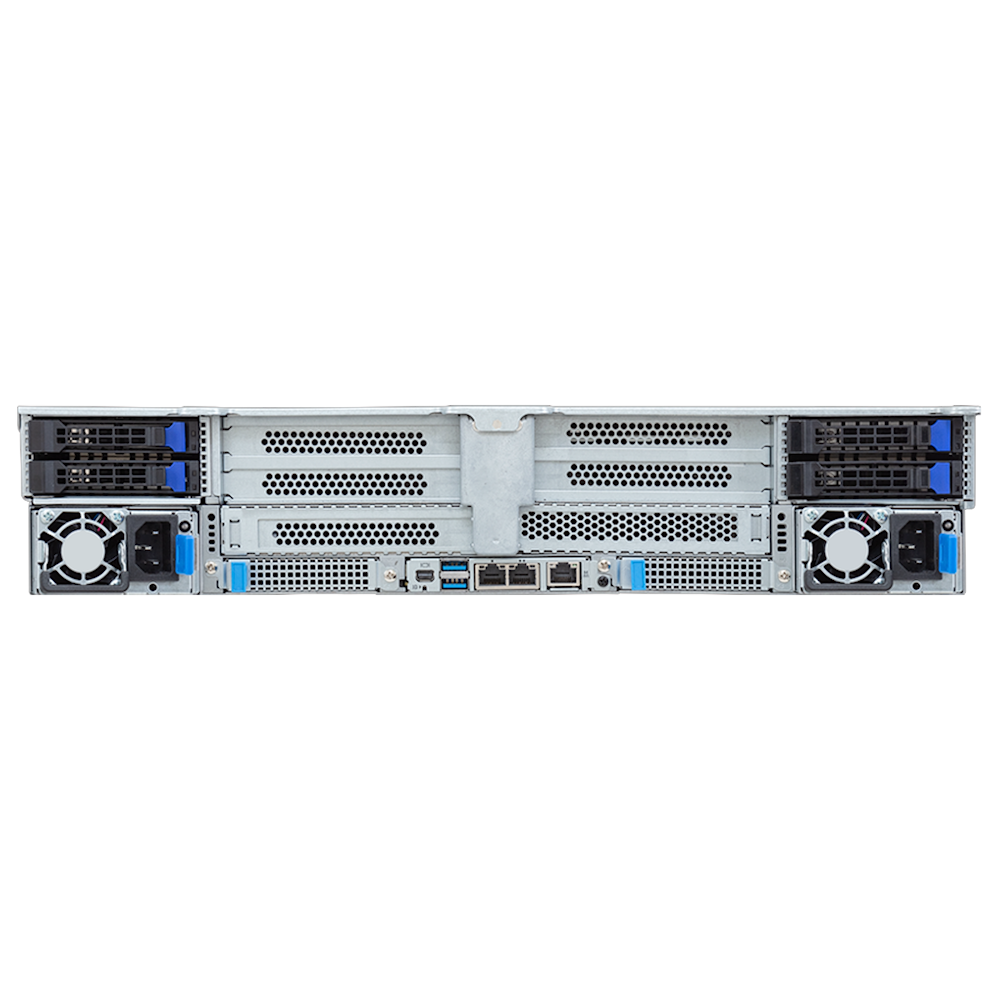

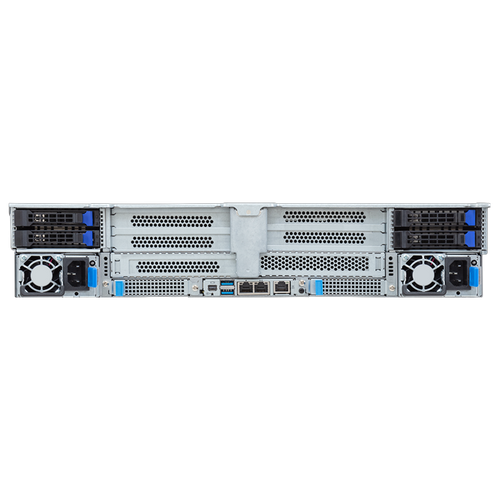

- Connections (rear)2x USB 3.2, 1x Mini-DP, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- 2x AMD Epyc 9015, 8x 3.6GHz, 64MB L3 cacheAMD EPYC 9005 Turin: redefine computing power. The advanced Zen 5 architecture delivers breakthrough performance per core, combined with even higher core counts and support for DDR5 and PCIe 5.0. The pinnacle for AI, HPC and future-proof cloud infrastructures.
Technical details - Processor cores8
- BaseAMD SP5
- Processor threads16
- Base clock3.60GHz
- Turbo beat4.10GHz
- L2 cache8MB (8x 1MB)
- L3 cache64MB (4x 16MB)
- TDP155W
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0
- Memory controller12 Channel DDR5-6000 (PC5-48000, 576GB/s), max. 6TB
- ManufacturingZen 5
- Code nameTurin
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
2x USB 3.2
Rear
2x USB 3.2, 1x Mini-DP, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
