H200
ID: 23881
2U GPU Server Configurator - Intel Xeon 6
Intel Xeon 6
8x 2.5" SATA/SAS-4 Hot-Swap
Max. 1,152GB DDR5 ECC RAM
Up to 4x NVIDIA H200
19.499
,-
incl. VAT plusShipping
Pre-order:
approx. 3 months
3 year warranty
Lifetime support
30-day return policy
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
2U GPU Server Configurator
Intel Xeon 6
19" housing in 2U format based on Intel Xeon 6 (So. 7529) processors.
Technical details
2U GPU Server Configurator - Intel Xeon 6

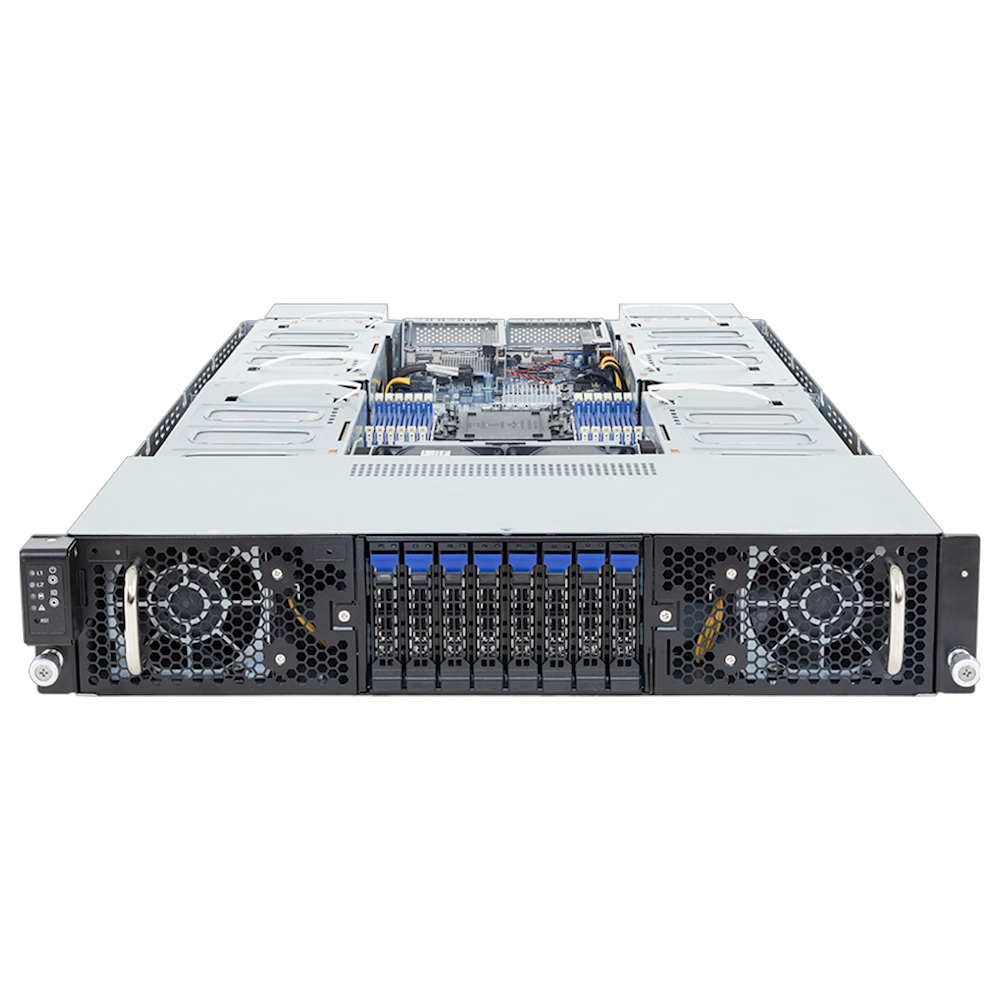

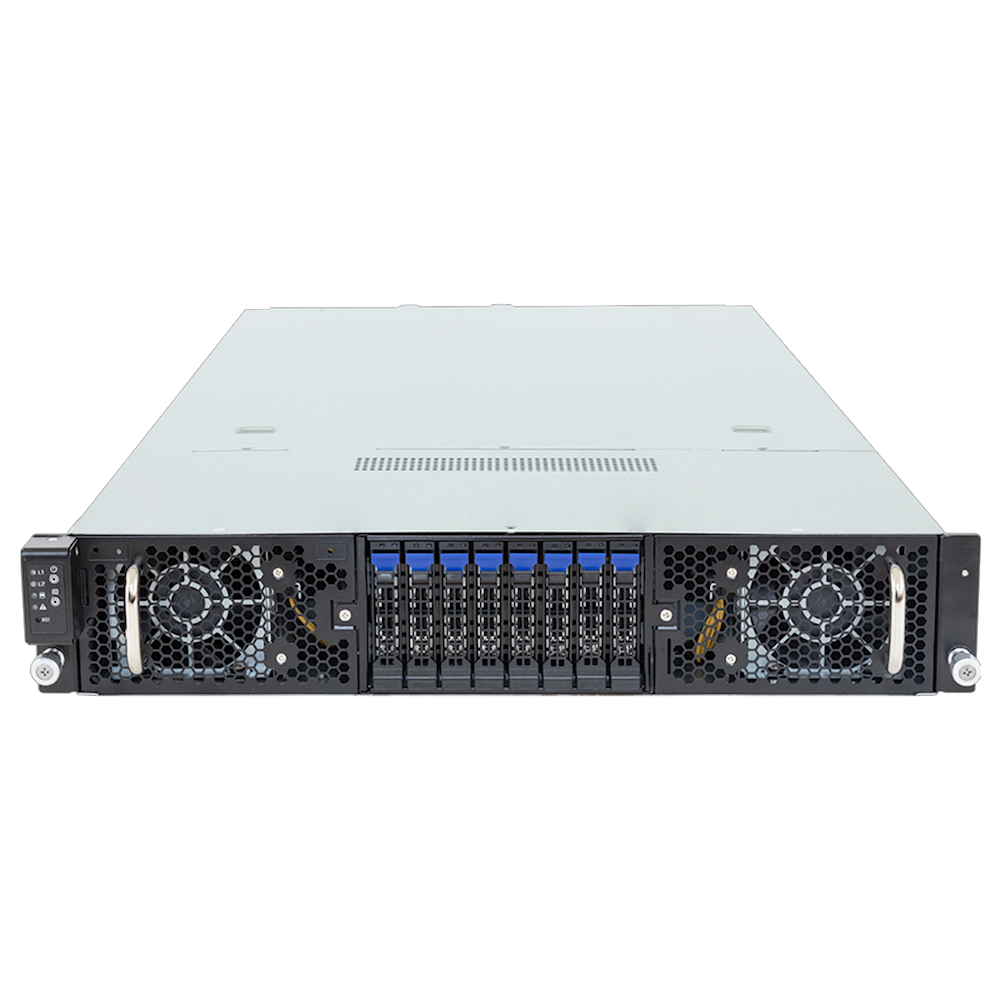

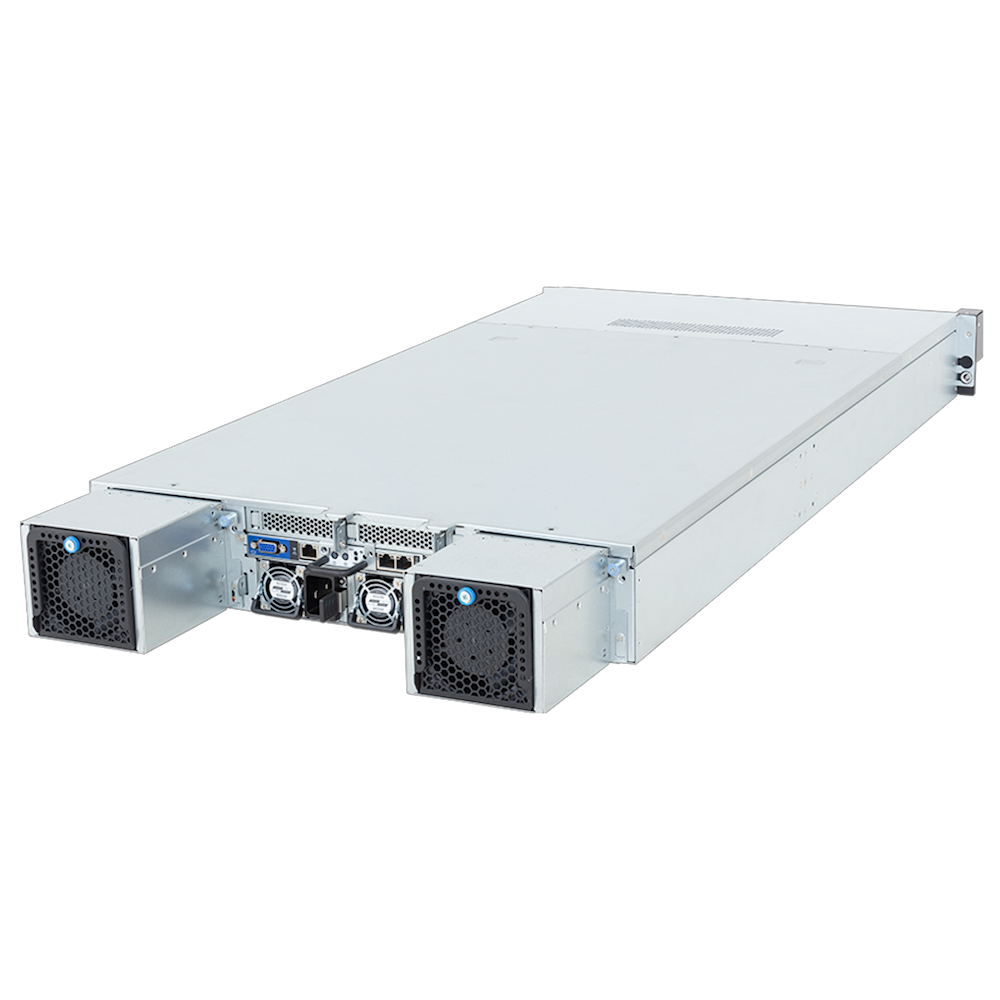

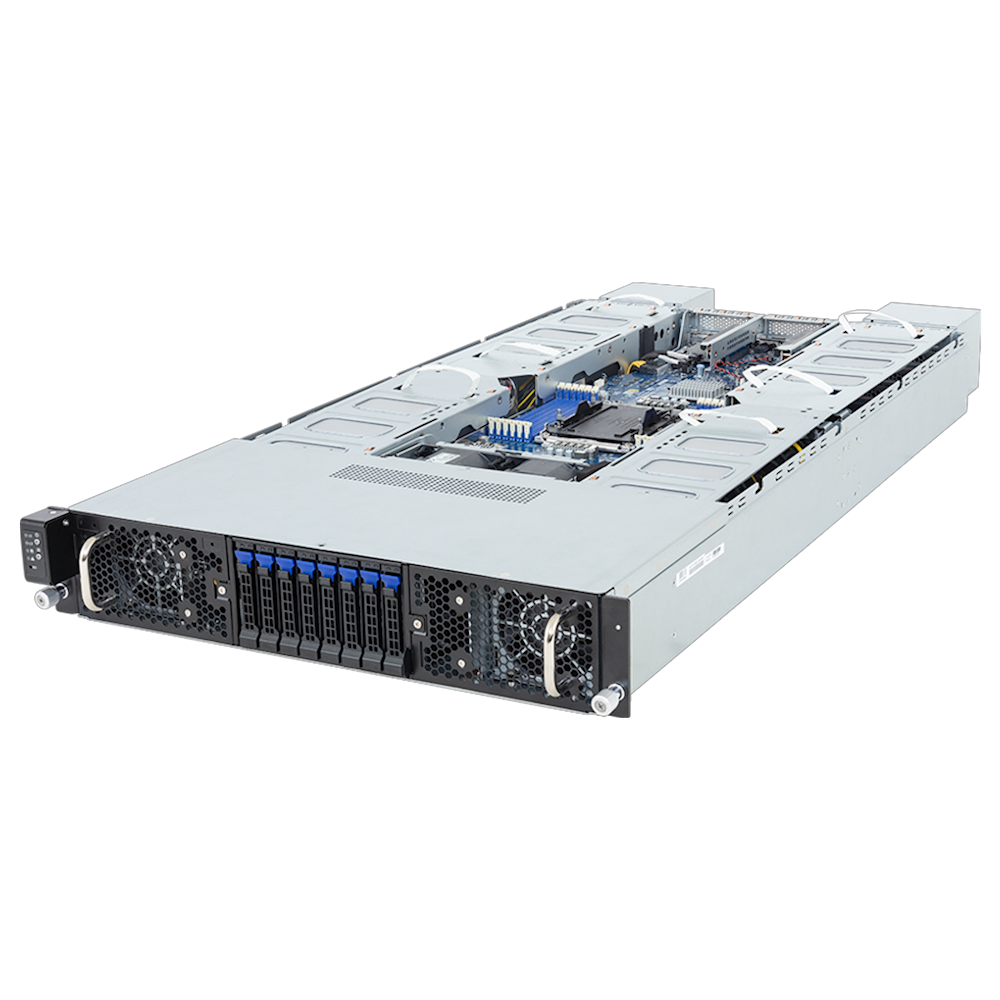

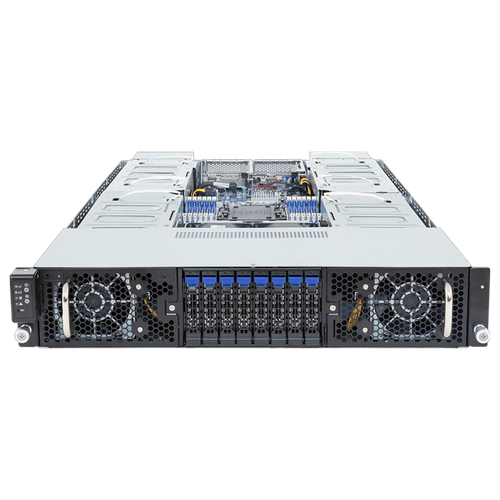

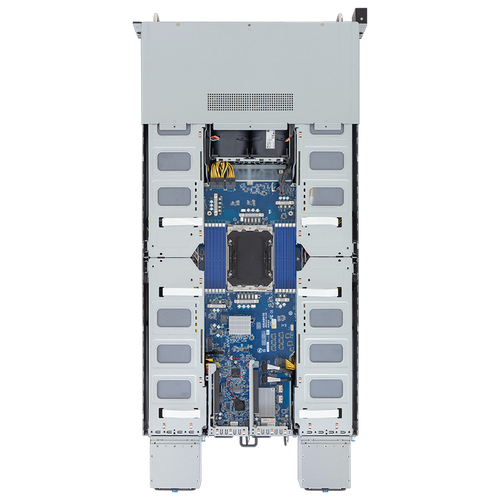

- 2U server enclosure - GigabyteThe Gigabyte G294-A22 server system offers you maximum performance based on a powerful Intel Xeon 6 processor. The system's memory can be expanded by 12 DDR5 DIMMs up to 1,152 GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 8x 2.5" SATA/SAS-4 hot-swap bays for cost-efficient mass storage. The system also offers space for up to eight graphics cards and is therefore ideally equipped for AI, deep learning and complex simulations. Configure the Gigabyte G294-A22 now according to your individual needs and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)N/A

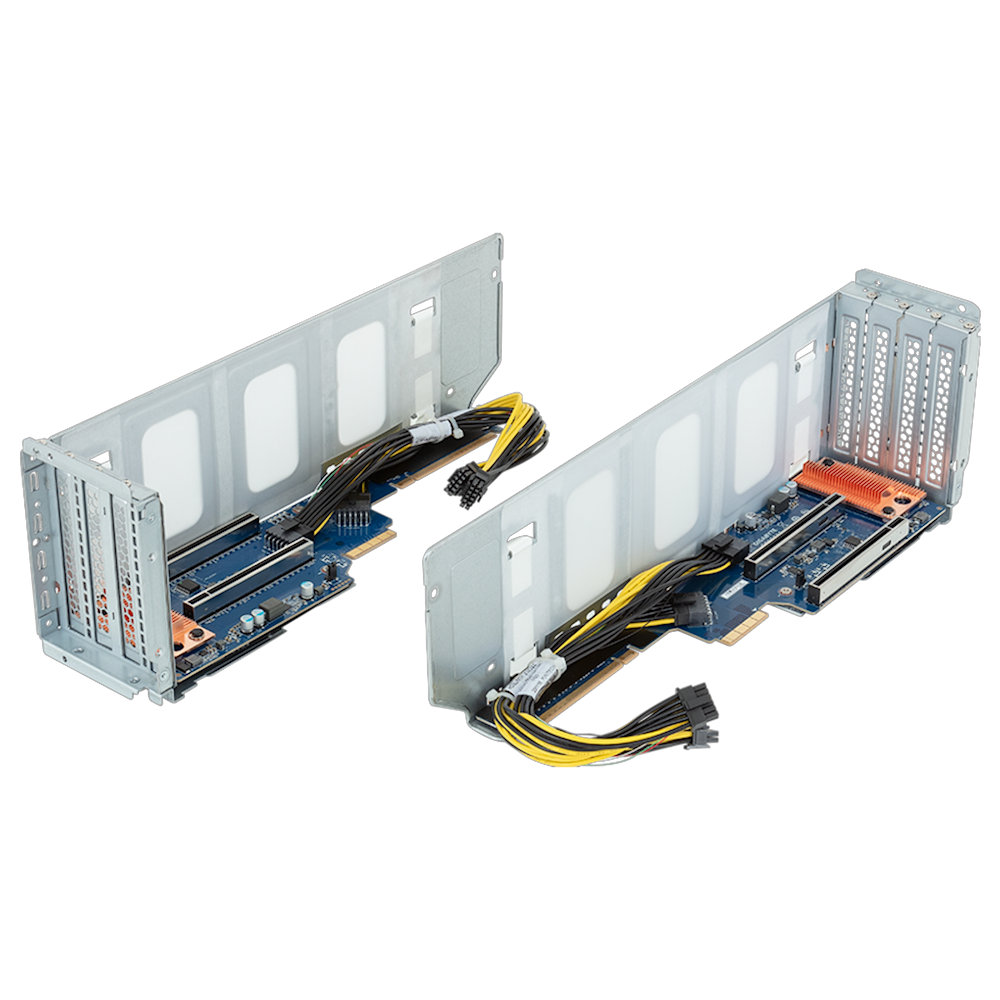

- Number of PCIe slots8x FHFL x16 (Gen5 x16), 1x LP x16 (Gen5 x16), 1x LP x16 (Gen5 x8)
- Number of hot swap slots8x 2.5" SATA/SAS-4
- Number of NVMe drivesN/A
- Server power supplyDual 3000W 80 PLUS Titanium
- Number of OCP 3.0 slotsN/A
- CPU support1x Intel LGA 7529

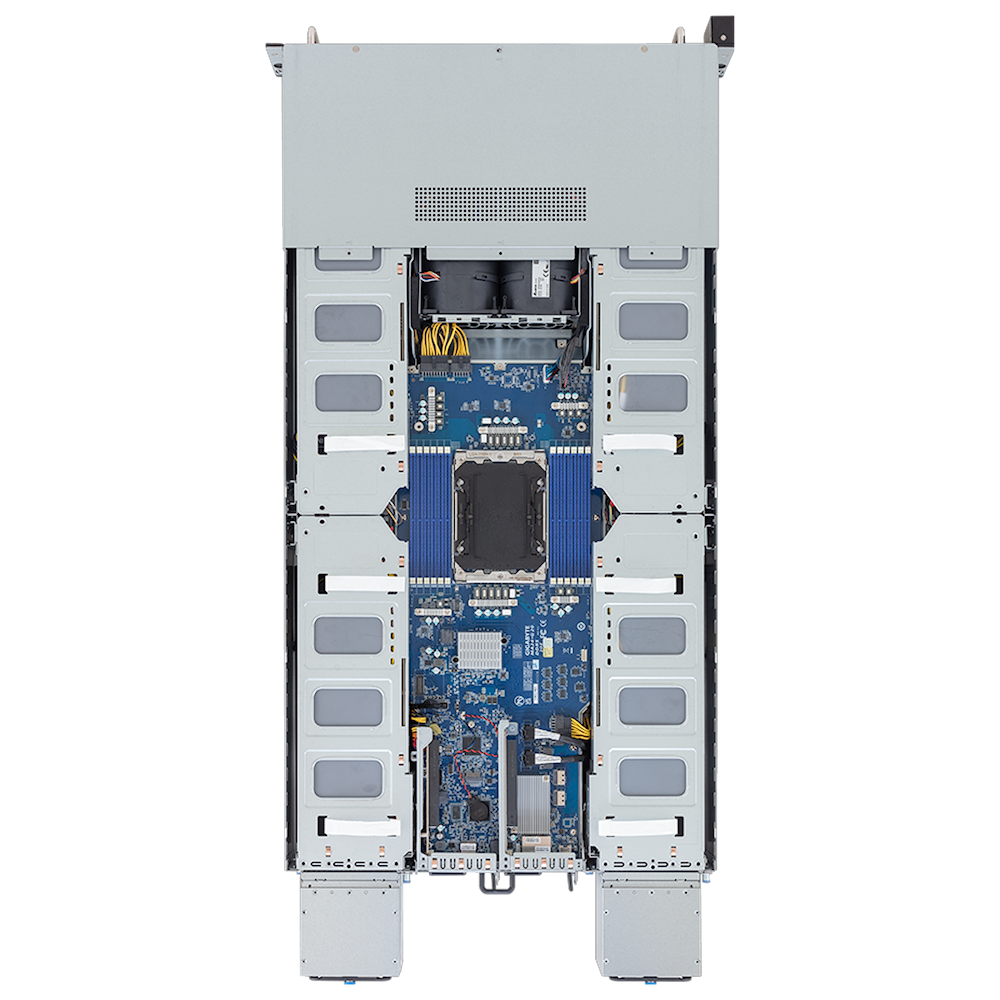

- Main boardGigabyte MA24-G20
- Number of DIMM slots12x DDR5
- CPU thermal design power500 watts
- Height unit2U
- Dimensions (WxHxD)448mm x 87.5mm x 850mm (WxHxD)

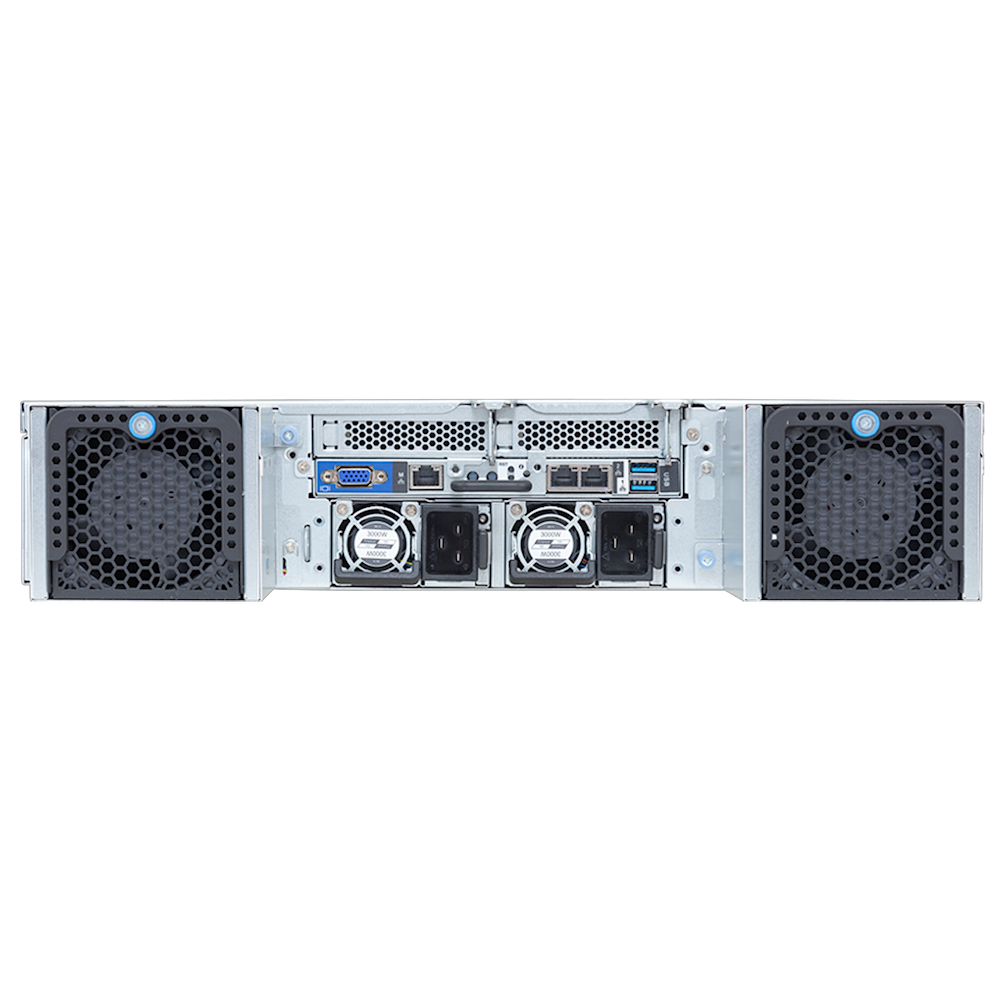

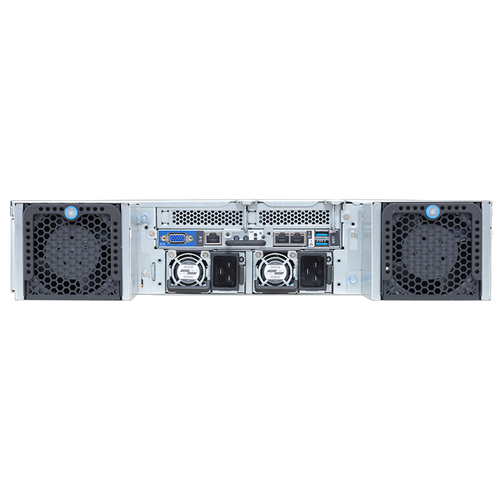

- Connections (rear)2x USB 3.2, 1x VGA, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- Intel Xeon 6952P, 72x 2.7GHz, 432MB L3 cacheIntel Xeon 6 processors: Revolutionary flexibility for your data center. Choose performance cores (P-cores) for the most demanding AI and HPC tasks or efficiency cores (E-cores) for scalable cloud workloads and superior density - both with the latest platform technology.
Technical details - Processor cores72
- BaseLGA 7529
- Processor threads144
- Base clock2.70 GHz
- Turbo beat3.90 GHz
- L2 cache144MiB (72x 2MiB)
- L3 cache432MiB
- TDP500 Watt
- iGPU type (label)N/A
- PCIe lanes96x PCIe 5.0
- Memory controller12 channel DDR5-6400 (PC5-51200, 614.4GB/s), max. DDR5-8800 MRDIMM (PC5-70400, 844.8GB/s), max. 3TB
- ManufacturingIntel 3 (CPU), Intel 7 (I/​O)
- Code nameGranite Rapids-AP, Plattform: Birch Stream
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
N/A
Rear
2x USB 3.2, 1x VGA, 2x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
