2U GPU Server Configurator - AMD EPYC
AMD EPYC 9005 Turin
Max. 2,304 GB DDR5 ECC RAM
12x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 Hot-Swap
Up to 4x GPU
8.999
,-
incl. VAT plusShipping
164
,35
Pre-order:
approx. 2 months
Up to 5 years warranty
Lifetime support
>20 years of experience
/month
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
2U GPU Server Configurator
AMD EPYC
19" housing in 2U format based on the AMD EPYC Genoa (So. SP5) processors.
Technical details
2U GPU Server Configurator - AMD EPYC
- 2U server enclosure - GigabyteThe Gigabyte R263-ZG0 server system offers you maximum performance based on a powerful AMD EPYC 9005 Turin processor. The system's memory can be expanded by 24 DDR5 DIMMs up to 2,304GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. 12x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency - ideal for data-intensive workloads. The system also offers space for up to four graphics cards and is therefore ideally equipped for AI, deep learning and complex simulations. Configure the Gigabyte R263-ZG0 now according to your individual needs and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Number of NVMe drives12x 3.5"/2.5" Gen5 NVMe
- Server power supply2700W 80 PLUS Titanium
- Number of OCP 3.0 slotsN/A
- CPU support1x AMD SP5
- Main boardMZG3-GU0
- CPU thermal design power500 watts
- Height unit2U
- Number of hot swap slots12x 3.5"/2.5" SATA/SAS-4
- Connections (CHA)2x USB 3.2
- Number of PCIe slots5x FHFL x16 (Gen5 x16), 1 xFHHL x16 (Gen5 x16)
- Dimensions (WxHxD)438mm x 87.5mm x 815mm (WxHxD)
- Number of DIMM slots24x DDR5
- Connections (rear)2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45 (Management LAN)
- AMD Epyc 9124, 16x 3.0GHz, 64MB L3 cacheAMD EPYC 9004 Genoa: Unleash extreme computing power and scalability. With up to 96 Zen 4-cores, DDR5 support and PCIe 5.0 for maximum bandwidth - perfect for data centers, HPC and AI applications.
Technical details - Processor cores16
- BaseAMD SP5
- Processor threads32
- Base clock3.00GHz
- Turbo beat3.70GHz
- L2 cache16MB (16x 1MB)
- L3 cache64MB (4x 16MB)
- TDP200W
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0
- Memory controller12 Channel DDR5-4800 (PC5-38400, 460.8GB/s), max. 6TB
- ManufacturingZen 4
- Code nameGenoa
- 16 GB RDIMM ECC DDR5-6400
Technical details - RAM type designationDDR5 RDIMM 288-pin, registered ECC, on-die ECC
- RAM size1x 16 GB
- RAM total16 GB
- Memory clock Label6400MT/s
- Latency52
- RAM coolingN/A
- Special featuresStandard SPD
- 1Gbit/s LAN network card (1x RJ45) - Intel I210-T1 | PCIe
Technical details - PCIe cut point1x PCIe 2.1 x1
- Transmission1x RJ-45 (10/100/1000Base-T)
- ChipsetIntel I210-AT (LAN-Adapter, RJ-45)
- Special featuresVLAN, Wake on LAN, iSCSI, NC-SI, Intel VT-c, PXE bootrom 2.1, Audio-Video Bridging (AVB), 802.1Qav
Connectivity

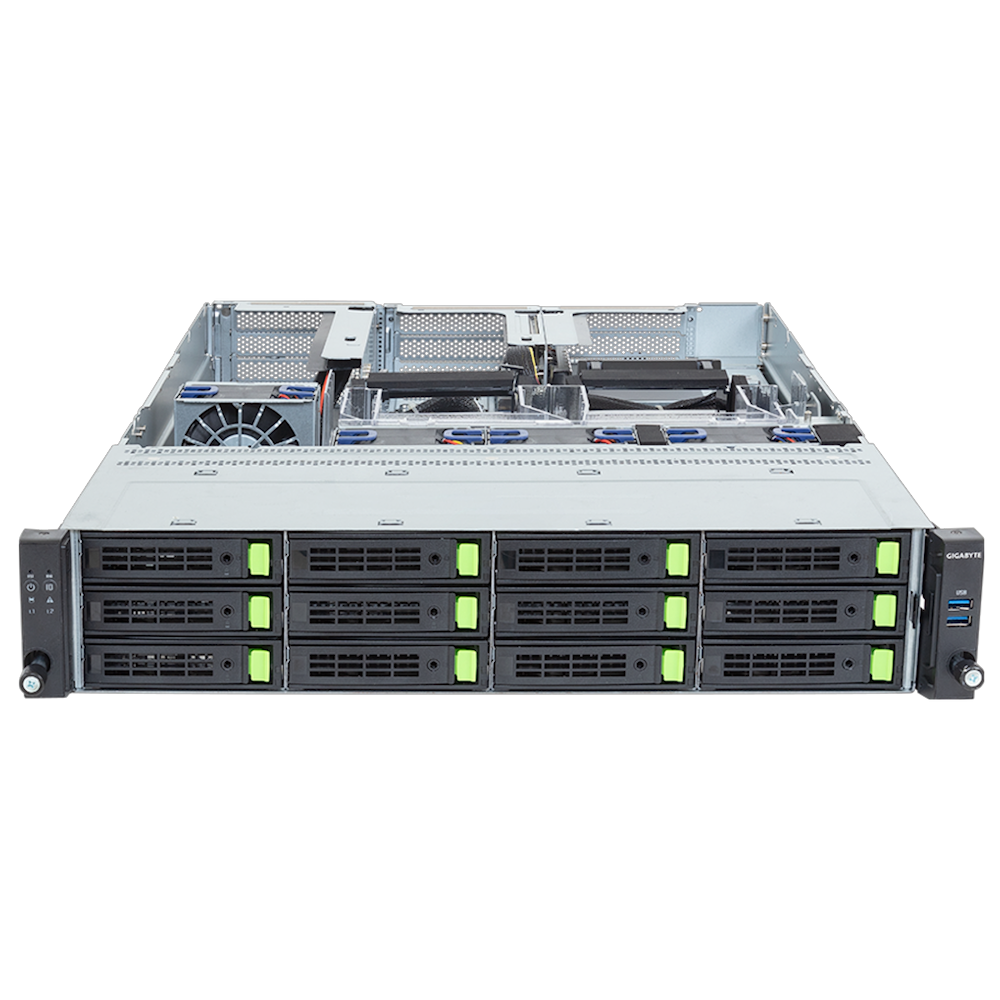

Front
2x USB 3.2

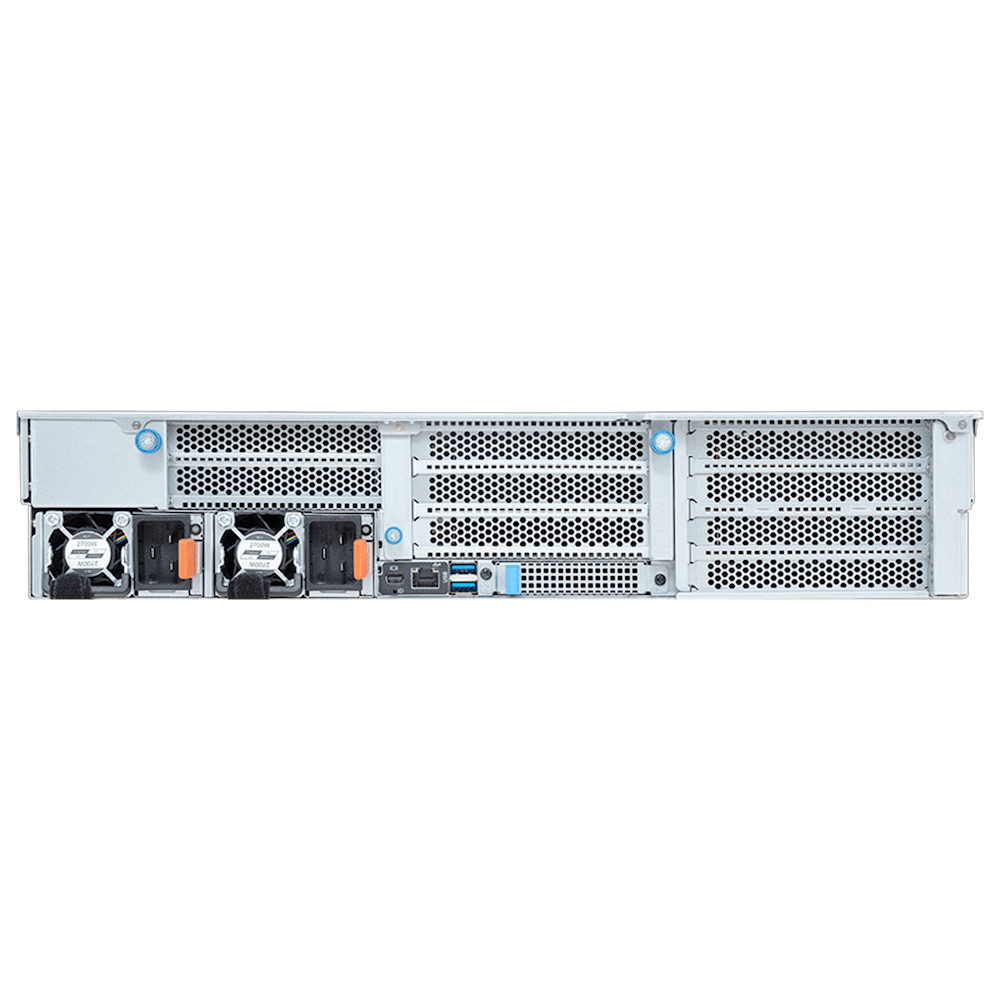

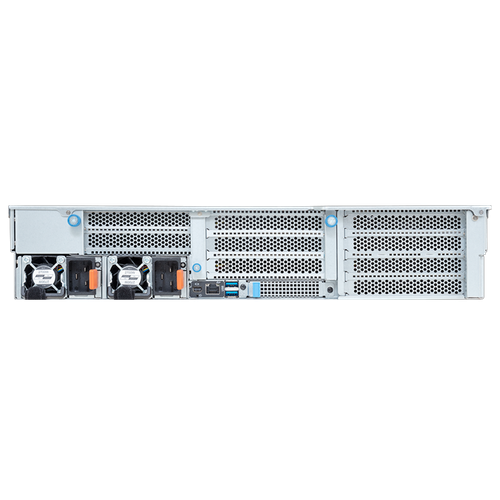

Rear
2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45 (Management LAN)
