1U server configurator
Intel Xeon Scalable
19" housing in 1U format based on the Intel Xeon Scalable (So. 4677) processors.
Technical details
1U server configurator - Intel Xeon Scalable

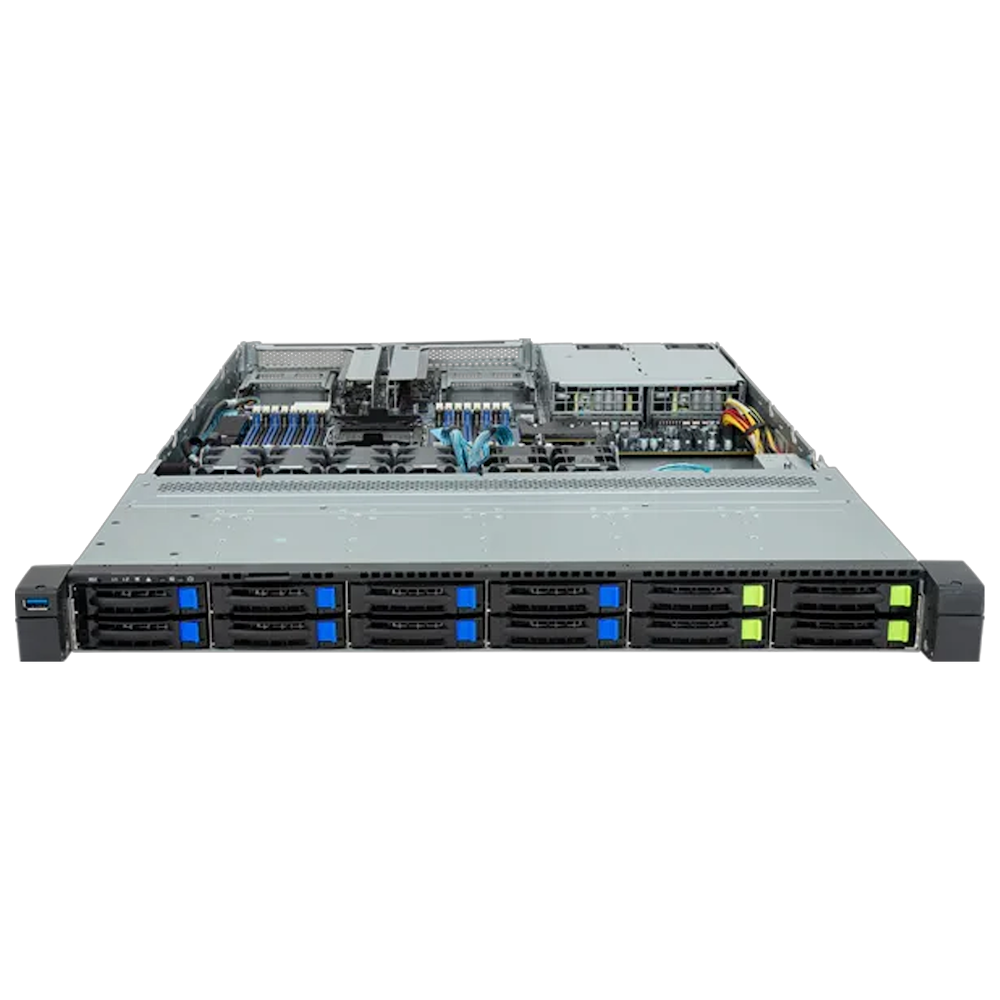

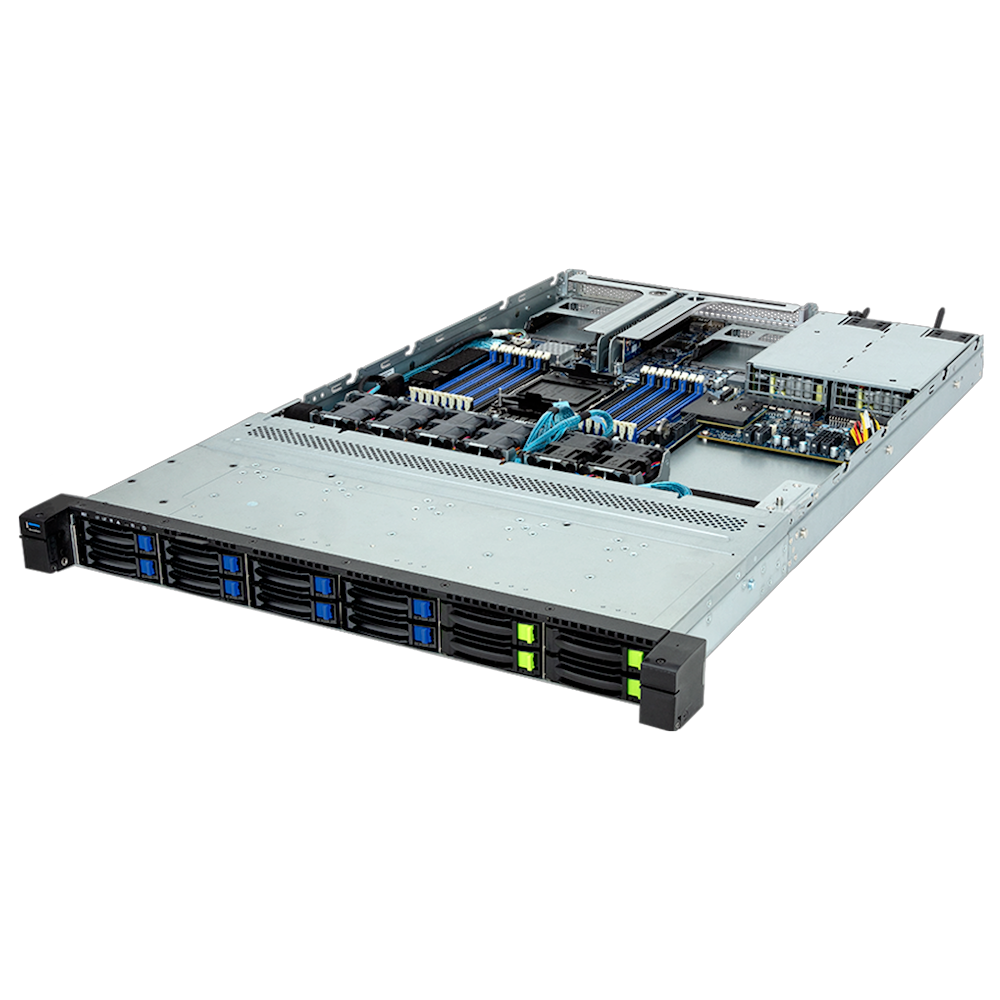

- 1U server enclosure - GigabyteThe Gigabyte R163-S32 server system offers you maximum performance based on a powerful Intel Xeon Scalable v5 processor. The system's memory can be expanded by 16 DDR5 DIMMs up to 1,536GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 8x 2.5" SATA/SAS hot-swap bays for cost-efficient mass storage. In addition, 4x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency - ideal for data-intensive workloads. The network connection is ensured by two flexible OCP NIC 3.0 slots. These allow you to equip the system with suitable network cards for speeds from 10GbE up to 200GbE and thus optimally integrate it into your existing infrastructure. Configure the Gigabyte R163-S32 now according to your individual requirements and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)1x USB 3.2
- Number of PCIe slots2x FHHL x16 (Gen5 x16)
- Number of hot swap slots8 x 2.5" SATA/SAS
- Number of NVMe drives4 x 2.5" Gen4 NVMe/SATA/SAS
- Server power supply1+1 1300W 80 PLUS Titanium
- Number of OCP 3.0 slots2x OCP NIC 3.0 (Gen5 x16)
- CPU support1x Intel LGA 4677
- Main boardGigabyte MS33-DC0
- Number of DIMM slots16x DDR5
- CPU thermal design power350 watts
- Height unit1U
- Dimensions (WxHxD)438mm x 43.5mm x 710mm (WxHxD)
- Connections (rear)2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- Intel Xeon Silver 4410Y, 12x 2.0GHz, 30MB L3 cache4th generation Intel Xeon Scalable processors: Accelerate your most demanding workloads. Benefit from DDR5, PCIe 5.0 and innovative integrated accelerators for AI, analytics, networking and storage. Ideal for modern data centers and cloud services.
Technical details - Processor cores12
- BaseLGA 4677
- Processor threads24
- Base clock2.00 GHz
- Turbo beat3.90 GHz
- L2 cache24MB (12x 2MB)
- L3 cache30MB
- TDP150 Watt
- iGPU type (label)N/A
- PCIe lanes80x PCIe 5.0
- Memory controller8 Channel DDR5-4000 (PC5-32000, 256GB/s), max. 4TB
- ManufacturingIntel 7
- Code nameSapphire Rapids-SP, Plattform: Eagle Stream
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
1x USB 3.2
Rear

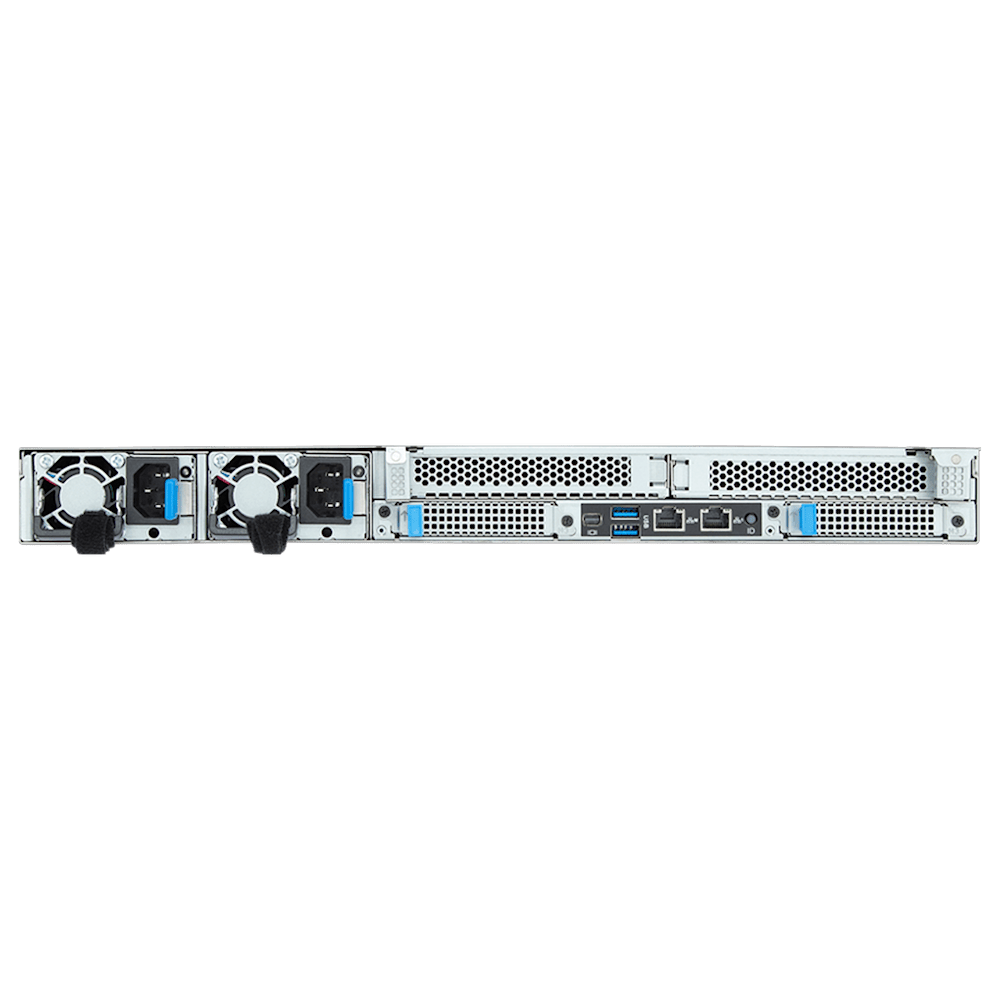

2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
