ID: 23850
1U server configurator - AMD EPYC
AMD EPYC 9005 Turin
Max. 1,152GB DDR5 ECC RAM
12x 2.5" Gen5 NVMe/SATA/SAS Hot-Swap
7.249
,-
incl. VAT plusShipping
132
,39
Pre-order:
approx. 2 months
Up to 5 years warranty
Lifetime support
>20 years of experience
/month
2-year warranty, including
pickup and return service
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
1U server configurator
AMD EPYC
19" housing in 1U format based on the AMD EPYC Genoa (So. SP5) processors.
Technical details
1U server configurator - AMD EPYC

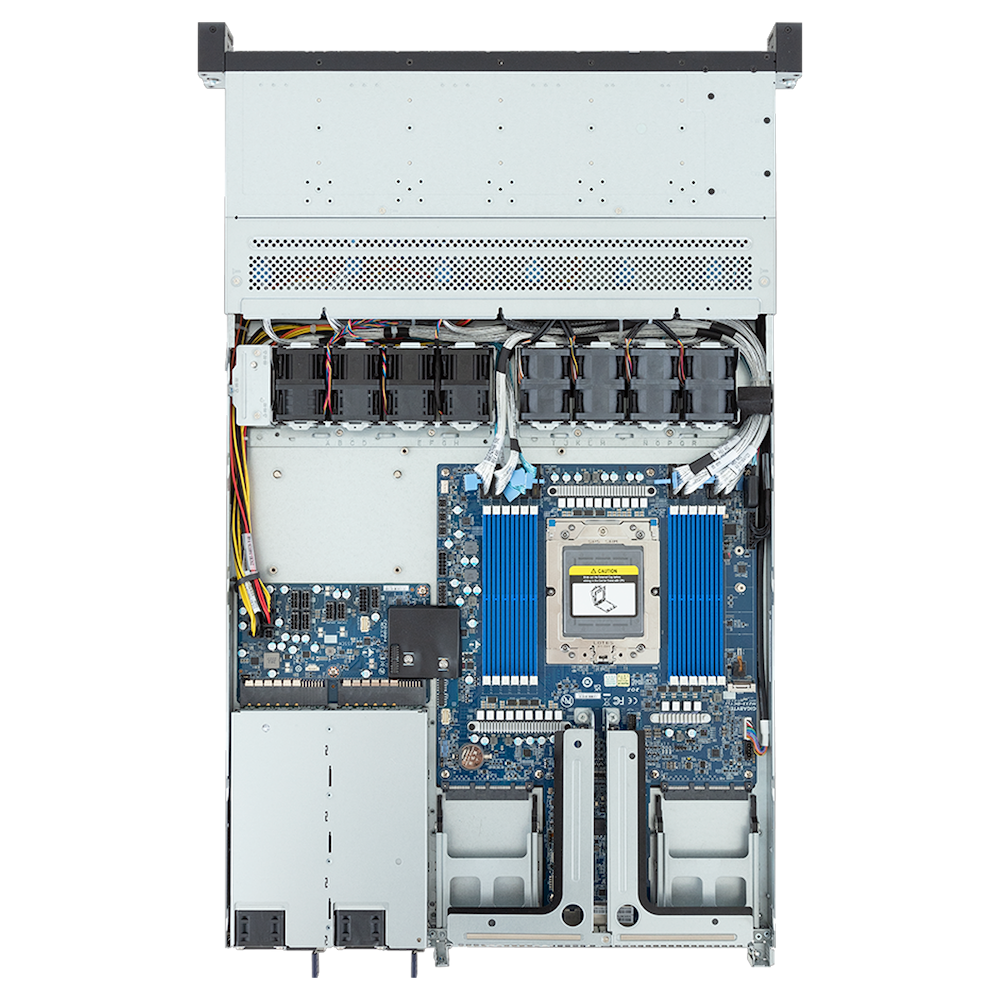

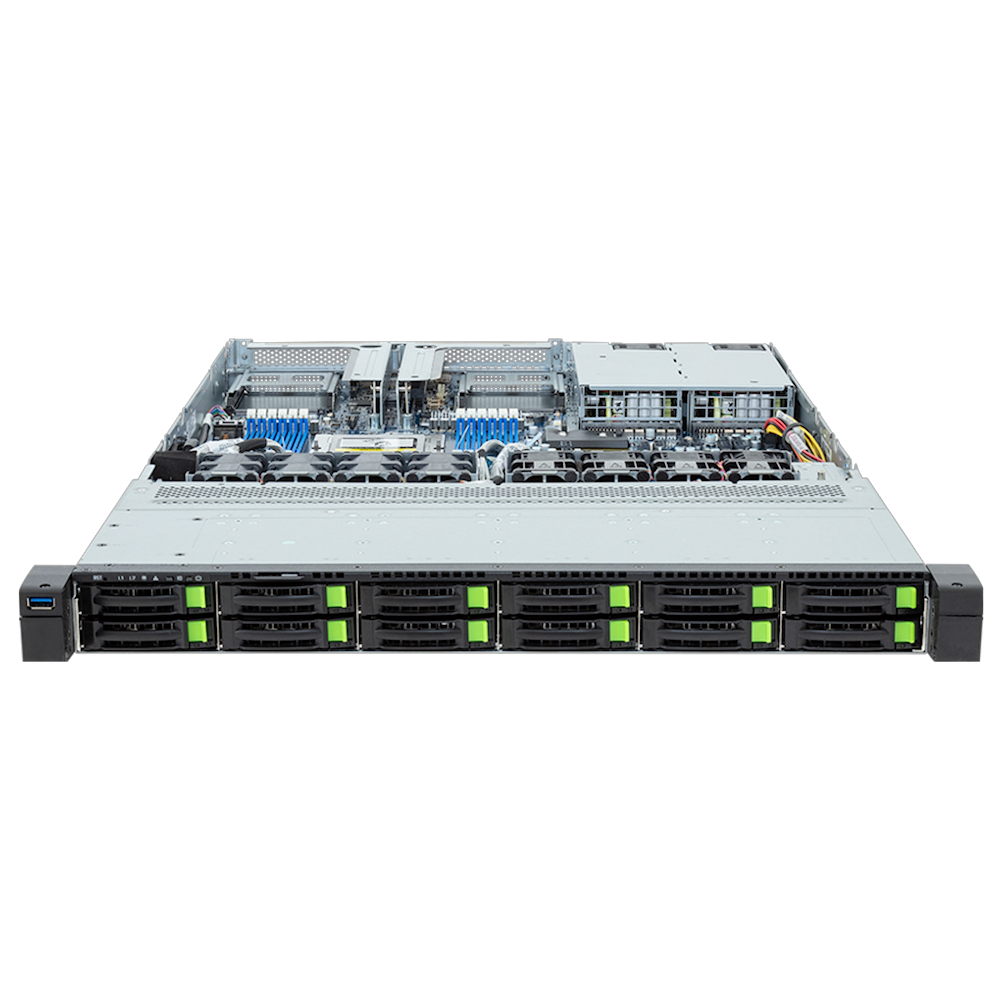

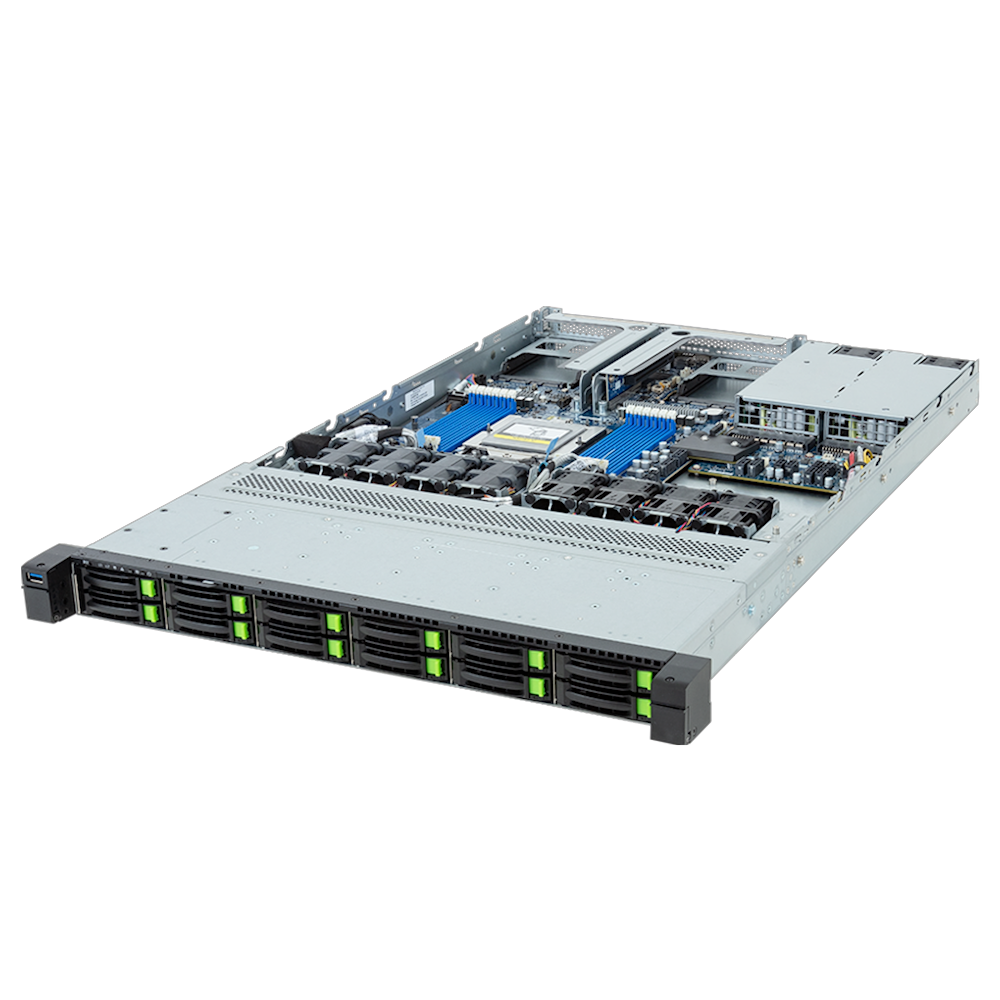

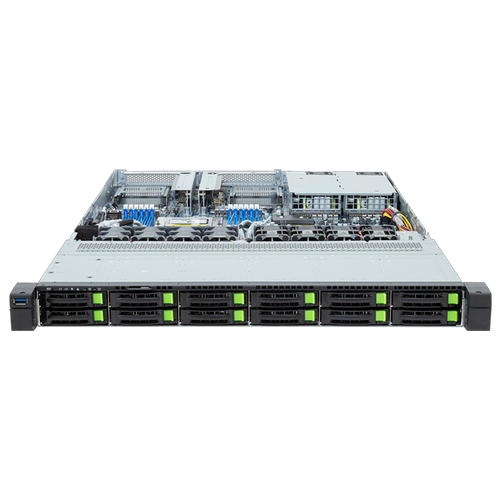

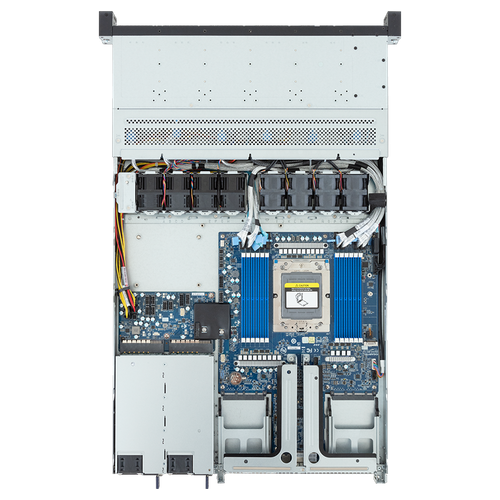

- 1U server enclosure - GigabyteThe Gigabyte R163-Z35 server system offers you maximum performance based on two powerful AMD EPYC 9005 Turin processors. The system's memory can be expanded by 12 DDR5 DIMMs up to 1,152GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 12x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays to enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency. The network connection is ensured by two flexible OCP NIC 3.0 slots. This allows you to equip the system with suitable network cards for speeds from 10GbE up to 200GbE and thus optimally integrate it into your existing infrastructure. Configure the Gigabyte R163-Z35 now according to your individual requirements and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)1x USB 3.2
- Number of PCIe slots2x FHHL x16 (Gen5 x16)
- Number of hot swap slots12x 2.5" Gen5 NVMe/SATA/SAS-4
- Number of NVMe drives12x 2.5" Gen5 NVMe/SATA/SAS-4
- Server power supply1+1 1300W 80 PLUS Titanium
- Number of OCP 3.0 slots2x OCP NIC 3.0 (Gen5 x16)
- CPU support1x SP5
- Main boardGigabyte MZ33-DC1
- Number of DIMM slots12x DDR5
- CPU thermal design power400 watts
- Height unit1U
- Dimensions (WxHxD)438mm x 43.5mm x 710mm (WxHxD)
- Connections (rear)2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
- AMD Epyc 9015, 8x 3.6GHz, 64MB L3 cacheAMD EPYC 9005 Turin: redefine computing power. The advanced Zen 5 architecture delivers breakthrough performance per core, combined with even higher core counts and support for DDR5 and PCIe 5.0. The pinnacle for AI, HPC and future-proof cloud infrastructures.
Technical details - Processor cores8
- BaseAMD SP5
- Processor threads16
- Base clock3.60GHz
- Turbo beat4.10GHz
- L2 cache8MB (8x 1MB)
- L3 cache64MB (4x 16MB)
- TDP155W
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0
- Memory controller12 Channel DDR5-6000 (PC5-48000, 576GB/s), max. 6TB
- ManufacturingZen 5
- Code nameTurin
- 16 GB RDIMM ECC DDR5-6400
Technical details - RAM type designationDDR5 RDIMM 288-pin, registered ECC, on-die ECC
- RAM size1x 16 GB
- RAM total16 GB
- Memory clock Label6400MT/s
- Latency52
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
1x USB 3.2
Rear

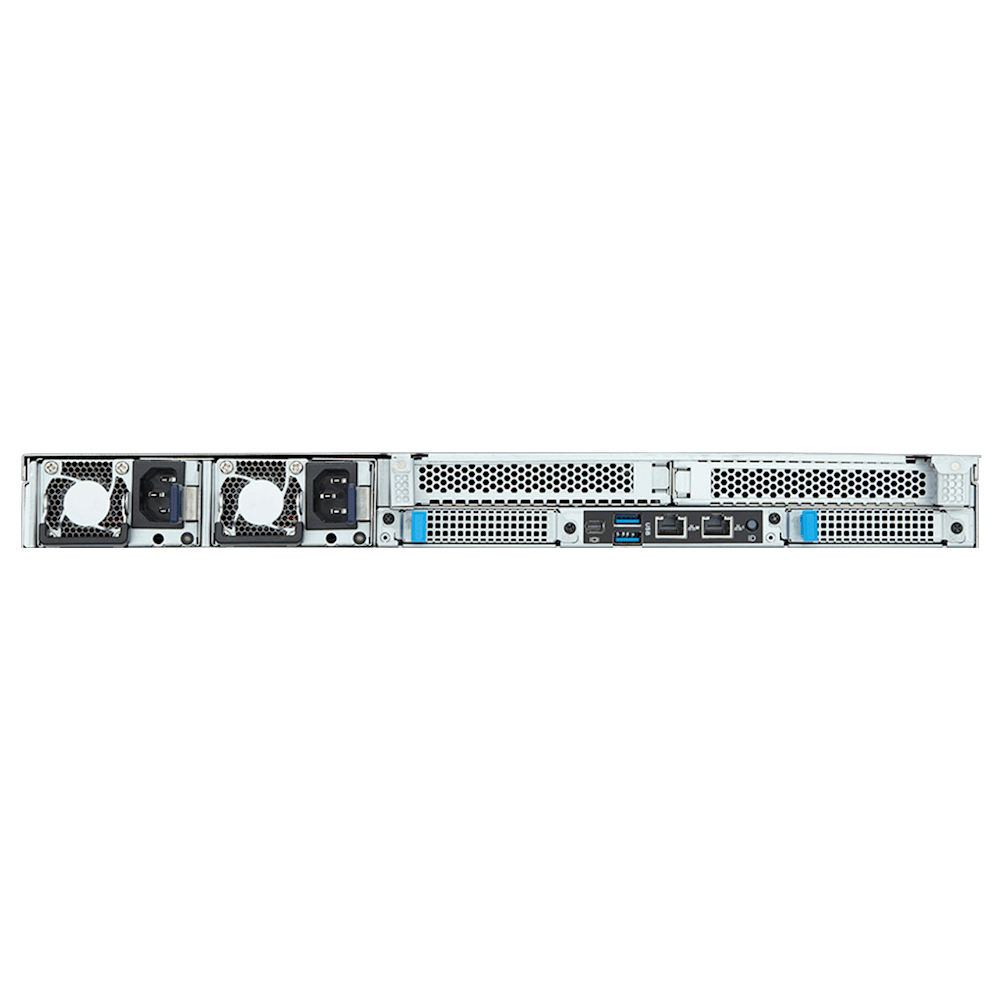

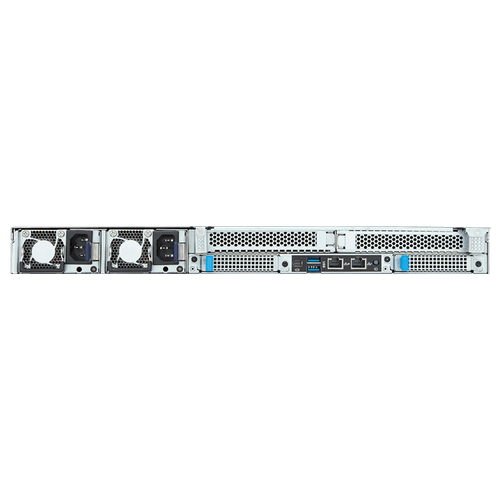

2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45, 1x 1GB LAN RJ-45 (Management LAN)
