1U GPU Server Configurator
AMD EPYC
19" housing in 1U format based on the AMD EPYC Genoa (So. SP5) processors.
Technical details
1U GPU Server Configurator - AMD EPYC

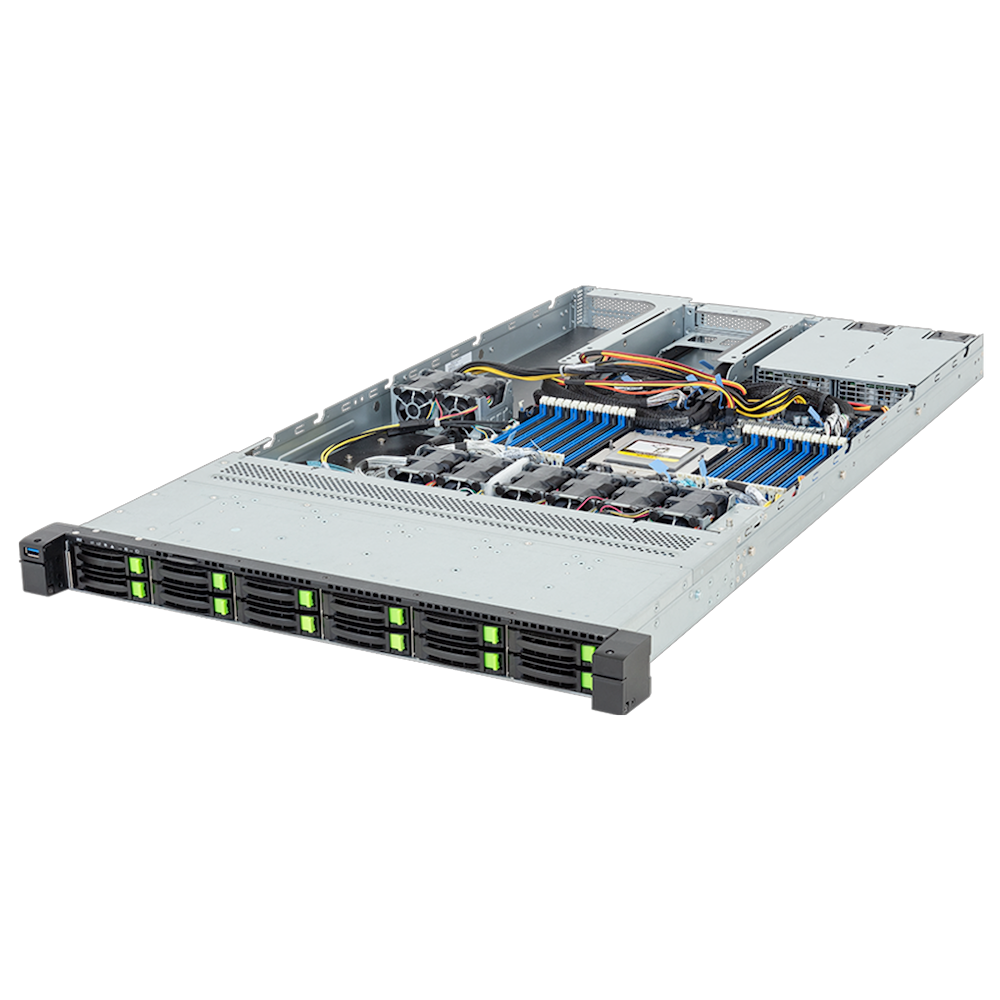

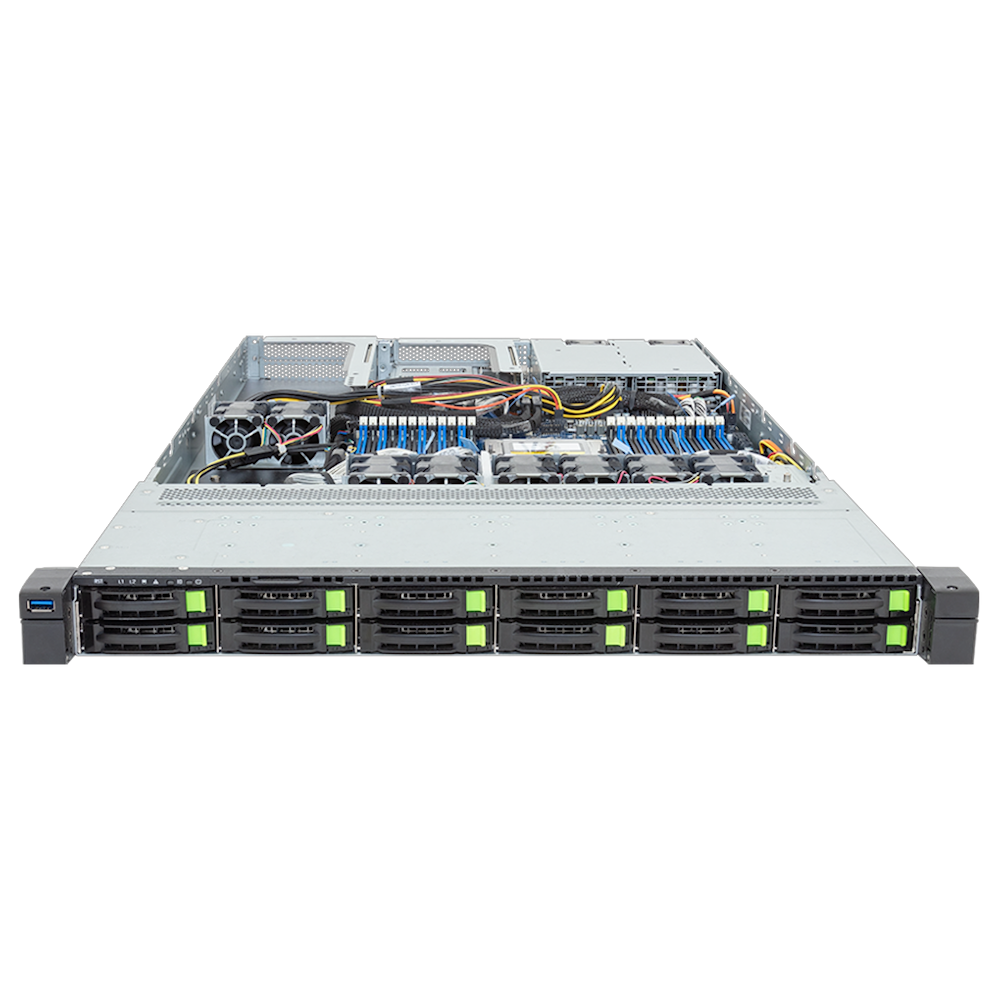

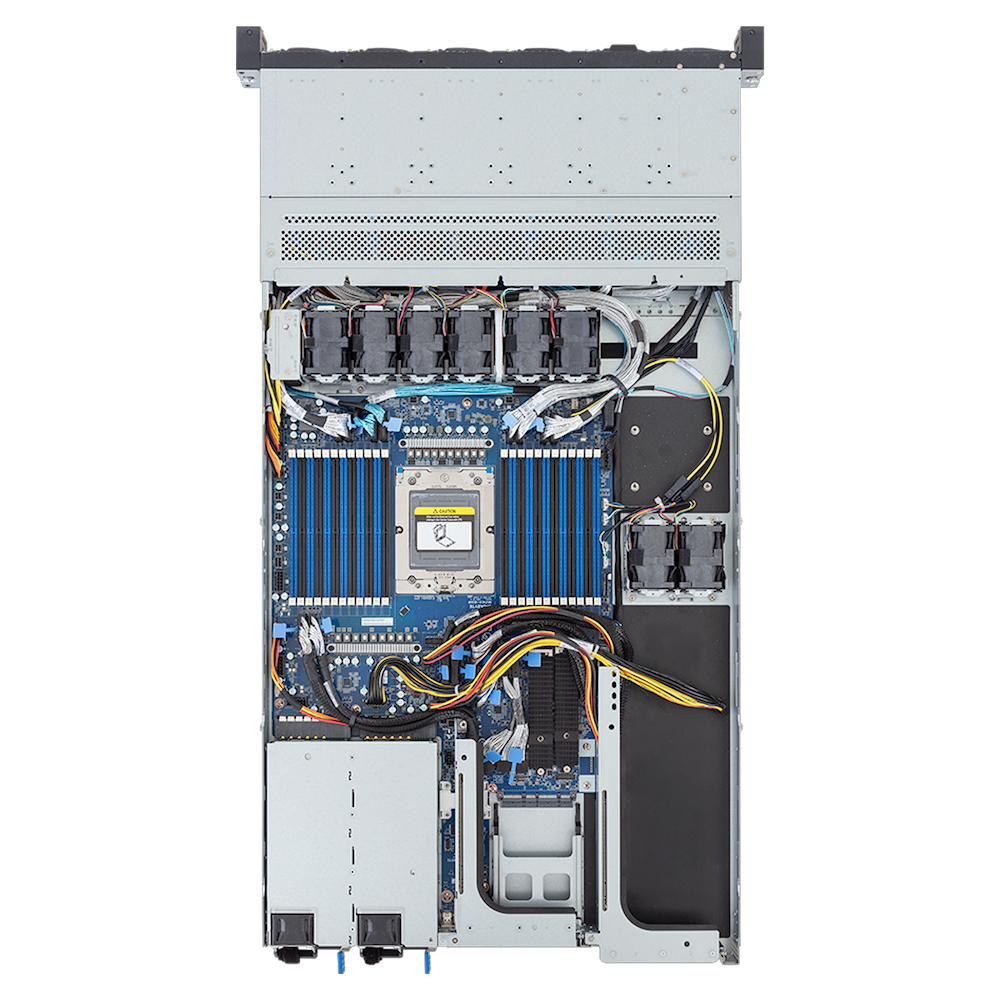

- 1U server enclosure - GigabyteThe Gigabyte R163-ZG2 server system offers you maximum performance based on a powerful AMD EPYC 9005 Turin processor. The system's memory can be expanded by 24 DDR5 DIMMs up to 2,304GB to provide more than enough resources for even the most demanding applications and extensive virtualization environments. The system's flexible storage solution offers space for up to 12x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays to enable the use of fast NVMe SSDs for maximum I/O performance and minimum latency. The system also offers space for a graphics card and is therefore ideally equipped for AI, deep learning and complex simulations. The network connection is ensured by a flexible OCP NIC 3.0 slot. This allows you to equip the system with suitable network cards for speeds from 10Gb to 200Gb and thus optimally integrate it into your existing infrastructure. Configure the Gigabyte R163-ZG2 now according to your individual requirements and secure a scalable and future-proof platform for your business-critical applications.
Technical details - Connections (CHA)1x USB 3.2
- Number of PCIe slots2x FHHL x16 (Gen5 x16)
- Number of hot swap slots12x 2.5" Gen5 NVMe/SATA/SAS-4
- Number of NVMe drives12x 2.5" Gen5 NVMe/SATA/SAS-4
- Server power supply1+1 1300W 80 PLUS Titanium
- Number of OCP 3.0 slots1x OCP NIC 3.0 (Gen5 x16)
- CPU support1x SP5
- Main boardGigabyte MZG3-GU0
- Number of DIMM slots24x DDR5
- CPU thermal design power500 watts
- Height unit1U
- Dimensions (WxHxD)438mm x 43.5mm x 710mm (WxHxD)

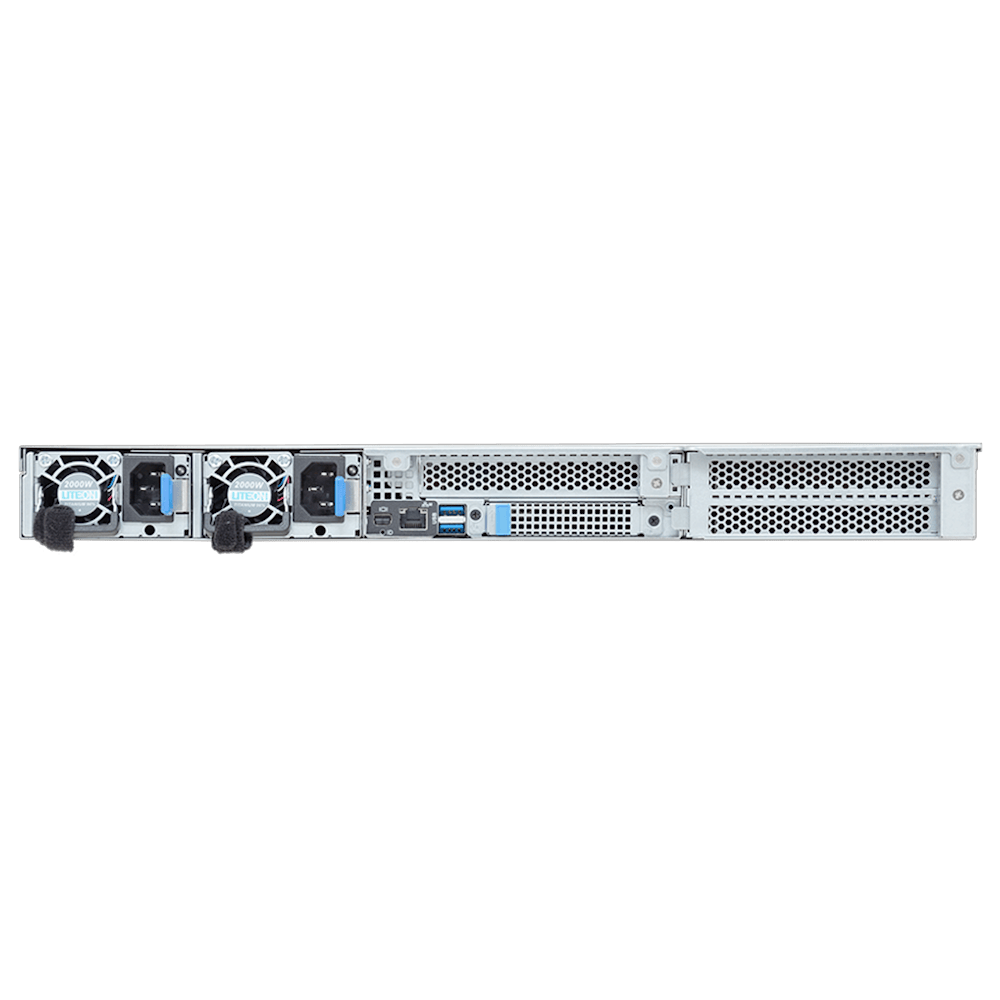

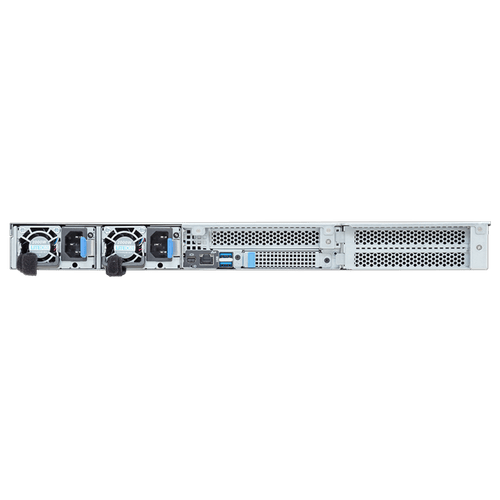

- Connections (rear)2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45 (Management LAN)
- AMD Epyc 9174F, 16x 4.1GHz, 256MB L3 cacheAMD EPYC 9004 Genoa: Unleash extreme computing power and scalability. With up to 96 Zen 4-cores, DDR5 support and PCIe 5.0 for maximum bandwidth - perfect for data centers, HPC and AI applications.
Technical details - Processor cores16
- BaseAMD SP5
- Processor threads32
- Base clock4.10GHz
- Turbo beat4.40GHz
- L2 cache16MB (16x 1MB)
- L3 cache256MB (8x 32MB)
- TDP320W
- iGPU type (label)N/A
- PCIe lanes128x PCIe 5.0
- Memory controller12 Channel DDR5-4800 (PC5-38400, 460.8GB/s), max. 6TB
- ManufacturingZen 4
- Code nameGenoa
- 16GB RDIMM ECC DDR5-5600
Technical details - RAM type designationDDR5 RDIMM 288-pin, reg ECC, on-die ECC
- RAM size1x 16GB
- RAM total16GB
- Memory clock Label5600MT/s
- Latency46
- RAM coolingN/A
- Special featuresStandard SPD
Connectivity
Front
1x USB 3.2
Rear
2x USB 3.2, 1x Mini-DP, 1x 1GB LAN RJ-45 (Management LAN)
