ID: 23950
Mini Gaming PC - Ryzen 7 9700X - RTX 5070
AMD Ryzen 7 9700X, 8C
RTX 5070 12GB, ASUS
2TB WD Black SN850X
GIGABYTE B850M Gaming X
32GB DDR5-6000, Corsair
2.499
,-
incl. VAT plusShipping
45
,64
Delivery time:
5-7 business days
3 year warranty
Lifetime support
30-day return policy
/month
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Mini Gaming PC
Ryzen 7 9700X - RTX 5070
▷ Powerful NVIDIA GeForce RTX 5070 graphics card
▷ Compact housing
▷ Ultra-fast start & response times thanks to NVMe SSD hard drive
▷ 32GB RAM
With this gaming PC, you are perfectly equipped for the latest games
Technical details
Mini Gaming PC - Ryzen 7 9700X - RTX 5070

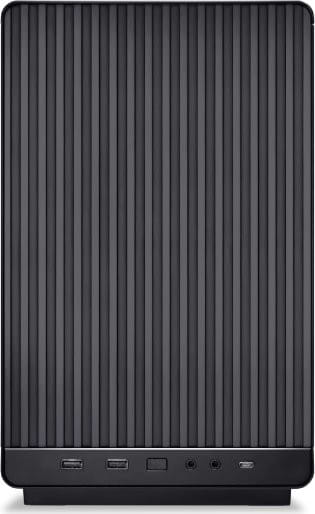

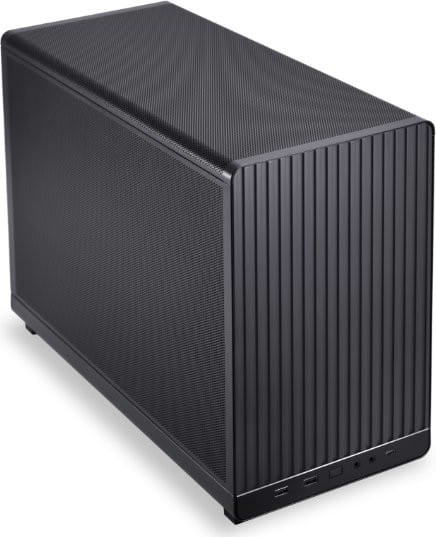

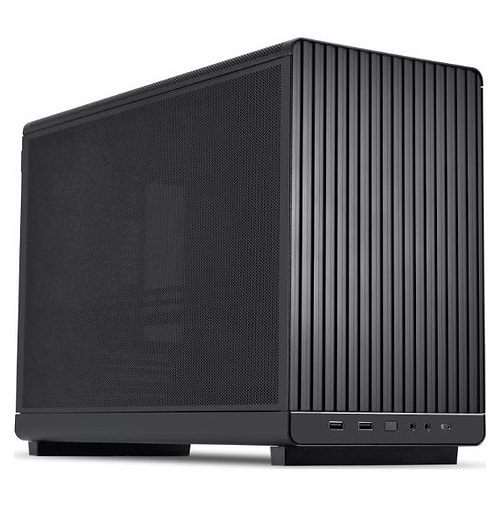

- DeepCool CH160 Plus, black
Technical details - Connections (CHA)1x USB-C 3.0 (5Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack Line-In/Out
- Number of PCIe slots3
- DesignmATX
- Mainboard compatibilityMini-ITX (6.7 "x6.7")/mATX (9.6 "x9.6")
- Fan (front)1
- Fan (rear)1
- Fan (top).
- Fan (lateral).
- Fan (bottom).
- Internal drive bays1x 2.5"/3.5"
- ManufacturerDeepCool
- Lighting-
- Dimensions (WxHxD)195x323.5x375mm
- Special featuresCarrying handle, glass viewing window
- AMD Ryzen 7 9700X, 8x 3.8GHzThe latest generation of AMD processors offer an impressive combination of performance, efficiency and future-proofing, which is particularly interesting for gamers. Thanks to the advanced Zen architecture, the current models impress with high single-core performance, which often makes the decisive difference in modern games. At the same time, many cores and threads ensure strong multitasking capability, ideal for streaming, content creation and demanding applications in the background.
Technical details - Processor cores8 (8C)
- BaseAMD AM5 (LGA1718)
- Processor threads16
- Base clock3.80GHz
- Turbo beat5.50GHz
- L2 cache8MB (8x 1MB)
- L3 cache32MB
- TDP65W
- iGPU type (label)AMD Radeon Graphics
- PCIe lanes24x PCIe 5.0
- Memory controllermax. DDR5-5600 (PC5-44800, 89.6GB/s)
- ManufacturingZen 5
- Code nameGranite Ridge
- GIGABYTE B850M Gaming X WIFI6E | AMD B850AMD B850 motherboards offer a powerful yet balanced all-round solution for modern gaming systems. They are designed for the latest Ryzen processors with AM5 sockets and form a future-proof platform that is ideal for demanding games, creative work and smooth multitasking. With support for PCIe 5.0 and DDR5, B850 boards provide the technical basis for high data rates and short load times.
Technical details - Processor socketAMD AM5
- RAM supportDDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000)
- Wireless standardsWi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3
- Form factormATX
- ChipsetAMD B850
- LightingRGB, 1 zone (chipset cooler)
- Special featuresAudio+solid capacitors, Diagnostic LED (LED indicators), integrated I/O panel, 1x M.2 passive cooler
- Power supply1x 24-pin ATX, 1x 8-pin EPS12V
- FAN header1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 1x fan 4-pin PWM, 1x fan/pump 4-pin PWM
- Audio descriptionRealtek
- Connections (rear)1x HDMI 2.1 (HDCP 2.3, iGPU), 2x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 3x 3.5mm jack (Realtek), 1x PS/2 Combo, 2x antenna connection Quick Connect
- Internal connections1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C 3.1), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A 3.0), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A 2.0)
- RAID level0/1/10 (B850)
- Expansion slots1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2580/22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 25110/2580/22110/2280), 1x M.2/E-Key (2230, occupied with WiFi+BT module)
- RGB header3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, GIGABYTE Gen2), 1x 4-Pin RGB (+12V/G/R/B, max. 2A)
- NVIDIA GeForce RTX 5070 12GB | ASUS PRIME OCPower up your PC with the NVIDIA® GeForce RTX™ 5070. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. These are supported by the ultra-efficient NVIDIA Blackwell architecture and 12 GB of super-fast GDDR7 memory.
Technical details - Memory type12GB GDDR7, 192bit, 28Gbps, 1750MHz, 672GB/s
- API supportDirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- PCIe cut pointPCIe 5.0 x16
- GPU typeNVIDIA RTX 5070
- VRAM12GB
- GPU clock2116MHz
- GPU clock (boost)2512MHz (Standard-Profil), 2542MHz (OC-Profil)
- GPU fan3x axial fan (90mm) with 0dB zero fan mode (up to 55°C)
- Power consumption250W (NVIDIA)
- Dimensions (WxHxD)304x126x50mm (LxWxH)
- Special featuresAI acceleration, clock profiles (default mode/OC mode), backplate
- Power supply1x 12V-2x6 (via adapter: 2x 8-pin PCIe)
- Connections (rear)1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- 32GB Corsair Vengeance DDR5-6000 | 2x 16GBThe Corsair Vengeance memory is one of the most popular RAM series among gamers and offers an outstanding combination of performance, stability, and design. With high clock speeds and low latencies, it ensures that modern games run smoothly and load quickly—even when paired with high-performance processors and graphics cards.
Technical details - RAM type designationDDR5 288-pin DIMM, on-die ECC
- RAM size2 x 16 GB
- RAM total32 GB
- Memory clock Label6000MT/s
- Latency36
- RAM coolingHeat Spreader
- Special features-
- DeepCool AK500 MIFCOM Black | 120mm fanThe DeepCool AK500 is a powerful tower cooler that has been specially developed for modern gaming and workstation systems. With its massive cooling surface, an asymmetrical heat sink design and a high-quality 120 mm fan, it offers impressive heat dissipation - ideal for powerful multi-core processors, even under continuous load.
Technical details - Heatpipes5 heatpipes (6mm)
- TDP240W
- Lighting-
- Dimensions (WxHxD)127x158x117mm (WxHxD)
- Special features-
- Fan1x 120x120x25mm, 500-1850rpm, 117.28m³/h, 69.02 CFM, 31.5dB(A), 2.19mmH₂O, hydrodynamic plain bearing (FDB)
- Socket AMDAM5, AM4
- Socket Intel1851/1700
- 2TB SanDisk WD Black SN850X
Technical details - Memory typeD-NAND TLC, Kioxia, 112 layer (BiCS5)
- Storage capacity2TB
- InterfaceM.2/M-Key (PCIe 4.0 x4)
- Reading speed7300MB/s
- Write speed6600MB/s SLC-Cached
- SSD controllerWestern Digital Black G2
- Mean time between failures-
- IOPS 4K1200k reading, 1100k writing
- Power supply-
- 750W - Corsair SF Series | modular
Technical details - PSU power (Desc)750W
- Power 12V62.5A
- Power 3.3V20A
- Power 5V20A
- Power -12V0A
- PSU certification80 PLUS Platinum
- Fan92mm, semi-passive
- Volume32.98dB(A) (according to Cybenetics certificate, 115V), 31.72dB(A) (according to Cybenetics certificate, 230V)
- Form factorSFX
- Special featuresErP Lot 6, supports Haswell C6/C7 low-power states, incl. SFX to ATX power supply adapter
- 3-year warranty | incl. pick-up & returnWe grant a 3-year warranty on the delivered PC from the date of delivery, including free pick-up & return service in Germany, Austria and Switzerland. If material or manufacturing defects occur during this period, which significantly impair your work with the PC, we will pick up the defective PC or only the defective component (so that you can continue to work with the PC all the time under certain circumstances) free of charge, repair or replace the PC and then make the PC available to you again. Peripherals and accessories (e.g. monitors etc.) are covered by the manufacturer's warranty.
Technical details - Warranty period3 years
- Pick-up and return service3 years
- Telephone supportYes
- Callback serviceYes
- E-mail supportYes
Dimensions
WIDTH x HEIGHT x DEPTH
195x323.5x375mm
Connectivity
Front
1x USB-C 3.0 (5Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 3.5mm jack Line-In/Out
Rear
1x HDMI 2.1 (HDCP 2.3, iGPU), 2x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 3x 3.5mm jack (Realtek), 1x PS/2 Combo, 2x antenna connection Quick Connect, 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
