ID: 391
Gigabyte - DGX Station W775-V10-L01
496 GB LPDDR5x
2TB PCIe 5.0 NVMe
118.999
,-
incl. VAT plusShipping
Pre-order:
approx. 3 months
3 year warranty
Lifetime support
>20 years of experience
3-year warranty,
including pickup and return
Lifetime
Support
Professional
assembly
Rigorous testing and
quality control
Gigabyte
DGX Station W775-V10-L01

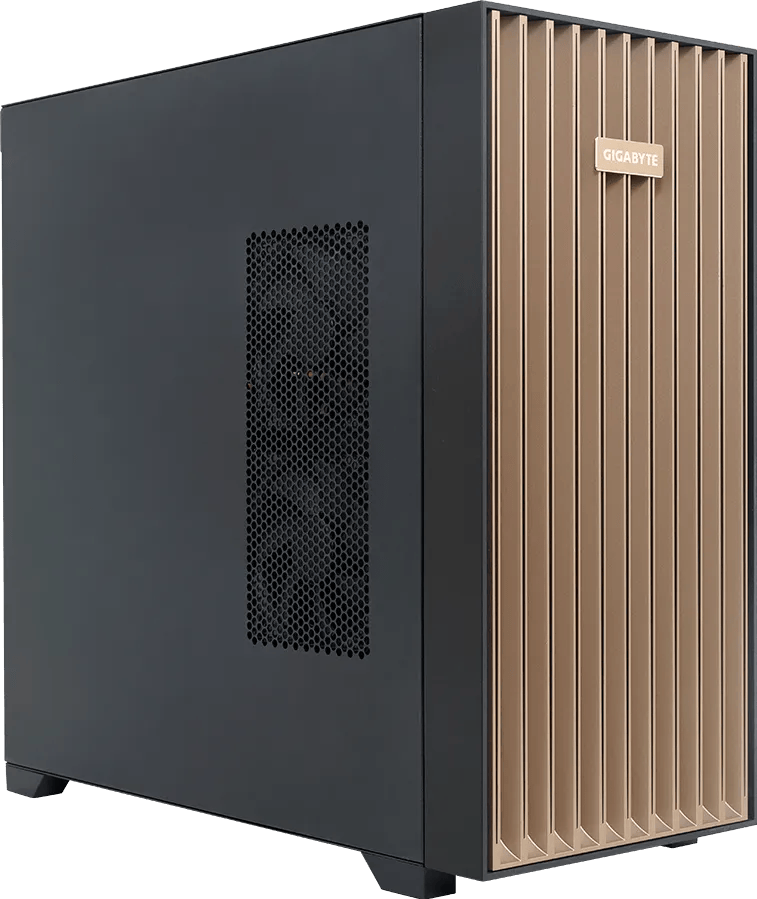

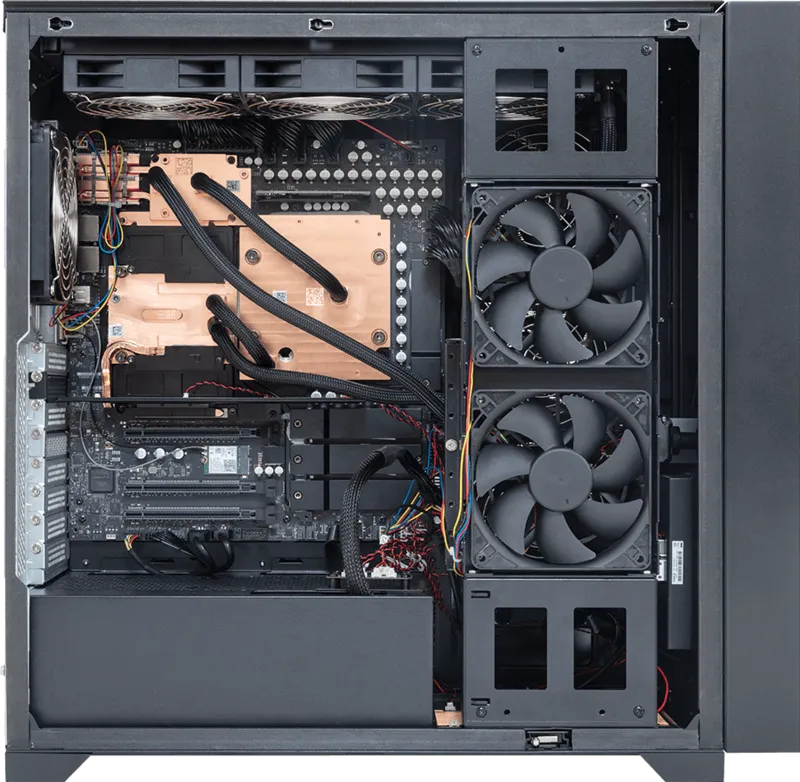

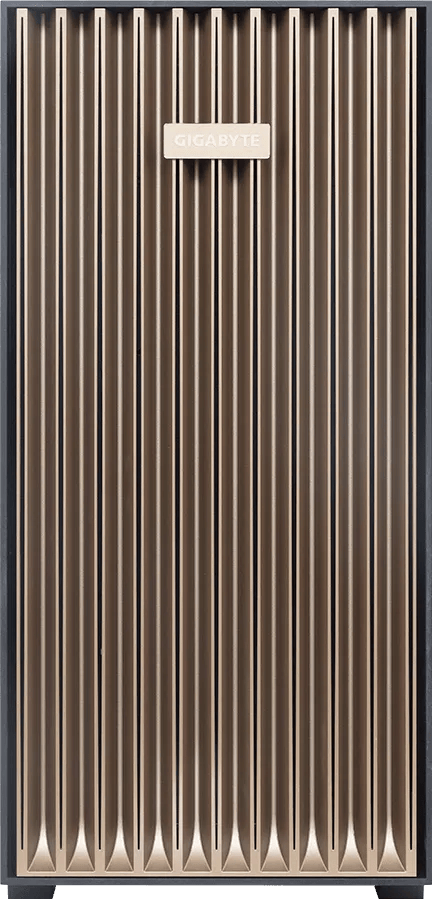

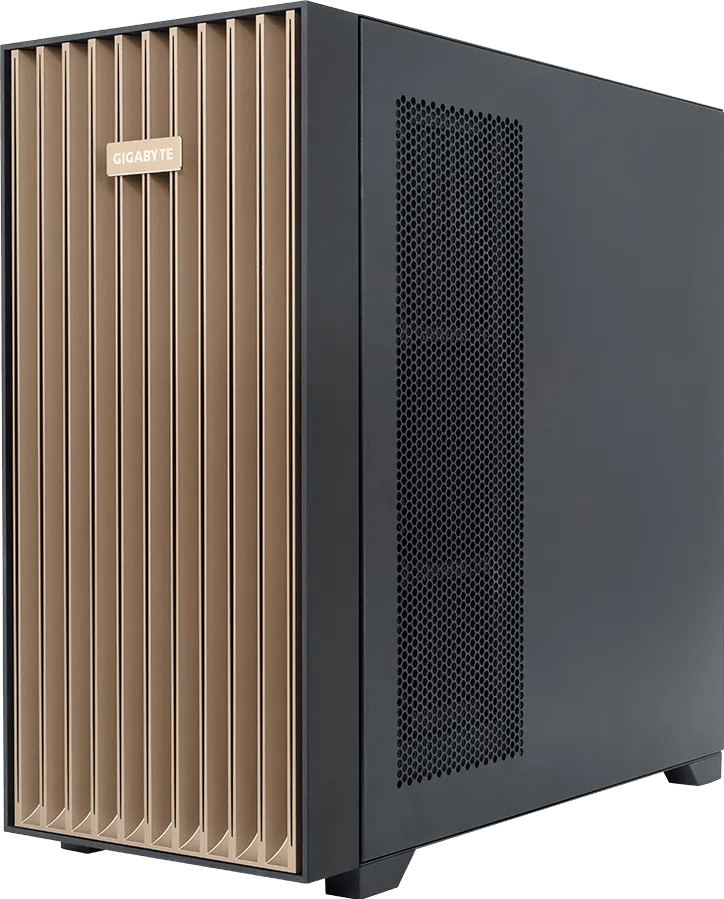

Gigabyte DGX Station - The AI Supercomputer for Your Workplace
Technical details
Gigabyte - DGX Station W775-V10-L01
- NVIDIA Grace, 72C, Arm Neoverse V2The NVIDIA Grace processor, with 72 Arm Neoverse V2 cores, delivers maximum energy efficiency and extreme data throughput for demanding AI and supercomputing workloads.
Technical details - Processor cores72C
- BaseNVIDIA Grace
- Processor threads72
- Base clock3.10 GHz
- Turbo beat-
- L2 cache72 MiB (72 × 1 MB)
- L3 cache117 MB
- TDP300W
- iGPU type (label)-
- PCIe lanes68x PCIe 5.0
- Memory controller496 GB LPDDR5x
- Manufacturing4nm (TSMC)
- Code nameGrace
- NVIDIA GB300 Grace BlackwellThe NVIDIA GB300 Grace Blackwell Ultra Superchip delivers up to 20 petaFLOPS of AI performance and 748 GB of coherent memory. It’s perfect for on-site prototyping, fine-tuning, and inference of the most demanding AI models right at your workstation.
Technical details - Memory type252 GB HBM3e
- API supportCUDA, TensorRT, OpenACC, Vulkan
- PCIe cut pointNVLink-C2C (Chip-to-Chip)
- GPU typeNVIDIA GB300 Grace Blackwell
- VRAM-
- GPU clock-
- GPU clock (boost)-
- GPU fanWater-cooled via a system AIO
- Power consumptionDynamic Power-Shifting
- Dimensions (WxHxD)-
- Special features20 PFLOPS FP4 AI performance, 252 GB HBM3e, NVLink C2C interconnect
- Power supplySystem-integrated
- Connections (rear)2x QSFP-400G (via ConnectX-8 SuperNIC)
- NVIDIA ConnectX-7NVIDIA ConnectX-7 enables the connection of two Gigabyte AI TOP ATOM systems to work with AI models with up to 405 billion parameters.
Technical details - PCIe cut point-
- Transmission800 Gbit/s, 2x QSFP-400G
- Chipset-
- Special features-
- ASUS ExpertCenter Pro ET900N G3The ASUS ExpertCenter with NVIDIA GB300 delivers full Grace Blackwell performance for demanding AI projects. It includes pre-installed NVIDIA AI software for local prototyping, fine-tuning, and inference. Develop your models right at your workstation and scale them flexibly to the data center.
Technical details - Design-
- Mainboard compatibility-
- Fan (front)-
- Fan (rear)-
- Fan (top)-
- Fan (lateral)-
- Fan (bottom)-
- Internal drive bays-
- ManufacturerASUS
- Connections (CHA)4x USB-A 3.1 (10 Gb/s), 1x Mini DisplayPort (BMC), 3x 3.5mm jack, 1x RJ-45 (10/100/1000/10GBase-T, Marvell), 2x QSFP56 (200 Gb/s InfiniBand, Mellanox ConnectX-7), 2x QSFP112 (400 Gb/s, Mellanox ConnectX-8), 1x management port via serial USB Micro-B, 1x management port via RJ-45 (1000Base-T, Realtek), 1x AC-In C14 (power connector), 2x USB-C 3.1 (10 Gb/s), 2x USB-A 3.1 (10 Gb/s), 1x USB-A 2.0 (480 Mb/s), 2x 3.5 mm jack, 1x AC-In C14 (power connection)
- Number of PCIe slots1x PCIe 5.0 x16, 2x PCIe 5.0 x8, 4x M.2/​M-Key (PCIe 5.0 x4, 2280, 2x belegt), 1x M.2/​E-Key (2230)
- Lighting-
- Dimensions (WxHxD)50.5 x 150 x 150 mm
- Special featuresNVIDIA DGX OS
- 496 GB LPDDR5x RAM
Technical details - RAM type designationLPDDR5x
- RAM size496 GB
- RAM total496 GB
- Memory clock Label-
- Latency-
- RAM cooling-
- Special features-
- 2 TB PCIe 5.0 NVMe
Technical details - Memory type-
- Storage capacity2 TB
- InterfaceM.2/​M-Key (PCIe 5.0 x4)
- Reading speed-
- Write speed-
- SSD controller-
- Mean time between failures-
- IOPS 4K-
- Power supply-
- 2-year warranty | incl. pick-up & return
Dimensions
WIDTH x HEIGHT x DEPTH
50.5 x 150 x 150 mm

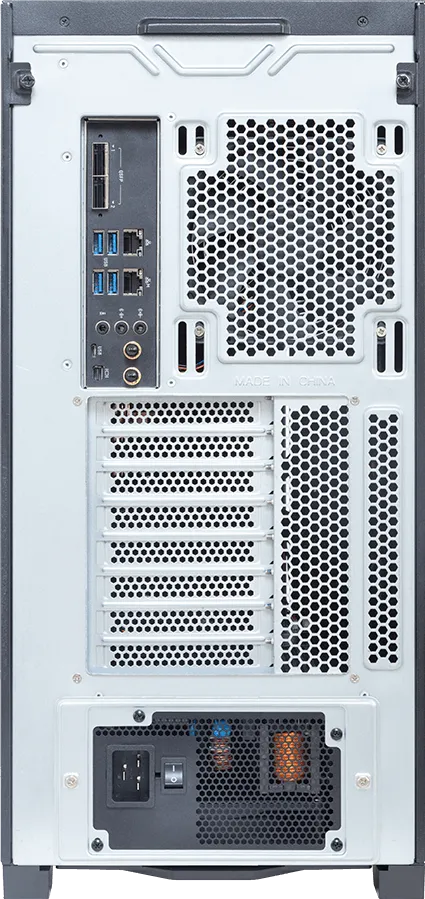

Connectivity
Front
4x USB-A 3.1 (10 Gb/s), 1x Mini DisplayPort (BMC), 3x 3.5mm jack, 1x RJ-45 (10/100/1000/10GBase-T, Marvell), 2x QSFP56 (200 Gb/s InfiniBand, Mellanox ConnectX-7), 2x QSFP112 (400 Gb/s, Mellanox ConnectX-8), 1x management port via serial USB Micro-B, 1x management port via RJ-45 (1000Base-T, Realtek), 1x AC-In C14 (power connector), 2x USB-C 3.1 (10 Gb/s), 2x USB-A 3.1 (10 Gb/s), 1x USB-A 2.0 (480 Mb/s), 2x 3.5 mm jack, 1x AC-In C14 (power connection)
Rear
2x QSFP-400G (via ConnectX-8 SuperNIC)
